Pride Mobility GO-GO ELITE TRAVELLER Plus Manuale utente

Go-Go Elite Traveller Plus Technical Troubleshooting Guide www.pridemobility.com 2

SAFETY GUIDELINES

WARNING! Indicates a potentially hazardous condition/situation. Failure to follow designated

procedures can cause either personal injury, component damage, or malfunction. On the

product, this icon is represented as a black symbol on a yellow triangle with a black border.

MANDATORY! These actions should be performed as specified. Failure to perform mandatory

actions can cause personal injury and/or equipment damage. On the product, this icon is

represented as a white symbol on a blue dot with a white border.

PROHIBITED! These actions are prohibited. These actions should not be performed at any

time or in any circumstances. Performing a prohibited action can cause personal injury and/

or equipment damage. On the product, this icon is represented as a black symbol with a red

circle and red slash.

Thesymbolsbelowareusedthroughoutthisowner'smanualandonthescootertoidentifywarningsandimportant

information.Itisveryimportantforyoutoreadthemandunderstandthemcompletely.

Go-Go Elite Traveller Plus Technical Troubleshooting Guide www.pridemobility.com 3

Table of Contents

INTRODUCTION ....................................................................................................... 4

SECTION 1: KEY INSERTED INTO KEY SWITCH - NO SIGNS OF POWER....... 6

SECTION 2: KEY INSERTED INTO THE KEY SWITCH - POWER ON BUT

SCOOTER DOES NOT MOVE ............................................................................... 10

SECTION 3: BEEP CODE DIAGNOSIS................................................................. 11

BEEP CODE #3 - Battery Voltage is too High..................................................................................11

BEEP CODE #5 - Brake Fault..........................................................................................................11

BEEP CODE #6 - Throttle Trip .........................................................................................................12

BEEP CODE #7 - Throttle Trip .........................................................................................................12

BEEP CODE #8 - Motor Disconnected............................................................................................14

BEEP CODE #9 - Possible Controller Trip .......................................................................................15

Go-Go Elite Traveller Plus Technical Troubleshooting Guide www.pridemobility.com 4

INTRODUCTION

GO-GO ELITE TRAVELLER PLUS TECHNICAL TROUBLESHOOTING

GUIDE

This Go-Go Elite Traveller Plus Technical Troubleshooting Guide covers diagnostic and repair scenarios for Go-Go Elite

Traveller Plus scooters that use the PG Drives S-Drive controller. The PG Drives S-Drive controller is a digital controller

that monitors the electrical system and emits beep codes when it encounters faults in the system.

This guide is divided into three sections:

!Section 1 — Key Inserted Into Key Switch - No Signs of Power

!Section 2 — Key Inserted Into Key Switch - Power On But Scooter Does Not Move

!Section 3 — Beep Code Diagnosis

How to Use Pride Model Specific Technical Troubleshooting Guides

AllnewPrideModelSpecificTechnicalTroubleshootingGuidesfollowthesameformat.Theyaredividedintosections

addressingsymptomssuchasNoPowerorUnitPowersUp But Does Not Drive. If themobilityproductiscapableof

givingfaultcodes,onesectionwilldealwitheachcodeforthat model.

Thetroubleshootingguideutilizesdiagramsthatarelocatedin thefrontandbackofthe guide.Thesediagramsidentify

maincomponentsbynumber(1,2,3,etc.)andallconnectorsbynumberwithalowercaseextension (1a, 2a, 3a, etc.).

Thediagramsalsoshow how all ofthecomponentsare connected.

UsingtheTable ofContents,locatethesectionthatbestdescribesyourtroubleshootingissue.Eachsectionwillinclude

alistofsymptoms,followedbyadiagnosisoftheproblem,andfinallyasolutionorproceduretosolvetheproblem.The

procedureissetupasanumberedlist of instructions, which mayincludeoneormoretests.Resultsof these tests will:

!Directyouto change acomponentand retest thesystem.

!Goto the nextnumbered step.

!Advancetoanumbered step farther alonginthesection.

System Retest

When a procedure specifies to replace a component, you must retest the system after replacing the component.

To retest the system:

1. Remove the key.

2. Replace the component.

3. Reconnect any harnesses that were disconnected.

4. Reinstall the battery boxes.

5. Insert the key.

—If the scooter operates normally, then reassemble

the scooter.

—If another problem has surfaced, then go to that

procedure in this guide.

Figure 1. Diagram Insert

)

(

(+)

)

(

50A

(+)

Go-Go Elite Traveller Plus Technical Troubleshooting Guide www.pridemobility.com 5

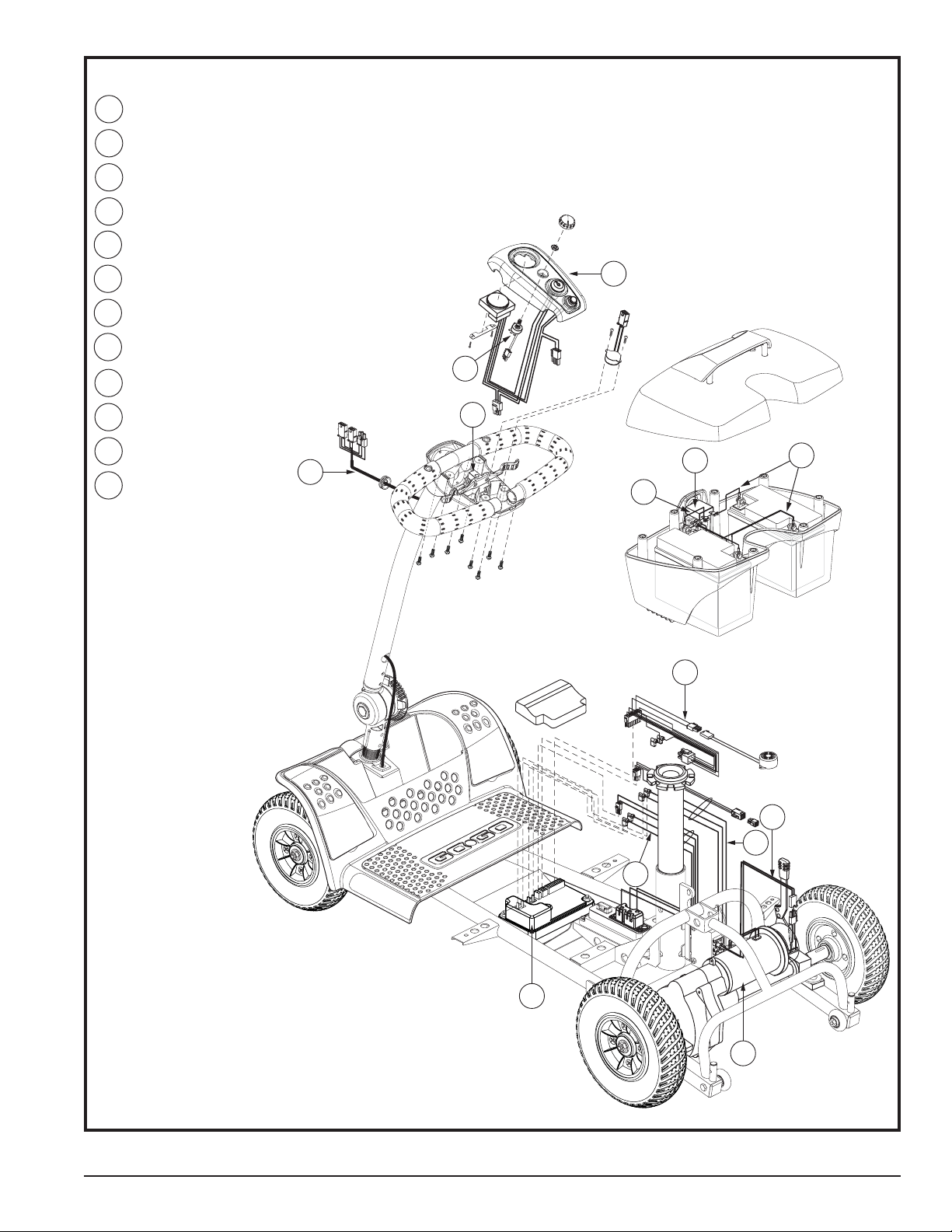

Diagram 1.Troubleshooting Key

BATTERY HARNESSES

SPEED POT

THROTTLE POT

MOTOR INTERFACE HARNESS

BRAKE HARNESS

MOTOR/TRANSAXLE ASSEMBLY

CONTROLLER

POWER INTERFACE HARNESS

FRONT-TO-REAR INTERFACE HARNESS

FRONT-TO-REAR HARNESS

MAIN CIRCUIT BREAKER

CONSOLE

Go-Go Elite Traveller Plus Technical Troubleshooting Guide www.pridemobility.com 6

Figure 3. Connector 1h

Figure2.Battery BoxDisassembly/Assembly(17-amp

batteriesshown)

SECTION 1: KEY INSERTED INTO

KEY SWITCH - NO SIGNS OF POWER

Symptoms:

!The battery condition meter shows no power.

!The horn does not work.

!Scooter will not drive.

Diagnosis:

The power has been interrupted in some part of the system.

Solution:

Use the following procedure to determine where the power

has been interrupted:

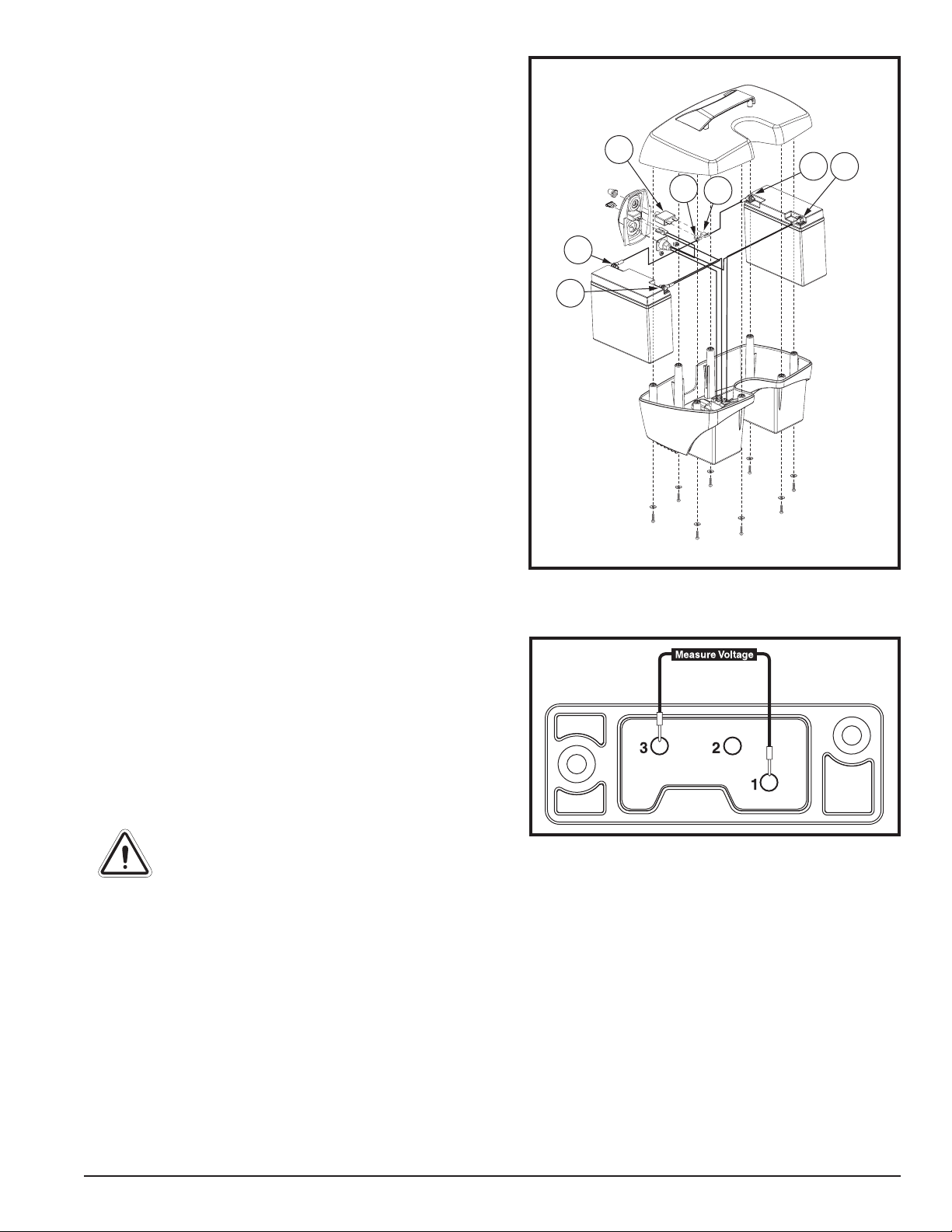

1. Check the circuit breaker (2). See figure 2.

— If the circuit breaker is not tripped, then go to the

next step.

— If the circuit breaker is tripped, then reset it and retest

the system.

2. Remove the battery box. Refer to the owner’s manual.

3. Measure voltage across pin 1 and pin 3 on connector 1h.

See figure 3.

— If your multimeter indicates 0VDC, then go to the next step.

— If your multimeter indicates greater than 18VDC, then

go to step 10.

— If your multimeter indicates greater than 0VDC but less

than 18VDC, then try to recharge the batteries and retest

the system.

4. Open the battery box. See figure 2.

WARNING! Battery posts, terminals, and

related accessories contain lead and

lead compounds. Wear goggles and

gloves when handling batteries and wash

hands after handling.

WARNING! Always protect the batteries

from freezing and never charge a frozen

battery. Charging a frozen battery may

result in damage to the battery.

5. Measure voltage across connectors 1b and 1c. See figure 2.

— If your multimeter indicates 0VDC, then go to the next step.

— If your multimeter indicates greater than 0VDC, then replace the battery box harness with fuseable link

(DWR9983H009) and retest the system.

6. Measure resistance across connectors 1a and 1d. See figure 2.

— If your multimeter indicates an open, then go to the next step.

— If your multimeter indicates less than 1 ohm, then replace the batteries and retest the system.

1a 1b

WARNING! Connect your battery harnesses in the proper manner. RED (+) cables must be

connected to positive (+) battery terminals/posts. BLACK (-) cables must be connected to

negative (-) battery terminals/posts. Failure to connect the battery cables and harnesses in

the proper manner may result in personal injury and/or damage to the power chair. REPLACE

cables immediately if damaged.

Go-Go Elite Traveller Plus Technical Troubleshooting Guide www.pridemobility.com 7

Figure 5. Fuse 5c

Figure 4. Main Circuit Breaker (2)

Figure 6. Front Console Disassembly/Assembly

7. Disconnect connectors 1f and 1g from the circuit breaker

(2). See figure 2.

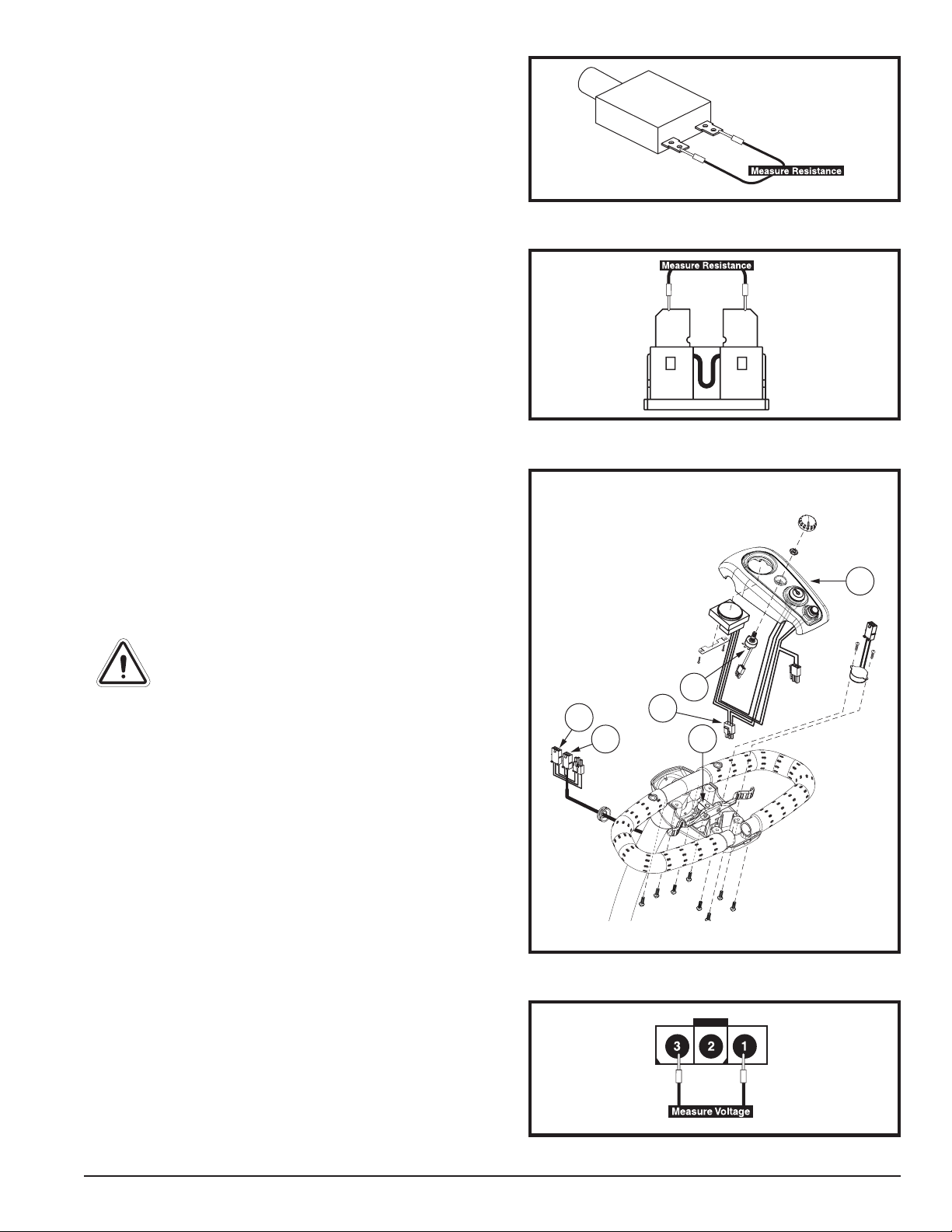

8. Measure resistance across the circuit breaker’s two

spade connectors. See figure 4.

— If your multimeter indicates less than 1 ohm, then go to

the next step.

— If your multimeter indicates an open, then replace the

circuit breaker (2) and retest the system.

9. Measure resistance from connectors 1d to 1f and 1a to 1g.

See figure 2.

— If your multimeter does not indicate less than 1 ohm

for 1d to 1f, then replace the B+ battery box circuit breaker

harness (DWR9983H011).

— If your multimeter does not indicate less than 1 ohm

for 1a to 1g, then replace the B- battery box circuit breaker

harness (DWR9983H010).

— If your multimeter does not indicate less than 1 ohm

for both measurements, then replace both battery box

circuit breaker harnesses.

10. Remove fuse 5c. See diagram 3.

11. Measure the resistance of fuse 5c. See figure 5.

—If your multimeter indicates less than 1 ohm, then go to

the next step.

— If your multimeter indicates an open, then replace the

fuse (5c) and retest the system.

WARNING! The replacement fuse must

exactly match the rating of the old fuse.

Failure to use properly rated fuses may

cause damage to the electrical system.

12. Reassemble the battery box and install it back onto the

scooter.

13. Open the front console. See figure 6.

14. Unplug connector 4c from connector 3a. See figure 5.

15. Measure voltage across pin 1 and pin 3 of connector 4c.

See figure 7.

— If your multimeter indicates 0VDC, then go to the next

step.

— If your multimeter indicates greater than 18VDC, then

replace the console (3) and retest the system.

Figure 7. Connector 4c

Go-Go Elite Traveller Plus Technical Troubleshooting Guide www.pridemobility.com 8

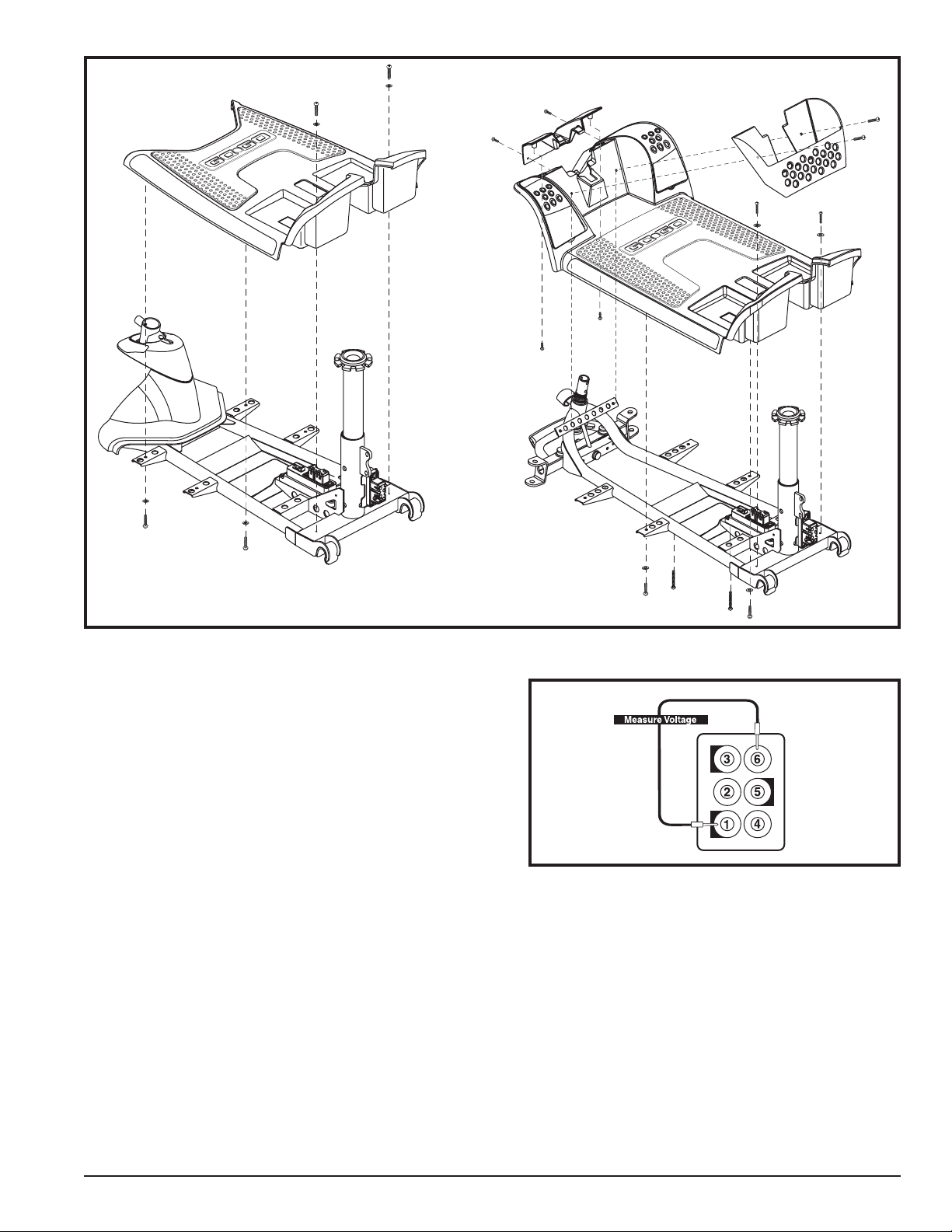

Figure 8. Main Shroud Disassembly/Assembly

16. Remove the battery box. Refer to the owner’s manual.

17. Remove the main shroud. See figure 8.

18. Reinstall the battery box making sure connector 1h and

connector 6a make contact. See diagram 2.

19. Unplug connector 5a from connector 4a. See diagram 2.

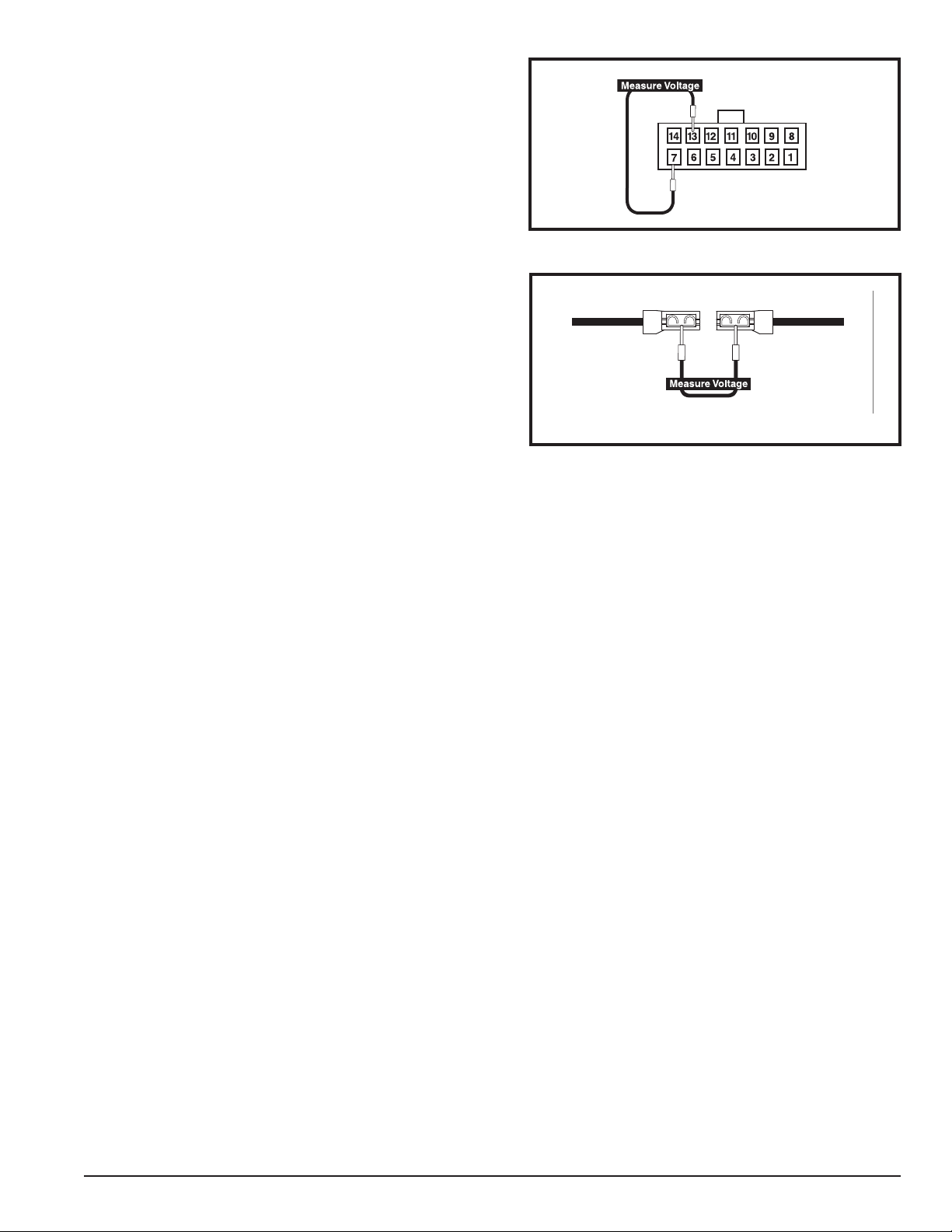

20. Measure voltage across pin 1 and pin 6 on connector 5a.

See figure 9.

— If your multimeter indicates 0VDC, then go to the

next step.

— If your multimeter indicates greater than 18VDC, then

replace the front-to-rear harness (4) and retest the system. Figure 9. Connector 5a

Go-Go Elite Traveller Plus Technical Troubleshooting Guide www.pridemobility.com 9

21. Remove the cover from the S-drive controller (7). Seedia-

gram 3.

22. Unplug connector 5b from connector 7a. See diagram 2.

23. Measure voltage across pin 7 and pin 13 on connector 7a.

See figure 10.

— If your multimeter indicates 0VDC, then go to the

next step.

— If your multimeter indicates greater than 18VDC, then

replace the front-to-rear interface harness (5) and retest

the system

24. Unplug connectors 6b and 6c from connector 7e. See dia-

gram 2.

25. Measure voltage across connectors 6b and 6c. See fig-

ure 11.

— If your multimeter indicates 0VDC, then replace the power

interface harness (6) and retest the system.

— If your multimeter indicates greater than 18VDC, then

replace the S-drive controller (7) and retest the system.

Figure 10. Connector 7a

6b 6c

Figure 11. Connectors 6b and 6c

Go-Go Elite Traveller Plus Technical Troubleshooting Guide www.pridemobility.com 10

Figure 12. Connector 1h

SECTION 2: KEY INSERTED INTO

KEY SWITCH -POWER ON BUT THE

SCOOTER DOES NOT MOVE.

Symptoms:

!The battery condition meter shows power.

!The horn works.

!The scooter will not move or sound a beep code.

Diagnosis:

Power is interrupted between the key switch (3a) and the S-

Drive controller (7).

Solution:

Use the following procedure to find the source of the problem:

1. Remove the battery box. Refer to the owner’s manual.

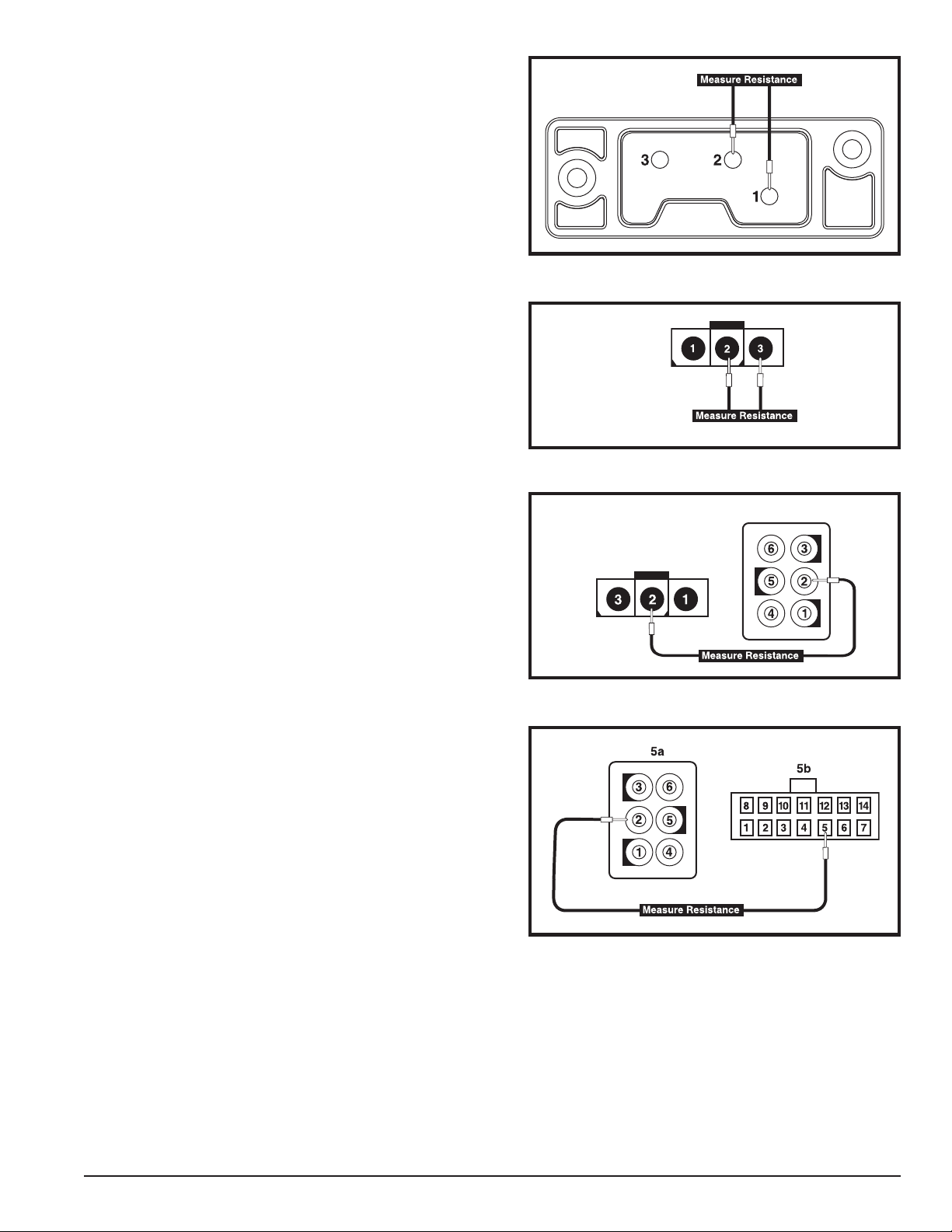

2. Measure resistance across pin 1 and pin 2 on connector

1h. See figures 2 and 12.

— If your multimeter indicates an open, then go to the

next step.

— If your multimeter indicates less than 1 ohm, then re-

place the battery box harness with fuseable link

(DWR9983H009) and retest the system.

3. Open the front console. See figure 6.

4. Unplug connector 4c from connector 3a. See diagram 2.

5. With the scooter key inserted and turned to the powered

on position, measure resistance across pin 2 and pin 3 on

connector 3a. See figure 13.

— If your multimeter indicates less than 1 ohm, then go to

the next step.

— If your multimeter indicates an open, then replace the

console (3) and retest the system.

6. Remove the main shroud. See figure 8.

7. Unplug connector 4a from connector 5a. See diagram 2.

8. Measure resistance across pin 2 on connector 4c and pin

2 on connector 4a. See figure 14.

— If your multimeter indicates less than 1 ohm, then go to

the next step.

— If your multimeter indicates an open, then replace the

front-to-rear harness (4) and retest the system.

9. Remove the cover from the S-drive controller (7). See

diagram 3.

10. Unplug connector 5b from connector 7a. See diagram 2.

11. Measure resistance across pin 2 on connector 5a and pin

5 on connector 5b. See figure 15.

— If your multimeter indicates less than 1 ohm, then re-

place the S-drive controller (7) and retest the system.

— If your multimeter indicates an open, then replace the

front-to-rear interface harness (5) and retest the system.

Figure 13. Connector 3a

Figure 14. Connectors 4c and 4a

Figure 15. Connectors 5a and 5b

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Pride Mobility Scooter

Pride Mobility

Pride Mobility Sundancer SC2000PS Manuale utente

Pride Mobility

Pride Mobility Go-Go Elite traveller Manuale utente

Pride Mobility

Pride Mobility Jazzy 600 ES Manuale utente

Pride Mobility

Pride Mobility Pathrider 130 XL Manuale utente

Pride Mobility

Pride Mobility CELEBRITY X Manuale utente

Pride Mobility

Pride Mobility Celebirty The Ultimate In Style &... Manuale utente

Pride Mobility

Pride Mobility Victory XL Manuale utente

Pride Mobility

Pride Mobility Go-Go Manuale utente

Pride Mobility

Pride Mobility iRIDE S25 Manuale utente

Pride Mobility

Pride Mobility Sonic Manuale utente

Pride Mobility

Pride Mobility CELEBRITY XL Manuale utente

Pride Mobility

Pride Mobility PMV Series Manuale utente

Pride Mobility

Pride Mobility Quantum 614 Manuale utente

Pride Mobility

Pride Mobility Legend 4-Wheel Scooter Manuale utente

Pride Mobility

Pride Mobility CELEBRITY DELUXE Manuale utente

Pride Mobility

Pride Mobility Celebrity X Sport Manuale utente

Pride Mobility

Pride Mobility Celebrrity XL Manuale utente

Pride Mobility

Pride Mobility INFINFB2311 Manuale utente

Pride Mobility

Pride Mobility Path rider Manuale utente

Pride Mobility

Pride Mobility Victory XL Manuale utente

Pride Mobility

Pride Mobility Legend XL Manuale utente

Pride Mobility

Pride Mobility CELEBRITY X Manuale utente

Pride Mobility

Pride Mobility VICTORY SPORT Manuale utente

Pride Mobility

Pride Mobility Colt Series Manuale utente

Manuali Scooter popolari di altre marche

TEKTRO

TEKTRO CHEETAH Manuale utente

Douglas

Douglas Vespa Sprint Guida all'installazione

PLAYTIVE

PLAYTIVE AS-2448 Manuale utente

Ebinger

Ebinger DONKEY XL Manuale utente

Flyer

Flyer Mountain Guida utente

BackCountry eBikes

BackCountry eBikes Storm Manuale utente

equipmed

equipmed FreeRoam II Manuale utente

Yoto

Yoto Lion Manuale utente

WESTHILL BIKES

WESTHILL BIKES LINK Manuale utente

BAnff

BAnff eProdigy series Manuale utente

Winther

Winther 475 Manuale utente

Jetson

Jetson JBZL17 Manuale utente

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manuale utente

Carrera

Carrera impel Manuale utente

Afikim

Afikim Superlight SL-3 Manuale utente

CareCo

CareCo ZOOM Manuale utente

Douglas

Douglas Vespa G.S. Manuale utente

Gazelle

Gazelle with BOSCH System Manuale utente
