Pride Mobility JET1 Manuale utente

Power Chairs

Owner’sManual

21 Healey Road

Dandenong, 3175

Victoria, Australia ACN # 088 09 1

www.pridemobility.com

Stylish Design and Premium Performance

2Jet 1

SAFETY GUIDELINES

Read and follow all of the instructions in this manual before you attempt to operate your power chair for the first

time. If you are unable to understand any of this information or require additional assistance for set-up, contact

your authorized Pride Pro ider.

The following symbols will be used throughout this owners manual to identify warnings and cautions. It is ery

important for you to read and understand them completely.

WARNING! Failure to heed the warnings in this owners manual may result in personal

injury.

CAU ION! Failure to heed the cautions in this owners manual may result in damage to

your Jazzy.

INFMANU1439/REV C/JULY 2002

Pride Mobility Products Australia, Pty. Ltd.

Jet 1

CONTENTS

I. INTRODUCTION......................................................................................................................... 4

II. SAFETY ......................................................................................................................................... 6

III. THE JET 1 ................................................................................................................................... 8

IV. ASSEMBLY................................................................................................................................. 13

V. COMFORT ADJUSTMENTS................................................................................................ 16

VI. DISASSEMBLY ......................................................................................................................... 20

VII. OPERATION ............................................................................................................................... 21

VIII. BATTERIES AND CHARGING ............................................................................................ 24

IX. CARE AND MAINTENANCE ................................................................................................ 29

X. OPTIONS AND ACCESSORIES ......................................................................................... 34

XI. WARRANTY ................................................................................................................................35

4Jet 1

I. INTRODUCTION

Welcome to Pride Mobility Products Corporation (Pride). Congratulations on the purchase of your new Jet Power

Chair. The Jet 1 design combines the most ad anced state-of-the-art components with modern, attracti e styling.

We are certain that the design features and trouble-free operation of your new Jet Power Chair will add con enience

to your daily li ing.

At Pride, your safety is important to us. Please read and follow all of the instructions in this manual before

you attempt to operate your Jet for the first time. These instructions were produced for your benefit. Your

understanding of these instructions is essential for the safe operation of your new Jet Power Chair.

Pride is not liable for damage to property or personal injury arising out of unsafe use of a Jet Power Chair. Pride

is also not liable for any property damage or personal injury arising out of the failure of any person and or/user to

following the instructions and recommendations set forth in this manual or any other instructions or recommendations

contained in other Jazzy related literature issued by Pride or contained on the Jet Power Chair itself.

This owners manual is compiled from the latest specifications and product information a ailable at the time of

publication. We reser e the right to make changes as they become necessary. Any changes to our products may

cause slight ariations between the illustrations and explanations in this manual and the product you had purchased.

If you experience any problems with your Jet that your are unable to sol e, or if you do not feel capable of safely

following any of the instructions and/or recommendations as contained in this manual, please contact your authorized

Pride pro ider for assistance.

Once you understand how to operate and take care of your Jet, we are certain that it will gi e you years of trouble-free

ser ice and enjoyment.

Information Exchange

We want to hear your questions, comments, and suggestions about this manual. We would also like to hear about the

safety and reliability of your new Jet Power Chair, and about the ser ice you recei ed from your authorized Pride

pro ider.

Please notify us of any change of address, so we can keep you apprised of important information about safety, new

products, and new options that can increase your ability to use and enjoy your Jet. Please feel free to write us at the

address below:

Pride Mobility Products Australia Pty. Ltd.

21 Healey Road

Dandenong, 3175

Victoria, Australia

Jet 1

I. INTRODUCTION

Pride Owners Club

As an owner of a Pride product, you are in ited to register your products warranty and enroll in the Pride Owners

Club. You may do so by filling out and returning your enclosed registration card or by isiting Prides web site at

www.pridemobility.com. As a registered member, each time you isit our site, you will ha e access to the most

interacti e and honest educational enue a ailable today for people with mobility needs, their families and friends.

From our home page, click on the button that reads Owners Club to enter a page dedicated to current and

potential Pride product owners. You will gain access to inter iews, stories, recreation ideas, daily li ing tips,

product and funding information, and interacti e message boards. On these message boards you are in ited to

speak with other Pride customers as well as Pride representati es who are a ailable to assist you with any questions

or concerns you may ha e. You will recei e a free gift simply for registering with the Pride Owners Club.

My Authorized Pride Provider is:

Name:_______________________________________________________________________________

Address:_____________________________________________________________________________

Phone Number:________________________________________________________________________

Quick Reference Information:

Jet Model:__________________________________________________________________________

Serial Number:__________________________________________________________________________

Purchase Date:________________________________________________________________________

NOTE: If you ever lose or misplace your warranty card or your copy of this manual, call or write to us and

we will be glad to send you a new one immediately.

6Jet 1

Your Jet 1 is a state-of-the-art, life-enhancement de ice designed to increase your mobility. There are certain

situations, including some medical conditions, where you will need to practice operating your Jet 1 in the presence

of an attendant. Below are some safety tips that are designed to help you become accustomed to operating your

new Jet 1 safely.

WARNING! Your Jet 1 is a motorized vehicle. When you are seated in your Jet 1 and you anticipate

that you are going to be in a stationary position for an extended period of time, turn off the power.

his will eliminate the possibility of inadvertent chair movement and conserve battery power.

TRANSFERS

Transferring onto and off of your Jet 1 requires a good sense of balance. Be sure to ha e an attendant or health care

professional present while learning to properly transfer yourself. To eliminate the possibility of injury, we ask that

you erify the following before attempting a transfer:

1. Be sure the power is turned off. See VII. Operation.

2. Be sure your Jet 1 is not in freewheel mode. See III. The Jet 1.

3. Make sure the armrests are flipped up or remo ed from your Jet 1.

4. Flip the footrest up or mo e the leg rests aside; this will help to keep your feet from getting caught on the

footrest or on the leg rests during the transfer.

WARNING! Avoid putting all of your weight on the footrest. his may cause the Jet 1 to tip and

cause injury.

MOTOR VEHICLE TRANSPORT

Though your Jet 1 may be equipped with a positioning belt, this belt was not designed with the intent of pro iding

proper restraint during motor ehicle transport.

nNe er sit on or allow anyone to sit on your Jet 1 when it is in a mo ing ehicle.

nAlways be sure your Jet 1 is properly secured when it is being transported.

WEIGHT LIMITATIONS

Your Jet 1 is rated for a maximum 113-kg weight limit.

WARNING! Exceeding the weight limit will void your warranty and may result in personal injury.

STAIRS AND ESCALATORS

WARNING! Power chairs are not designed to travel up or down stairs or escalators. Always use an

elevator. If you try to navigate steps or escalators, you can cause injury to yourself and to others.

II. SAFETY

Jet 1

II. SAFETY

PUBLIC ROADS AND PARKING LOTS

WARNING! Do not operate your Jet 1 on public streets and roadways. Please be aware it

may be difficult for traffic to see you when you are seated in your Jet 1. o ensure your

safety, always assume you cannot be seen. Obey all local pedestrian traffic rules. Safety

accessories like reflectors, fluorescent flags, and various lighting packages are available

to order from your Pride provider.

STEPS AND KERBS

WARNING! Never attempt to have your Jet 1 climb or descend a step or a kerb that is higher than 5

cm unless you have the assistance of an attendant. Never attempt to have your Jet 1 proceed

backwards down any step, kerb, or other obstacle. Doing so could cause your Jet 1 to tip.

INCLINES AND UNEVEN TERRAIN

When climbing an incline, try to keep your Jet 1 mo ing. If you must stop, start up again slowly, and then

accelerate cautiously.

WARNING! When climbing an incline, do not zigzag or drive at an angle up the face of the incline.

Drive your Jet 1 straight up the incline. his will greatly reduce the possibility of a tip or a fall.

Always exercise extreme caution when negotiating an incline. Never travel up or down an incline

that can be potentially hazardous (for example, areas covered with snow, ice, or cut grass).

When dri ing down an incline, do so slowly and in the forward direction only. If your Jet 1 starts to mo e faster

than you anticipated or desired it would, allow the chair to come to a complete stop by releasing the joystick. Push

the joystick slightly forward and continue tra eling slowly down the incline.

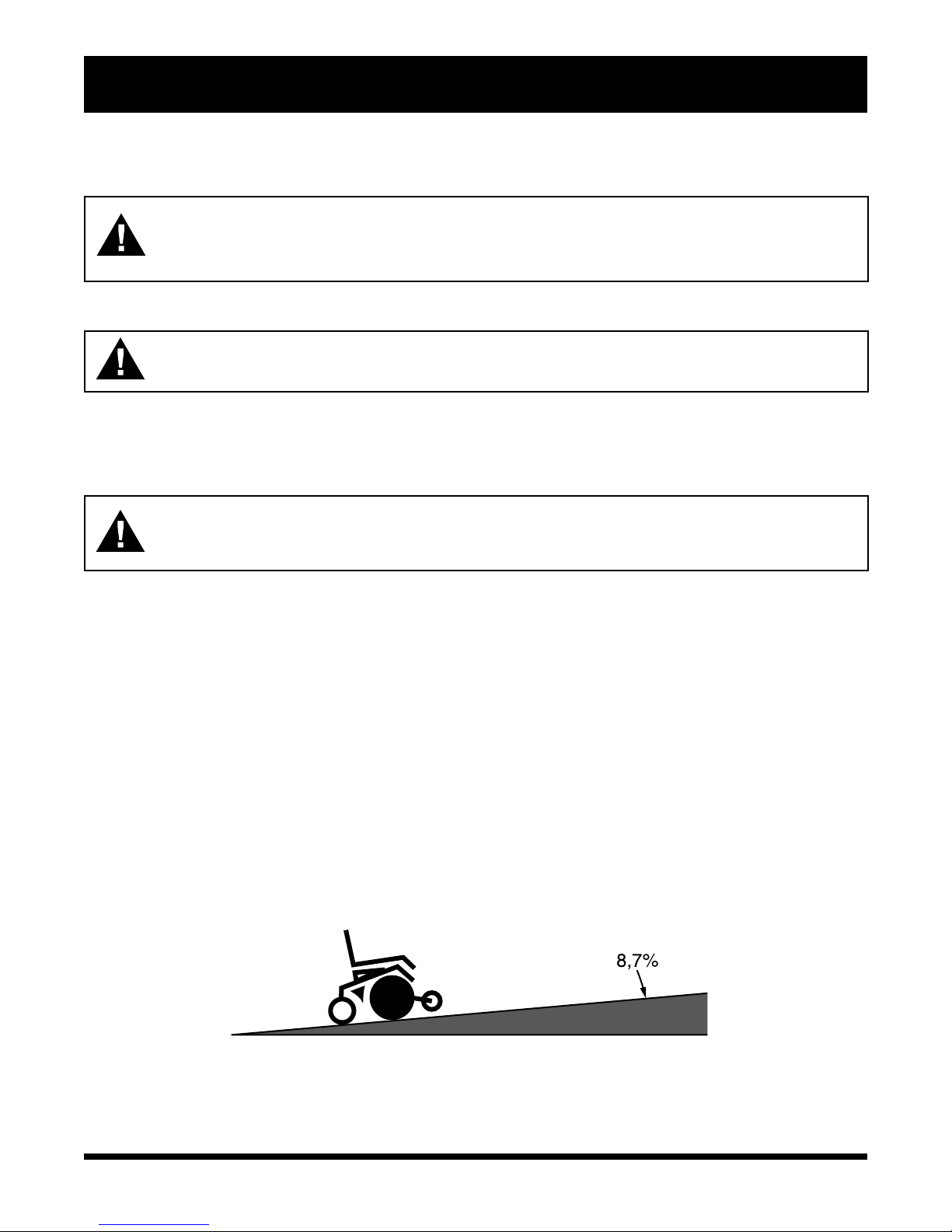

MAXIMUM RECOMMENDED INCLINE

Pride has performed extensi e incline testing with the Jet 1. Our results show that the maximum incline your Jet 1

can safely climb is 8,7% at maximum weight capacity. The angle of most handicap access ramps is 8,7%. Any

attempt to climb a steeper slope may put your Jet 1 in an unstable position.

8Jet 1

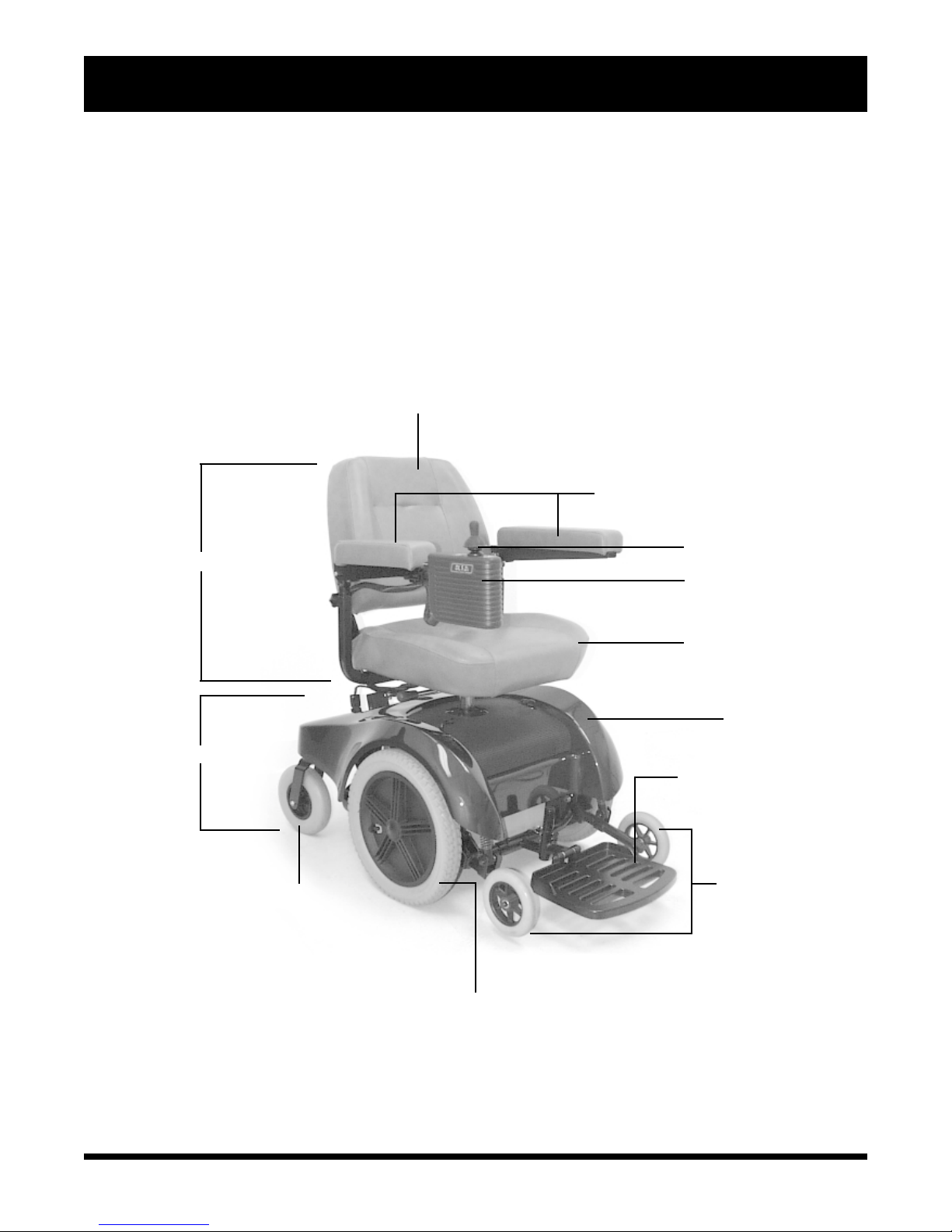

SEATBACK

ARMRESTS

Figure 1. The Jet 1

FOOTREST

DRIVE WHEEL

REAR CASTER WHEEL

SEAT ASSEMBLY

POWER BASE ASSEMBLY

III. THE JET 1

ANTI-TIP WHEELS

Your Jet 1 has two main assemblies: the seat and the power base. See figures 1 and 2. Typically, the seat assembly

includes the armrests, seatback, seat base, and a joystick/controller. Your Jet 1 seat may also ha e some optional

accessories attached to it, such as a basket, a cane/crutch holder, a cup holder, or a power seat switch. See X.

Options and Accessories.

The power base is the heart of your Jet 1. The power base assembly includes two dri e wheels, two anti-tip

wheels, two rear caster wheels, a footrest, and a body shroud.

SEAT BASE

JOYSTICK

BODY SHROUD

CONTROLLER

Jet 1

ARMREST

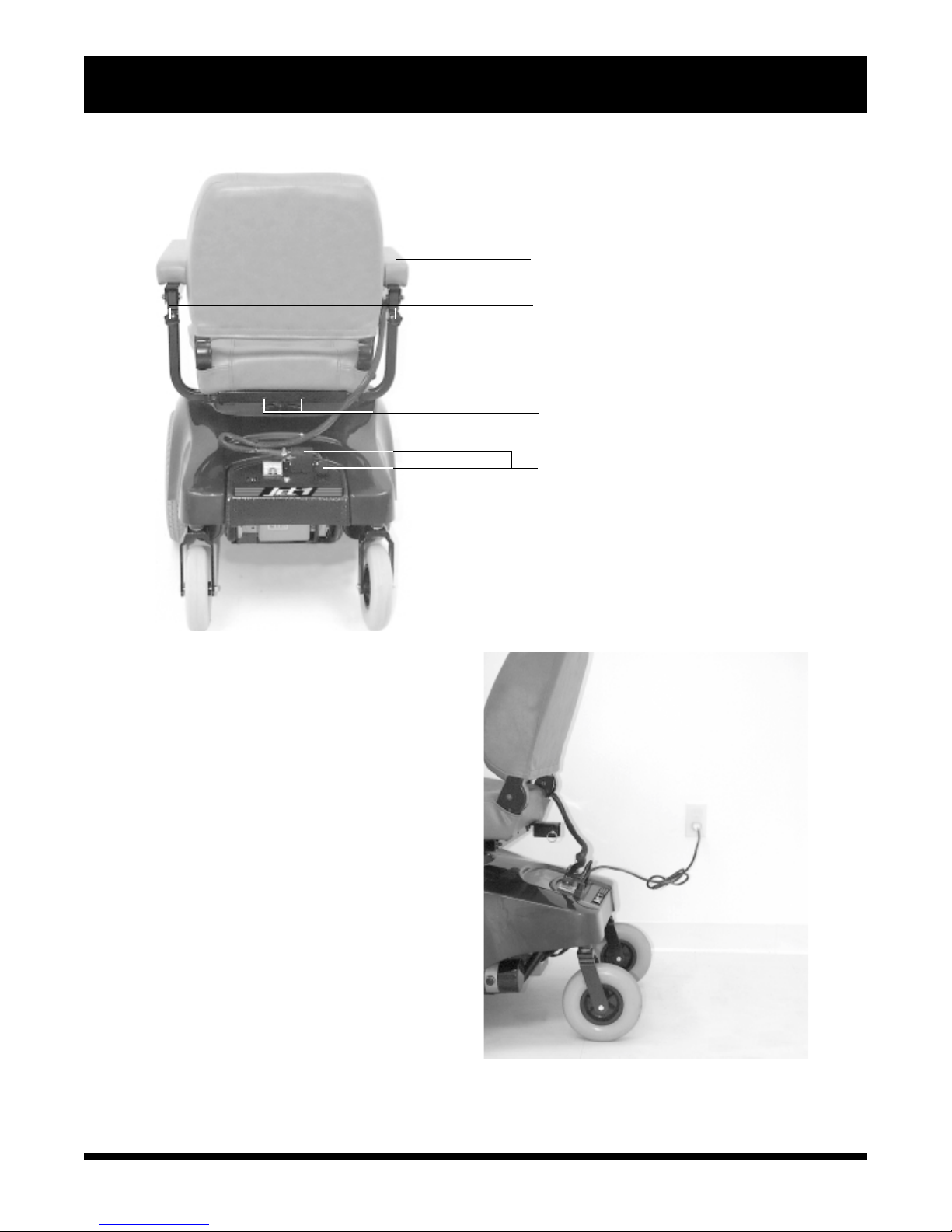

Figure 2. Rear View

ARMREST WIDTH ADJUSTMENT SETSCREWS

III. THE JET 1

ARMREST HEIGHT ADJUSTMENT KNOBS

Figure 3. Battery Charger Cord

CONTROLLER HARNESSES

10 Jet 1

Specifications

Suspension: Dri e Wheels: 36 cm, pneumatic, center mounted

(solid tyres are optional)

Rear Casters: 20 cm, solid, rear articulating

Anti-tip: 15 cm, solid, front mounted

Max. Speed: 7 km/hr

Brakes: Intelligent Braking, electronic regenerati e, disc park brake

Ground Clearance: 9 cm

Turning Radius: 50 cm

O erall Size: Length: 98 cm

Width: 58 cm

Seating Options: Gray inyl medium-back

Dri e Train: Two motor, mid wheel

Batteries: NF-22 batteries

Range: Up to 40 km

Battery Charger: Onboard

Electronics: 50-amp Dynamic DL Controller

Weight Capacity: 113 kg

Jet 1 Weights: Base: 38 kg

Seat: 13 kg

Batteries: 17 kg

Warranty: Fi e year limited warranty on frame

One year warranty on electronics

One year warranty on dri e motors

III. THE JET 1
