Jazzy® 1650

JZ 1650 SS 01/07

The Jazzy® 1650 offers heavy-duty construction and performance components

including upgraded motors, a reinforced frame, enhanced springs on the front

anti-tip wheels, and the use of two Group 24 batteries. This allows the 1650 to

accommodate a maximum weight capacity of 650 lbs. In addition, the Jazzy 1650

delivers style, high performance, and superb maneuverability.

HEAVY-DUTY CONSTRUCTION

650 LBS. WEIGHT CAPACITY

Jazzy®1650

shown in Candy Apple Red with

heavy-duty contoured seat

Jazzy® 1650

800-800-8586 (US) • 888-570-1113 (Canada) • www.pridemobility.com

FEATURES

.Heavy-duty, in-line dual motors;

patented mid-wheel drive design

.Reinforced frame and heavy-duty

springs on the front anti-tip wheels

.Weight capacity of 650 lbs.

.Accepts larger seating systems for

maximum comfort

.8 amp, off-board battery charger

.16” drive wheels and 9” solid caster

wheels for maximum stability

.Top speed up to 5 mph

.Easy front-access dual freewheel

levers

.Lifetime limited warranty on frame

.Standard heavy-duty contoured

seating for maximum comfort

OPTIONS

.70° heavy-duty leg rests

.Lap belt

.Rear basket

.Oxygen tank holder

.Walker holder

.Cane/crutch holder

.Safety flag

.Heavy-duty Synergy®Seat

.(4) NF-22 batteries (38 lbs. each) for

extended range (20 miles)

The information contained herein is correct at the time

ofpublication;wereservetherighttoalterspecifications

without prior notice. Speed and range vary with user

weight,terraintype,batterycharge,batterycondition

and tire pressure.

Candy

Apple Red Viper

Blue Champagne

Onyx

Black

Weight capacity: Up to 650 lbs.

Maximum speed: Up to 5 mph

Ground clearance: 4.25”

Turning radius: 26.25”

Overall length: 47”

Overall width: 30.375”

Wheels: Drive: 16”

Front anti-tips: 9”

Rear casters: 8” solid

Suspension: Limited

Drive train: Two-motor, 4-pole, in-line, mid-wheel drive

Braking system: Intelligent braking

(electronic, regenerative disc brakes)

Std. Electronics: 100 amp, PG Remote Plus controller

Specialty controls: N/A

Battery charger: On-board, 8 amp

Per-charge range: Up to 15 miles

Battery requirements: (2) 12 volt, deep cycle (gel cell or AGM)

Battery size: Group 24

Transport weight

Battery weight: 53.5 lbs. each

Base weight: 191 lbs.

Std. seat weight: 75 lbs. (heavy-duty contoured seat)

Warranty: Lifetime limited warranty on frame; 2-year limited warranty on

electronics; 18-months limited warranty on drive motors

Colors:

The Jazzy® 1650 series

models include:

.Jazzy 1650 2EHD-C

.Jazzy 1650 2EHD-SS

.Jazzy 1650 3EHD-C

.Jazzy 1650 3EHD-SS

Altri manuali per Quantum 1650

Questo manuale è adatto per i seguenti modelli

Altri manuali Pride Mobility sedia a rotelle

Pride Mobility

Pride Mobility Quantum 500 Manuale utente

Pride Mobility

Pride Mobility Jazzy Select 14XL Manuale utente

Pride Mobility

Pride Mobility Jazzy 1170 XL Manuale utente

Pride Mobility

Pride Mobility Quantum 6000Z series Manuale utente

Pride Mobility

Pride Mobility Quantum Jazzy series Manuale utente

Pride Mobility

Pride Mobility Jet 10 Ultra Manuale utente

Pride Mobility

Pride Mobility Quantum 600 2SP Manuale utente

Pride Mobility

Pride Mobility Pride Profile INFMANU2127 Istruzioni per il montaggio

Pride Mobility

Pride Mobility Jet 3 Ultra Manuale utente

Pride Mobility

Pride Mobility Quantum Blast HD Manuale utente

Pride Mobility

Pride Mobility JAZZY 1103 Manuale utente

Pride Mobility

Pride Mobility Quantum 6000Z 3S Manuale utente

Pride Mobility

Pride Mobility Quantum Rehab Jazzy Select 6 Manuale per l'uso e la cura

Pride Mobility

Pride Mobility Jazzy 1107 Manuale utente

Pride Mobility

Pride Mobility JET1 Manuale utente

Pride Mobility

Pride Mobility JAZZY 614 Series Manuale utente

Pride Mobility

Pride Mobility PRIDE LX10 Manuale utente

Pride Mobility

Pride Mobility Jazzy 1115 Manuale utente

Pride Mobility

Pride Mobility Jazzy 600 2S Manuale utente

Pride Mobility

Pride Mobility Quantum Jazzy 1420 Manuale utente

Pride Mobility

Pride Mobility Jazzy Select 6 Ultra PG VR2 Manuale utente

Pride Mobility

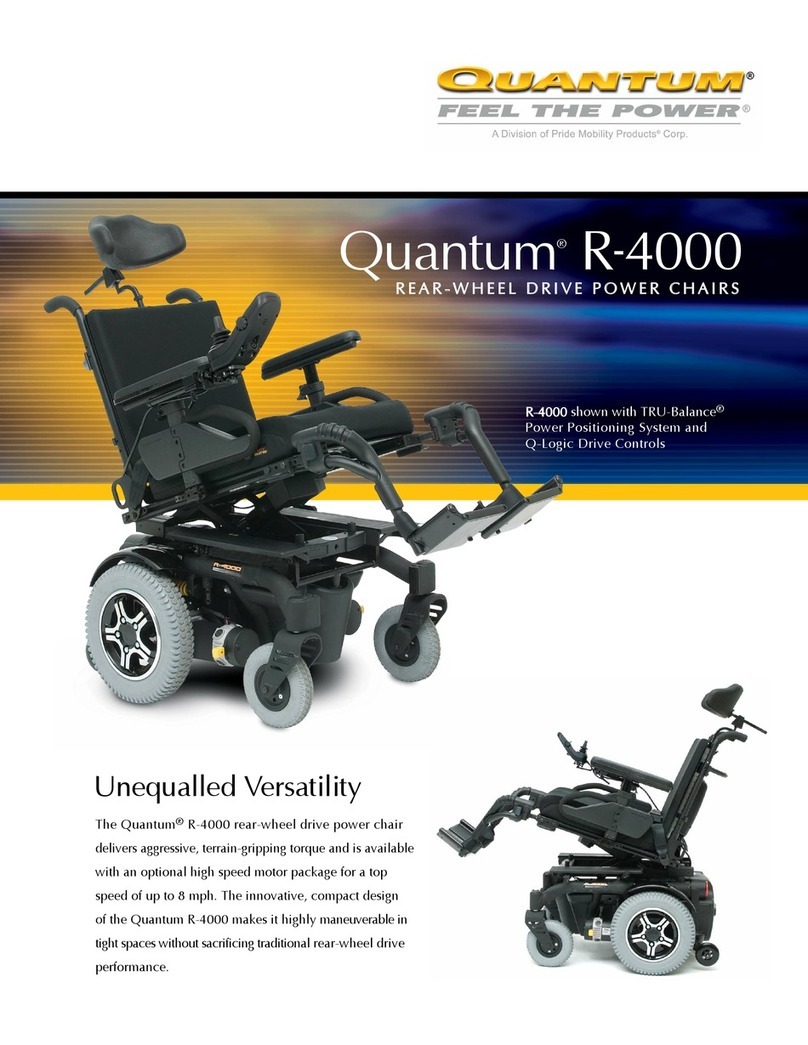

Pride Mobility REAR-WHEEL DRIVE POWER CHAIRS Quantum R-4000 Manuale utente
