BASIC OPERATION INSTRUCTIONS

Power Glide

WARNING! An authorized Pride Provider or a qualified

technician must perform the initial setup of this product

and must perform all of the instructions in this manual.

The symbols below are used throughout this owner's manual and on the

product to identify warnings and important information. It is very important

for you to read them and understand them completely.

WARNING! Indicates a potentially hazardous condition/

situation. Failure to follow designated procedures can

cause either personal injury, component damage, or

malfunction. On the product, this icon is represented as a

black symbol on a yellow triangle with a black border.

MANDATORY! These actions should be performed as

specified. Failure to perform mandatory actions can cause

personal injury and/or equipment damage. On the product,

this icon is represented as a white symbol on a blue dot

with a white border.

PROHIBITED! These actions are prohibited. These actions

should not be performed at any time or in any

circumstances. Performing a prohibited action can cause

personal injury and/or equipment damage. On the product,

this icon is represented as a black symbol with a red circle

and a red slash.

SAFETY GUIDELINES

Pride Mobility Products Corporation

INFMANU3990/Rev B/April 2011

NOTE: These instructions are compiled from the latest specifications and

product information available at the time of publication. We reserve the

right to make changes as they become necessary. Any changes to our

products may cause slight variations between the illustrations and expla-

nations in this manual and the product you have purchased. The latest/

current version of this manual is available on our website.

Basic Operation Instructions 3

www.pridemobility.com Power Glide

TABLE OF CONTENTS

LABEL INFORMATION.................................................................. 4

INTRODUCTION ............................................................................ 6

POWER GLIDE .............................................................................. 8

INSTALLATION.............................................................................10

OPERATION OF THE POWER GLIDE........................................ 14

BATTERIES AND CHARGING.....................................................15

FAULT CODES..............................................................................19

SPECIFICATIONS.........................................................................20

WARRANTY..................................................................................21

4 Basic Operation Instructions

Power Glide www.pridemobility.com

Read and follow the information in the owner’s manual.

Avoid exposure to rain, snow, ice, salt, or standing water

whenever possible. Maintain and store in a clean and dry

condition.

PRODUCT SAFETY SYMBOLS

The symbols below are used on the product to identify warnings, mandatory

actions, and prohibited actions. It is very important for you to read and

understand them completely.

Contains Lead.

Explosive conditions exist!

Wear safety goggles.

Keep tools and other metal objects away from battery

terminals. Contact with tools can cause electrical

shock.

LABEL INFORMATION

Corrosive chemicals contained in battery.

Do not allow unsupervised children to play near the

mobility product while the batteries are charging.

Do not expose to open flame.

Always replace the battery with the exact same type,

chemistry, and amp-hour (Ah) capacity. Refer to the

specifications table in this manual for recommended

type and capacities.

EMI/RFI - The product has been tested and passed at an

immunity level of 20 V/m.

Basic Operation Instructions 5

www.pridemobility.com Power Glide

Disposal and recycling—Contact your authorized Pride

Provider for information on proper disposal of your

Pride product and its packaging.

LABEL INFORMATION

Battery charger for indoor use only.

Class II Equipment.

WARNING! Do not attempt to operate a wheelchair

equipped with a Power Glide on an incline or decline

greater than 2° (3.5%) without an attendant.

6 Basic Operation Instructions

Power Glide www.pridemobility.com

INTRODUCTION

WELCOME to Pride Mobility Products (Pride). The product you have

purchased combines state-of-the-art components with safety, comfort, and

styling in mind. We are confident that the design features will provide you

with the conveniences you expect during your daily activities.

Understanding how to safely use and care for this product should bring you

years of trouble-free operation and service.

Read and follow all instructions, warnings, and notes in this manual and all

other accompanying literature before attempting to use this product for the

first time. In addition, your safety depends upon you, as well as your

provider, caretaker, or healthcare professional in using good judgement.

This manual is to be used in addition to the owner’s manual that came with

your wheelchair. If there is any information in this manual which you do not

understand, or if you require additional assistance for setup or operation,

please contact your authorized Pride Provider. Failure to follow the

instructions, warnings, and notes in this manual and those located on

your Pride product can result in personal injury and/or equipment

damage and will void Pride’s product warranty.

PURCHASER’S AGREEMENT

By accepting delivery of this product, you promise that you will not change,

alter, or modify this product or remove or render inoperable or unsafe any

guards, shields, or other safety features of this product; fail, refuse, or

neglect to install any retrofit kits from time to time provided by Pride to

enhance or preserve the safe use of this product.

INFORMATION EXCHANGE

We want to hear your questions, comments, and suggestions about this

manual. We would also like to hear about the safety and reliability of your

new Pride product, and about the service you received from your authorized

Pride Provider. Please notify us of any change of address, so we can keep

you apprised of important information about safety, new products, and new

options that can increase your ability to use and enjoy your Pride product.

NOTE: If you ever lose or misplace your product registration card or your

copy of this manual, contact us and we will be glad to send you a new one

immediately.

Basic Operation Instructions 7

www.pridemobility.com Power Glide

My Authorized Pride Provider Is:

Name: _________________________________________________

____

Address: ____________________________________________________

Phone Number: ___________________________________

__________

Purchase Date: _________________________________________

____

8 Basic Operation Instructions

Power Glide www.pridemobility.com

POWER GLIDE

The Power Glide is designed to assist an attendant when pushing an occu-

pied wheelchair up hills and ramps and over uneven ground.

WARNING! Do not operate the Power Glide when the

wheelchair is unoccupied.

WARNING! Ensure the on/off key is in the off position

before anyone transfers into or out of the wheelchair.

WARNING! Do not attempt to climb an incline without the

assistance of an attendant.

WARNING! Do not attempt to operate a wheelchair

equipped with a Power Glide outside of the safe limits as

recommended by the wheelchair manufacturer.

WARNING! Do not attempt to operate a wheelchair

equipped with a Power Glide on an incline or decline

greater than 2° (3.5%) without an attendant.

Electromagnetic and Radio Frequency Interference (EMI/RFI)

WARNING! Laboratory tests have shown that

electromagnetic and radio frequency waves can have an

adverse effect on the performance of electrically-powered

mobility vehicle.

Electromagnetic and Radio Frequency Interference can come from sources

such as cellular phones, mobile two-way radios (such as walkie-talkies),

radio stations, TV stations, amateur radio (HAM) transmitters, wireless

computer links, microwave signals, paging transmitters, and medium-range

mobile transceivers used by emergency vehicles. In some cases, these waves

can cause unintended movement or damage to the control system. Every

electrically-powered mobility vehicle has an immunity (or resistance) to

EMI. The higher the immunity level, the greater the protection against EMI.

This product has been tested and has passed at an immunity level of 20 V/m.

WARNING! Be aware that cell phones, two-way radios,

laptops, and other types of radio transmitters may cause

unintended movement of your electrically-powered mobility

vehicle due to EMI. Exercise caution when using any of

these items while operating your mobility vehicle and avoid

coming into close proximity of radio and TV stations.

WARNING! The addition of accessories or components to

the electrically-powered mobility vehicle can increase the

susceptibility of the vehicle to EMI. Do not modify your

assistive device in any way not authorized by Pride.

Basic Operation Instructions 9

www.pridemobility.com Power Glide

2 3

67 8

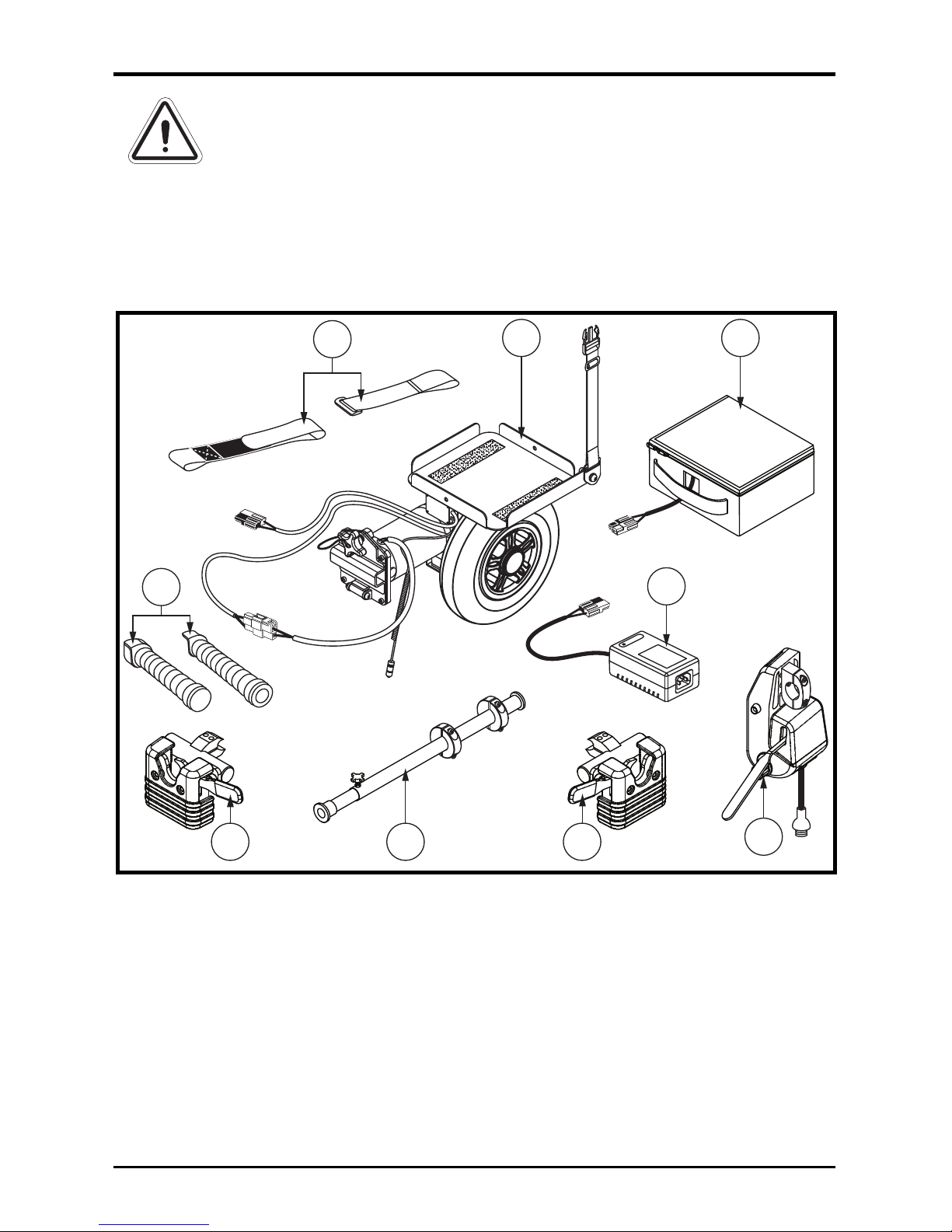

Figure 1. Power Glide Components (One-wheel Model Shown)

The Power Glide consists of (see figure 1):

1. Holding straps

2. Powerpack with lifting strap

3. Battery pack

4. Handle extensions

5. Battery charger

6. Mounting brackets (left and right shown)

7. Crossbar assembly (includes large and small)

8. Control module with bracket

WARNING! The electrically-powered mobility vehicle itself

can disturb the performance of other electrical devices

located nearby, such as alarm systems.

NOTE: For further information on EMI/RFI, go to the Resource Center

on www.pridemobility.com. If unintended motion or brake release

occurs, turn your power chair off as soon as it is safe to do so. Call Pride

or your authorized Pride Provider to report the incident.

10 Basic Operation Instructions

Power Glide www.pridemobility.com

Follow these steps to install the Power Glide onto a wheelchair:

1. Ensure that you have all of the components that are shown in

figure 1

2. Install a mounting bracket to the bottom of each side of the wheelchair

frame and tighten the hardware. Keep both of the mounting brackets at

the same axle position on each side of the frame. See figure 2.

3. Insert the large crossbar into the crossbar housing as shown in figure 3,

and then lock it and the gearbox together with the four (4) supplied

screws.

NOTE: Do not tighten the main thumbscrew at this time.

4. Insert the small crossbar into the large crossbar and adjust the length so

that the combined crossbars securely fit into both mounting brackets.

See figure 3.

5. Confirm that the mounting brackets are locked.

6. Secure the combined crossbars with the thumbscrew. See figure 3.

7. Confirm that the powerpack is at the central position of the wheelchair

frame.

8. Tighten the main thumbscrew.

INSTALLATION

The Power Glide can be easily installed on any wheelchair that is 14-20 in.

(35.56-50.8 cm) in width.

WARNING! The Power Glide is heavy. See specifications

table. If you are unable to lift that much weight, be sure to

get help. Use proper lifting techniques and avoid lifting

beyond your capacity.

WARNING! Always remove the powerpack from the box

first, then remove the battery from the box. Do not remove

both together, as the battery may slip.

WARNING! Always install the powerpack onto the

wheelchair first, then install the battery.

MANDATORY! Do not exceed the weight capacity listed in

your wheelchair owner’s manual or 300 lbs./21 stone (136 kg),

whichever is less. Keep in mind that the maximum weight

capacity includes the combined weight of the user and any

accessories mounted to the wheelchair, including the

Power Glide.

Indice

Altri manuali Pride Mobility sedia a rotelle

Pride Mobility

Pride Mobility Jazzy Select 14 Series Manuale utente

Pride Mobility

Pride Mobility Jazzy EVO Series Manuale utente

Pride Mobility

Pride Mobility Jazzy1143 Manuale utente

Pride Mobility

Pride Mobility PRIDE LX10 Manuale utente

Pride Mobility

Pride Mobility QUANTUM SERIES Manuale utente

Pride Mobility

Pride Mobility Quantum 1650 Manuale utente

Pride Mobility

Pride Mobility JET 2 Manuale utente

Pride Mobility

Pride Mobility ELITE14 Manuale utente

Pride Mobility

Pride Mobility IGO Fold Manuale utente

Pride Mobility

Pride Mobility REAR-WHEEL DRIVE POWER CHAIRS Quantum R-4000 Manuale utente

Pride Mobility

Pride Mobility Quantum 600 Sport Manuale utente

Pride Mobility

Pride Mobility Quantum R44 Manuale utente

Pride Mobility

Pride Mobility Jazzy 600 ES Guida all'installazione

Pride Mobility

Pride Mobility SPARKY Manuale utente

Pride Mobility

Pride Mobility KITASMB1673 Manuale del proprietario

Pride Mobility

Pride Mobility Jazzy Carbon Manuale utente

Pride Mobility

Pride Mobility JAZZY 1103 ULTRA Manuale utente

Pride Mobility

Pride Mobility R4 Manuale utente

Pride Mobility

Pride Mobility Jazzy 1115 Manuale utente

Pride Mobility

Pride Mobility REAR-WHEEL DRIVE POWER CHAIRS Quantum R-4000 Manuale utente

Pride Mobility

Pride Mobility Jazzy Select 7 Manuale utente

Pride Mobility

Pride Mobility 1400 Manuale utente

Pride Mobility

Pride Mobility Jazzy 1110 Manuale utente

Pride Mobility

Pride Mobility Jet 7 Manuale utente

Manuali sedia a rotelle popolari di altre marche

Otto Bock

Otto Bock Skippi plus Manuale utente

Invacare

Invacare Action 4NG series Manuale utente

SORG

SORG LoopSORG 802 Manuale utente

Designability

Designability WizzyBug Istruzioni per l'installazione

Vermeiren

Vermeiren RAPIDO Manuale utente

Excel

Excel G5 KIDS 0285 Manuale utente

M. Bartels

M. Bartels SA-3 Manuale utente

nino robotics

nino robotics NIno Manuale utente

Vermeiren

Vermeiren Turios Manuale utente

Invacare

Invacare MK5 EX Manuale utente

Invacare

Invacare Solara Spree GT Manuale

Nova

Nova TKW-12 Manuale utente

BCW

BCW Advantage Manuale utente

You-Q

You-Q Luca Manuale utente

interco

interco Ortolight Standard Manuale di istruzioni

Nova

Nova 7190L Manuale utente

Vermeiren

Vermeiren EZ1 Manuale utente

PaceSaver

PaceSaver Scout M-300 Manuale utente
