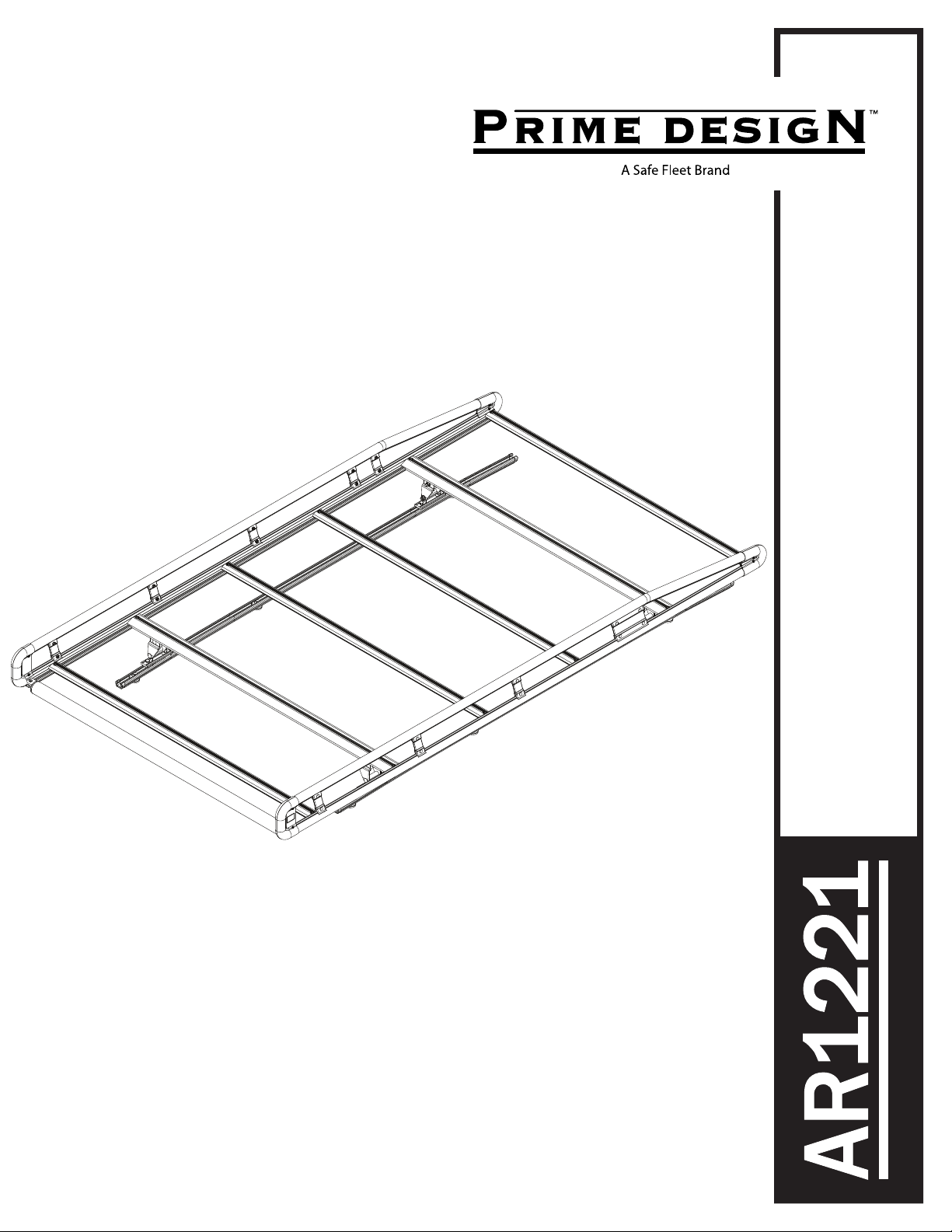

Prime Design AR1221 Manuale utente
PRIME DESIGN, A SAFE FLEET BRAND 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 ▪ Phone: 651-552-8554 ▪ 1.8.PRIME.RACK ▪ Fax: 651-552-1799 ▪ Email:[email protected] ▪ www.primedesign.net
TM & © 2015 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6092974, 6764268, 6971563, 2364879, 8857689, 8511525, 8991889 AND OTHER PATENTS PENDING
2
6
4
3
1
4
5
5
2
5
5
End Caps (4X)
Foam Gasket (6X)Nylon Washer (6X)
M8 Bolt (6X)
Channels (2X)
Flex Channel Connector (6X)Brackets (4X)

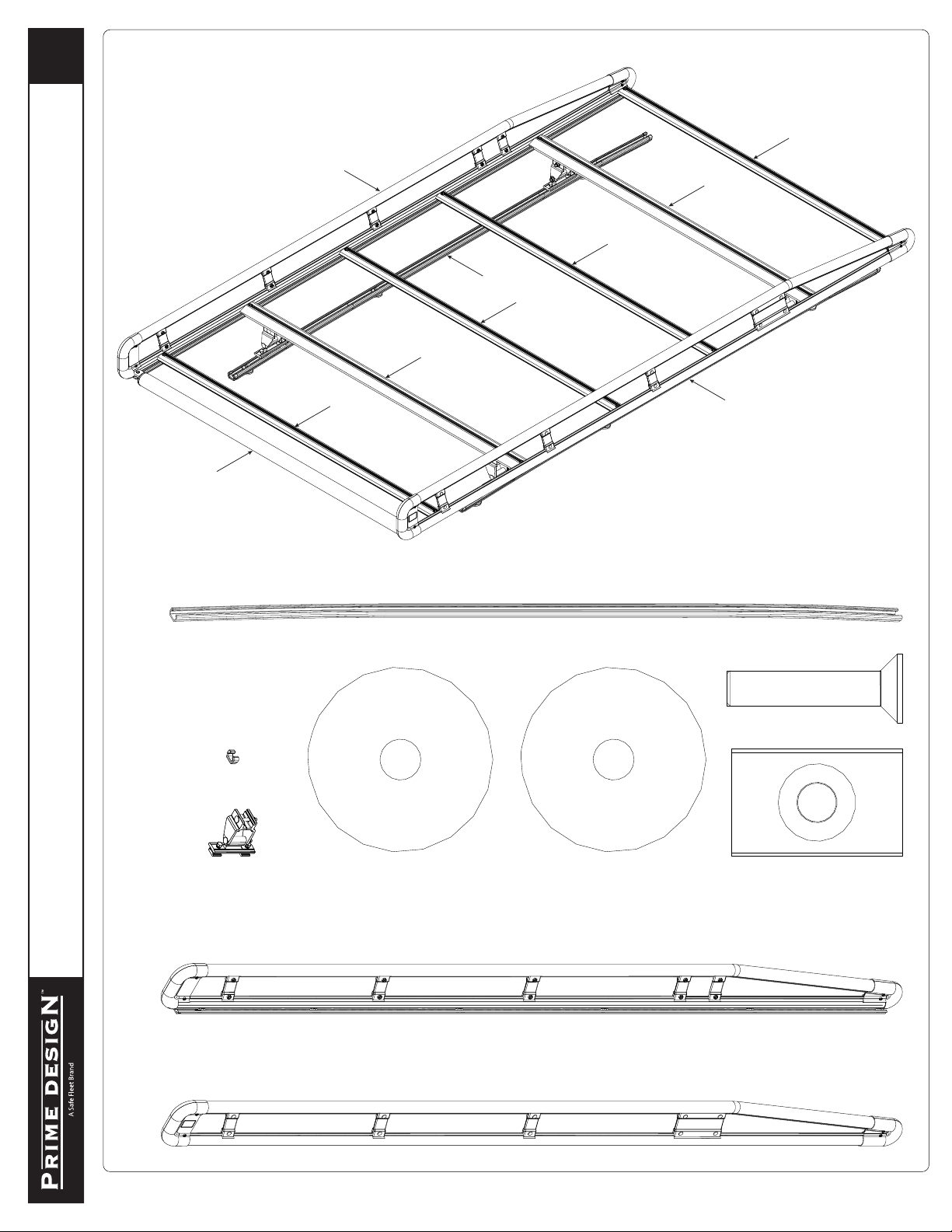

AR1221 ASSEMBLY INSTRUCTIONS–PACKAGING CONTENTS
CONTENTS OVERVIEW
2—Side Rail Assembly........................................... (Qty 1)
Left Hand, 95.00”
3—Side Rail Assembly........................................... (Qty 1)
Right Hand, 95.00”
1—FBM-0045-A ..................................................... (Qty 1)
Channels w/Hardware
PRIME DESIGN, A SAFE FLEET BRAND 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 ▪ Phone: 651-552-8554 ▪ 1.8.PRIME.RACK ▪ Fax: 651-552-1799 ▪ Email:[email protected] ▪ www.primedesign.net
TM & © 2015 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6092974, 6764268, 6971563, 2364879, 8857689, 8511525, 8991889 AND OTHER PATENTS PENDING
3
M8 Cap Head Bolt (8X)M8 Lock Washer (8X)
Roller Tube 49.75” (1X)
Roller Spring (2X)Roller Tube Pin (2X)
Roller End Cap (2X)Roller Holder (2X) M8 Allen Head Bolt (2X)M8 Lock Washer (2X)M8 Strip Nut (2X)
M8 Cap Head Bolt (4X)M8 Lock Washer (4X)

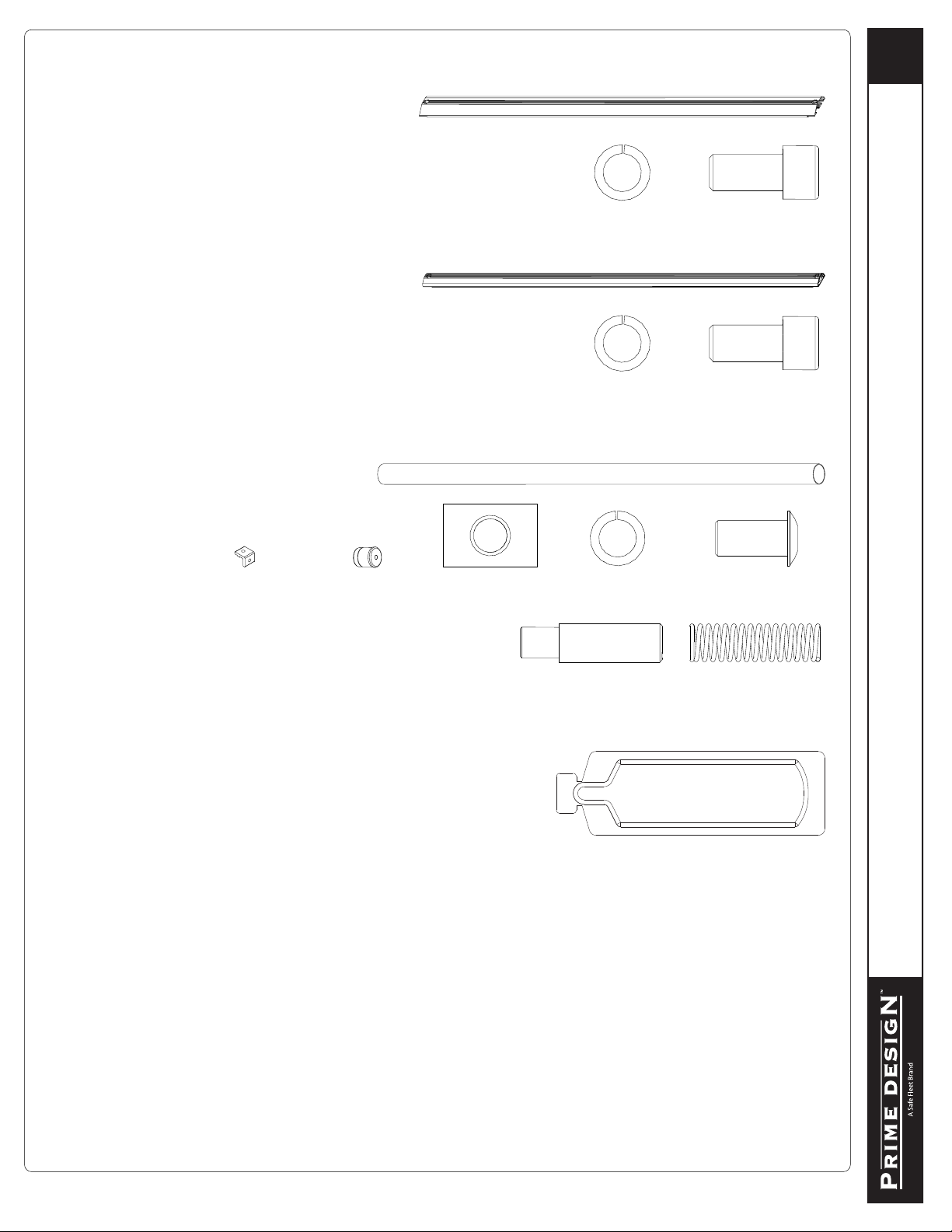

AR1221 ASSEMBLY INSTRUCTIONS–PACKAGING CONTENTS
5—AluRack Standard Crossbar ............................ (Qty 4)
With hardware, 53.00”
6—Roller Assembly................................................ (Qty 1)
With hardware, 53.00”
ASZ-0101 (1X)
7—Anti-Seize .. ....................................................... (Qty 1)
4—AluRack Construction Crossbar....................... (Qty 2)
With hardware, 53.00”
PRIME DESIGN, A SAFE FLEET BRAND 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 ▪ Phone: 651-552-8554 ▪ 1.8.PRIME.RACK ▪ Fax: 651-552-1799 ▪ Email:[email protected] ▪ www.primedesign.net
TM & © 2015 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6092974, 6764268, 6971563, 2364879, 8857689, 8511525, 8991889 AND OTHER PATENTS PENDING
4
Rear
Front
Left
Right
Rear
Front
Left
Right
Rear
Front
Left
Right
12.50”
Channel Front
3.25”
Channel Rear
Fig. 1
Nylon Spacer
Foam Gasket
Left Rear
Right Rear
55.50”
5.00”
55.50”
5.00”

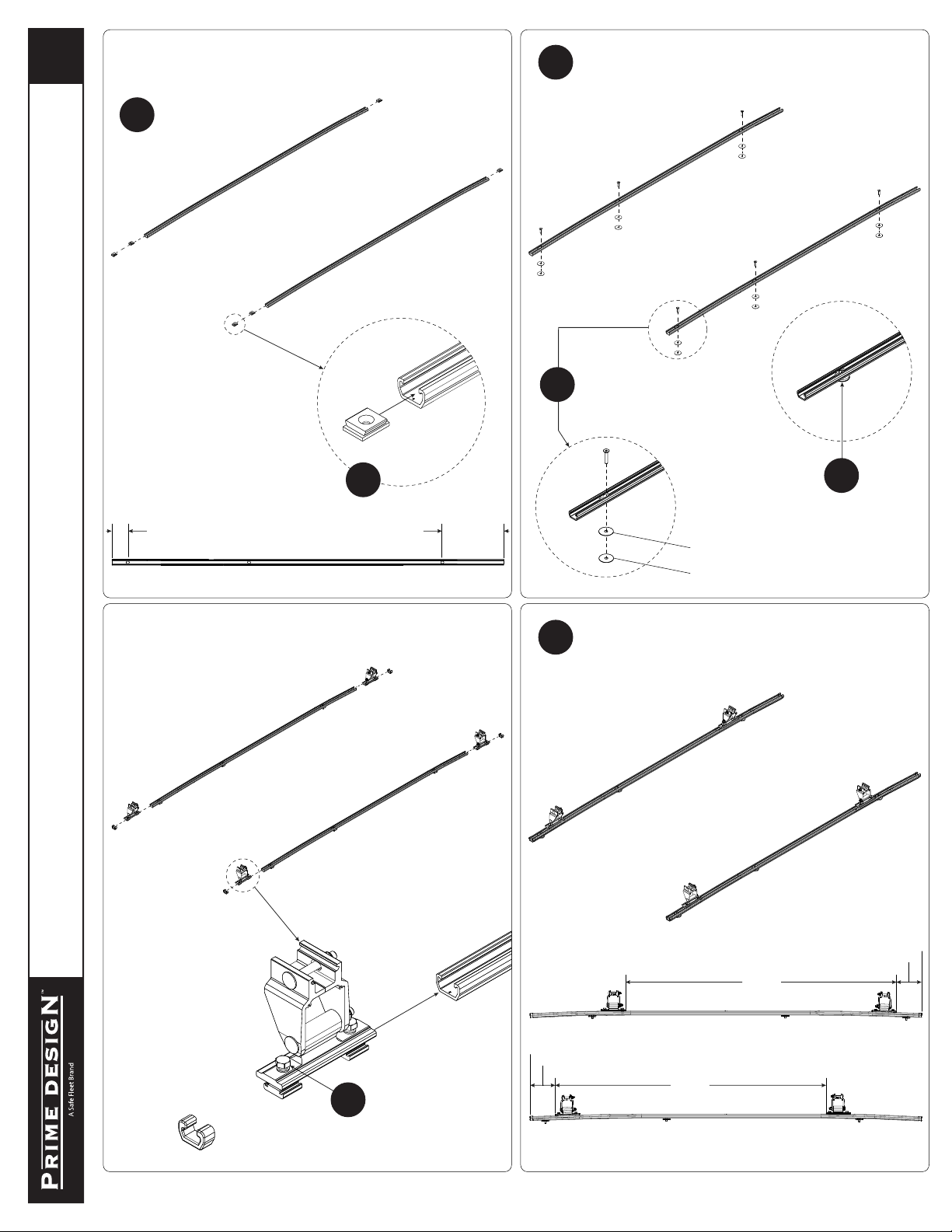

AR1221 ASSEMBLY INSTRUCTIONS–FBM MOUNTINGS
FBM-0045-A
CHANNELS TO ROOF
Slide Channel Connectors
into Channels as shown
0.6 Loosen bolts
0.7 Set to distances then torque Rear Bracket nuts to 90 in-lbs
Install Channels into roof Channel groove as shown
0.3
Position Channels as
shown below in Fig.1
0.1
0.2
0.4 Install fasteners into factory
roof rail mounting locations.
0.5
Torque to 150 in-lbs
PRIME DESIGN, A SAFE FLEET BRAND 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 ▪ Phone: 651-552-8554 ▪ 1.8.PRIME.RACK ▪ Fax: 651-552-1799 ▪ Email:[email protected] ▪ www.primedesign.net
TM & © 2015 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6092974, 6764268, 6971563, 2364879, 8857689, 8511525, 8991889 AND OTHER PATENTS PENDING
5
4
1 (Left Side Rail)
3 (Con)
3 (Std)
3 (Con)
3 (Std)
3 (Std)
2 (Right Side Rail)
3 (Std)

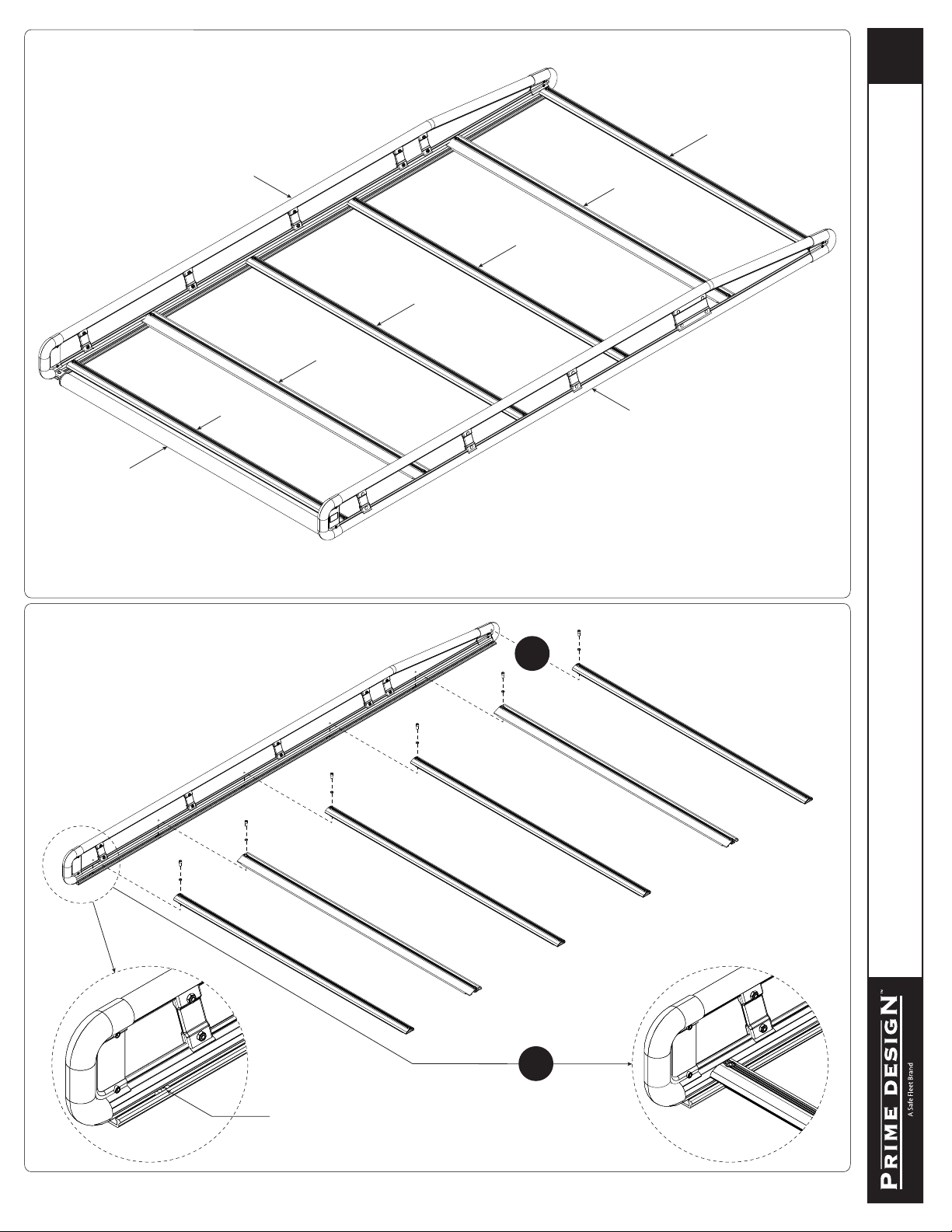

ALURACK ASSEMBLY SEQUENCE
LEFT SIDE RAIL AND CROSSBARS
1.1
Do not tighten
until Step 3.2
1.2
AR1221 ASSEMBLY INSTRUCTIONS–CROSSBAR INSTALLATION
Crossbar Bolts attach into
pre-installed Strip Nuts
PRIME DESIGN, A SAFE FLEET BRAND 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 ▪ Phone: 651-552-8554 ▪ 1.8.PRIME.RACK ▪ Fax: 651-552-1799 ▪ Email:[email protected] ▪ www.primedesign.net
TM & © 2015 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6092974, 6764268, 6971563, 2364879, 8857689, 8511525, 8991889 AND OTHER PATENTS PENDING
6
16.50” 18.50”
72.00”
18.50” 18.50” Front Crossbar flush
to Side Rail ends
Rear
5.75”
Front

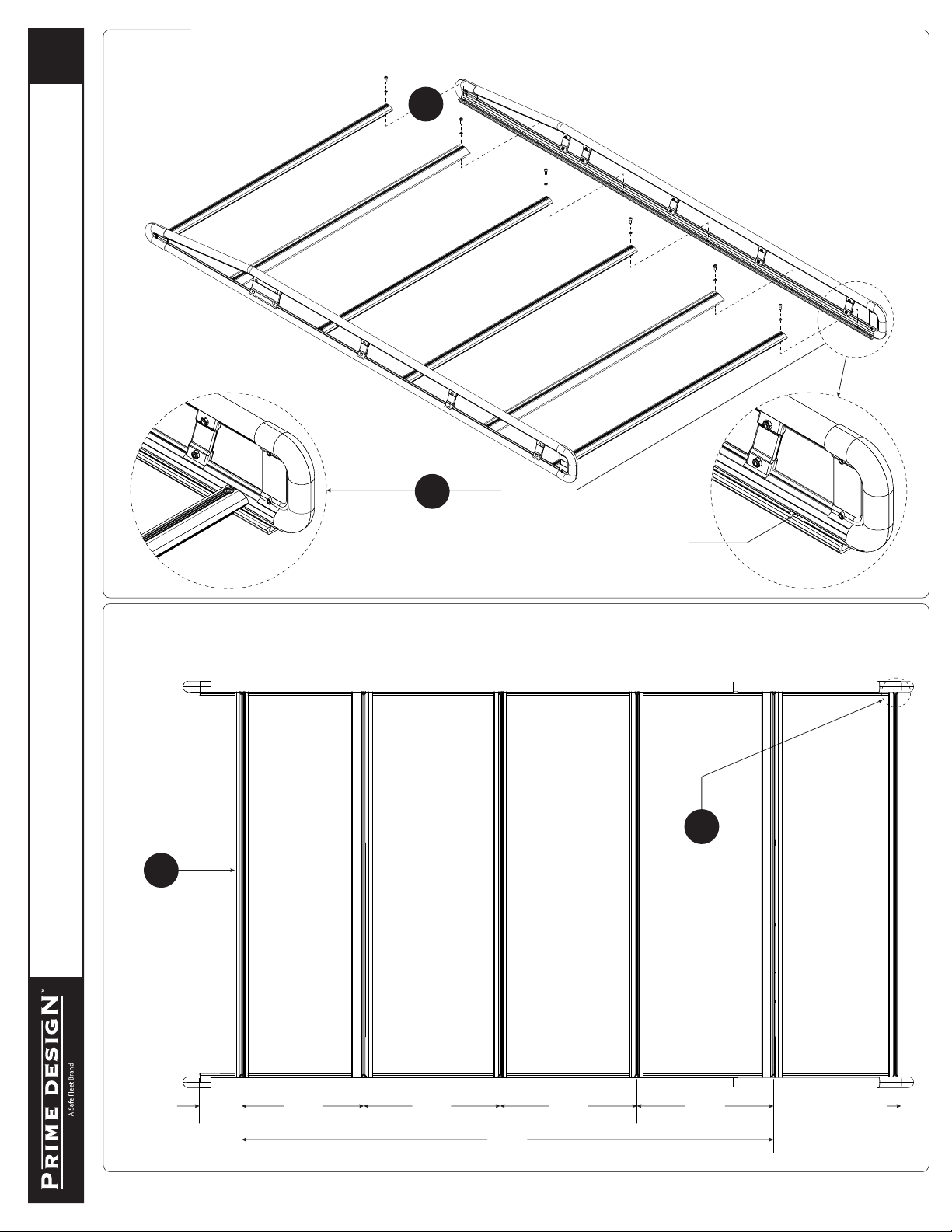

AR1221 ASSEMBLY INSTRUCTIONS–CROSSBAR INSTALLATION
RIGHT SIDE RAIL AND CROSSBARS
CROSSBAR ADJUSTMENT
3.2
2.1
3.1
Torque all Crossbar
Bolts to 90 in-lbs
Adjust Crossbar
distances as
shown below
Do not tighten
until Step 3.2
2.2
Crossbar Bolts attach into
pre-installed Strip Nuts
PRIME DESIGN, A SAFE FLEET BRAND 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 ▪ Phone: 651-552-8554 ▪ 1.8.PRIME.RACK ▪ Fax: 651-552-1799 ▪ Email:[email protected] ▪ www.primedesign.net
TM & © 2015 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6092974, 6764268, 6971563, 2364879, 8857689, 8511525, 8991889 AND OTHER PATENTS PENDING
7

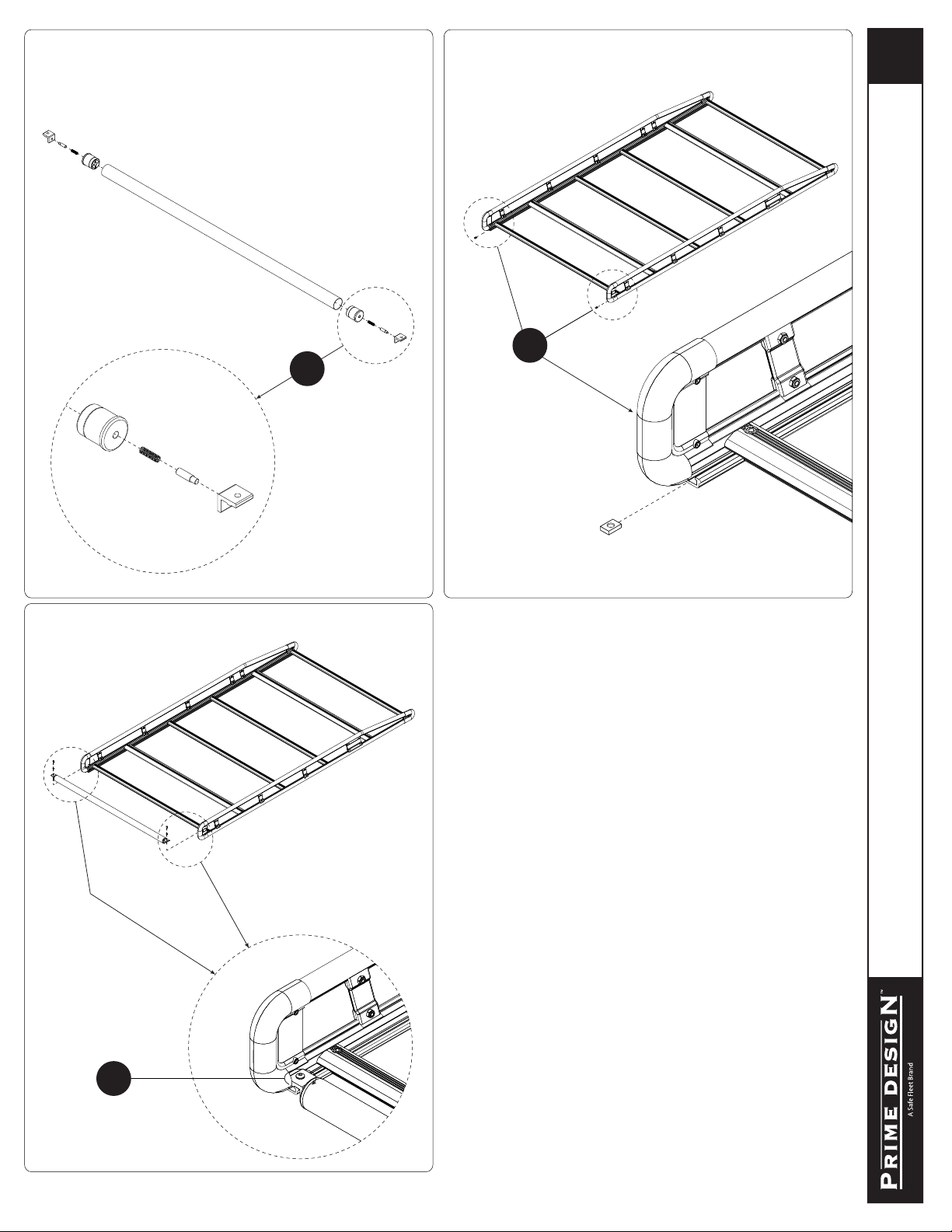

AR1221 ASSEMBLY INSTRUCTIONS–ROLLER ASSEMBLY INSTALLATION
ROLLER ASSEMBLY
4.1
4.2
4.3
Position Roller Assembly
ush to rear then torque
Allen Head bolts to 90 in-lbs
PRIME DESIGN, A SAFE FLEET BRAND 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 ▪ Phone: 651-552-8554 ▪ 1.8.PRIME.RACK ▪ Fax: 651-552-1799 ▪ Email:[email protected] ▪ www.primedesign.net
TM & © 2015 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6092974, 6764268, 6971563, 2364879, 8857689, 8511525, 8991889 AND OTHER PATENTS PENDING
8
Even
Rear Left Rear Right
Even

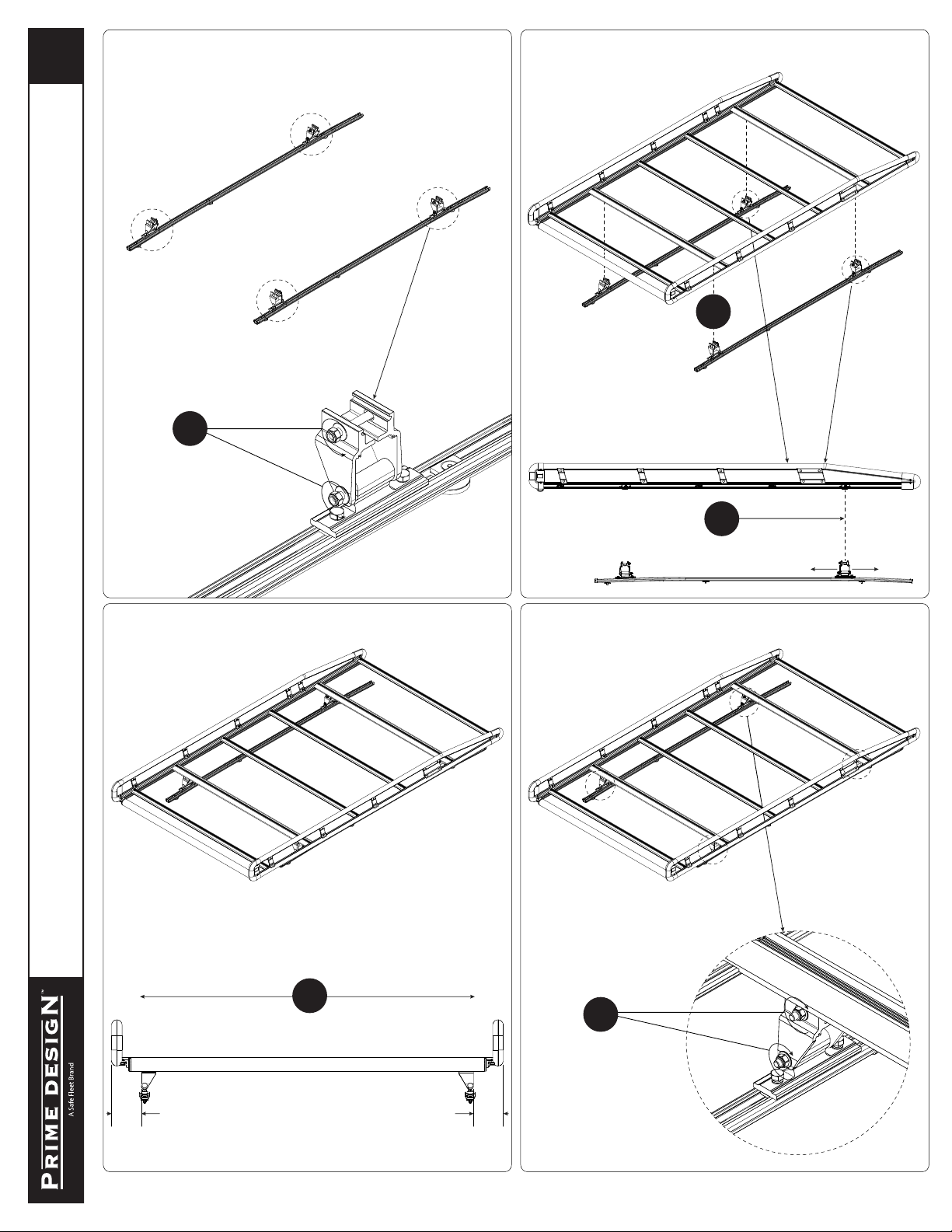

AR1221 ASSEMBLY INSTRUCTIONS–RACK TO CHANNELS INSTALLATION
MOUNTING RACK TO CHANNELS
5.2
5.4
5.5
Torque to 90 in-lbs
5.1
Loosen nuts on all
Mounting Brackets
5.3
Position Rack until evenly spaced
between Channel Mountings
Channel Mountings
align to Crossbars
PRIME DESIGN, A SAFE FLEET BRAND 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 ▪ Phone: 651-552-8554 ▪ 1.8.PRIME.RACK ▪ Fax: 651-552-1799 ▪ Email:[email protected] ▪ www.primedesign.net
TM & © 2015 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6092974, 6764268, 6971563, 2364879, 8857689, 8511525, 8991889 AND OTHER PATENTS PENDING
9

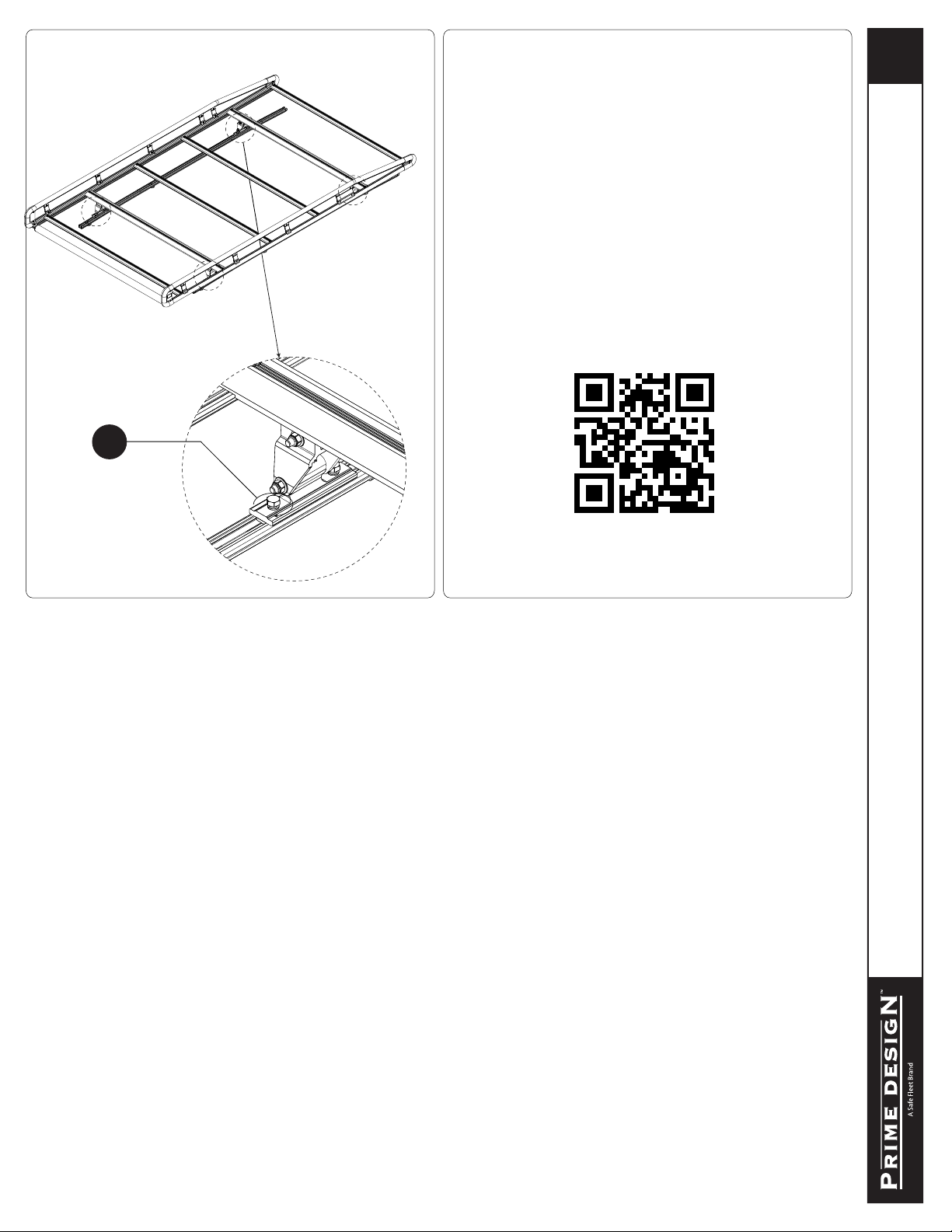

AR1221 ASSEMBLY INSTRUCTIONS–RACK TO CHANNELS INSTALLATION
ADDITIONAL INFORMATION
For additional information regarding your AR1221 Ladder Rack, please
visit the Prime Design website at: www.primedesign.net.
Using a QR code reader in your smart phone or tablet, read the QR
Code shown below and follow the same steps as you would from your
laptop or computer.
If you’re viewing this document as an interactive PDF, you may simply
click on the QR Code below to access the Prime Design website.
5.6
Torque to 90 in-lbs
