Primera XR Series Manuale utente
XR
SERIES
CD/DVD/Blu-ray Publishers
News
2
Primera’s end-to-end architecture includes all the components you need for the most integrated and reliable systems
possible: advanced hardware and software, matched supplies, and perhaps most important, local on-site installation,
training and service by factory-certified technicians. Applications already implementing Primera’s XR-series systems include
medical imaging, banking and insurance, government, military, kiosks, live video and audio processing, digital photo
processing, and content-on-demand at retail stores.
All XR-series hardware is built with tough, 18-gauge steel cabinets and 11-gauge steel bezels. Access doors are supplied
with locks and keys for maximum security. Supplies replenishment is accomplished entirely from the front, allowing
placement virtually anywhere: on counters, shelves and even in standard 19” wide racks with optional rack mount kits.
3

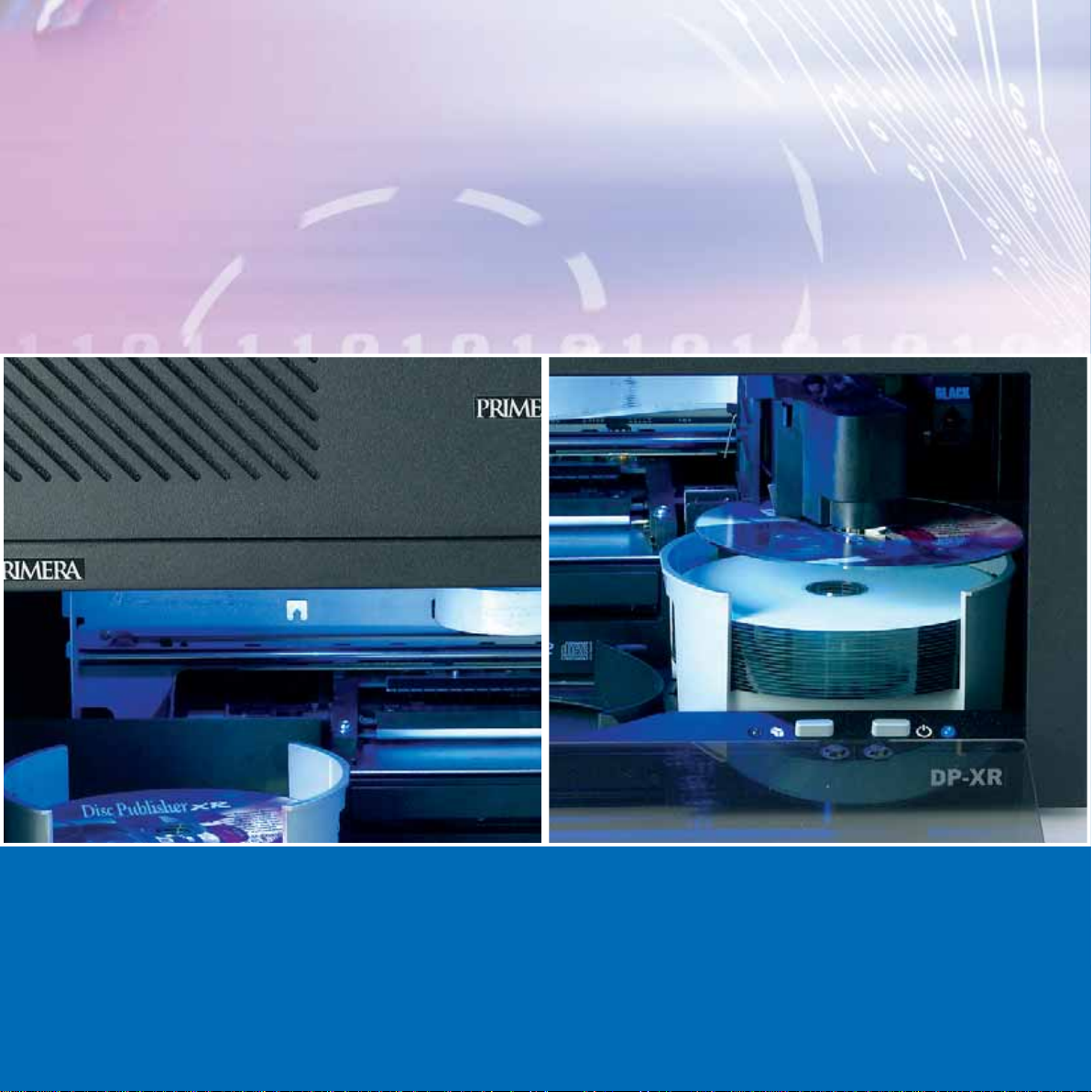

Disc Publisher XR-Series
The world’s first modular CD/DVD Production System
which grows by your needs
Professional Disc Publishing in a new, eXtra-Rugged Package!
The XR-series is designed specifically for deployment in “mission critical” applications that require fast and
efficient disc burning and printing, rock-solid reliability, and professional-quality recorded and printed CDs, DVDs
and Blu-ray™ (BD) Discs.
Primera is a member of the Blu-ray Disc
Association and is the world’s first
manufacturer of
automated disc publishers
to announce support for
Blu-ray Disc technology.
compatible with:
Disc Publisher XR Specifications
Disc Capacity: 50 discs
Recording Speeds: CD-R: Up to 48x
DVD±R: Up to 18x
BD-R: 2x
Number of Drives: One DVD±R/CD-R or one BD-R/DVD±R
Print Resolution: Up to 4800 dpi
Ink Cartridges: One CMY (cyan, magenta, yellow)
and one K (black)
Color Matching: PrimaColor ICC-compliant profile
Operating Systems: Windows XP/2000/Vista and
Mac OS X v10.2 or higher
Power Requirements: 100-240 V, 50/60 Hz,
Electrical Rating: 12 V=, 5A
Certifications: UL, UL-C, CE, RoHS, WEEE, FCC Class B
Weight: 11.3 kg (25 lbs.)
Dimensions: 432mm x 196mm x 424mm
(17” x 7.72” x 16.7”)
Data Interface: USB 2.0
Options: Kiosk Adapter Kit,
Rack Mount Adapter Kit (4 HE),
Business Card Adapter Kit,
Extended Warranty
Disc Publisher XR can be used as a stand-alone production system or combined with other XR-Series models. Disc
Publisher XR is a fully automated production system which burns and prints up to 50 discs at a time. The
included 4800 dpi inkjet printer with special dye-based inks provides stunning results.
An 11-gauge, all-steel front bezel and 18-gauge steel frame make the unit suitable for heavy workloads and
true “lights-out” disc production.
4

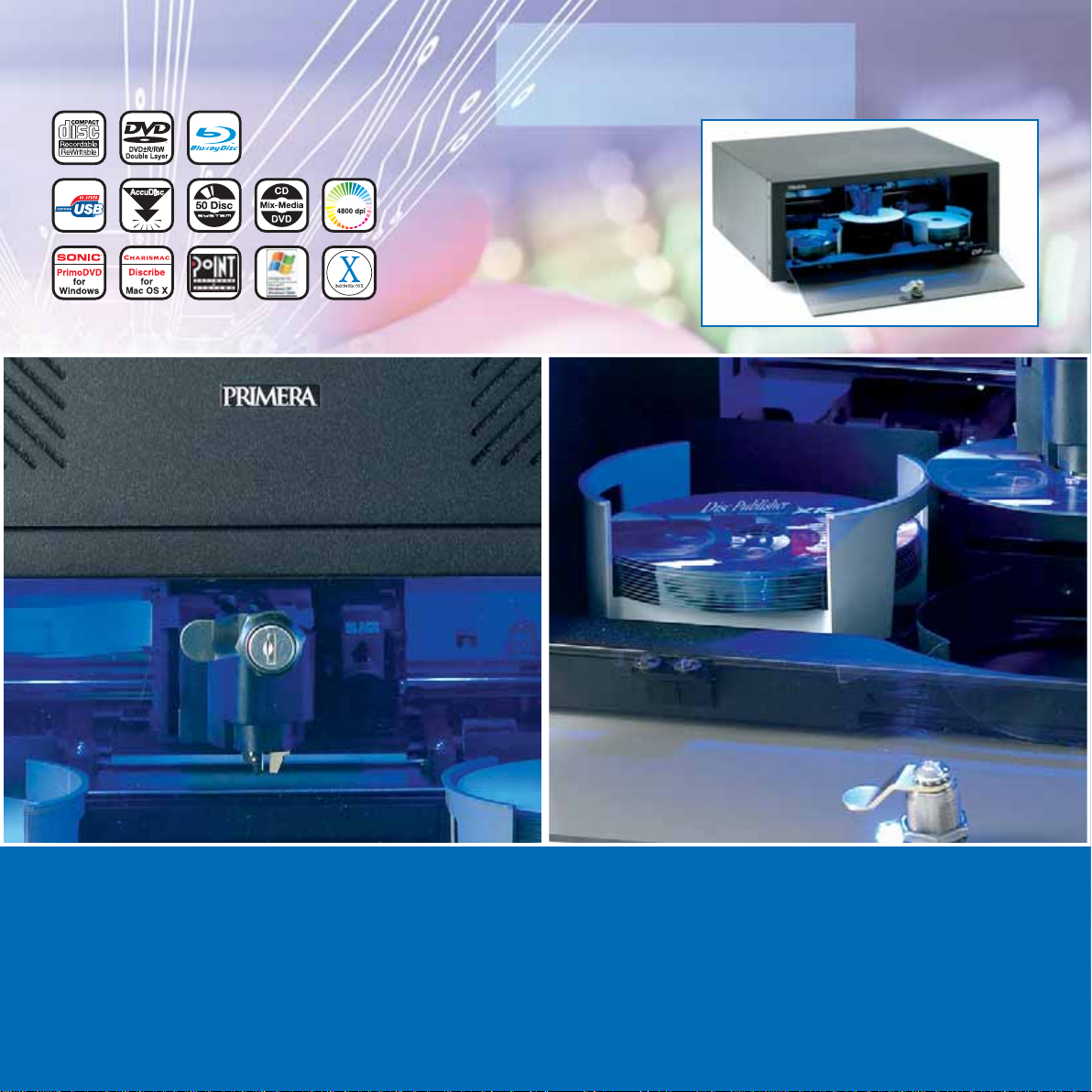

Disc Publisher XR
Disc Publisher XR comes with a full software package which includes Primera’s PT Publisher CD/DVD recording
software for Windows OS, PoINT Publisher software for On-Demand-Publishing and Discribe from CharisMac for
Mac OS X v10.2.
With the 1-2-3 Easy Step installation and a single USB 2.0 connection the Disc Publisher XR is up and running in a
few minutes.
5
Disc Publisher XRP Specifications
Disc Capacity: 100 discs
Recording Speeds: CD-R: Up to 48x
DVD±R: Up to 18x
BD-R: 2x
Number of Drives: Two DVD±R/CD-R or two BD-R/DVD±R
Print Resolution: Up to 4800 dpi
Ink Cartridges: One CMY (cyan, magenta, yellow) and
one K (black)
Color Matching: Primera Z-Color™ profile included
Operating Systems: Windows XP/2000/Vista and
Mac OS X v10.2 or higher
Power Requirements: 100-120 V or 220-240 V, 50/60 Hz
Certifications: UL, UL-C, CE, RoHS, WEEE, FCC Class B
Weight: 19.5 kg (43 lbs.)
Dimensions: 432mm x 274mm x 424mm
(17“ x 10.8“ x 16.7“)
Data Interface: USB 2.0
Options Kiosk Adapter Kit,
Rack Mount Adapter Kit (6 HE),
Business Card Adapter Kit,
Extended Warranty
Disc Publisher XRP can be used as a stand-alone production system or combined with other XR-Series models.
Disc Publisher XRP is a fully automated production system which burns and prints up to 100 discs at a time. The
included 4800 dpi Hi-Speed inkjet printer with special dye-based inks provides stunning results.
Supplies replenishment is accomplished entirely from the front, allowing placement virtually anywhere: on
counters, shelves and even in standard 19" wide racks with optional rack mount kits.
6

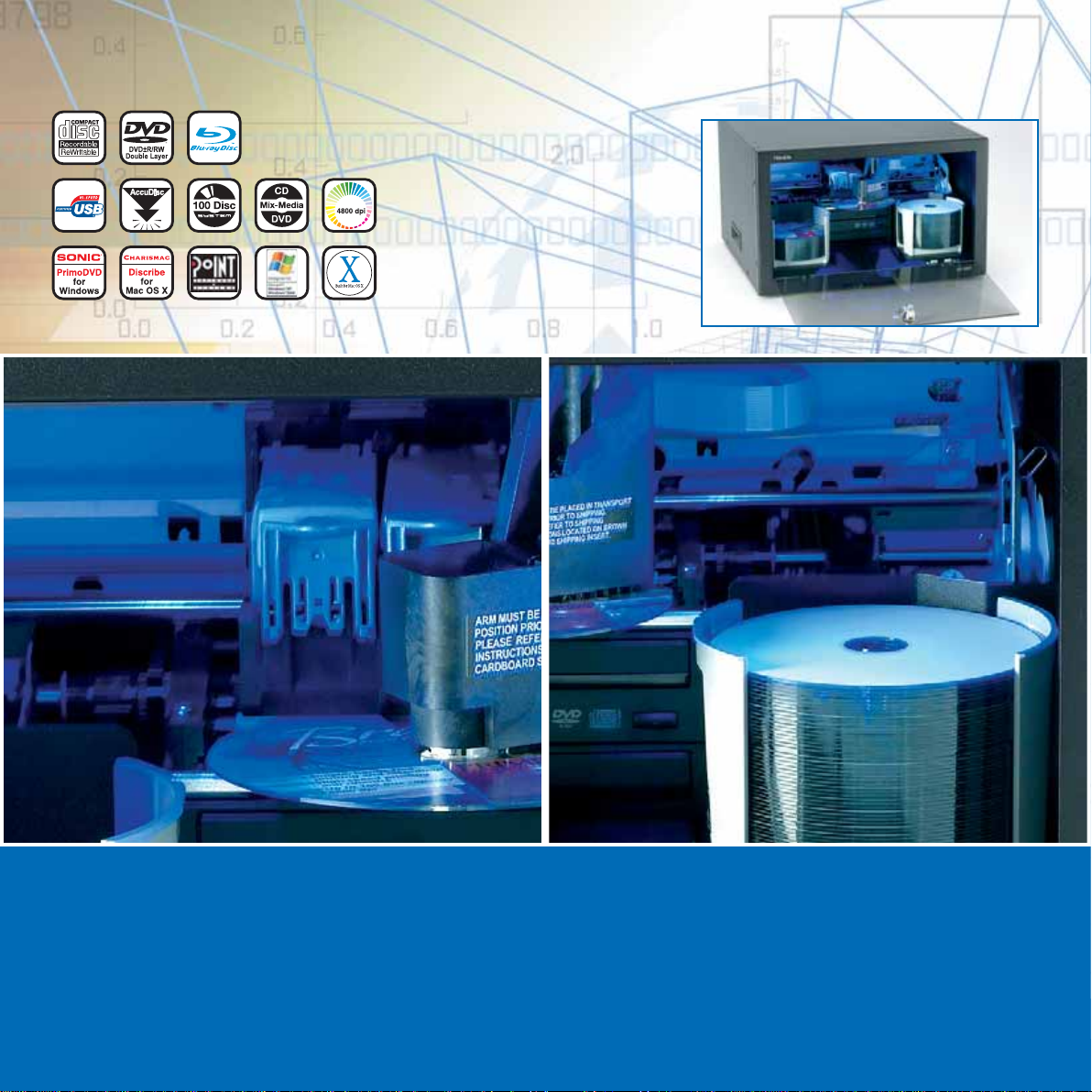

Disc Publisher XRP
Disc Publisher XRP comes with a full software package which includes Primera’s PT Publisher CD/DVD recording
software for Windows OS, PoINT Publisher software for On-Demand-Publishing and Discribe from CharisMac for
Mac OS X v10.2.
With the 1-2-3 Easy Step installation and a single USB 2.0 connection the Disc Publisher XRP is up and running in
a few minutes.
7
EMBEDDED COMPUTER
Processor: Intel Celeron D 2.93 GHz
RAM: 1GB (PC2-4200),
expandable to 2GB
Hard drive: 250GB internal SATA hard drive
Expansion slots: (3) PCI, (1) 16x PCIe
Network connection: Gigabit Ethernet LAN
Operating system: Windows XP Embedded
Ports: Monitor, keyboard, mouse,
(4) USB 2.0,
RS-232 serial, parallel, audio
CD/DVD RECORDING
Recordable drive:
Latest Pioneer® DVD/CD drive,
18x DVD±R, 40x CD-R; optional
Panasonic® Blu-ray recordable drive
Disc capacity:
50 discs and two input bins; can use
one input bin for CDs and the other
for DVDs (or optional BD-R)
PRINTING
Print resolution: Up to 4800 dpi
Media supported: Inkjet printable
CD/DVD/BD media, including the
latest generations of highly water-,
mudge- and scratch-resistant
printable media
Media sizes: 120 mm standard
Ink cartridges: Dual CMY (cyan, magenta,
yellow) and K (black)
Color matching: Primera Z-Color™ profile
included

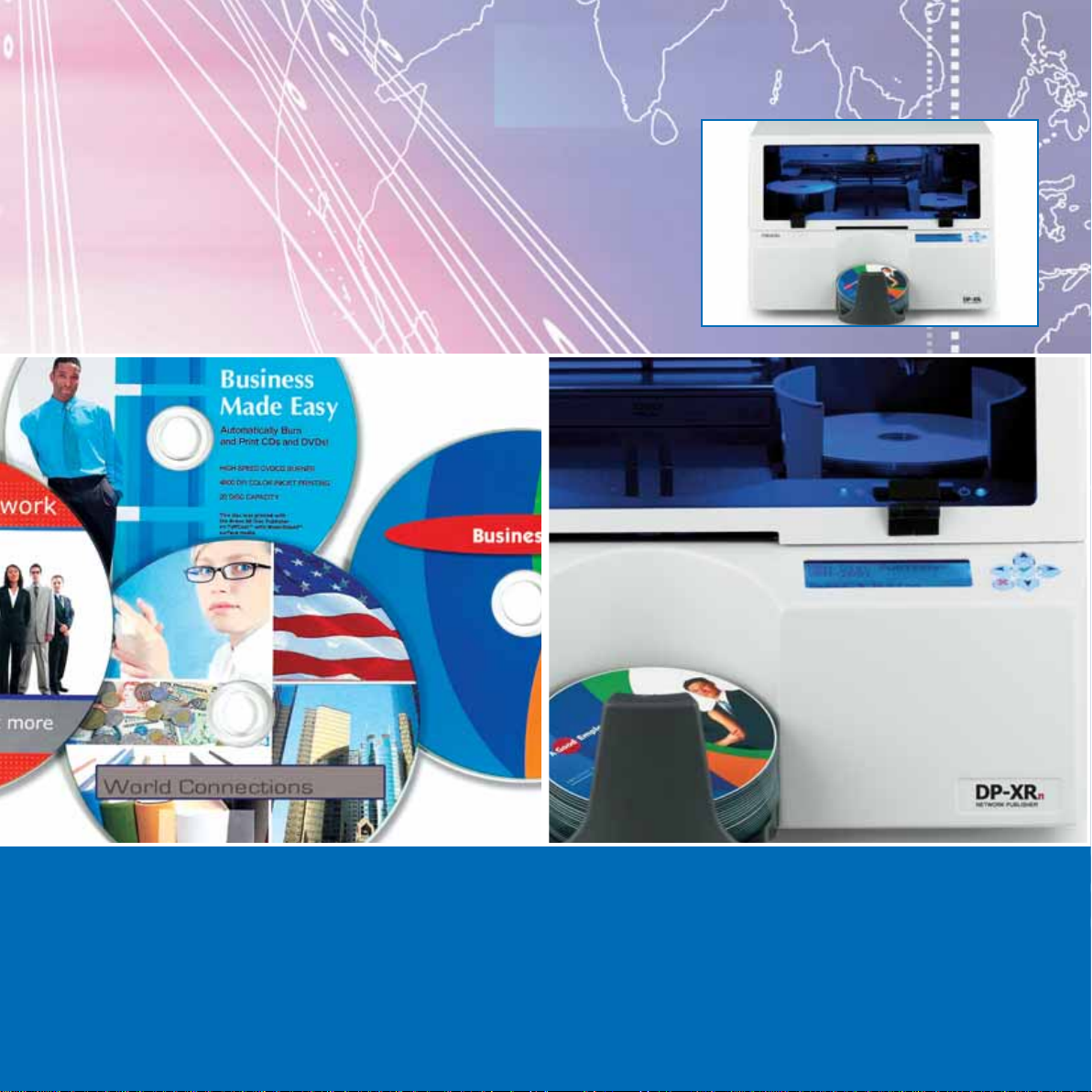

Disc Publisher XRn is a high-performance, enterprise-class machine that’s been designed for use in the most
demanding, “mission-critical” environments.
Disc Publisher XRn allows users to burn and print discs from anywhere on the network. Easy to use client
software is installed on each workstation to format discs, attach data and send jobs to the disc publisher.
The front-panel keypad and back-lit LCD give convenient, localized control for job status and maintenance.
8
Disc Publisher XRn/XRn-Blu Specifications
Discs can be dispensed out the front of the unit or stacked inside the locked front door for security. You can
even load blank CDs in one input bin and DVDs or Blu-ray Discs in the other and remotely select which type of
media to burn – a unique feature not found on other brands.
The built-in Windows®XP Embedded operating system can be configured to your network in just seconds. To
increase capacity, simply add more units and control them from the same software.
Disc Publisher XRn
9
GENERAL
LCD display: Back-lit, 4 x 20 characters with integrated
keypad, software addressable through provided DLL
Power: Switch-selectable 100-120VAC@2A or
220-240VAC@1A, 50/60 Hz
Certifications: UL, UL-C, CE, RoHS, WEEE, FCC Class A
Weight: 49 lbs. (22.2 kg)
Dimensions: 432 mmW x 330.2 mmH x 538 mmD
(17"W x 13"H x 21.5"D)
Options: Extended and “Hot Swap” Warranties
Multi-format Blu-ray Disc/CD/DVDrecorders
Business Card Adapter Kit
10
PTPublisher NE
Network Edition Software SDK
Software Developer’s Kit
New PTPublisher NE (Network Edition) Software is available as
a free 30-day trial at www.primera-europe.eu.
PTPublisher NE Software allows multiple users in an office to
share a single Primera automated disc publisher. Primera’s disc
publishers automatically burn and print quantities of CDs,
DVDs and optionally, Blu-ray™ Disc Media.
After installing PTPublisher NE software, users can send burn
and print jobs from any client Mac OS X (v 10.2 or later) or
Windows™ XP/2000/Vista PC on the network. The software
comes with an unlimited number of client licenses.
The PTDevSuite Software Developer's Kit (SDK) allows developers to
quickly and easily integrate any of Primera's industry-leading
CD/DVD publishing systems. This comprehensive API for Windows
XP/2000 provides full control of all burning, direct-to-disc printing
and robotics functions.
Almost one thousand developers around the world are using
PTDevSuite in a wide range of applications such as music and video
content on-demand, medical imaging, backup and archival, legal
and court reporting, document imaging, banking and insurance,
digital photo processing and much more.
PTDevSuite is available at no charge to registered developers.
Registration can be done on Primera's website at www.primera.com
