Primus BALLISTA100T Manuale utente
SETUP
BALLISTA100T
• Windows XP/ Windows Vista /Windows 7 /Windows 8 /Windows 10
• Available USB port (V1.1/2.0/3.0)
• 5MB of free disk space
1
1
I. WINDOWS
REQUIREMENT
II. SETUP
2
1. Download the Ballista software from our website at primusgaming.com/software.
2. Connect the gaming keyboard to an available USB port.
3. Double click the BALLISTA100T_Setup file.

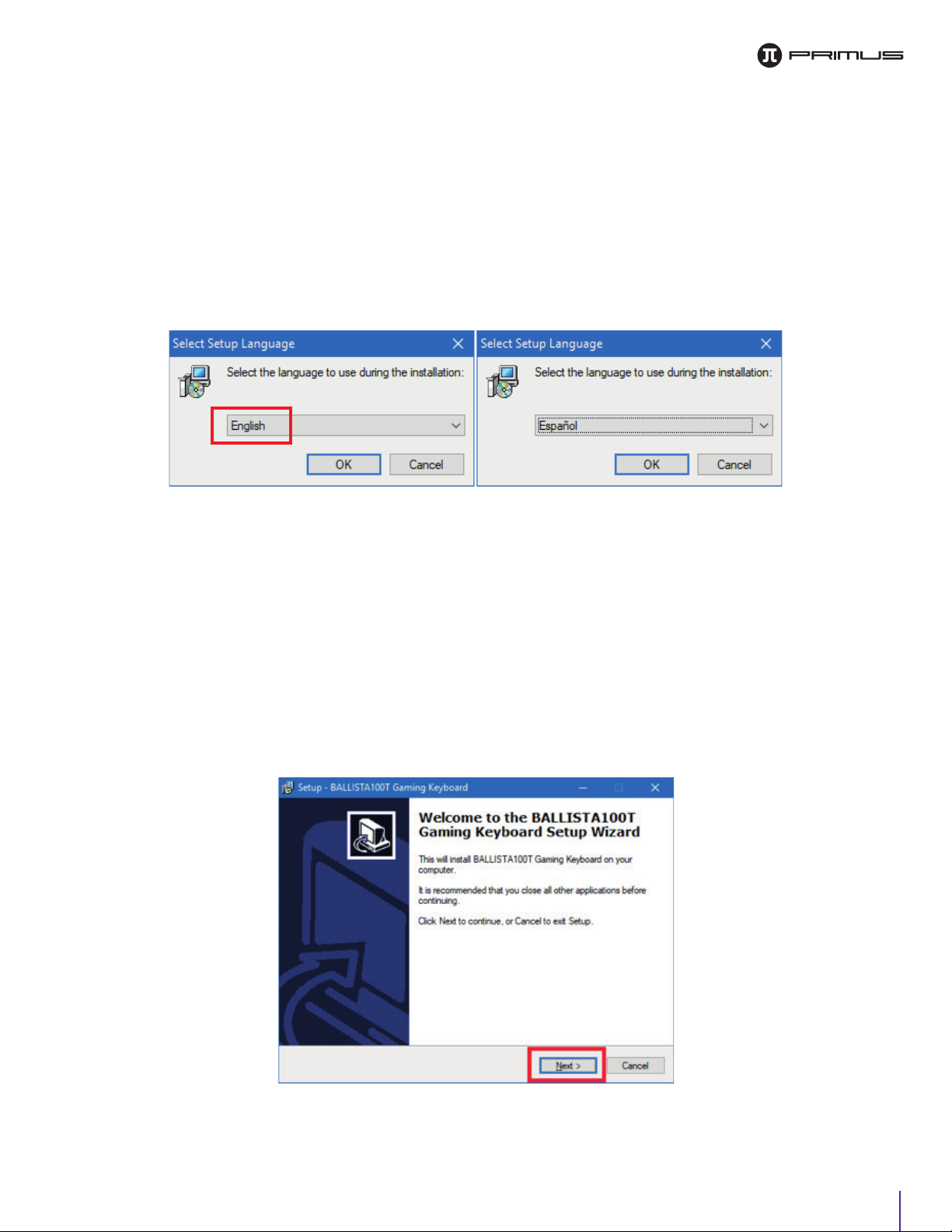

4. You will be prompted to select the setup language. The available languages are English or
Spanish. Click the down arrow to choose the preferred language. Once done, click on OK.
5. The welcome screen will appear. Click on Next to initiate the setup process.
3

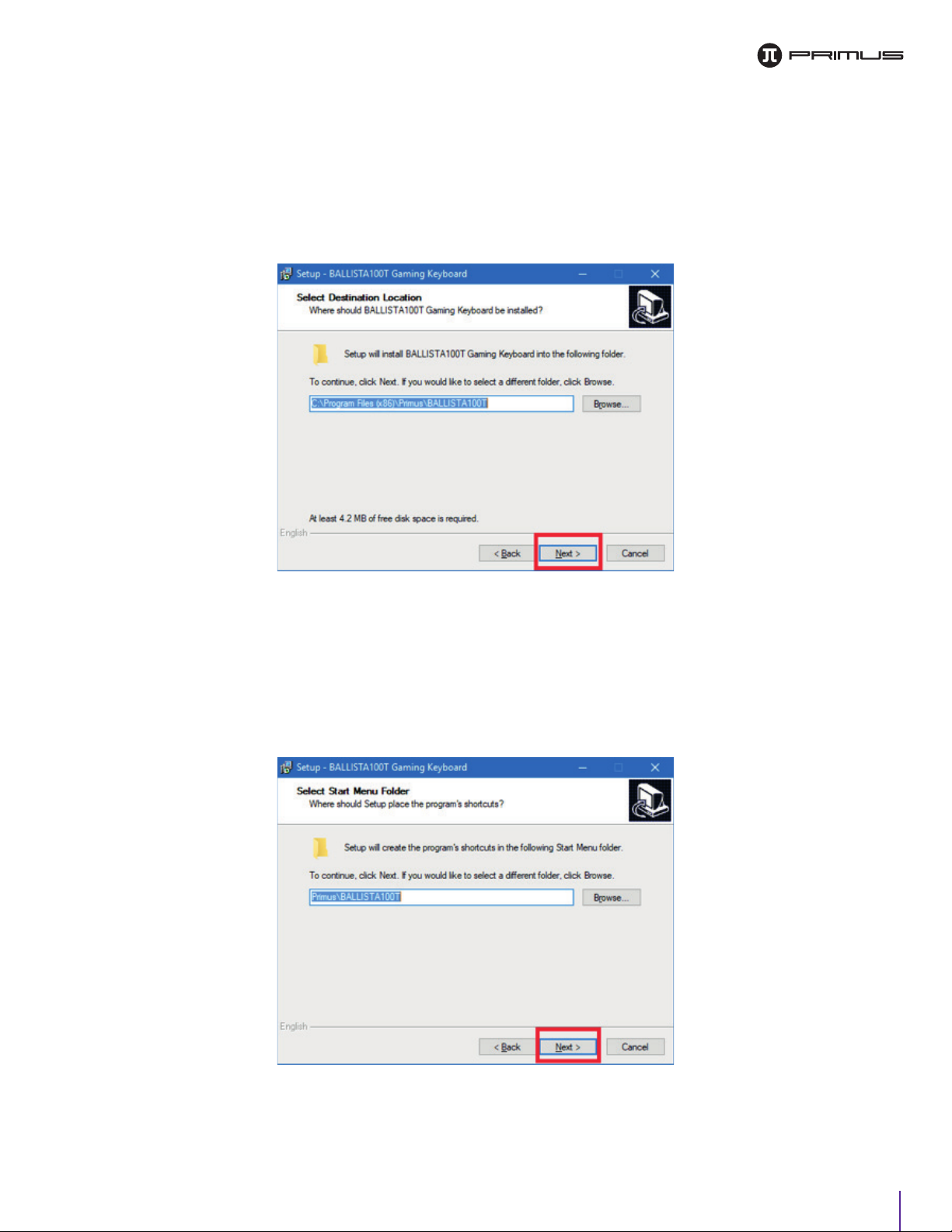

6. Select the destination where you want the software to be installed. We recommend keeping
the default path, however you can choose a different location if desired. Please note the
software will require 4.2MB of free disk space. Click Next to continue.
7. Select Start Menu folder location where you want the software to be displayed. The default
location is Primus\BALLISTA100T. You may change this path if desired. Click Next when done.
4

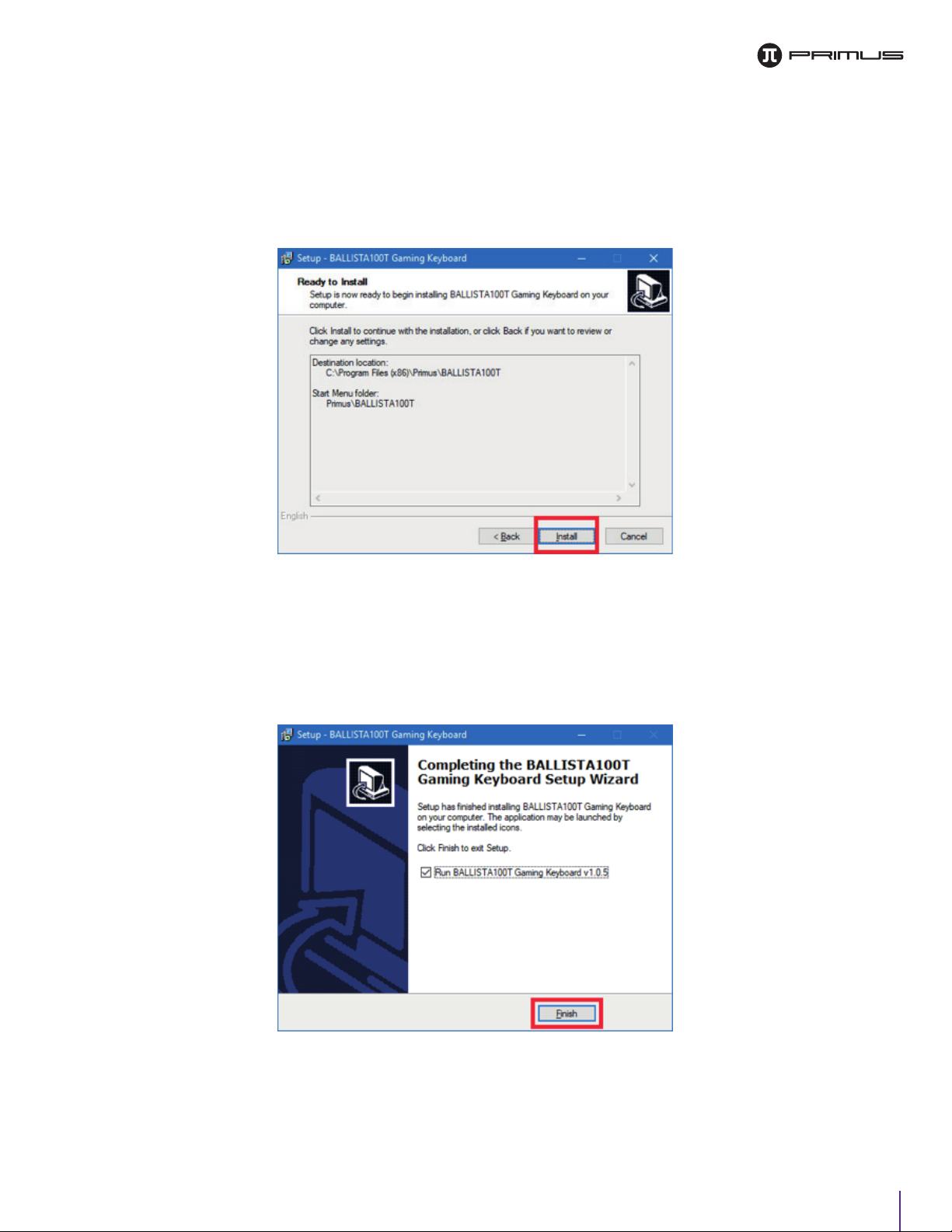

8.You are now ready to install your brand new Primus BALLISTA100T gaming keyboard. Click on
Install.
9. Click on Finish to complete the setup.
5
III. MAIN
SOFTWARE
INTERFACE
6
7

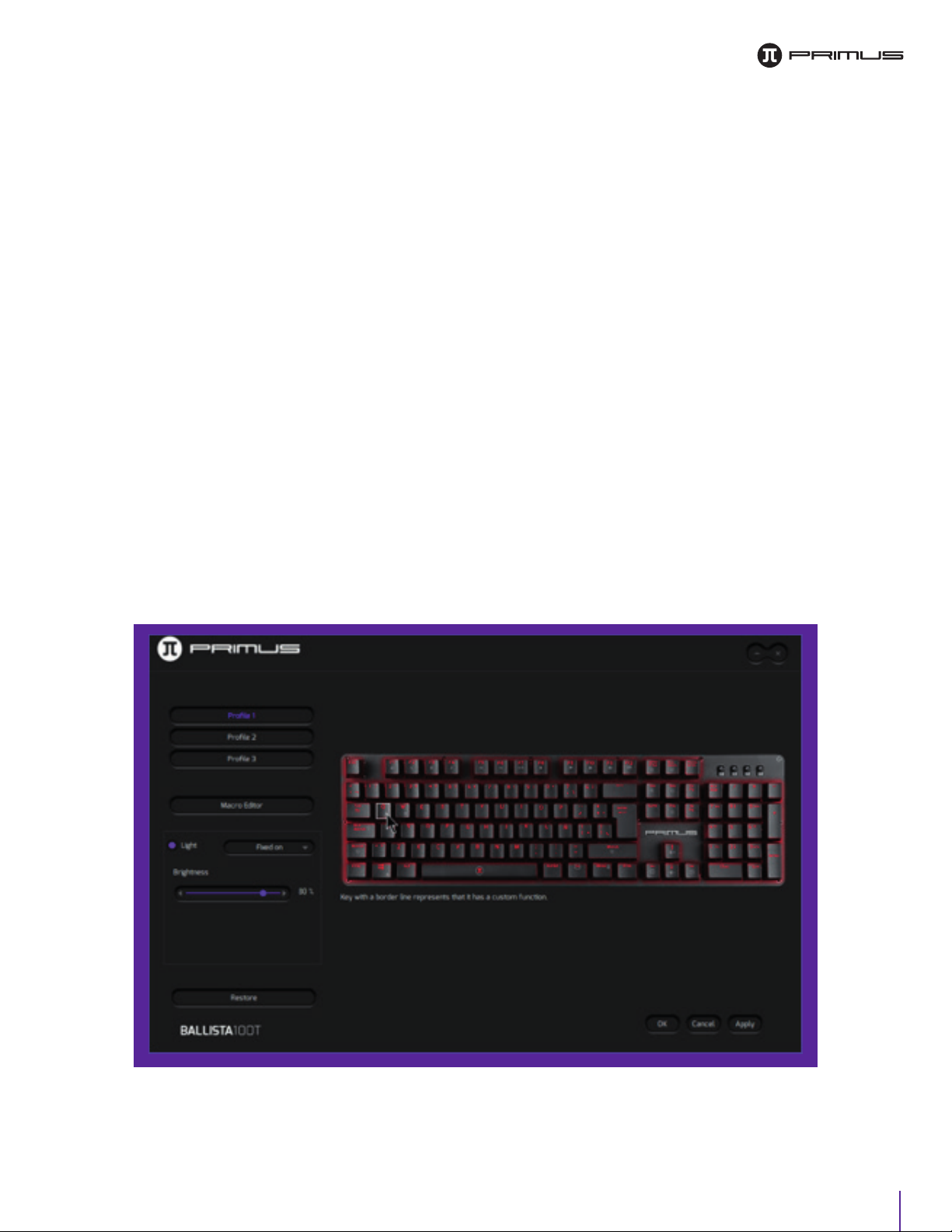

The Main software screen will be displayed. In this menu you can configure the lights, setup a
macro, assign personalized keys, and set different profiles.
8

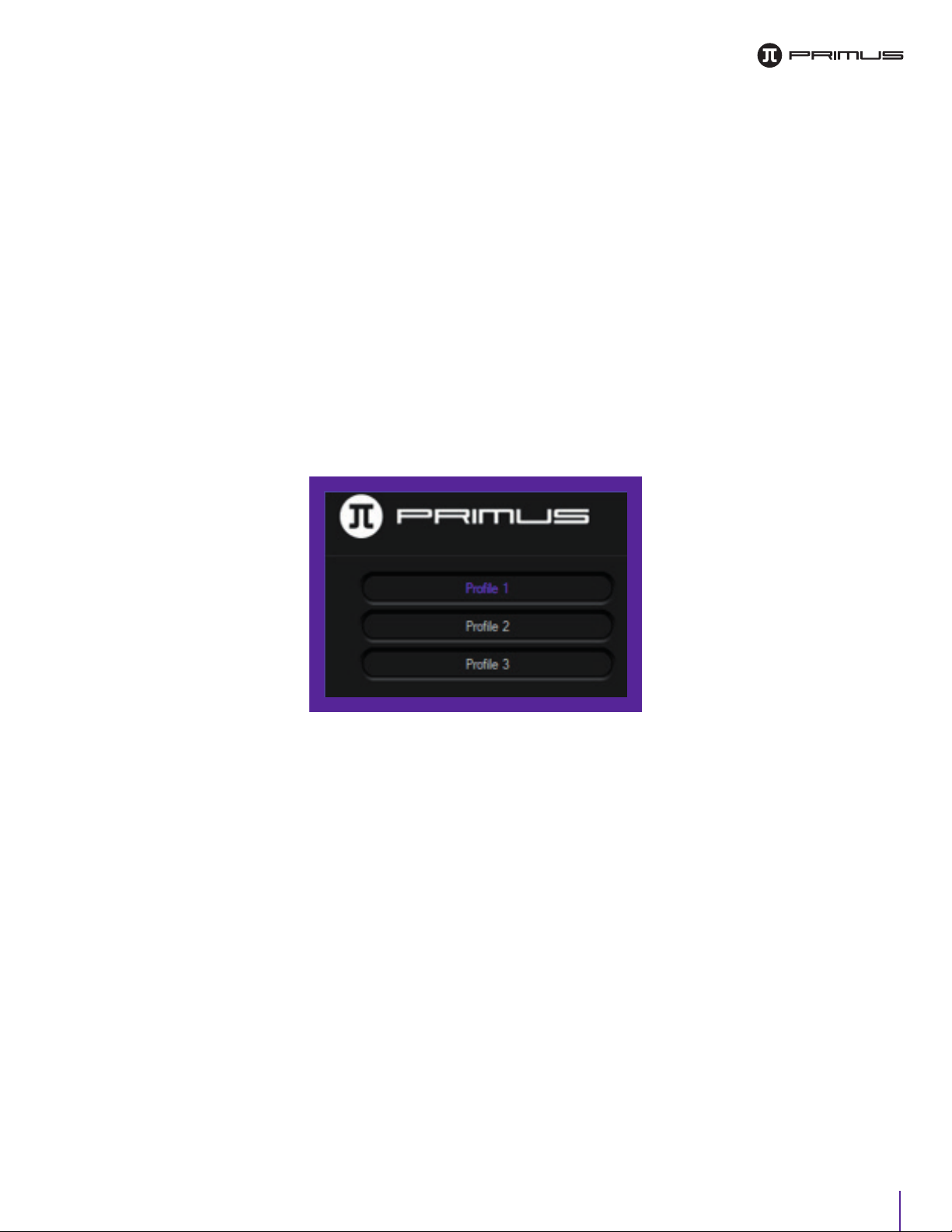

1. Programming profiles
You can assign up to 3 different profiles. To do so, click on Profile 1, make all the software changes
you would like to assign to this profile slot and then click Apply to save the settings. Do the same
for Profile 2 and 3. With all 3 profiles configured, you are now able to cycle between the different
profiles.
9
2. Programming keys
The software allows for all keys to be customized in order to execute specific functions.
Keys can be programmed as follows:
• Single key or combination keys: you can input a single key command or a combination of key
commands to any key.
• Multimedia function or internet functions: there are 18 preset functions for you to choose
from and assign to any key.
• Macro keys: you can assign a Macro function to any key. Keyboard supports a maximum of
20 macros.
Assigning specific functions to a key:
A. Set a single key or combination keys: For illustration purposes, we will use the Qkey.
1. Start by clicking on Q.
