Pro-Form PFEL77908.3 Manuale utente

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. eep this manual

for future reference.

Serial Number

Decal

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

USERʼS MANUAL

QUESTIONS?

As a manufacturer, we are commit-

ted to providing complete customer

satisfaction. If you have questions,

or if parts are missing, PLEASE DO

NOT CONTACT THE STORE;

please contact Customer Care.

IMPORTANT: You must note the

product model number and

serial number (see the drawing

above) before contacting us:

CALL TOLL-FREE:

1-888-533-1333

Mon.–Fri. 6 a.m.–6 p.m. MST

Sat. 8 a.m.–4 p.m. MST

ON THE WEB:

www.proformservice.com

Model No. PFEL77908.3

Serial No.

Write the serial number in the

space above for reference.

TABLE OF CONTENTS

WARNINGDECALPLACEMENT ..............................................................2

IMPORTANTPRECAUTIONS ................................................................3

BEFOREYOUBEGIN ......................................................................4

ASSEMBLY ...............................................................................5

HOWTOUSETHEELLIPTICALEXERCISER ..................................................12

MAINTENANCEANDTROUBLESHOOTING ...................................................20

EXERCISEGUIDELINES ...................................................................21

PARTLIST ..............................................................................24

EXPLODEDDRAWING ....................................................................26

ORDERINGREPLACEMENTPARTS ..................................................BackCover

LIMITEDWARRANTY ..............................................................BackCover

PROFORM is a registered trademark of ICON IP, Inc.

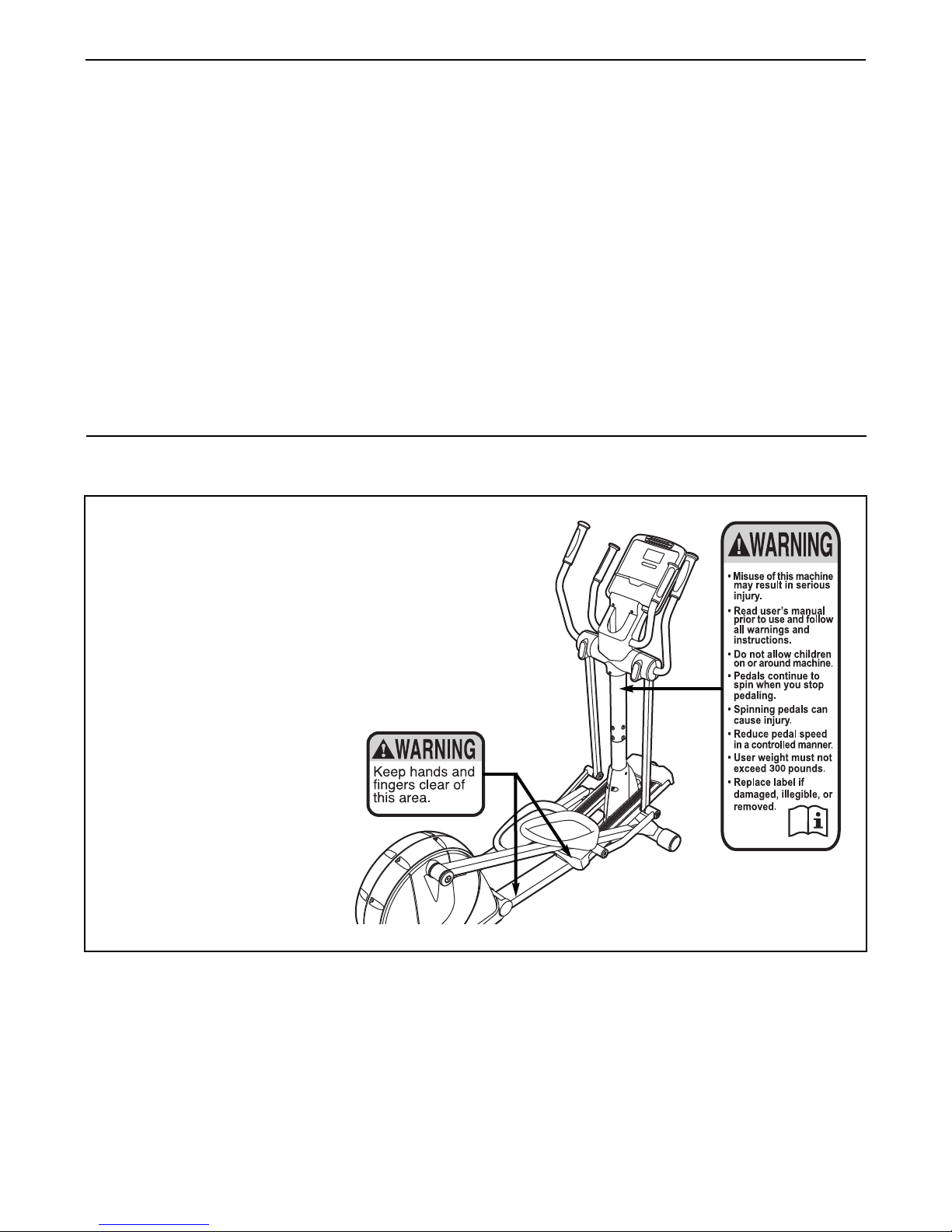

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the warning

decal(s). If a decal is missing or illegible, call the

telephone number on the front cover of this

manual and request a free replacement decal.

Apply the decal in the location shown. Note: The

decal(s) may not be shown at actual size.

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your elliptical exerciser before using your elliptical

exerciser. ICON assumes no responsibility for personal injury or property damage sustained by or

through the use of this product.

IMPORTANT PRECAUTIONS

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over the age of 35 or

persons with pre-existing health problems.

2. It is the responsibility of the owner to ensure

that all users of the elliptical exerciser are

adequately informed of all precautions.

3. Your elliptical exerciser is intended for home

use only. Do not use your elliptical exerciser

in a commercial, rental, or institutional set-

ting.

4. eep your elliptical exerciser indoors, away

from moisture and dust. Place your elliptical

exerciser on a level surface, with a mat

beneath it to protect the floor or carpet.

Make sure that there is enough clearance

around your elliptical exerciser to mount,

dismount, and use it.

5. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

6. eep children under age 12 and pets away

from your elliptical exerciser at all times.

7. Your elliptical exerciser should not be used

by persons weighing more than 300 lbs.

(136 kg).

8. Wear appropriate exercise clothes when

exercising; do not wear loose clothes that

could become caught on your elliptical exer-

ciser. Always wear athletic shoes for foot

protection.

9. Hold the handgrip pulse sensor or the upper

body arms when mounting, dismounting, or

using your elliptical exerciser.

10. eep your back straight while using your

elliptical exerciser; do not arch your back.

11. The pulse sensor is not a medical device.

Various factors, including the userʼs move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

12. When you stop exercising, allow the pedals

to slowly come to a stop.

13. If you feel pain or dizziness while exercising,

stop immediately and cool down.

14. Use your elliptical exerciser only as

described in this manual.

BEFORE YOU BEGIN

Thank you for purchasing the revolutionary

PROFORM®SPACESAVER DX elliptical exerciser.

The SPACESAVER DX elliptical exerciser provides a

wide array of features designed to make your work-

outs at home more effective and enjoyable—and when

youʼre not exercising, the unique elliptical exerciser

can be folded out of the way.

For your benefit, read this manual carefully before

you use the elliptical exerciser. If you have ques-

tions after reading this manual, please see the front

cover of this manual. To help us assist you, note the

product model number and serial number before con-

tacting us. The model number and the location of the

serial number decal are shown on the front cover of

this manual.

To avoid a registration fee for any service needed

under warranty, you must register the elliptical

exerciser at www.proformservice.com/registration.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Pulse Sensor

Stereo Cable

Upper Body Arm

Pedal Disc

Wheel

Pedal

Stereo Speakers

Water Bottle Holder*

Console

Leveling Foot

Handle

Latch Button

Ramp

Incline nob

Storage Magnet

Fan

Pedal Arm Latch

*Water bottle is not included

M10 x 93mm Patch Screw (82)–4

M10 x 25mm

Washer (87)–2

M8 Split

Washer (101)–4

M4 x 16mm

Screw (97)–16

M6 Split Washer

(102)–8

M6 x 35mm Patch

Screw (109)–4

M6 x 62mm

Patch Screw (108)–4

M8.5 x 16mm x

1.5mm Washer

(103)–6

Link Arm

Spacer (74)–4

M8 x 20mm Patch

Screw (107)–4

M8 x 25mm Patch

Screw (110)–2

M10 x 20mm Patch

Screw (111)–2

M8 x 15mm Patch

Screw (106)–10

M10 Curved

Washer (99)–4

Wave Washer

(100)–2

ASSEMBLY

To hire an authorized service technician to assemble the elliptical exerciser, call 1-800-445-2480.

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the

included hex keys, assembly requires a Phillips screwdriver , an adjustable

wrench , and a rubber mallet .

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses

below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number

following the parentheses is the quantity needed for assembly. Note: Some small parts may have been pre-

assembled. If a part is not in the hardware kit, check to see if it has been preassembled.

2. While another person lifts the Folding Frame

(2), attach the Rear Stabilizer (3) to the Folding

Frame with two M10 x 93mm Patch Screws (82)

and two M10 Curved Washers (99).

Next, tighten the Center Foot (95) into the

Frame (1).

If there is a shipping bracket attached to the

rear of the Folding Frame (not shown), remove

the screw and the shipping bracket from the

Folding Frame. Discard the screw and the ship-

ping bracket.

See HOW TO FOLD AND UNFOLD THE

ELLIPTICAL EXERCISER on page 12 and

unfold the elliptical exerciser.

While another person lifts the front of the Frame

(1), attach the Front Stabilizer (4) to the Frame

with two M10 x 93mm Patch Screws (82) and

two M10 Curved Washers (99).

To make assembly easier, read the

information on page 5 before you begin

assembling the elliptical exerciser.

3. Attach the Front Ramp Cover (6) to the

Ramp (5) with four M4 x 16mm Screws (97).

Slide an M10 x 25mm Washer (87) onto an M10

x 20mm Patch Screw (111). Tighten the Button

Screw into one end of the Ramp Axle (72).

Apply a small amount of the included grease to

the Ramp Axle.

Orient the Ramp (5) as shown. Align the lower

end of the Ramp with the welded tube on the

Frame (1). Insert the Ramp Axle (72) into the

Ramp and the welded tube. Then, pull the

Ramp nob (9), lower the Ramp, and engage

the Ramp Pin (62) in one of the three adjust-

ment holes in the front of the Frame.

Slide an M10 x 25mm Washer (87) onto an M10

x 20mm Patch Screw (111). Tighten the Patch

Screw into the open end of the Ramp Axle (72).

962

Adjustment

Holes

Grease

111

4. Identify the Left Pedal (34) and the Left Pedal

Arm (32), which are marked with stickers.

Attach the Left Pedal (34) to the Left Pedal

Arm (32) with two M6 x 62mm Patch Screws

(108), two M6 x 35mm Patch Screws (109), and

four M6 Split Washers (102).

Attach the Right Pedal (not shown) to the

Right Pedal Arm (not shown) in the same

way.

108

102

109

102

5. Insert the Roller (38) on the Left Pedal Arm (32)

and the Roller on the Right Pedal Arm (33) into

the sides of the Ramp (5).

Attach the Rear Ramp Cover (7) to the

Ramp (5) with two M4 x 16mm Screws (97).

See the inset drawing. Lift the Pedal Arm

Latch (41) on the Left Pedal Arm (32), and set

the end of the Left Pedal Arm on the left Crank

Bushing Sleeve (54). Release the Pedal Arm

Latch, and make sure that the Left Pedal Arm is

securely connected to the Crank Bushing

Sleeve.

Connect the Right Pedal Arm (not shown) to

the right Crank Bushing Sleeve (not shown)

in the same way.

977

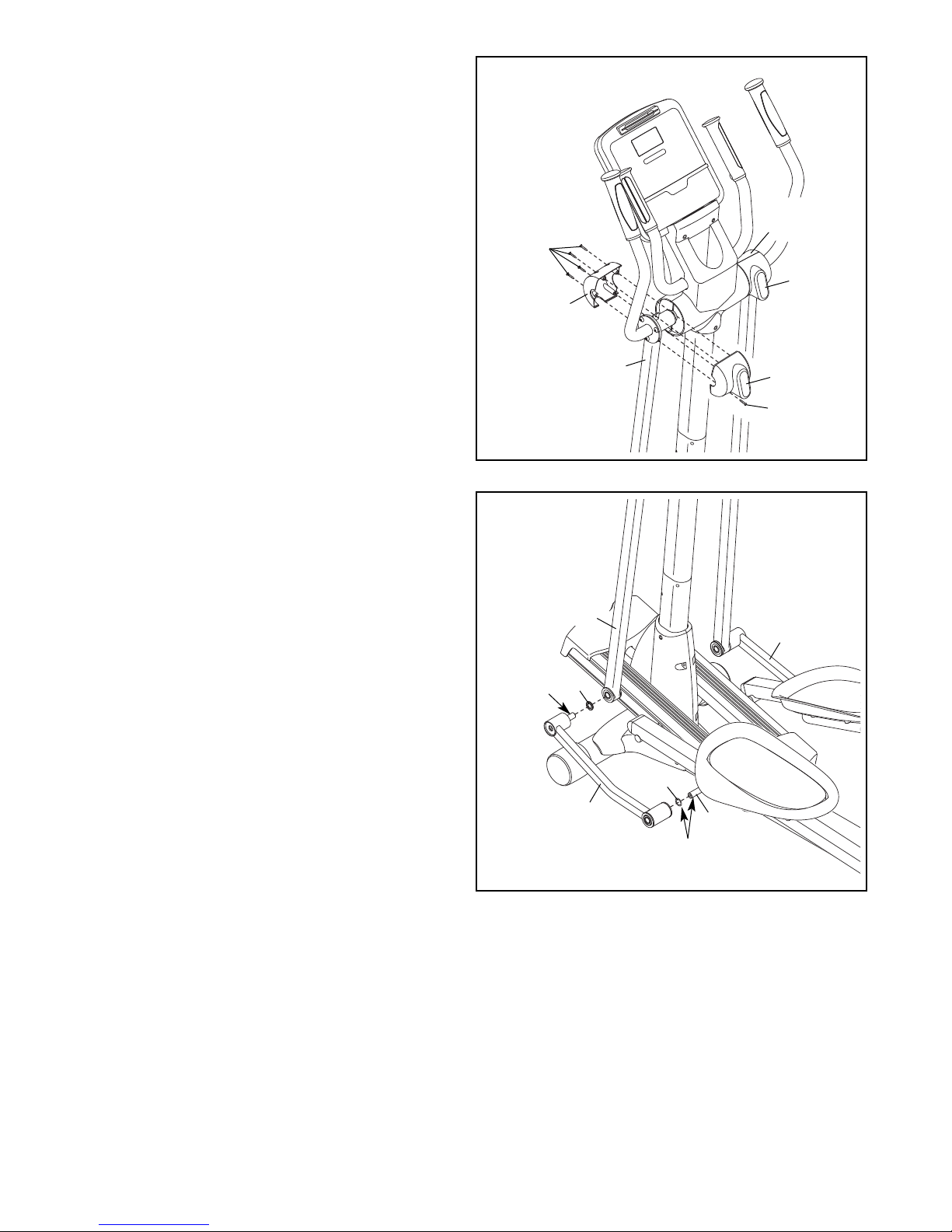

7. Attach the Left Upper Body Arm (22) to the left

Upper Body Leg (24) with three M8 x 15mm

Patch Screws (106).

Attach the Right Upper Body Arm (23) in the

same way.

6. While another person holds the Upright (10)

near the Frame (1), connect the ends of the

Upper Wire Harness (65) to the ends of the

Lower Wire Harness (64).

Carefully insert the Upright (10) into the

Frame (1); be careful not to damage the Wire

Harnesses (64, 65). Attach the Upright with

four M8 x 20mm Patch Screws (107) and four

M8 Split Washers (101).

106

107

101 101

Avoid pinching

the wires during

this step

107

8. Hold the Left Rear Upper Body Cover (26) and

the Left Front Upper Body Cover (27) around

the left Upper Body Leg (24). Attach the Upper

Body Covers with five M4 x 16mm Screws (97).

Attach the Right Rear Upper Body Cover

(28) and the Right Front Upper Body Cover

(29) in the same way.

9. Apply a small amount of grease to the axle on

the Left Link Arm (30), to the axle on the Left

Pedal Arm (32), and to a Wave Washer (100).

Slide the Wave Washer (100) onto the axle on

the Left Pedal Arm (32). Next, slide a Link Arm

Spacer (74) onto the axle on the Left Link Arm

(30).

Then, insert the axle on the Left Link Arm (30)

into the left Upper Body Leg (24) while sliding

the Left Link Arm onto the axle on the Left

Pedal Arm (32).

Repeat this step with the Right Link Arm

(31).

100

Grease

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Pro-Form Ellittica

Pro-Form

Pro-Form 850 Elliptical Manuale utente

Pro-Form

Pro-Form 500 Ekg Elliptical Manuale utente

Pro-Form

Pro-Form SMART STRIDER 695 CSE Manuale utente

Pro-Form

Pro-Form PFEL55911.6 Manuale utente

Pro-Form

Pro-Form 790 Hr Elliptical Manuale del sistema

Pro-Form

Pro-Form PFCCEL3906.0 Manuale utente

Pro-Form

Pro-Form 750 Rx Manuale operativo e di manutenzione

Pro-Form

Pro-Form PFEL87070 Manuale utente

Pro-Form

Pro-Form 690 Hr Elliptical Manuale utente

Pro-Form

Pro-Form PFEL2595.0 Manuale utente

Pro-Form

Pro-Form 800 Hr Heart Rate Control Elliptical Guida rapida

Pro-Form

Pro-Form 505 Zle Elliptical Manuale utente

Pro-Form

Pro-Form 500 F Elliptical Manuale utente

Pro-Form

Pro-Form 831.280182 Manuale utente

Pro-Form

Pro-Form PCEL87075 Manuale utente

Pro-Form

Pro-Form PCEL87076 Manuale utente

Pro-Form

Pro-Form 320 Elliptical Manuale utente

Pro-Form

Pro-Form CARBON E7 Manuale utente

Pro-Form

Pro-Form 480 Spacesaver Elliptical Guida rapida

Pro-Form

Pro-Form 465 S Manuale utente

Pro-Form

Pro-Form 696 Elliptical Manuale del sistema

Pro-Form

Pro-Form 690 Hr Elliptical Guida di riferimento

Pro-Form

Pro-Form Crosstrainer 970 Manuale utente

Pro-Form

Pro-Form PFEVEL2486.0 Manuale utente

Manuali Ellittica popolari di altre marche

Weslo

Weslo Momentum 4.0 Elliptical Manuale operativo e di manutenzione

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manuale utente

Torque Fitness

Torque Fitness XPLLP Manuale utente

Octane Fitness

Octane Fitness PRO3700C Manuale utente

Xterra

Xterra FS5.8e Manuale utente

Bodyguard

Bodyguard E-40 Manuale utente

Bonn Germany

Bonn Germany Concept 2.2 Manuale utente

Precor

Precor Resolute RSL 620 Manuale utente

NordicTrack

NordicTrack E 9.2 Elliptical Manuale utente

Vision Fitness

Vision Fitness X6600iNetTV Manuale utente

Matrix

Matrix MX-A5x Manuale utente

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manuale utente

Sears

Sears FREE SPIRIT C249 30737 0 Manuale utente

True

True FS-64 Manuale utente

Sport-thieme

Sport-thieme ST 310 Manuale utente

VIRTUFIT

VIRTUFIT CTR 1.1 Manuale utente

Kettler

Kettler GIRO C 1 Manuale utente

CIRCLE FITNESS

CIRCLE FITNESS E7 Manuale utente
