Pro-Form PFEX1995.3 Manuale utente

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Model No. PFEX1995.3

Serial No.

Write the serial number in the

space above for reference.

USER’S MANUAL

QUESTIONS?

As a manufacturer, we are commit-

ted to providing complete customer

satisfaction. If you have questions,

or if parts are damaged or missing,

PLEASE DO NOT CONTACT THE

STORE; please contact Customer

Care.

IMPORTANT: You must note the

product model number and serial

number (see the drawing above)

before contacting us:

CALL TOLL-FREE:

1-888-533-1333

Mon.–Fri., 6 a.m.–6 p.m. MST

Sat. 8 a.m.–4 p.m. MST

ON THE WEB:

www.proformservice.com

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

Serial

Number

Decal

TABLE OF CONTENTS

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

HOW TO OPERATE THE EXERCISE CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

PROFORM is a registered trademark of ICON IP, Inc.

WARNING DECAL PLACEMENT

The warning decal shown here has been

applied in the location shown. If the

decal is missing or illegible, call the

telephone number on the front cover

of this manual and request a free

replacement decal. Apply the decal in

the location shown. Note: The decal

may not be shown at actual size.

1. Before beginning any exercise program, con-

sult your physician. This is especially impor-

tant for persons over the age of 35 or per-

sons with pre-existing health problems.

2. It is the responsibility of the owner to ensure

that all users of the exercise cycle are ade-

quately informed of all precautions.

3. Your exercise cycle is intended for home use

only. Do not use your exercise cycle in a

commercial, rental, or institutional setting.

4. Keep your exercise cycle indoors, away from

moisture and dust. Place your exercise cycle

on a level surface, with a mat beneath it to

protect the floor or carpet. Make sure that

there is enough clearance around your exer-

cise cycle to mount, dismount, and use it.

5. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

6. Keep children under age 12 and pets away

from your exercise cycle at all times.

7. Your exercise cycle should not be used by

persons weighing more than 250 lbs.

(113 kg).

8. The pulse sensor is not a medical device.

Various factors, including the user's move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

9. Wear appropriate exercise clothes while

exercising; do not wear loose clothes that

could become caught on your exercise cycle.

Always wear athletic shoes for foot protec-

tion while exercising.

10. Keep your back straight while using your

exercise cycle; do not arch your back.

11. When you stop exercising, allow the pedals

to slowly come to a stop.

12. If you feel pain or dizziness while exercising,

stop immediately and cool down.

13. Use your exercise cycle only as described in

this manual.

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your exercise cycle before using your exercise

cycle. ICON assumes no responsibility for personal injury or property damage sustained by or

through the use of this product.

IMPORTANT PRECAUTIONS

Thank you for selecting the new PROFORM®N35

exercise cycle. Cycling is one of the most effective

exercises for increasing cardiovascular fitness, build-

ing endurance, and toning the body. The N35 exercise

cycle offers a selection of features designed to let you

enjoy this healthful exercise in the convenience and

privacy of your home.

For your benefit, read this manual carefully before

you use the exercise cycle. If you have questions

after reading this manual, please see the front cover

of this manual. To help us assist you, note the product

model number and serial number before contacting

us. The model number and the location of the serial

number decal are shown on the front cover of this

manual.

To avoid a registration fee for any service needed

under warranty, you must register the exercise

cycle at www.proformservice.com/registration.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Seat

Adjustment Knob

Pedal/Strap

Console Pulse Sensor

Wheel

Fan

Handlebar

BEFORE YOU BEGIN

ASSEMBLY

To hire an authorized service technician to assemble the exercise cycle, call 1-800-445-2480.

Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the pack-

ing materials. Do not dispose of the packing materials until assembly is completed. In addition to the included

hex keys, assembly requires a Phillips screwdriver and an adjustable wrench .

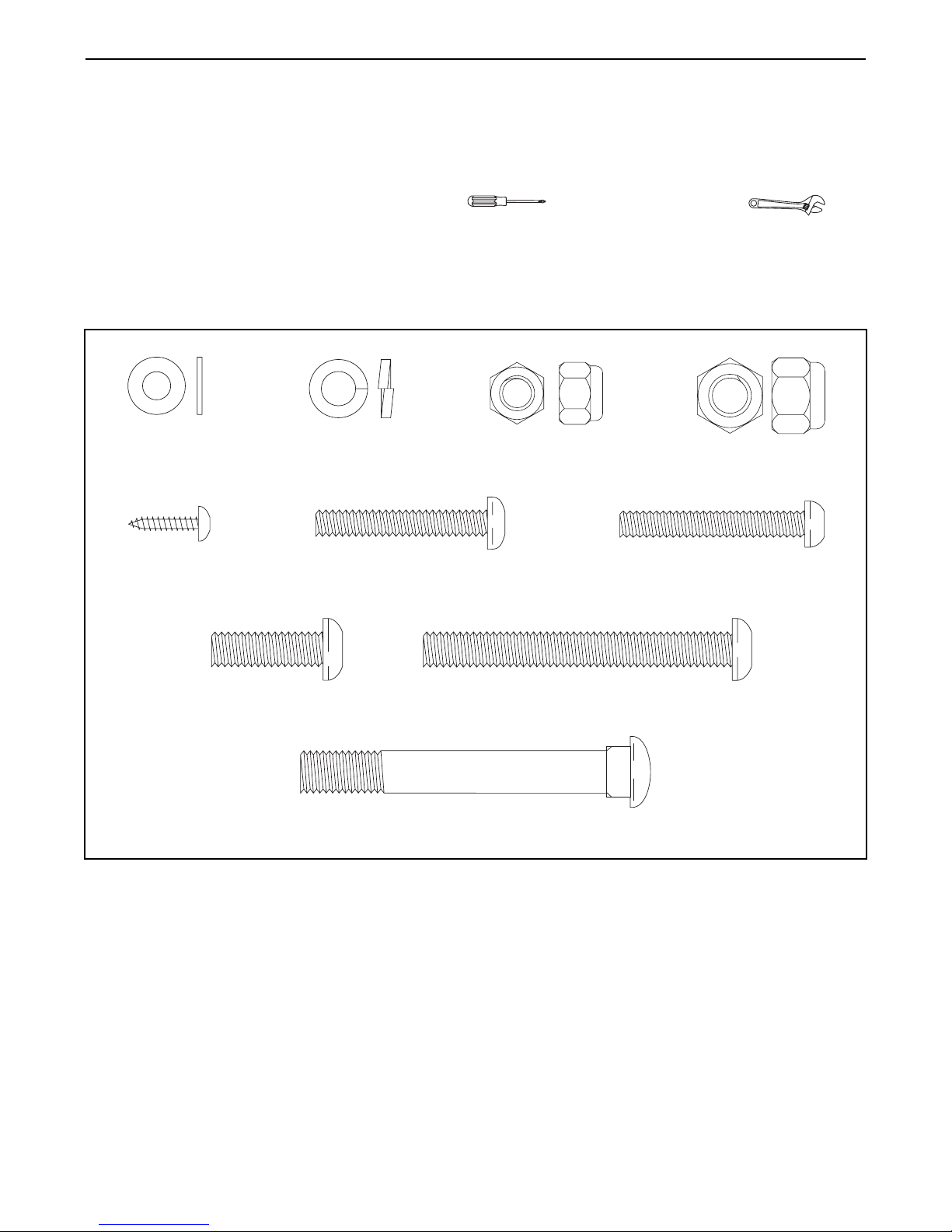

As you assemble the exercise cycle, use the drawings below to identify small parts. The number in parentheses

below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number

following the key number is the quantity needed for assembly. Note: Some small parts may have been pre-

assembled. If a part is not in the hardware kit, check to see if it has been preassembled.

M10 x 75mm Carriage Bolt (51)–4

M10 Nylon

Locknut (63)–4

M8 Nylon

Locknut (60)–4

M8 Split

Washer (59)–5

M6 Washer

(55)–8

M6 x 38mm Button

Screw (48)–4

M6 x 42mm Button

Screw (49)–4

M8 x 25mm Button

Screw (33)–3

M8 x 70mm Button

Bolt (54)–2

M4 x 16mm

Round Head

Screw (52)–4

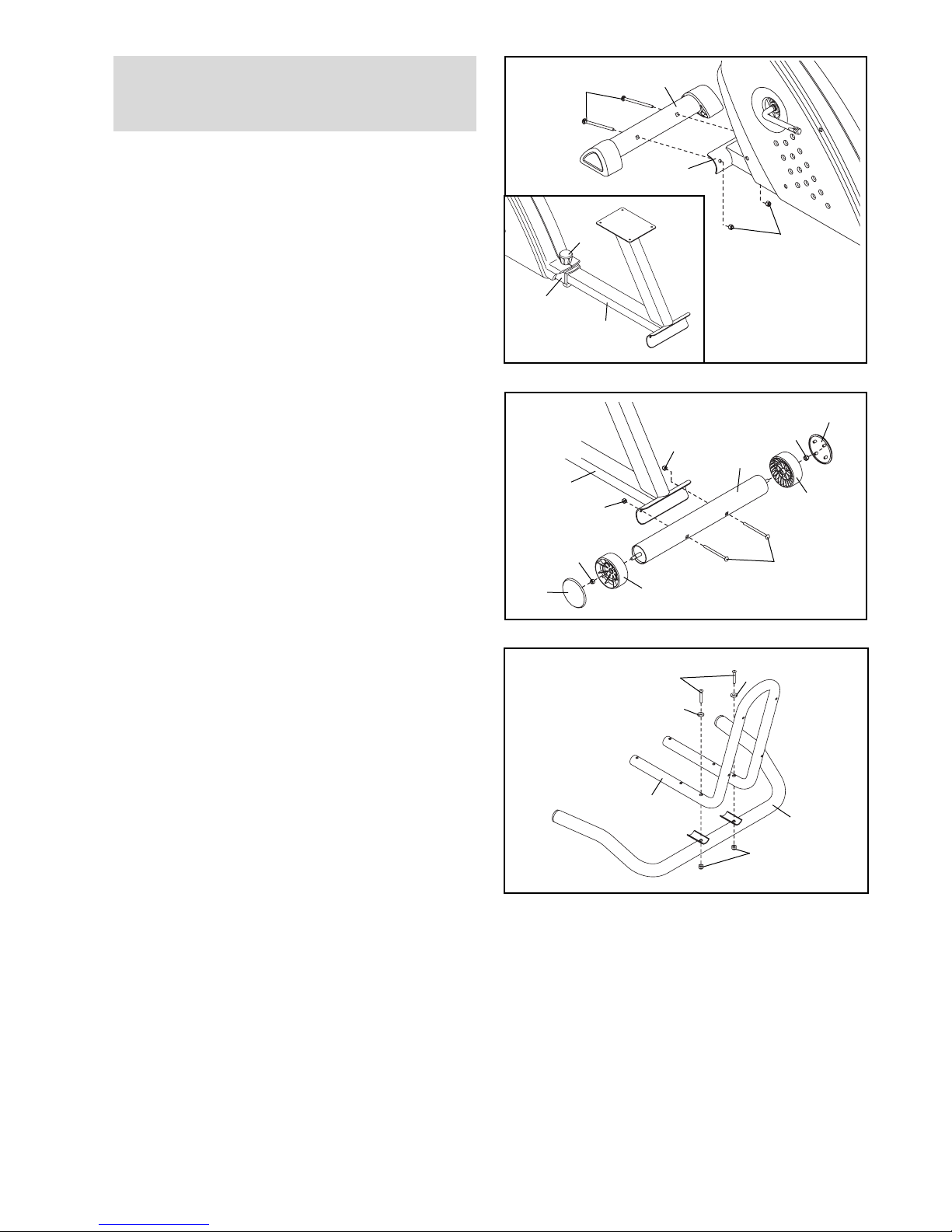

3. Attach the Seat Frame (7) to the Handlebar (6) with

two M8 x 70mm Button Bolts (54), two M8 Split

Washers (59), and two M8 Nylon Locknuts (60). Do

not tighten the Button Bolts yet.

While another person lifts the front of the Frame (1),

attach the Front Stabilizer (3) to the Frame with two

M10 x 75mm Carriage Bolts (51) and two M10

Nylon Locknuts (63).

See the inset drawing. Loosen the Adjustment Knob

(17), slide the Rear Frame (2) out of the Frame (1),

and then retighten the Adjustment Knob.

2. Attach the Wheels (18) to the Rear Stabilizer (4)

with two M8 Nylon Locknuts (60). Press a Wheel

Cap (19) onto each Wheel.

Attach the Rear Stabilizer (4) to the Rear Frame (2)

with two M10 x 75mm Carriage Bolts (51) and two

M10 Nylon Locknuts (63).

To make assembly easier, read the information

on page 5 before you begin assembling the

exercise cycle.

4. Attach the Backrest (5) to the Seat Frame (7) with

four M6 x 38mm Button Screws (48) and four M6

Washers (55). Do not tighten the Button Screws

yet.

5. Have another person hold the Seat Frame (7) under

the Rear Frame (2) as shown. Attach the Seat

Frame and the Seat (12) to the Rear Frame with

four M6 x 42mm Button Screws (49) and four M6

Washers (55).

See step 3. Tighten the two M8 x 70mm Button

Bolts (54).

See step 4. Tighten the four M6 x 38mm Button

Screws (48).

Tab

Battery Door

Batteries

6. The Console (16) requires four “D” batteries (not

included); alkaline batteries are recommended.

IMPORTANT: If the exercise cycle has been

exposed to cold temperatures, allow it to warm

to room temperature before inserting batteries

into the Console. If you do not do this, the con-

sole displays or other electronic components

may become damaged. Press the tab on the bat-

tery door and remove it. Insert four batteries into

the Console as shown. Make sure that the batter-

ies are oriented as shown by the diagram on the

battery door. Then, reattach the battery door.

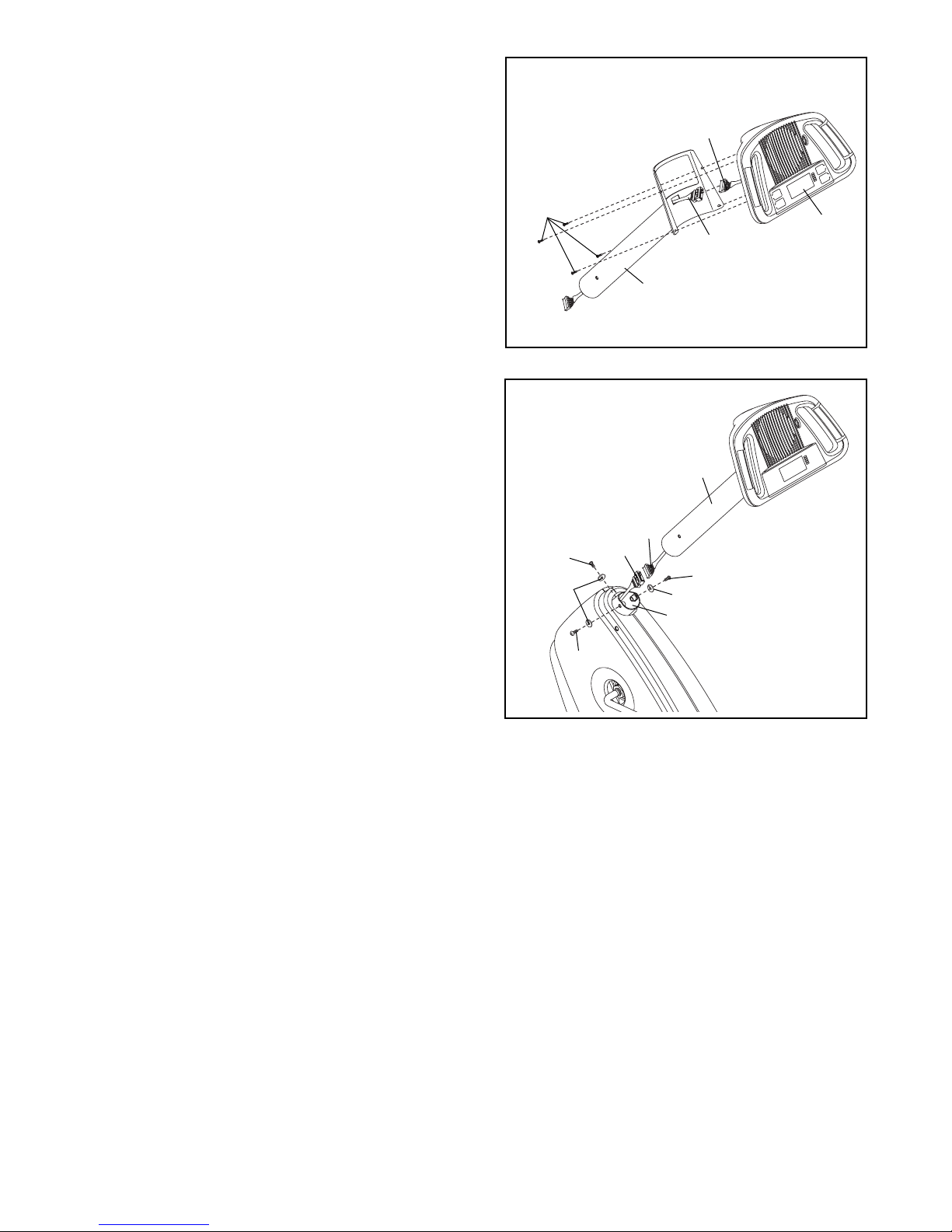

7. Connect the console wire harness to the Upper

Wire Harness (36). Insert the console wire harness

into the Upright (13). Attach the Console (16) to the

Upright with four M4 x 16mm Round Head Screws

(52).

Console

Wire

Harness

8. Connect the Upper Wire Harness (36) to the Lower

Wire Harness (8). Attach the Upright (13) to the

Frame (1) with three M8 x 25mm Button Screws

(33) and three M8 Split Washers (59). Be careful

to avoid pinching the Wire Harnesses.

59 59

Tab

9. Identify the Left Pedal (24), which is marked with a

“Left” sticker. Firmly tighten the Left Pedal

counter-

clockwise

into the left arm of the Crank (31).

Tighten the Right Pedal (not shown)

clockwise

into

the right arm of the Crank. IMPORTANT: Tighten

both Pedals as firmly as possible. After using

the exercise cycle for one week, retighten the

Pedals. For best performance, keep the Pedals

tightened.

Adjust the Left Pedal Strap (25) to the desired posi-

tion, and press the end of the Left Pedal Strap onto

the tab on the Left Pedal (24). Adjust the Right

Pedal Strap (not shown) in the same way.

10. Make sure that all parts are properly tightened before you use the exercise cycle. Note: Some hardware

may be left over after assembly is completed. Place a mat beneath the exercise cycle to protect the floor.

HOW TO OPERATE THE EXERCISE CYCLE

HOW TO ADJUST THE SEAT

After the exercise cycle is assembled, adjust the Seat

(12) to the proper position. As you pedal, there should

be a slight bend in your knees when the pedals are in

the farthest forward position. Loosen the Adjustment

Knob (17), slide the Rear Frame (2) forward or back-

ward in the Frame (1), and then tighten the Adjustment

Knob.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Pro-Form Cyclette

Pro-Form

Pro-Form 450 UR PFEX44177.2 Manuale utente

Pro-Form

Pro-Form 780 Ekg Bike Manuale operativo e di manutenzione

Pro-Form

Pro-Form PFEX78918P.0 Manuale utente

Pro-Form

Pro-Form LE TOUR DE FRANCE PFEX09916.1 Manuale utente

Pro-Form

Pro-Form 300 Zlx Bike Guida all'installazione

Pro-Form

Pro-Form 110 R Manuale utente

Pro-Form

Pro-Form 831.280441 Manuale utente

Pro-Form

Pro-Form 225 Zlx Bike Manuale utente

Pro-Form

Pro-Form 235 CSX Manuale utente

Pro-Form

Pro-Form 300 Zlx Bike Guida rapida

Pro-Form

Pro-Form LE TOUR DE FRANCE Manuale utente

Pro-Form

Pro-Form 831.21522.1 Manuale utente

Pro-Form

Pro-Form 785 Watts Bike Guida utente

Pro-Form

Pro-Form CrossTrainer PFEX39930 Manuale utente

Pro-Form

Pro-Form XP 100 U 831.21641.0 Manuale utente

Pro-Form

Pro-Form PFEVEX34181 Manuale utente

Pro-Form

Pro-Form Tailwind PF411300 Manuale utente

Pro-Form

Pro-Form 100 Zlx Bike Manuale del sistema

Pro-Form

Pro-Form Saturn2 PFIVEX73513.0 Manuale utente

Pro-Form

Pro-Form 760 HR Heart Rate Control Manuale utente

Pro-Form

Pro-Form PFEVEX72910 Manuale utente

Pro-Form

Pro-Form PFEX15914.0 Manuale utente

Pro-Form

Pro-Form 760 Crosstrainer Treadmill Manuale utente

Pro-Form

Pro-Form 831.21952.3 Manuale utente

Manuali Cyclette popolari di altre marche

Weslo

Weslo Vector 302 Guida rapida

TOORX

TOORX BRX85 Manuale utente

Matrix

Matrix KranKcycle Manuale utente

Matrix

Matrix IC3 Manuale utente

Sunny Health & Fitness

Sunny Health & Fitness SF-B121021 Manuale utente

Monark

Monark 827E Manuale utente

Stamina

Stamina 1310 Manuale utente

American Fitness

American Fitness SPR-BK1072A Manuale utente

Cateye

Cateye CS-1000 (CYCLO SIMULATOR) Manuale utente

BH FITNESS

BH FITNESS H9158H Manuale dell'operatore

Body Sculpture

Body Sculpture BC-7220G Manuale utente

Cateye

Cateye EC-2300 Manuale utente

FYTTER

FYTTER RACER RC MSR Manuale utente

Kikos

Kikos HM-9090M Manuale utente

Fuel Fitness

Fuel Fitness SU135-40 Manuale utente

NordicTrack

NordicTrack Gxr 4.2 Bike Manuale utente

Vision Fitness

Vision Fitness U70 Manuale utente

Stamina

Stamina 15-0340A Manuale utente
