INSTRUCTIONS FOR USE

Pro-Ject Amp Box SE

Dear music lover,

thank you for purchasing a PRO-JECT AUDIO amplifier.

In order to achieve maximum performance and reliability you should study these instructions for use carefully.

Warning of a hazard for the user, the unit or possible misuse.

Important notice.

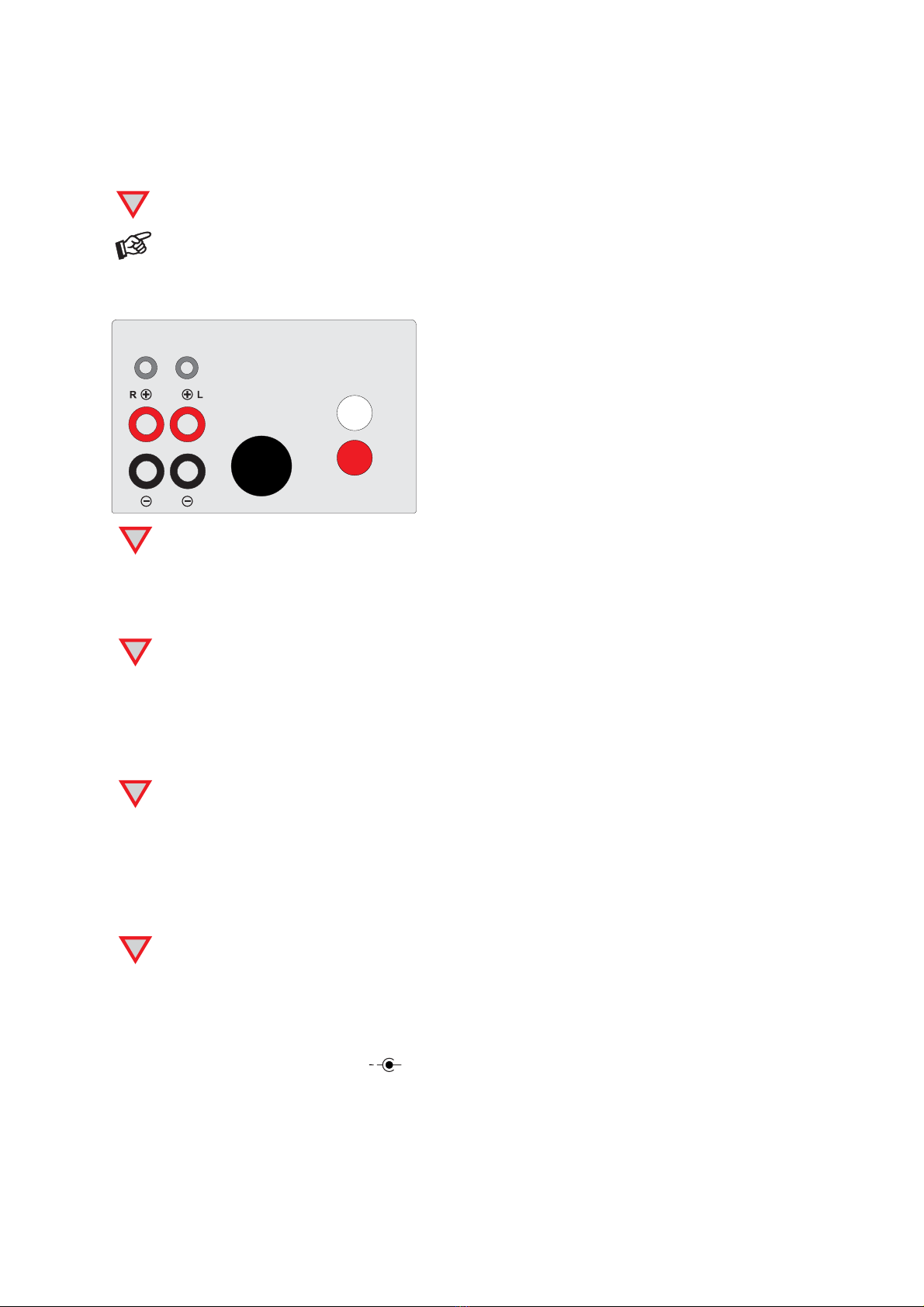

Connectors

Trigger

IN OUT

Left

Right

2x49V

Make all connections whilst the amplifier is disconnected from the power supply.

Connection to the preamplifier

The Input sockets marked Left / Right are for connecting the cables from your pre-amp or AV processor.

Take care to connect the left and right channels correctly. The right channel is usually marked red, the

left channel black or white.

Connection to the speakers

The output terminals accept loudspeaker cables terminated with 4mm ∅Banana plugs, spades connectors

or naked wire.

Only connect one loudspeaker with an impedance not less than 4 Ohm per channel.

The red speaker terminals carry the positive signal (+), the black speaker terminals the negative

signal (–). Make sure the polarity of the connection is correct at each end of the cables.

Mains power connection

The unit is supplied with a power supply suitable for your country's mains supply. Check the label before

connecting to ensure compliance with the mains rating in your house. Connect the low voltage plug from the

power supply to the 2x49V socket of the amplifier before connecting the power supply to the mains.

Never use any other DC power supply other than the one supplied with the unit.

Remote power on

The amplifier can be switched on & off via a special connection from the Pro-Ject Pre Box SE via the 2,5mm

socket marked Trigger IN.

A 45cm long power-on cable (polarity

) is supplied for this purpose. Longer cables are available as

accessories. The remote power-on signal can be relayed to further units via the Trigger OUT socket.

Stand-By

The pushbutton on the front panel of the unit alternately turns the power on or returns it to standby mode. The

blue LED on the front panel shows that the unit is powered on.

Technical specifications Pro-Ject Amp Box SE

Power output: 2 x 80W/125W at 8ohms/4ohms (both channels driven)

Frequency response: 10Hz - 50kHz (+0dB, -3)

Channel separation: > 40dB at 20kHz

Noise floor: > -90dB (A weighted)

THD: < 0,1% at 90W

Gain: 26dB

Pre in: 1 pair RCA/Phono sockets

Input sensitivity: 1,5V

Input impedance: 100kohms

Speaker connectors: 4mm ∅banana plugs, spades connectors or naked wire

Trigger: 12V DC switching voltage

Trigger in and out: 2-pole co-axial ∅2,5mm jack

Outboard power supply: 48V/2,5A DC, suitable for your country's mains supply

Power consumption: 48V/2,5A DC

Dimensions (W x H x D): 103 x 72 x 168mm

Weight: 1.400g without power supply

Service

Should you encounter a problem which you are not able to alleviate or identify, please contact your dealer for

further advice. Only when the problem cannot be resolved there should the unit be sent to the responsible

distributor in your country.

Warranty

The manufacturer accepts no responsibility for damage caused by not adhering to these instructions

for use. Modification or change to any part of the product by unauthorized persons release the

manufacturer from any liability over and above the lawful rights of the customer.

PRO-JECT is a Registered Trademark of H. Lichtenegger.

This guide was produced by: Audio Trade GmbH

The information was correct at the time of going to

press. The manufacturer reserves the right to make

changes to the technical specification without prior

notice as deemed necessary to uphold the ongoing

process of technical development.
