PRO LIFTS VMB TE-034 Manuale di istruzioni

V.04.14

OPERATING INSTRUCTIONS USER MANUAL

MANUAL DE INSTRUCCIONES

TOWERLIFT

TORRE ELEVADORA

TE-034

GBE USA

LIFTING TOWER TE-034

TORRE ELEVADORA TE-034

PRO LIFTS S.L.

C/ Ciudad de Barcelona Nº19

Pol.Ind. Fuente del Jarro

46988 Paterna (Valencia)

Tlf Export: +34 96 171 81 86

Tlf Nacional: 96 171 81 83

[email protected] - www.prolifts.es

Manufacturer - Fabricante

Este manual de usuario y catálogo anexo de piezas de repuesto es propiedad de PRO LIFTS S.L.

Queda prohibida su reproducción total o parcial por cualquier medio que la tecnología actual permita.

MADE IN SPAIN (EU)

BGV-C1

BGG-912

EC Conformity Declaration pursuant to the EC Machinery

Directives 89/392/CE and 98/37/CE: Manual lifters

Find a copy of the certiﬁcations at the end of this booklet.

Puede ver una copia de las certiﬁcaciones al ﬁnal del manual.

CERTIFICATIONS / CERTIFICACIONES

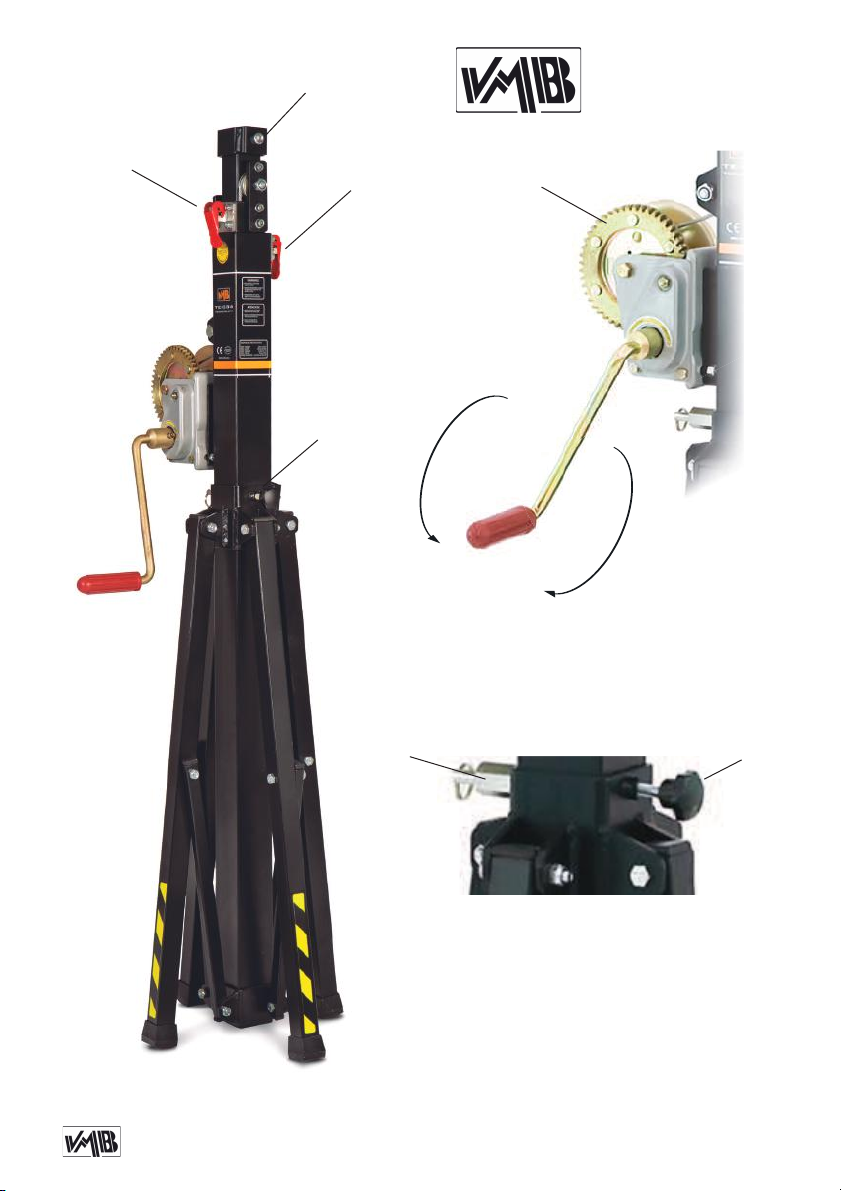

BTE-034

ALS-1

ALS-2 W

B: Steel bracket / Abrazadera de acero

ALS: Security lock / Gatillo seguridad

W: Winch / Cabrestante

N: Force on hand crank / Fuerza sobre manivela

SA: Support system / Soporte de apoyo

R: Catch pawl / Gatillo bloqueo posición SA

K: Knob / Pomo retenedor SA

Quick operation guide ENGLISH

CONTENTS

1. Introduction.

2. Technical information.

3. Safety precautions.

4. Operation.

5. Maintenance.

6. Guarantee.

1. INTRODUCTION

Dear customer,

In order to ensure a safe and reliable ope-

ration of the TE-034 towerlift please follow

the instructions in this booklet carefully.

Before operating the lift, read the instruc-

tions completely and please note the te-

chnical information contained within this

manual.

All VMB products undergo very rigorous

testing, under strict conditions and they

are monitored continuously during the ma-

nufacturing process.

In order to guarantee the lifts function and

safety, only original parts from the manu-

facturer must be used. If any parts other

than those of the manufacturer are used,

or the product is modiﬁed in any way, the

user forfeits all warranty rights to claim.

VMB reserves the right to modify the pro-

duct speciﬁcations without prior notice.

The model type, production year and se-

rial number must be quoted in any queries

or orders for spare parts.

2. TECHNICAL INFORMATION

2.1 - TE-034 Towerlift.

2.2 - Designed to lift loads, such as trus-

sing and lighting, vertically up to

different heights.

2.3 - Maximum load : 125 Kg (275 lb).

2.4 - Minimum load : 25 Kg (55 lb).

2.5 - Maximum height : 3.8 m (12.5’).

2.6 - Folded height : 1.26 m (4.1’).

2.7 - Area of base : 1.5 x 1.5 m

(4.9’ x 4.9’).

2.8 - Unit weight : 21 Kg (47 lb).

2.9. - Adaptator: Ø 35 mm

(PSU-034/PSU-06).

2.10 - Construction material : Steel proﬁ-

les DIN 2394.

2.11 - Three telescopic proﬁle system ope-

rated by steel cable and guided by chan-

nelled steel pulleys with ball bearings.

2.12 - Winch: 450 Kg (990 lb). maximum

load with automatic brake. Certiﬁcation

CE and

GS TÜV.

2.13 - Cable : Steel DIN 3060. Quality 180

Kg/mm2twist resistant.

Cable diameter : 4 mm.

Quick operation guide ENGLISH

3. SAFETY PRECAUTIONS.

2.14 - Exclusive ALS system (Auto-Lock

Security), pat. pen. 200501056.hed in sa-

tin polyester.

2.15 - Legs with plastic end caps.

2.16 - Anchor of the support system of the

legs via safety catch and knob.

2.17 - Antirust protection, primed paint

with cured polyester dust cover. The tower

can be supplied with natural aluminium

ﬁnish or black (version B).

2.18 - Extension bar (EX-034B) included,

attached to the leg by a magnet.

3.1 - The TE-034 is a machine designed to elevate

loads upwards in a vertical direction, It should NEVER

be used as a platform to elevate people.

3.2 - Only place the towerlift on hard and ﬂat surfaces.

3.3 - The maximum load indicated on the characteristics

label and the instructions manual should not be excee-

ded.

3.4 - This lift should NEVER be used to elevate a load

that has not been properly checked. It is necessary to

verify that the load is correctly supported and centred

on the appropriate lift support so that the weight of the

load will only elevate in a vertical direction.

Quick operation guide ENGLISH

3.5 - Verify that the tower is in a vertical position and

check that the support system (SA) is ﬁxed by the safe-

ty catch pawl (R) and the retainer knob (K).

3.6 - NEVER use the lift on a vehicle or any other mobile

surface.

3.7 - If there is a possibility of strong winds or gusts,

place the lift on the ground ﬁrmly and secure it with the

use of straps. NEVER attach a strap to a vehicle or any

other object that can possibly be moved.

3.8 - NEVER move the lift whilst it is carrying a load. It

is not advisable to carry out any type of horizontal mo-

vement even small positional adjustments.

3.9 - NEVER allow any team member below the load or

anybody else in the lifts operating zone.

3.10 - Take care with all obstacles above the lift and

its extension zone such as cornices, balconies, and

luminous signboards. It is very important to avoid the

presence of all types of cables below the extended lift.

Quick operation guide ENGLISH

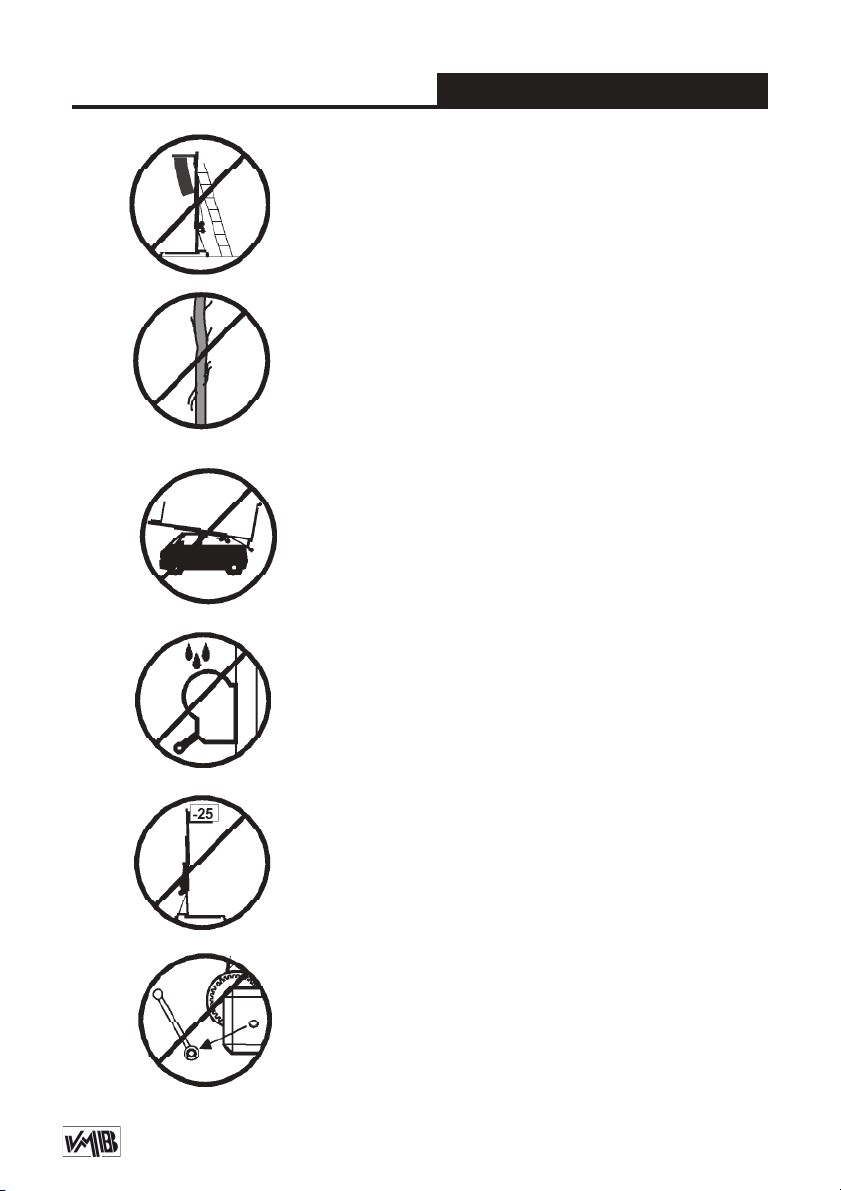

3.11 - Do not use stepladders on the lift or use it as a

support for them.

3.12 - Before using the lift, check the condition of the

cable. The cable should not have broken threads or

show any signs of crushed/ﬂattened areas. NEVER use

faulty cables, always change them if there is any doubt.

Only use VMB steel cables; reference: DIN 3060.

Quality: 180KG/mm and torsion resistant.

3.13 - All sections must be lowered ﬁrst, and the support

system (SA) must be locked with the catch pawl (R),

before transportation.

3.14 - Do not grease or lubricate the winch’s braking

mechanism. The brake disks have been greased with

a special heat and pressure resistant solution. Other

products should not be used to avoid negative effects

regarding the braking mechanism.

3.15 - The minimum load to avoid problems regarding

the braking mechanism is 25Kg. Without this load the

brake will not work.

3.16 - NEVER take apart the crank of the winch when

the lift is carrying a load or extended.

Quick operation guide ENGLISH

4. USER INSTRUCTIONS.

4.1 - Place the lift on its working position,

in a ﬁrm, ﬂat surface. Remove the exten-

sible bar (EX-034B) from the leg.

4.2 - Firstly, untighten the screw (B) of the

bracket and put the extension bar (EX-

034B) in it, tighten the screw (B) again to

ﬁx the bar. Then remove the safety catch

pawl (R) of the support system (SA) and

untighten the retainer knob (K). Lower the

support system (SA) until you can ﬁx the

safety catch pawl (R) in the required posi-

tion, then tighten the knob (K).

4.3 - THE MAXIMUM LOAD IS 125 Kg

(275 lb). The lift should NEVER be over-

loaded (over 125 Kg). Safety at work is

the most important issue. Untighten the

steel bracket (B) and place the load onto

the lift using an adequate support accor-

ding to the need, use so that the weight

of the load will only elevate in a vertical

direction. The minimum load is 25 Kg.

4.4 - Elevation: Turn the winch crank

clockwise (N1) to lift the tower, the red

ALS lock enable the lift to rise and auto-

matically block the proﬁles whilst rising,

ensuring that it will never fall.

4.5 - Blocking: Once the system is ele-

vated to its required height gently turn the

handle in a anti-clockwise (N2) direction to

introduce the ALS locks in its correspon-

ding hole and block the proﬁles. The ALS

lock will take the pressure of the load and

release strain applied on the cable.

Security system ALS

The TE-034 incorporates the patented

security system ALS (Automatic Lock

Security). This VMB red trigger system

automatically blocks the tower in the posi-

tion it is left in. Each section of lift has an

ALS that blocks the section in the unlikely

event of the cable breaking.

4.6 - Lowering: To bring the lift down you

need to ﬁrst turn the winch handle slightly

clockwise (N1) and at the same time pull

the red ALS lock out. This releases the

blocking systems. Then turn the handle

anti-clockwise (N2), whilst maintaining the

ALS lock pulled out until the proﬁle has

been completely lowered. All red ALS

locks should be pulled out one by one

whilst the handle is turned anti-clockwise

and the proﬁles are brought down, one by

one.

CAUTION

When two towers are used to elevate a

bridge, down truss or many towers to ele-

vate a structure of any type, it is almost

impossible that two or more people co-or-

3.17 - Only original replacement parts should be used.

ORIGINAL

Quick operation guide ENGLISH

5.2 - The lift is supplied from the factory

completely greased. However, it is recom-

mended to periodically grease according

to use, the gearing, the axis bearings, the

spiral of the crank, and the sections.

5.3 - All lifts should undergo an annual

technical inspection carried out by an

authorized VMB dealer to check the cer-

tiﬁcations and general condition of all the

lift’s elements and security systems invol-

ved in the lift’s use.

5.4 - Only use original spare parts to gua-

rantee a continued security level. The

user loses all rights to warranty if any spa-

re parts other than originals are used or

carries out any modiﬁcation or alteration

to the towerlift.

5.5 - To request a spare part please in-

dicate the corresponding code which can

be found in this manual together with the

lift’s serial number and year of manufac-

ture.

6. GUARANTEE.

The warranty period for this lift is 2 years

from the date of purchase.

PRO LIFTS S.L. promises, that from the

date of purchase and during the warranty

period to resolve any faults that may oc-

cur, produced through defect material or

fabrication. Damage caused by improper

use, product modiﬁcation, third party ma-

nipulation or accidental ﬁre are not cove-

red by this warranty.

dinate the winches elevating or lowering

the loads, at exactly the same pace. At a

certain point each tower will be extended

to a height different to that of the others.

For this reason it is necessary that the

structure does not stretch and allows

for these differences. With a rigid ﬁxa-

tion and if the level difference is signiﬁ-

cant, the force generated from the handle

of the winch will deform the structure and

apply a lateral force to the lifts causing

them to break and block.

4.7 - Transport:

For the transport of the tower is necessary

to fold the machine lowering every section

completely, then untighten the screw (B)

of the bracket and remove the extension

bar (EX-034). Once the towerlift is com-

pletely folded, unlock the catch pawl (R)

and untighten the retainer knob (K), then

rise and close the support system (SA) up

to its transport position, then ﬁx the safety

catch pawl (R) and tighten the knob (K).

Attach the extension bar to the leg with

the magnet.

5. MAINTENANCE.

5.1 - Regularly check the state of the ca-

ble. If the cable has broken threads, or if

it shows any signs of crushed/ﬂattened

areas, it should be changed and replaced

immediately with a new one. Do not use

the lift if the cables are in bad condition.

Only use VMB steel cables reference: DIN

3060 torsion resistant.

Manual de usuario ESPAÑOL

CONTENIDO

1. Introducción.

2. Información técnica.

3. Precauciones de seguridad.

4. Instrucciones de uso.

5. Mantenimiento.

6. Garantía.

1. INTRODUCCIÓN

Estimado cliente: Con el ﬁn de garanti-

zar un funcionamiento seguro y ﬁable de

la torre elevadora TE-034 por favor, siga

cuidadosamente las instrucciones de este

manual.

Antes de manipular la torre elevadora,

lea las instrucciones completas y tenga

en cuenta la información técnica conte-

nida en este manual. Todos los produc-

tos de VMB se someten a pruebas muy

rigurosas, en condiciones estrictas y son

monitorizados continuamente durante el

proceso de fabricación. Con el ﬁn de ga-

rantizar el correcto funcionamiento y se-

guridad de los elevadores, sólo deben ser

utilizadas piezas originales del fabricante.

Si se utilizan piezas que no sean las origi-

nales del fabricante, o el producto se mo-

diﬁca de alguna manera, el usuario pierde

todos los derechos de garantía.

VMB se reserva el derecho de modiﬁcar

las especiﬁcaciones y las piezas del pro-

ducto sin previo aviso. El tipo de modelo,

año de producción y el número de serie

deben ser citadas en cualquier consulta o

pedido de piezas de recambio.

2. INFORMACIÓN TÉCNICA

2.1 - Torre elevadora TE-034.

2.2 - Diseñada para levantar sistemas de

trusses e iluminación en sentido vertical a

diferentes alturas.

2.3 - Carga máxima: 125 kg (275 lb).

2.4 - Carga mínima: 25 Kg (55 lb).

2.5 - Altura máxima: 3.8 m (12.5’).

2.6 - Altura plegada: 1,26 m (4.1’).

2.7 - Área de la base: 1.5 x 1.5 m

(4.9’ x 4.9’).

2.8 - Peso de la torre: 21 kg (47 lb).

2.9 - Adaptador: Ø 35 mm

(PSU-034/PSU-06).

2.10 - Material de construcción: Perﬁles

de acero DIN 2394.

2.11 - Sistema de tres perﬁles telescópi-

cos accionados con cabestrante por ca-

ble de acero y guiado por poleas de acero

acanaladas con cojinetes de bolas.

2.12 - Cabestrante: 450 kg de carga máxi-

ma con freno automático de retención de

la carga. Certiﬁcación CE y GS TÜV.

2.13 - Cable: Acero DIN 3060. Calidad de

resistencia a la torsión 180 kg/mm2.

Diámetro del cable: 4 mm.

Indice

Lingue:

Altri manuali PRO LIFTS Sistema di sollevamento

PRO LIFTS

PRO LIFTS VMB TL-075 Manuale di istruzioni

PRO LIFTS

PRO LIFTS VMB TE-086 Manuale di istruzioni

PRO LIFTS

PRO LIFTS VMB TE-064 Manuale di istruzioni

PRO LIFTS

PRO LIFTS VMB TL-A400 Manuale di istruzioni

PRO LIFTS

PRO LIFTS VMB TE-071 Manuale utente

PRO LIFTS

PRO LIFTS VMB TE-074 Manuale di istruzioni

PRO LIFTS

PRO LIFTS VMB TE-076 Manuale di istruzioni

PRO LIFTS

PRO LIFTS VMB TL-A300 Manuale di istruzioni

PRO LIFTS

PRO LIFTS VMB TE-076 Manuale di istruzioni

PRO LIFTS

PRO LIFTS VMB TL-A220 Manuale di istruzioni

PRO LIFTS

PRO LIFTS VMB TL-A400/8 Manuale di istruzioni

PRO LIFTS

PRO LIFTS VMB HDT-8 Manuale di istruzioni

PRO LIFTS

PRO LIFTS VMB TE-064 Manuale di istruzioni

PRO LIFTS

PRO LIFTS VMB TL-A500 Manuale di istruzioni

PRO LIFTS

PRO LIFTS VMB TP-20 Manuale di istruzioni

PRO LIFTS

PRO LIFTS VMB TL-054 Manuale di istruzioni

Manuali Sistema di sollevamento popolari di altre marche

morse

morse 82H-124 Manuale utente

Braun

Braun NL955 Series Manuale utente

haacon

haacon 1889.10 Manuale utente

Protekt

Protekt AT 252 Manuale utente

R. Beck Maschinenbau

R. Beck Maschinenbau HS 600 Manuale utente

Nova Technology International, LLC

Nova Technology International, LLC NAS Series Manuale utente

Genie

Genie Z-60/34 Manuale utente

Screen Technics

Screen Technics INTERFIT Vertical Up Lift Manuale utente

Mortuary Lift

Mortuary Lift ULTIMATE 1000 Manuale utente

Custom Equipment

Custom Equipment Hy-Brid 3 Series Manuale di programmazione

Custom Equipment

Custom Equipment Hy-Brid Lifts 2 Series Manuale di programmazione

Hy-Brid Lifts

Hy-Brid Lifts HB-P3.6 Manuale di programmazione

BERG

BERG BeNomic EasyLeaf Manuale utente

Powermate

Powermate LiftGate LG-3 Manuale utente

Snorkel

Snorkel TM12 Series Manuale utente

Terberg

Terberg OMNIDEKA Manuale utente

Harmar Mobility

Harmar Mobility AL625 Istruzioni operative

Rotary

Rotary SPO16 Manuale utente
