HDMI OVER Cat5e/6/6a/7 EXTENDER
1
WHAT’s IN THE BOX
OVERVIEW
IMPORTANT SAFETY INFORMATION

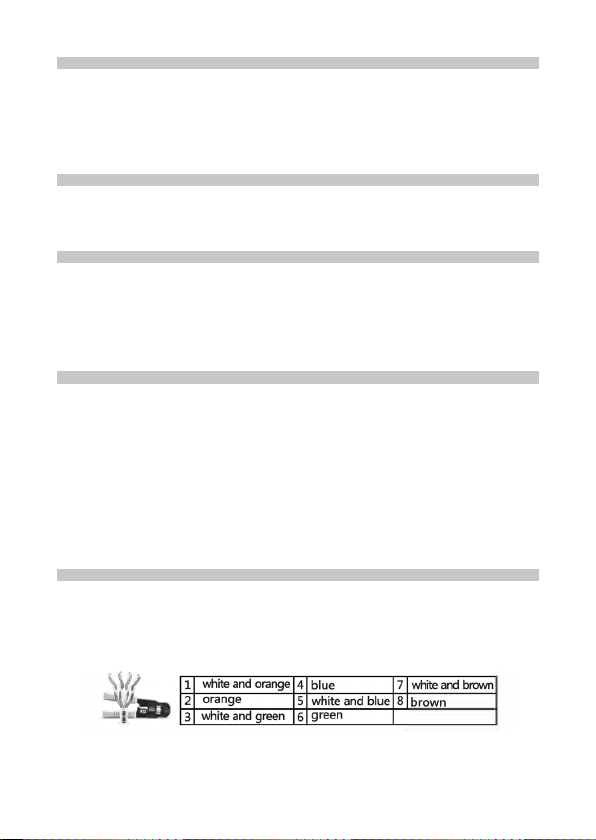

INSTALLATION
• HDMI extender using HDBaseT, transmits HD audio and video signal, with infrared
remote control for added convenience.
• Extends 1080p video and audio transmission range via Cat6 of up to 70 meters.
Please read these instructions carefully before use and retain for future reference.
Requirements
• An HDMI source device with HDMI OUTPUT interface, DVD, PS3, STB, PC etc.
• A display device with HDMI INPUT port, SDTV, HDTV, projector etc.
• Network cables UTP/STP Cat5e/Cat6/Cat6A/Cat7 network cables, to IEEE-568B.
• When using electrical appliances basic safety precautions should always be followed.
• Check that the voltage indicated on the rating plate corresponds with that of the local
network before connecting the power supply to the mains power supply.
• Do not expose the units to moisture or dust and keep any ventilation slots clear.
• Do not connect or disconnect cables while powered on and in use.
• HDMI 1.3 compatible uncompressed HDMI video signal.
• Apply HDBaseT extend technology.
• Supports ultra HD 4kx2k@60Hz and1080p signal over Cat6 up to 70 meters.
• Support HDCP, CEC, 24 bit deep colour 3D.
• Support uncompressed LPCM audio and compressed DTS-HD, Dolby True HD.
• Support use of source device remote control when viewing from an out of sight
location.
• IR remote function can be used in either direction by switching the IR receiver and
transmitters over depending on required location of the controlling remote control.
• Automatically identies and congures a variety of display modes.
• Simple and convenient plug and play installation, no setting up required.
FEATURES
2
• HDMI Transmitter
• HDMI Receiver
• 12V DC PSU x 2off
• IR-TX Transmitter
• IR-RX Receiver
• User Manual
3
Connections
• Connect the signal source equipment to the input port of the transmitter using a
quality HDMI cable.
• Plug the IR-TX extender into the IR-IN port of the transmitter. Direct the extender
head towards the remote control sensor on the source device.
• Connect an HDTV to the receiver output port using a quality HDMI cable.
• Plug the IR-RX extender into the IR-IN port of the receiver. Direct the sender head
such that it can receive signals from the remote control for your source device.
• Connect both the transmitter and receiver PSU to the 12V DC sockets and connect to
the mains supply.
• Power on the signal source and the display.
LED Status
1. Power on indicator.
2. TX/RX connection established.
3. Indicates signal is being transmitted.
1. HDMI IN: HDMI signal input to connect with HDMI source device.
2. IR IN: IR signal input to connect with IR receiver extension cable.
3. IR OUT: IR signal output to connect with IR sender extension cable.
4. DC12V: Power input.
5. HDBT OUT: HDBaseT signal output.
1. DC12V: Power input.
2. HDBT IN: HDBaseT signal input.
3. HDMI OUT: HDMI signal output to connect with HDMI display device.
4. IR IN: IR signal input to connect with IR receiver extension cable.
5. IR OUT: IR signal output to connect with IR sender extension cable.

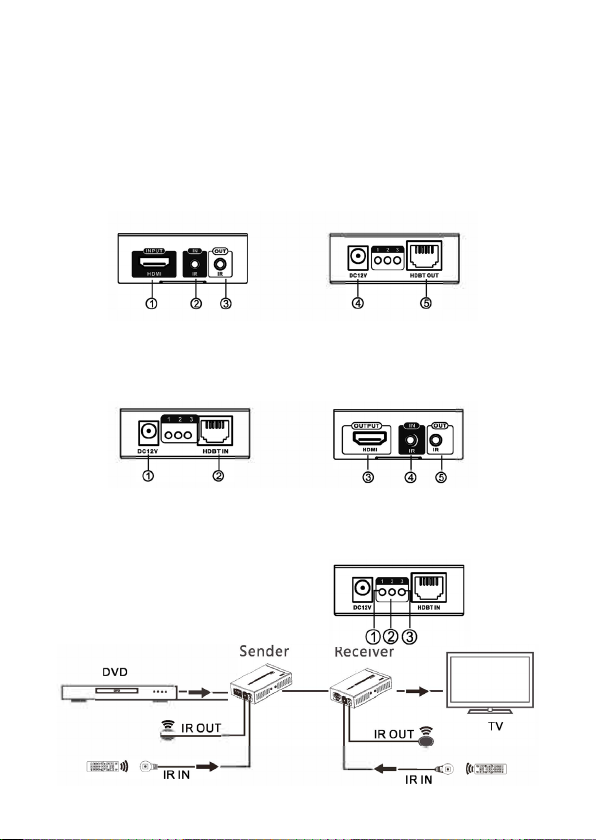

Transmitter Panel Connections
Receiver Panel Connections
INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL &
ELECTRONIC EQUIPMENT.
When this product has reached the end of its life it must be treated as Waste Electrical & Electronic
Equipment (WEEE). Any WEEE marked products must not be mixed with general household waste,
but kept separate for the treatment, recovery and recycling of the materials used. Contact your local
authority for details of recycling schemes in your area.
Made in China. PR2 9PP
Man Rev 1.1
MAINTENANCE
• Clean the outside casing with a soft cloth lightly moistened with mild soap and water.
Never use any abrasive or solvents.
• Do not allow moisture to enter the casing.
SPECIFICATIONS
Parameter Description
Video
Standards HDMI 1.3, HDCP 1.4, CEC 24bit deep colour
Resolution supported
480i@60Hz, 480p@60Hz, 576i@50Hz,
576p@50Hz, 720p@50/60Hz, 1080i @50/60Hz.
1080p@50/60Hz,3D, 4KX2K@24/25/30/60Hz
Audio Standards LPCM ,DTS-HD, Dolby True HD
Network Standard Cat5e/Cat6 Cat5e, Cat6, Cat6a, Cat7
Cat5e
Transmission length
60m: UP to 1080P@60Hz 36bpp
35m: 1080p@60Hz 48bpp,1080p@60Hz
3D,4Kx2K@30Hz/60 Hz
Cat6
Transmission length
70m: UP to 1080P@60Hz 36bpp
40m: 1080p@60Hz 48bpp,1080p@60Hz
3D,4Kx2K@30Hz/60 Hz
IR Support 20~60kHz
wide frequency devices Bi-directional IR transmission
Environment
Working temp 0~55oC @ 0~90% humidity
Storage temp -10~70oC
Power Voltage 12V DC @ 1A x 2
Power consumption TX: 3.5W RX: 6W
Weight TX: 79g RX: 107g
Dimensions (W x D x H) 98.5 x 66.5 x 23 mm each unit
4
