HDBitT HDMI EXTENDER MATRIX
PSG3455
2
IMPORTANT SAFETY INFORMATION
Please read these instructions carefully before use and retain for future reference.
When using electrical appliances basic safety precautions should always be followed.
• To prevent re or shock hazard, do not expose this product to rain or moisture.
• Check that the power supply matches the mains voltage.
• Only use the power supply provided or one of identical specication.
• Ensure the IR remote extender cables are connected to the correct devices.
• Beware of static electricity which may damage the device. Use ESD precautions
when installing.
• Do not plug or unplug cables while the devices are powered on.
WHAT'S INCLUDED
• 1 x HDMI Extender and 1 x Receiver
• 2 x Power Adapter 230VAC to 5VDC 2A
• Operation Manual
• IR remote extender
• IR remote receiver
• Remote control
• 4 x Mounting brackets and 8 x screws
• Based on HDbitT technology for a more stable performance.
• Supports up to 1080p@60Hz Full HD.
• Supports 1 to 1 and 1 to many using off-the-shelf IGMP switch.
• Transmission up to 120 metres.
• HDMI 1.3 and HDCP 1.4 compliant.
• Supports IR pass back for control from receiver location.
• Simple plug and play installation.
FEATURES
CAT CABLE REQUIREMENT
Follow the standard of IEEE-568B, It is recommended to select a high quality network
cable with less loss and crosstalk.
1 orange/white
2 orange
3 Green/white
4 Blue
5 Blue/white
6 Green
7 Brown/white
8 Brown
3

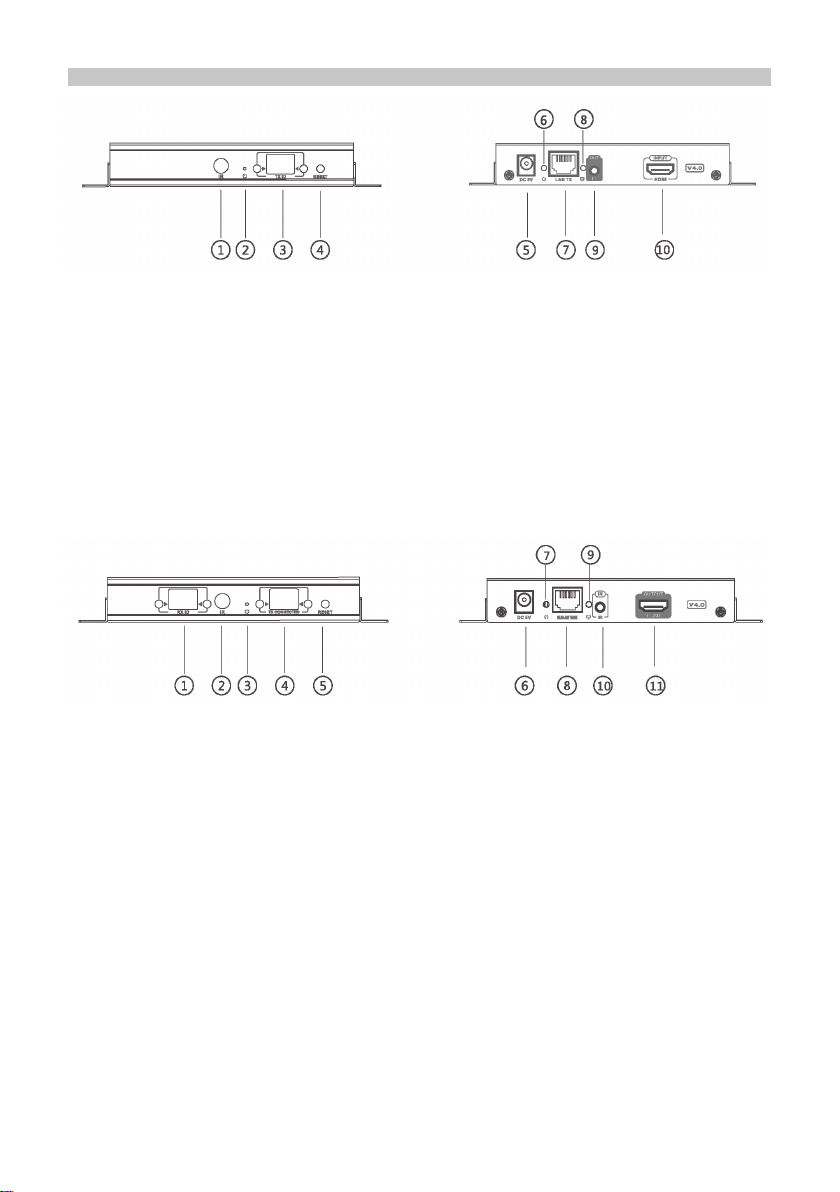

OVERVIEW
IR
1. IR receiver window - Receiver IR signal from remote control.
2. Power indicator - LED for power on indication.
3. TX indicator - Indicates current transmission channel ID.
4. Reset Button
5. Power input - connect the PSU 5VDC connector.
6. Data transmission indicator.
7. RJ45 output connector.
8. Connection LED - illuminates when transmitter/receiver are connected.
9. IR extender emitter connection - to control the source device.
10. HDMI input - connect to the source device HDMI output.
1. RX indicator - Indicates current transmission channel ID.
2. IR receiver window - Receiver IR signal from remote control.
3. Power indicator - LED for power on indication.
4. TX connected - Indicates current input channel ID when matched to TX ID
transmission is enabled.
5. Reset button - press to reset the unit.
6. Power input - connect the PSU 5VDC connector.
7. Data transmission indicator - ashes slowly when connecting then faster during
data transmission.
8. RJ45 input connector.
9. Connection LED - illuminates when transmitter/receiver are connected.
10. IR extender receiver connection - to pick up signal from the remote control.
11. HDMI output - connect to the destination display device HDMI input.
RECEIVER
TRANSMITTER
4
IR User Guide:
• IR receiver extension cable should be connected to the IR IN port of the receiver.
• The IR emitter extension cable should be connected to the IR OUT port of the
transmitter.
• The emitter of the IR extension cable should face as close as possible to the IR
receiving window of the source device.
• Face the receiving head of the IR receiver extension cable toward the user for
unobstructed line of sight to the remote control.
• The IR receiver detects the users remote control and transmits the signal down the
network cable to the IR emitter which replicates the IR output to control the source
device.
RECEIVER
OPERATION
INSTALLATION
MATRIX CONFIGURATION
POINT TO POINT CONFIGURATION
APP control user guide
• Android User: Download the App "Matrix Controller" with your mobile phone or
tablet from the website: http://www.hdbitt.com/download-matrix/.
• IOS User: Download the APP "Matrix Controller " from the APP Store.
• Firstly, connect the video matrix controller to the IGMP switch.
• Then, wirelessly connect your mobile phone or tablet and the video matrix controller
via hotspot "MATRIX" with each other (wi password is 12345678).
• Open the downloaded APP which will display the interface and APP control
commences.
5
Button Control:
• There is a "TX ID" display on the transmitter, and there are both TX CONNECTED
and RX ID displays on the receiver unit, each of which has a 2 digit display plus 2
adjacent buttons which adjust each digit.
• Values can be adjusted from 00 through to 99 by repeated button presses.
• Each receiver can be assigned an RX ID number and when the TX ID channel set
on the transmitter matches the TX CONNECTED on the receiver the channel is
connected.
• Short press: Press to set IGMP group and display the current set value. The unit
switches automatically to the corresponding IGMP group 5 seconds after the press.
• Long press: Press and hold for 3 seconds to reset the unit.
Computer software control:
• Connect a PC to the IGMP Ethernet switch using CAT network patch lead
• Download the application "HDbitT E-Matrix Control Centre" from http://www.hdbitt.
com/download-matrix/
• Change the PC's IP address to 192.168.1.XXX (to match the IP address of the TX
and RX units and run the program.
Figure 1
6
IP setting
• TX and RX units have their own default IP address, TX's IP is 192.168.1.238, and
RX's IP is 192.168.1.239. Generally, it is not need to change the device IP address,
as the system can work normally even though multiple TX units and multiple RX
units connected into the system with their default IP address.
• If IP setting is really needed, please follow up the operation as Figure 2 (example of
TX's IP setting shown, RX 's setting is the same as TX's )
Figure 2
7
Device scanning and setting
• Device scanning and setting (example shown of TX's setting only, RX's setting is
identical)
Figure 3
Figure 4
Device Name setting
• Click on a default device name and enter the desired name in the pop-up box.
8
Device Channel setting
• Select the channel for the device using the scroll list.
Mode setting
• Click on the Mode button to change the required mode name.
• Click the Update button when complete to store all the settings made.
• Click the Update button when complete to store all the settings made under the
current Mode name.
Figure 5
Figure 6
9
Selecting the operation Mode
• Click on the Mode button to change to the required mode and switch to the settings
stored previously under that name.
10
SPECIFICATIONS
Voltage/Current DC 5V 2A
Power consumption TX: <4W RX: <4W
HDMI compliance HDMI 1.3
HDCP compliance HDCP 1.4
HDMI input resolution 480i@60Hz, 480p@60Hz, 576i@50Hz, 576i@50Hz,
576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz,
1080p@50/60Hz
HDMI output resolution 1080p@60Hz
Audio formats PCM
Max transfer rate 18Mbps
Input/output TMDS signal 0.7~1.2Vp-p
Input/output DDC signal 5Vp-p (TTL)
Transmission length CAT5 80m / CAT5E 100m /CAT6 120m
IR remote control Supports IR passback with 20-60KHz frequency
Transfer method Over CAT6
Connector RJ45
Working temperature 0~60°C
Storage temperature -20~ 70°C
Humidity 0~95%RH (no condensation)
Dimension (RX & TX) 133(W) x 83.8(D) x 23.8(H)mm
Material Alloy
Weight TX: 260g RX:250g
CLEANING & MAINTENANCE
• Clean the outside casing with a soft cloth lightly moistened with mild soap and
water. Never use any abrasive or solvents.
