PROAIM CINEMA Series Manuale utente

Please inspect the contents of your shipped package to ensure you have received everything that is listed

below.

Airwave V1060 Shock Absorber Arm Set, 22-132lb (VI-ARWV-1060)

Assembly Manual

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright

statutes or in wring by the Publisher.

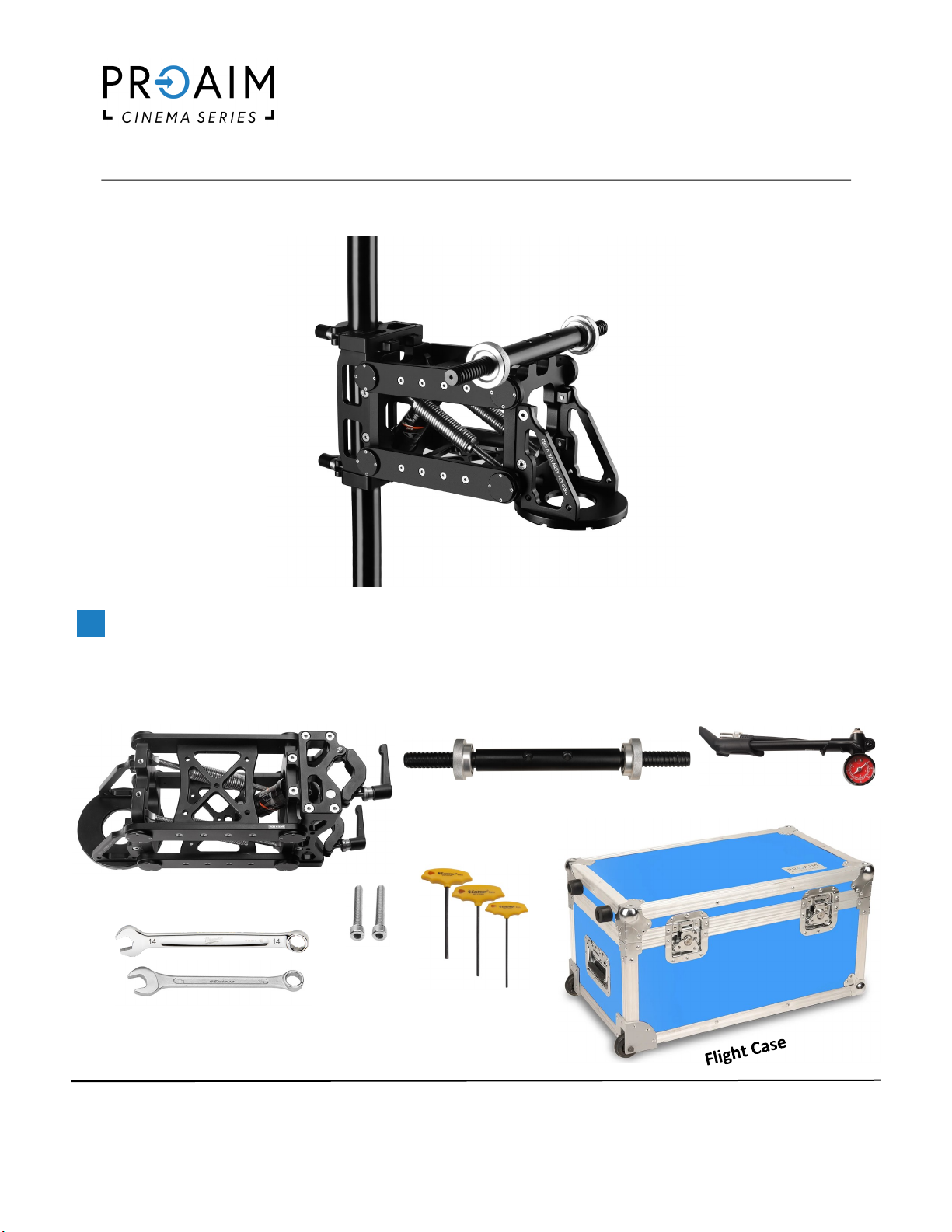

What’s In The Box

Weight rod & 2 x Closer Air lling pump

2 x Spanners 13mm& 14mm 3 x T-Type Allen Key

(Size: 4mm, 5mm 6mm)

Airwave V1060

2 x Screw

Airwave V1060 Setup

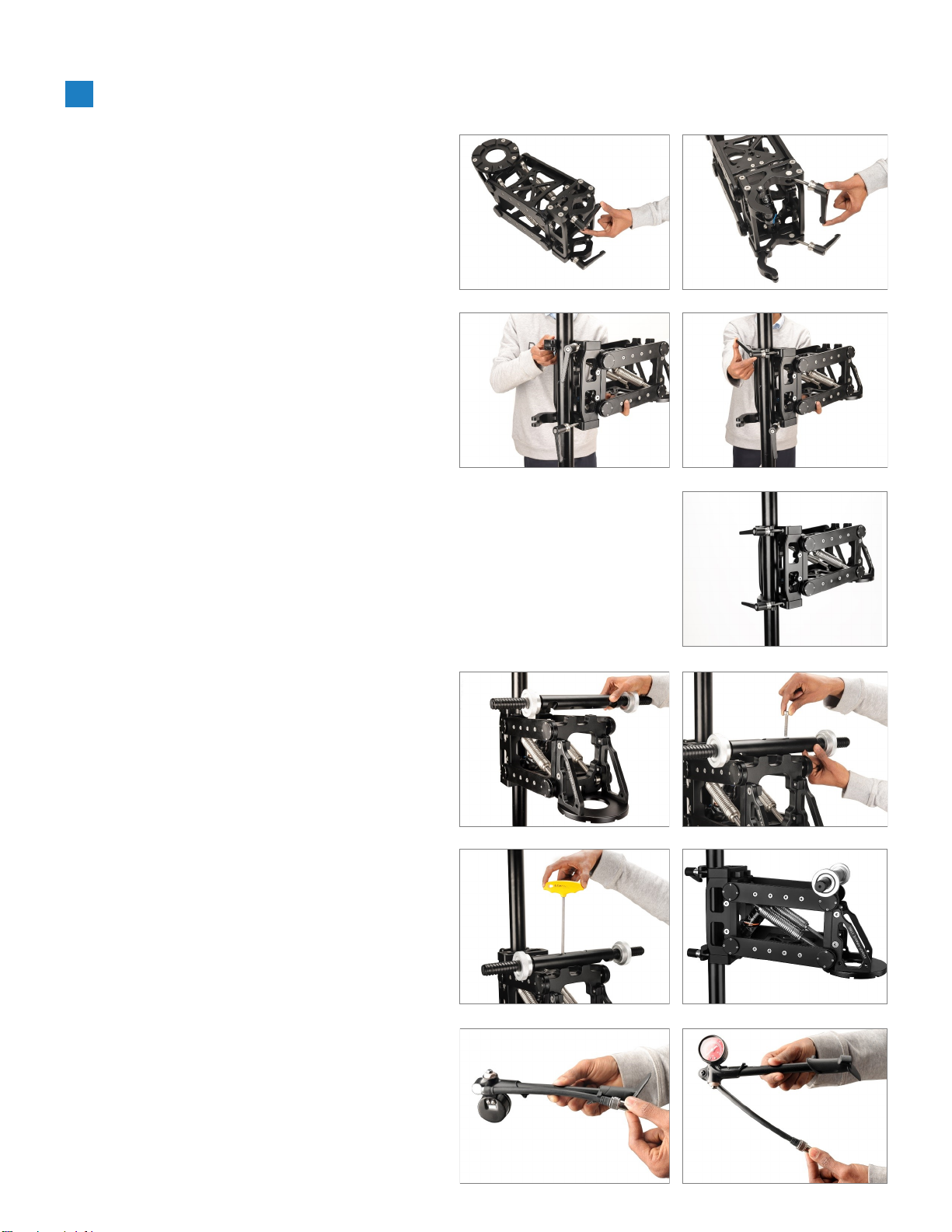

 Loosen and open both the clamps of the

Airwave V1060.

 Align the clamps of the Airwave to a Scaffold

Pole and then secure the clamp by properly

tightening the clamp knob.

NOTE: Airwave V1060 Arm can be securely

aached to a Dia 42mm-50mm Scaold Pole or

Speed Rail with a quick-lock Sca Mechanism.

 Tighten both the bolts using an Allen key, as

shown in the image.

 Align and place the weight rod on the top

part of the Airwave V1060, and then insert

the bolts by matching the thread holes.

 Airwave V1060 has been properly attached to

the scaffold pole.

 Open the air-filling pump.

 Aach the air pressure pump with the washer

ed to the air suspension shocker.

 After attaching the washer of the air shocker

to the air filling pump, pump the air using the

latter.

NOTE: Features a high pressure shocker pump

that quickly sets pressure according to the

weight of your camera; The recommended

maximum pressure is 200 PSI.

For weights >10 kg use a shock pump.

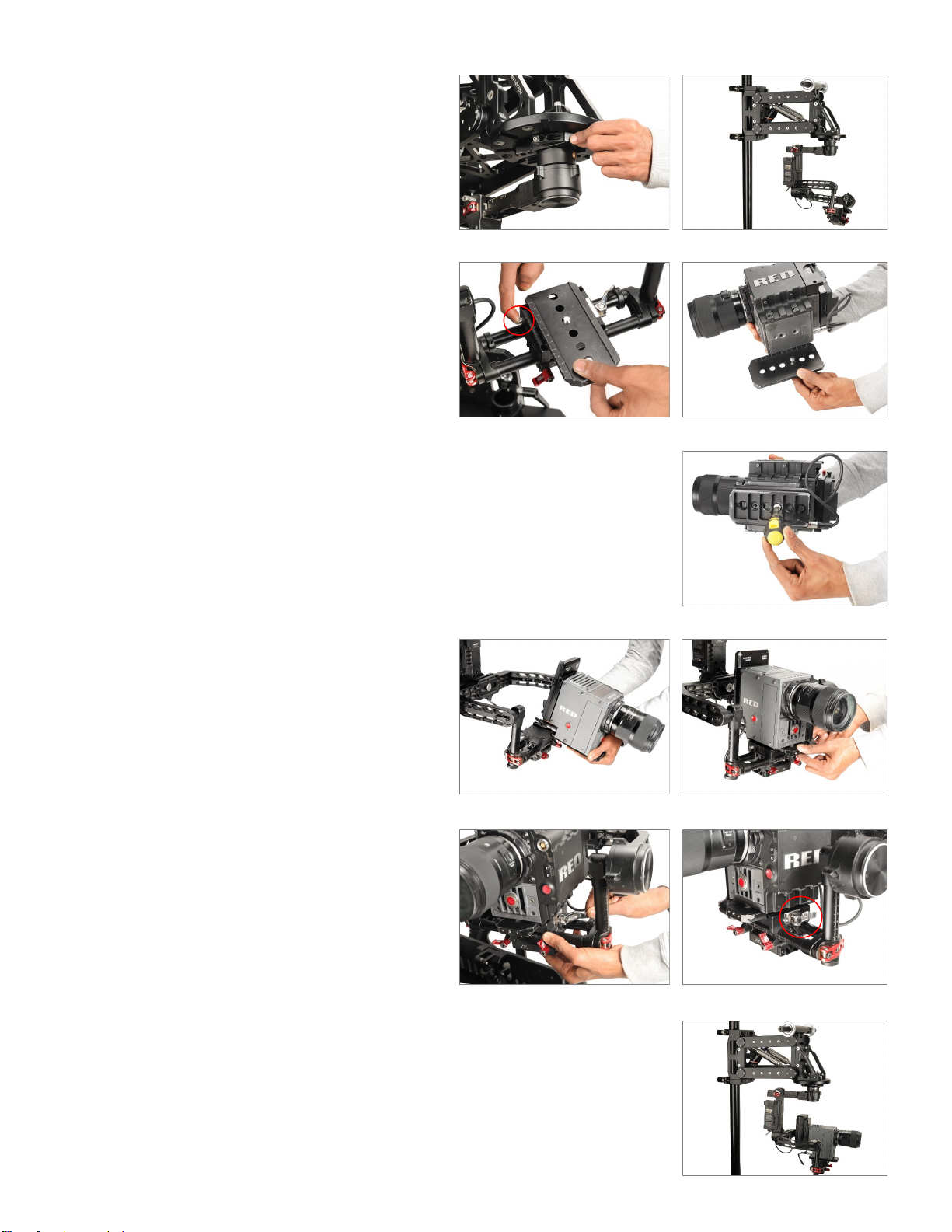

 Insert the ronin mount clamp (Not Included)

from the bottom of the Airwave V1060, and

then tighten and secure it with the castle nut.

 Loosen and remove the Mitchell castle nut

with ronin mount (Not Included).

NOTE: In order to smoothen Dampening eect,

turn the adjustment knob. If the arm is too so,

turn it towards direcon of Plus (+). If the arm is

rigid turn it towards the direcon of Minus (-).

 Open the lock lever of the ronin mount clamp

(Not Included) by pushing it, and then gimbal

by sliding it.

 In order to secure the gimbal (Not Included)

with the Mitchell castle nut with ronin mount

clamp, lock the assembly with the provided

lock lever.

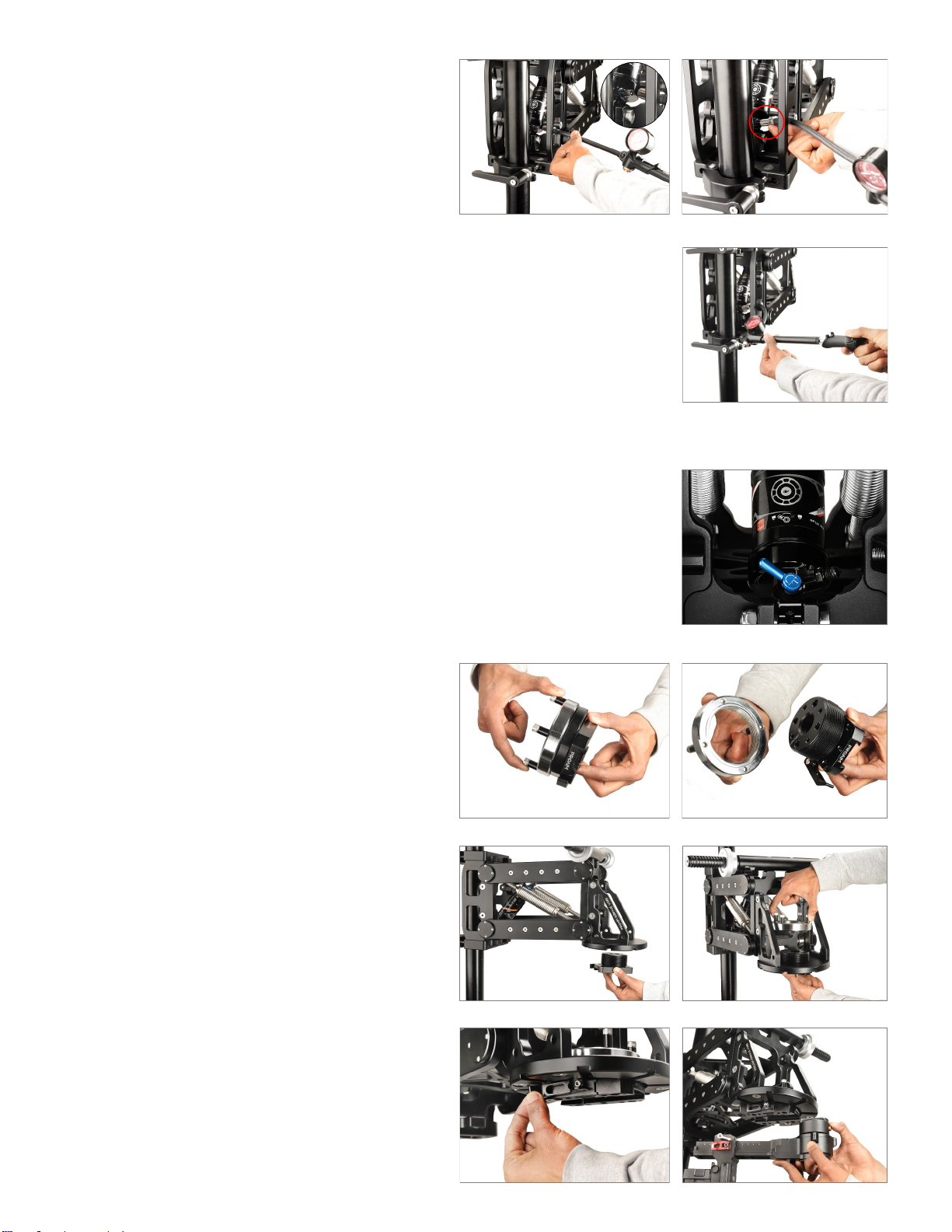

 Push the pin of the gimbal plate to detach it

from the gimbal (Not Included), and then

attach it to your camera (Not Included).

 Lock the assembly by pulling the lock lever.

 Now, Gimble plate ko camera (Not Included)

ke boom se thread hole align karke bolt ko

screw driver ke help se properly ght kar de.

 Gimbal (Not Included) has been properly

attached to the camera (Not Included).

 Attach the gimbal (Not Included) with the

camera (Not Included).

 You can manually loosen or tighten the shock

absorbing spring according to the weight

capacity of the setup.

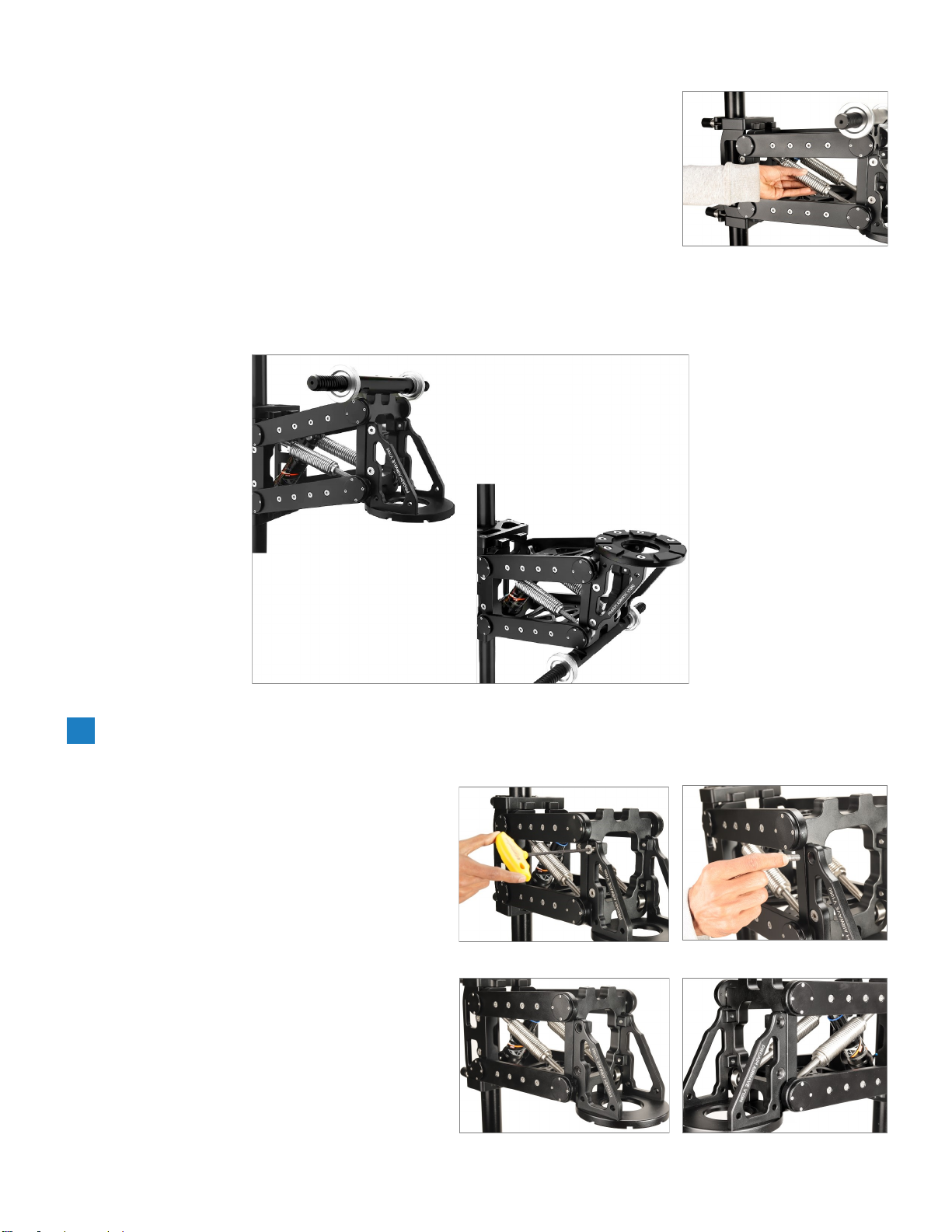

Desire Conguraon Mount your Airwave1016

Mount over-slung or Under-slung

 Similarly, remove all the bolts, as shown in

the image.

 Loosen and remove the bolt of the Airwave

V1060 using the Allen key.

Under-slung/over-slung Setup

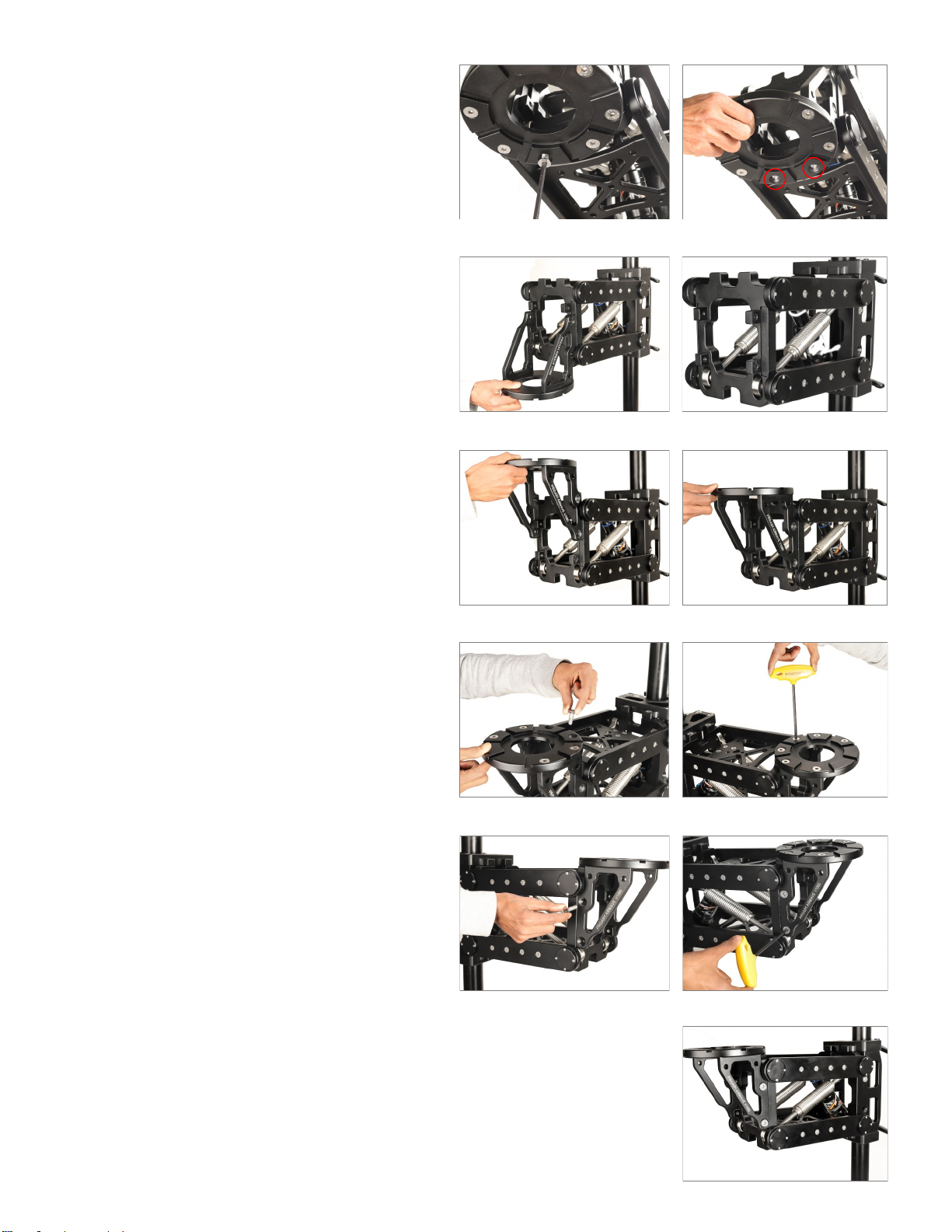

 Loosen and remove both the bolts at the

boom of the Airwave V1060.

 Now, Mitchell plaorm has been detached

from the Airwave V1060.

 Insert and attach the Mitchell platform into

the Airwave V1060 by sliding it in an over-

slung manner.

 Aer aaching the Mitchell Plaorm to the

Airwave V1060, insert the bolt and ghten it

with the help of the Allen key.

 Also, align and match the side thread hole of

the Mitchell platform and the Airwave V1060,

and then insert and properly tighten the bolt

using the Allen key.

 Now, the Mitchell platform has been properly

attached to the Airwave V1060 in an over-

slung manner.

Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,

we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it

cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon and

evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in

transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

utmost support and care unl you use our product.

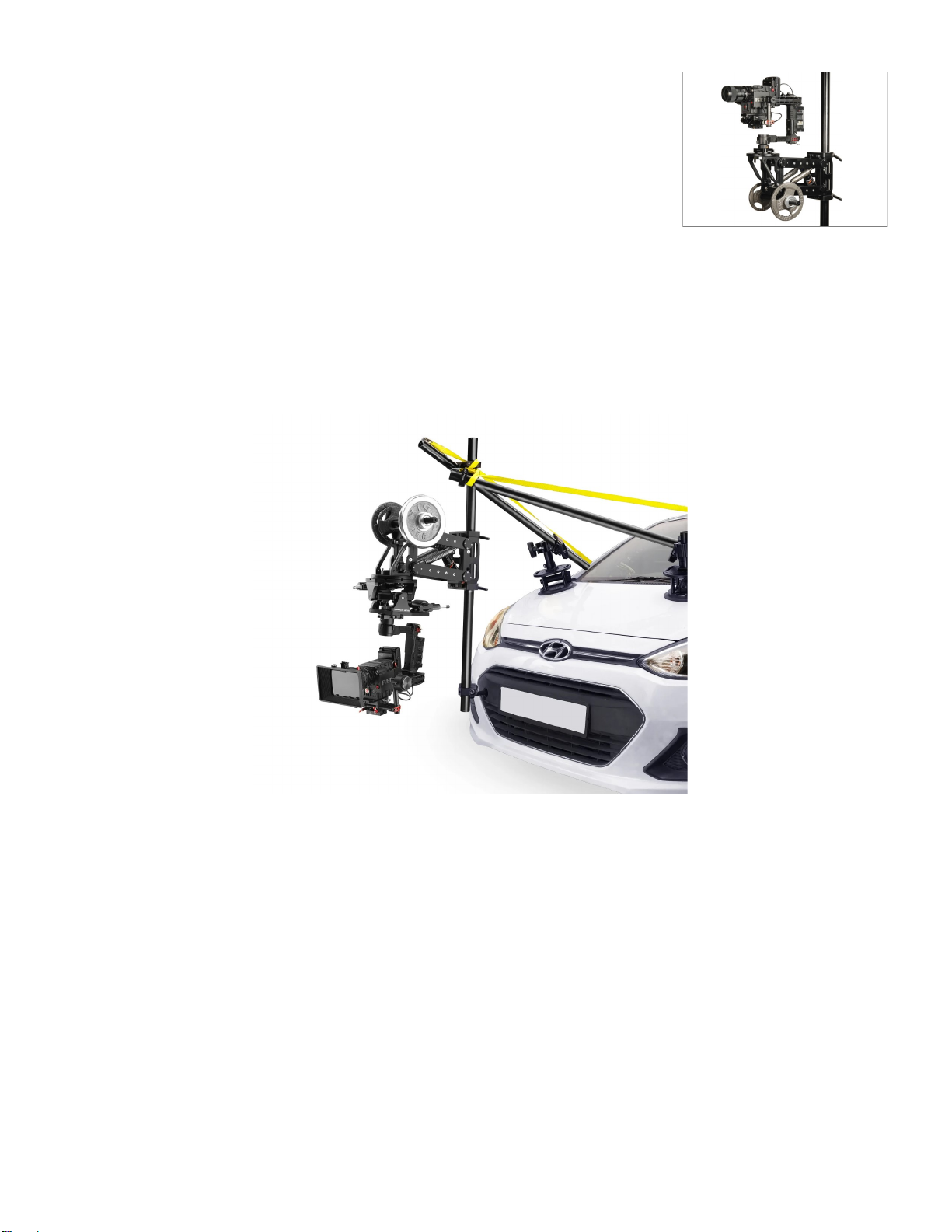

YOUR PROAIM AIRWAVE V1060 SHOCK ABSORBER ARM SET, 22-132LB

ALL DRESSED UP AND READY TO GO!

(SHOWN WITH OPTIONAL ACCESSORIES)

 Airwave V1060 over-slung setup is ready to

use.
