Please inspect the contents of your shipped package to ensure you have received everything that is listed

below.

Airwave Ultra Vibraon Isolator Arm (VI-ARWV-UT)

Assembly Manua l

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright

statutes or in wring by the Publisher.

What’s In The Box

Airwave Ultra

Castle Wrench

Vibraon Isolator with Damper

2x Hex Nut

(Size:1/2”)

Air Filling Pump 1x Spanner (Size:21mm)

Airwave Ultra Isolator Arm Setup

• Loose both the knobs, as shown in the image.

• Airwave Ultra has been properly aached to

the scaold pole.

Flight Case

• Align the clamps of the Airwave to a scaold

pole, and then secure the clamp by properly

ghtening the clamp knobs.

• Now open both the clamps.

Airwave Ultra

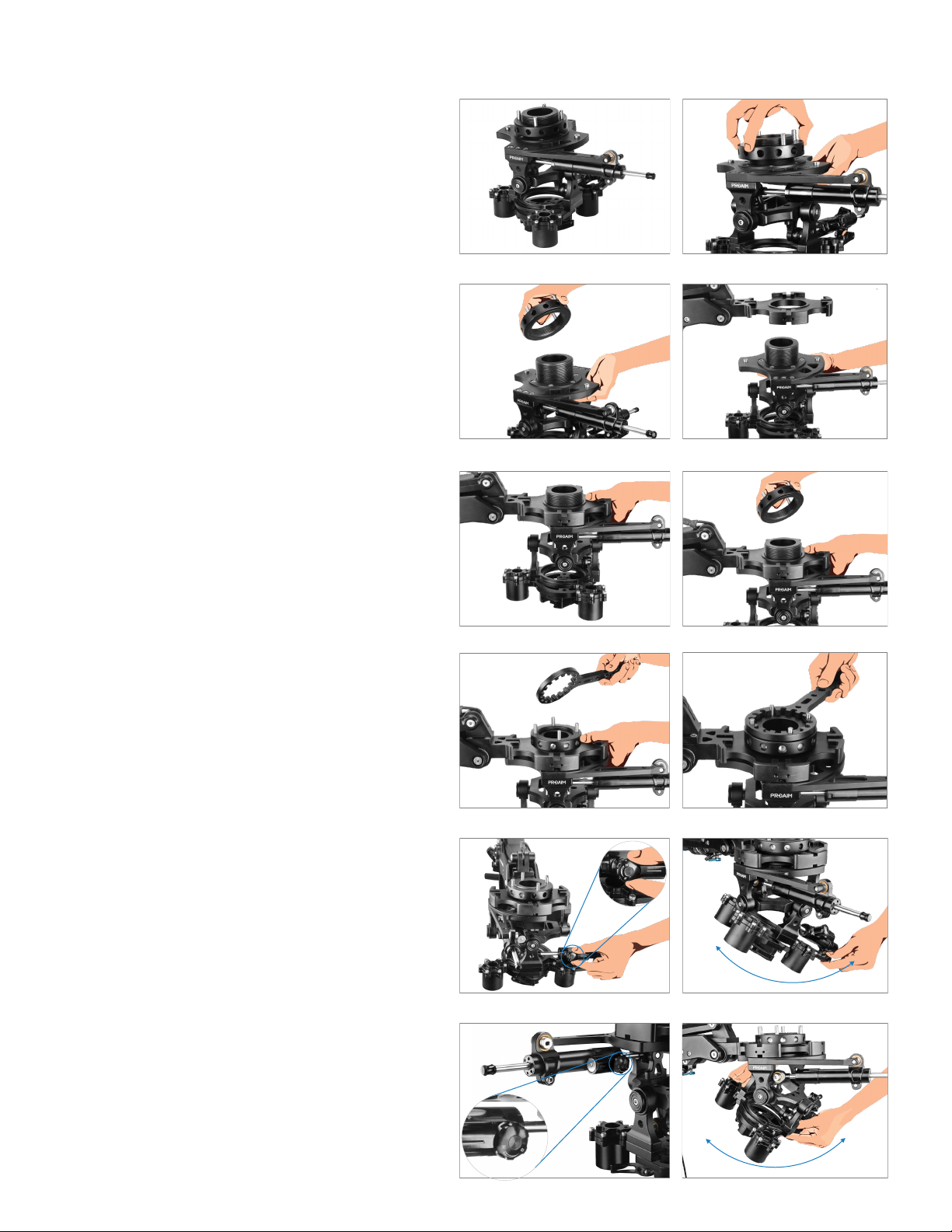

• Now secure the Vibraon Isolator by

aaching the castle nut with the Airwave

Ultra.

• Loosen and remove the castle nut xed on

top of the Vibraon Isolator.

• Aach the Vibraon Isolator at the boom of

the Airwave Ultra, and then ghten the castle

nut to secure it.

• Use the castle wrench to ghten the castle

nut, as shown in the image.

• Turn the adjustment knob to move (le-right)

the lower part of the Vibraon Isolator.

• Turn the other adjustment knob to move

(front-back) the lower part of the Vibraon

Isolator.

Vibraon Isolator with Damper

• Now lock the blue locking knob aer using

Pressure Pump.

• Open the lock lever at the boom of

the Vibraon Isolator.

• Then aach the safe hook to the Gimbal

(Not Included).

• Now aach the gimbal to the Vibraon

Isolator by sliding and then pushing the

gimbal’s (Not Included) buon.

• Aach the air pressure pump with the washer

ed to the Airwave Ultra.

Air Filling Pump

Vibraon Isolator with Damper

Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,

we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it

cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon and

evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in

transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

support and care unl you use our product.

YOUR PROAIM AIRWAVE ULTRA VIBRATION ISOLATOR ARM

ALL DRESSED UP AND READY TO GO!

(SHOWN WITH OPTIONAL ACCESSORIES)
