PROAIM P-WV-2SD Manuale utente

7’ WAVE-2 VIDEO JIB CRANE With CST-

100 Stand & portable Dolly

(P-WV-2SD)

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any

means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permied

by the applicable copyright statutes or in wring by the publisher.

I N S TR UC T I O N M A N UA L

Proaim 7’ WAVE-2 VIDEO JIB CRANE With CST-100 Stand & portable Dolly 2

INTRODUCTION

PROAIM welcomes you to the new and modernized era with its Proaim 7' Wave-2 Video Jib Crane

With CST-100 Stand & Portable Dolly , a portable lming soluon to increase your producon

value. The Robust jib crane is specically designed travel crane for indoor & outdoor video pro-

ducons. Its telescopic armfeature adds exibility to frame perfect shots in indoor and outdoor

spaces. This video producon package includes a rugged camera dolly for smooth, dynamic

moving shots and rock solid aluminum tripod stand for immense support. Now you can create

the visual eects and produce incredibly smooth oang camera crane shots that add value to

your lming producons and bring a quick return on your investment.

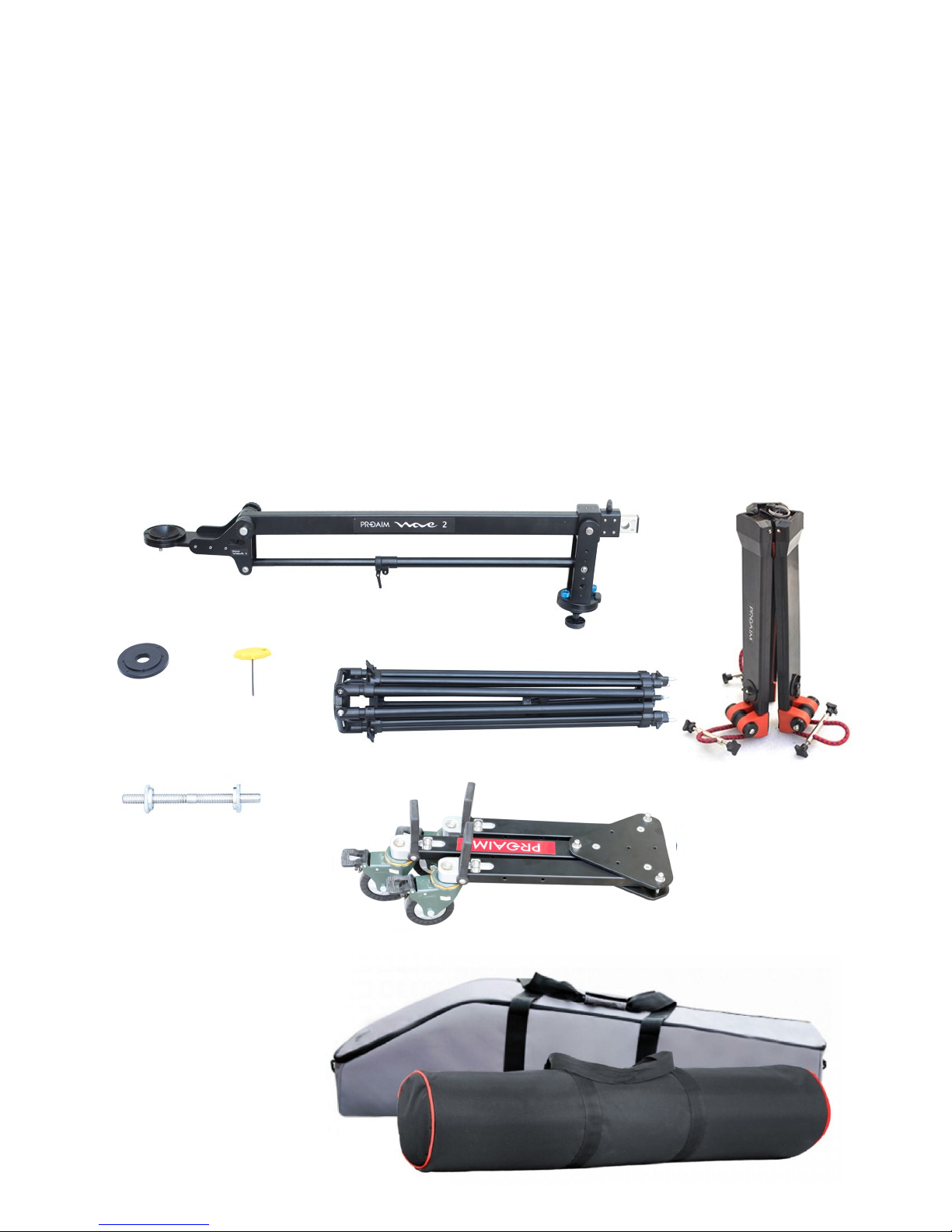

IN THE BOX

Please inspect the contents of your shipped package to ensure you have received all that is

pictured and listed below. The padded shipping /storage container has been especially designed

to protect your purchase while in transit and is a good place to keep your PROAIM 7' Wave-2

Video Jib Crane with CST-100 Stand and portable Dolly when not in use.

Bag Packing

Wave-2 video crane jib

75mm bowl

Weight shank

CST-100mm Bowl tripod stand

Portable Dolly

Allen key

Red Spreader

CONTENTS OF SHIPPING BOX

Proaim 7’ WAVE-2 VIDEO JIB CRANE With CST-100 Stand & portable Dolly 3

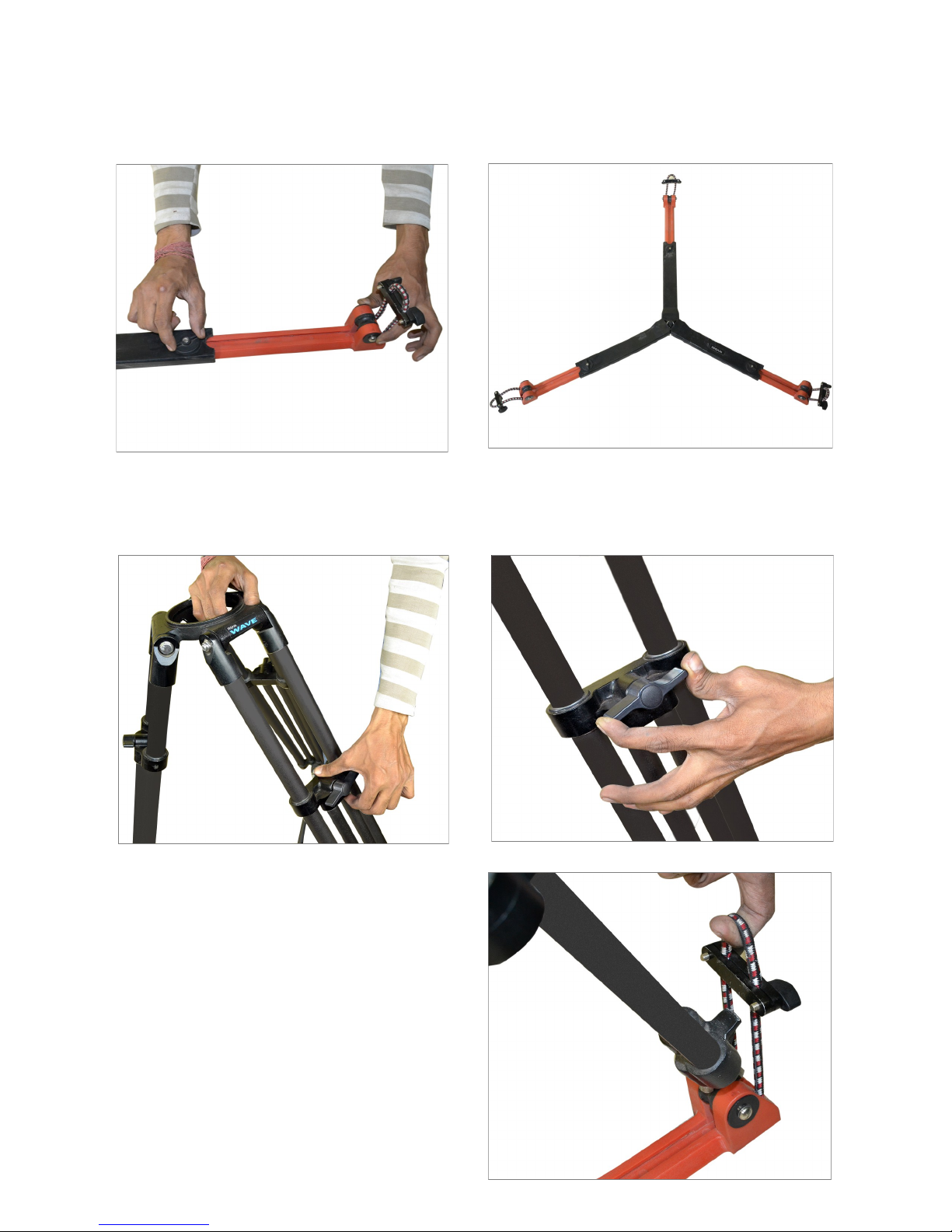

 Posion the height of the tripod by loosening all three adjustment knobs, sliding the tripod

up to the desired height and re-ghten the knobs securely.

 Now, place the tripod foot on the

spreader and e down it with the help of

elasc clip downs as shown in the

picture.

 Take out the spreader and open it’s legs as shown in the image.

ASSEMBLING YOUR PROAIM 7' WAVE JIB WITH 100MM TRIPOD STAND AND

SPREADER

Proaim 7’ WAVE-2 VIDEO JIB CRANE With CST-100 Stand & portable Dolly 4

 Provided are the jib panning control

knobs (as shown in the picture). Loosen

the knobs for the smooth pan

movement of the jib and ghten these

knobs to lock the pan movement of the

jib.

NOTE: Inbuilt bubble leveler is also

provided to check accurate set-up of jib

on uneven surface areas.

NOTE: It is important to make sure that the Central Fork is seated in the bowl properly. That

means perpendicular to the tripod bowl. O axis installaon may hamper movement of the jib.

Also you may need the assistance of a grip stand to hold the camera end of the arm during

installaon prevenng it from falling as it will be front heavy at this point. You may also need

the grip stand or assistance at the rear of the jib when mounng the camera.

 Now to extend the rear secon of the jib, loosen the Allen bolts with the provided Allen key

and then, loosen the knob as shown in the picture.

 Unscrew the locking lever from the Central Post of the jib. Place the Central Post in the

bowl of Tripod Stand and re-ghten the locking mechanism for a secure t. (as shown in

the picture.)

Proaim 7’ WAVE-2 VIDEO JIB CRANE With CST-100 Stand & portable Dolly 5

 Aach the weight shanks at the rear end of

the jib secon by screwing it in and then add

weights to it.

NOTE: Make sure the opposite end of the jib arm

is secured so that the addion of the weights

does not cause the arm to rise violently.

 Camera head mount is provided with a knob

to control 90 degree lt movement of the

camera.

 Loosen the knob for the free lt movement

of the camera and ghten it to lock the

movement.

 Then, loosen the knob provided at the lower

telescopic secon of the jib arm as shown in

the picture to extend the front secon of the

telescopic jib accordingly to the rear secon.

 Mount your uid head onto the bowl plate in order to aach the camera. And then nally,

secure your camera properly on the uid Head.

Proaim 7’ WAVE-2 VIDEO JIB CRANE With CST-100 Stand & portable Dolly 6

YOUR PROAIM 7’ WAVE DSLR VIDEO JIB ARM WITH TRIPOD STAND

ALL SET AND READY TO USE

NOTE: Add weights to the rear of jib corresponding to the weight of camera aached to

balance the jib arm.

(SHOWN WITH OTPIONAL ACCESSORIES)

 Take out the bolt from the center of dolly and spread it on oor. Then put the bolt back

through the center of dolly again.

ASSEMBLING YOUR PROAIM 7' WAVE -2 JIB WITH CST-100 STAND, PORTABLE

DOLLY

Proaim 7’ WAVE-2 VIDEO JIB CRANE With CST-100 Stand & portable Dolly 7

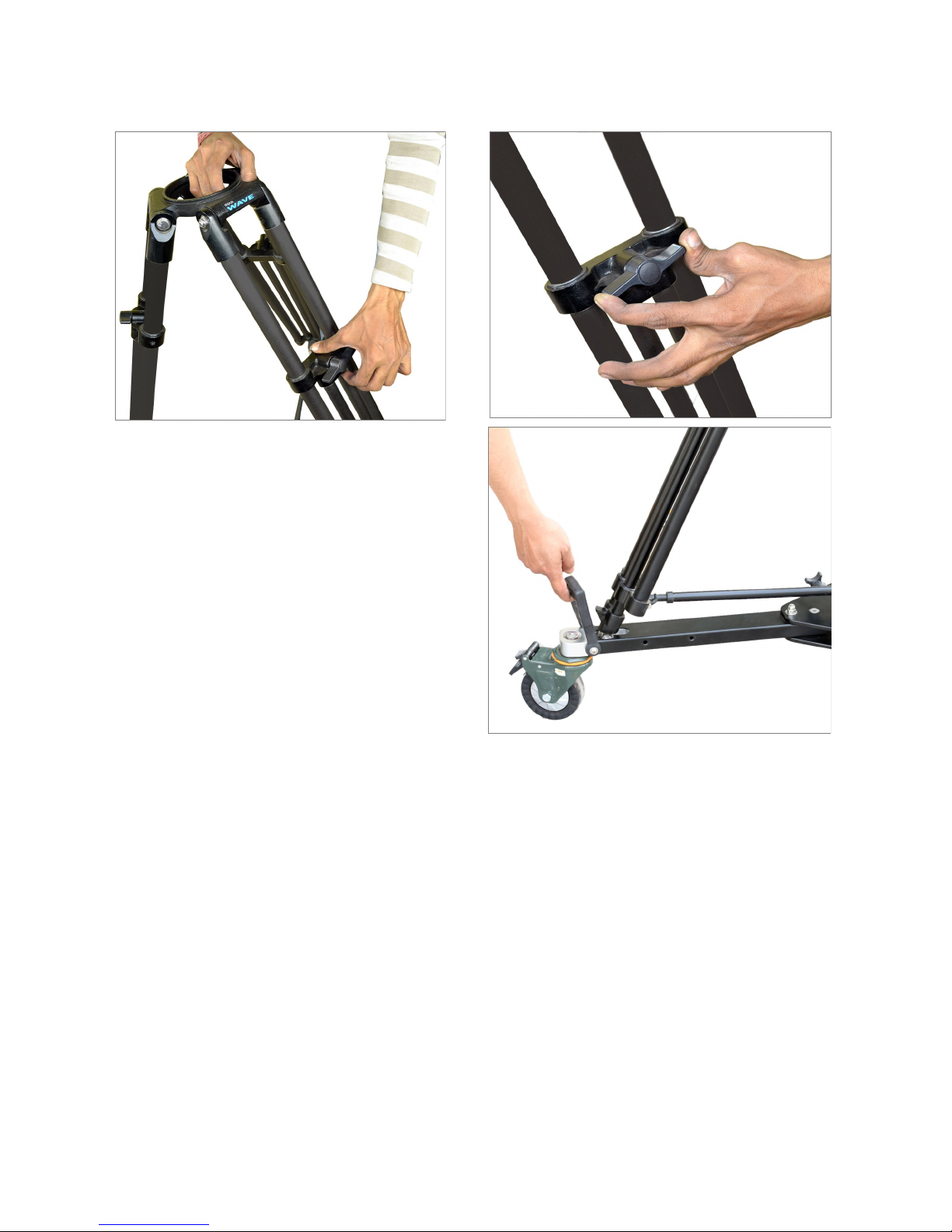

 Posion the height of the tripod by loosening all three adjustment knobs, sliding the tripod

up to the desired height and re-ghten the knobs securely.

 Now, place the tripod foot on the dolly

and e down it with the help of elasc

clip downs as shown in the picture.

WARRANTY

We oer a one year warranty for our products from the date of purchase.

We will repair or replace your product, free of charge, in the event of a defect in materials or

crasmanship obtained during normal use or handling based on the user manual. Please note

that we will not cover any shipping costs for returning the product to us. If any VAT or import

dues are applied to the return, we will also charge these costs to the customer.

The warranty does not include, by the way of example, damage caused by products that we do

not supply or from mishandling in transit, accident, misuse, neglect, lack of care of the product ,

or service by anyone other than our company.

We are not liable for incidental or consequenal damages resulng from the use of the unit or

occurring due to any breach of this warranty.

Replacement parts of the product will be provided at nominal cost (covering the cost price of the

replacement parts only) to the customers aer the Warranty Period has expired. We will cover

Proaim 7’ WAVE-2 VIDEO JIB CRANE With CST-100 Stand & portable Dolly 8

the complete cost of sending replacement parts within the warranty period. Aer that, Nominal

cost of the product & Actual shipping cost will be charged.

Do not send the unit to us without rst geng a response and geng the approval to send back

the item.

In case of any kind of dissasfacon, we urge you to Contact us immediately and we shall do our

Best to help you out. For any other assistance you can reach us via email.

For any other assistance you can reach us via email.
