PROAIM Atlas V2 Manuale utente
1
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
Atlas V2 Video Producon Camera Cart
(ATLS-V2-48)
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright
statutes or in wring by the Publisher.
What’s In The Box
Assembly Manua l
Upper shelf
Lower shelf
Carrying Handle
4 x washers
2 x Cross Bar 2 x Side Handle
2 x Allen Bolts
(Size: 8 x 20mm)
2 x Allen CSK Bolts
(Size: 6 x 20mm)
16 x Allen Bolts
(Sizes:5 x 12mm)
2 x Allen Bolts
(Size: 8 x 25mm)
2 x T-Type Allen Key
(Sizes:4mm & 5mm)
4 x Rod Adapters 2 x L-Type Allen Key
(Sizes:4mm & 6mm)
2 x Pneumac Tires
without Break
2 x Pneumac Tires
with Break

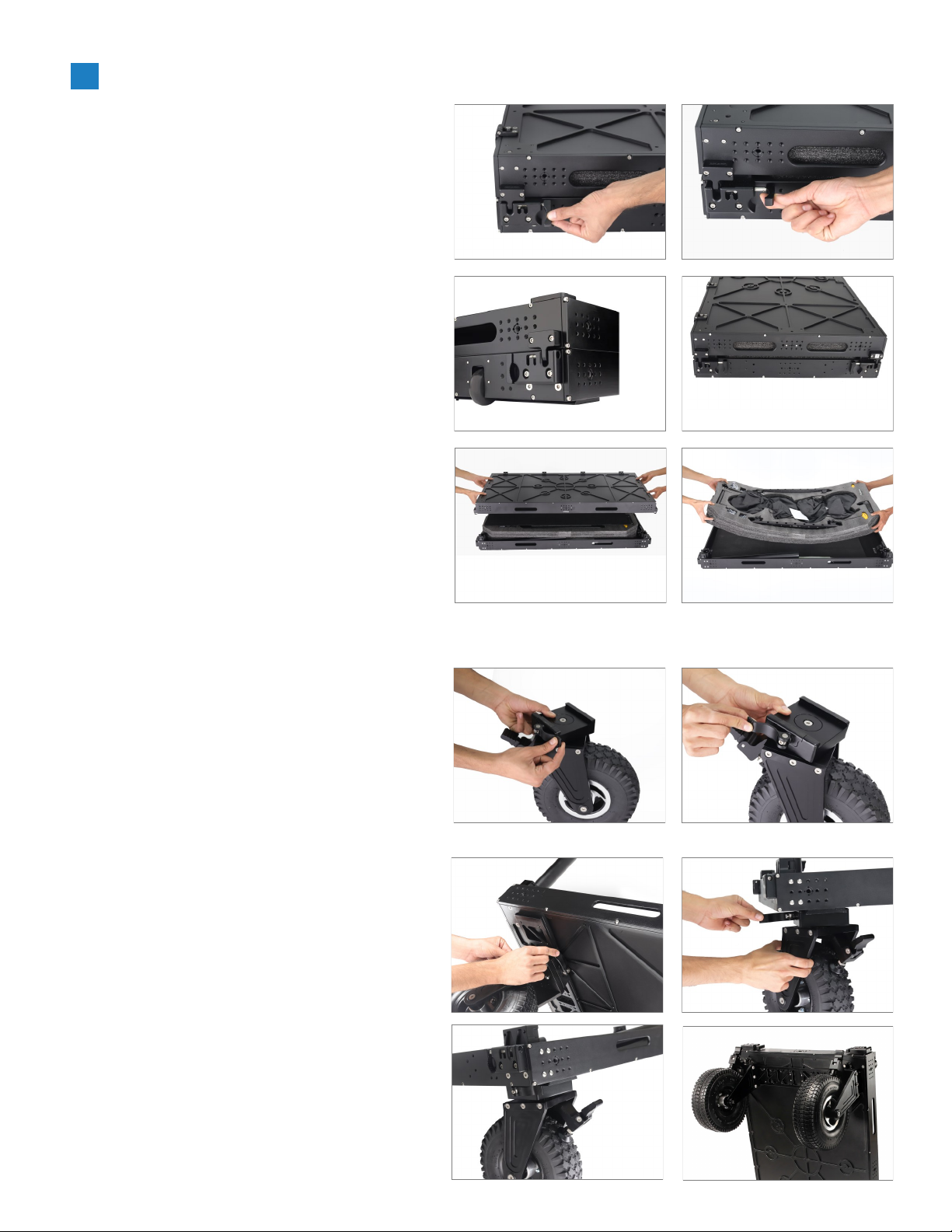

2
• Repeat the same process to unlock the
remaining locking knobs.
• Now, separate the upper and lower shelves.
Remove foam from the lower shelf, as
shown in the image.
• Loosen the knobs of Pneumac
Tires (with Brake).
NOTE: The brakes don't loosen over me,
even when the res experience wear and
tear and the thickness decreases.
Atlas Cart Setup
• To open the Atlas Cart, unlock its locking
knob.
Assembly of Pneumac Tires with Break or without break
• Now, Slide the brake wheel into the lower
shelf and secure it using the locking knob.
• The brake wheel is properly aached to the
Cart. Repeat the same process to aach the
second wheel.

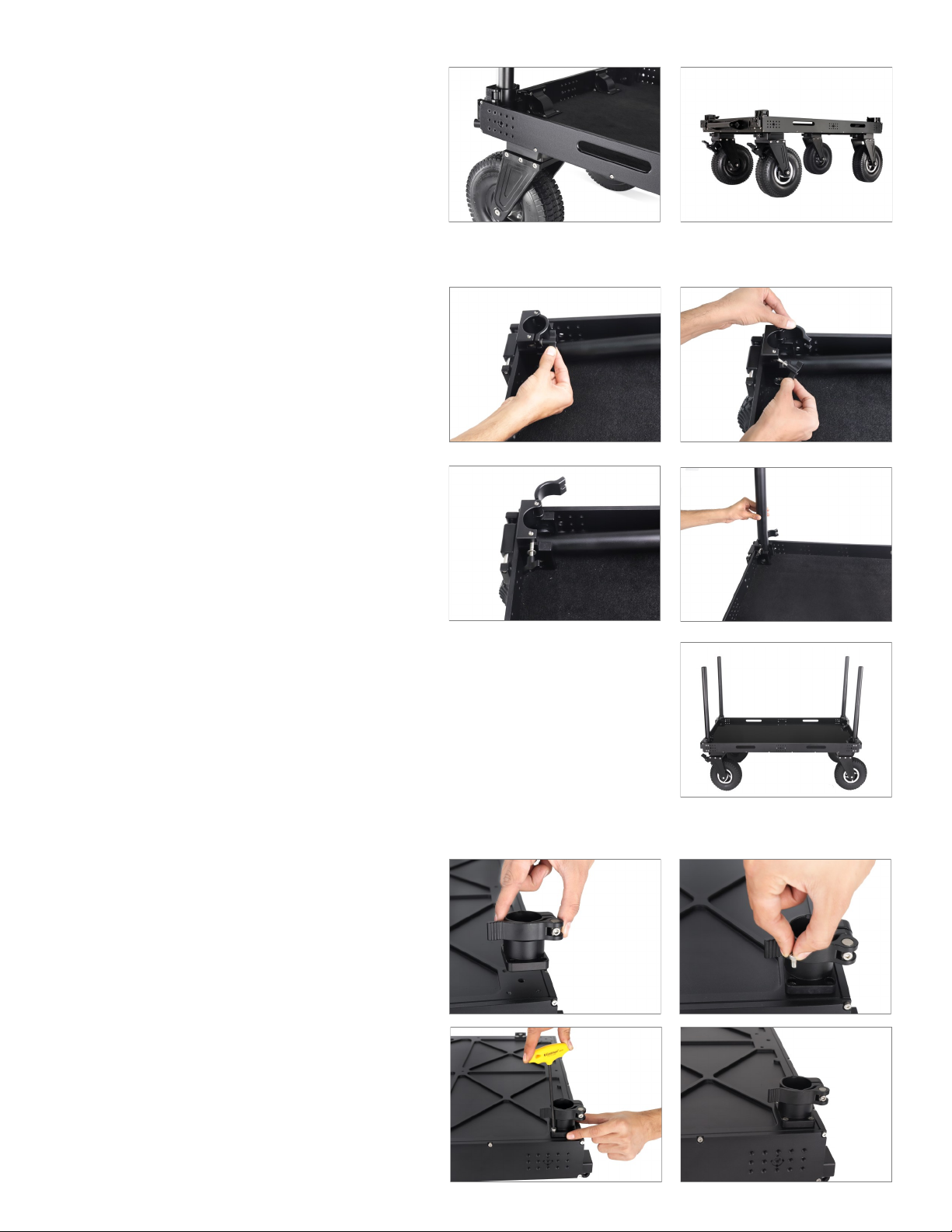

3
• Loosen the knob of the locking clamp to
open the clamp.
• Repeat the same process to aach the
Pneumac Tires (without Brake).
NOTE: The specially designed foot brakes of
the Atlas V2 Cart keep it stable and secure for
reliable parking when you are not close to the
Cart.
• Place the remaining rods vercally repeang
the same process.
• Aer opening the clamp, posion the rod
vercally, as shown in the image.
Assembly of Rods
• Insert the Rod Adapter into the upper shelf
and properly insert the bolt (Size: 5x12mm).
Assembly of Rod Adapters
• Tighten all the bolts using the Allen key
(4mm) and repeat the same with
the remaining Adapters.

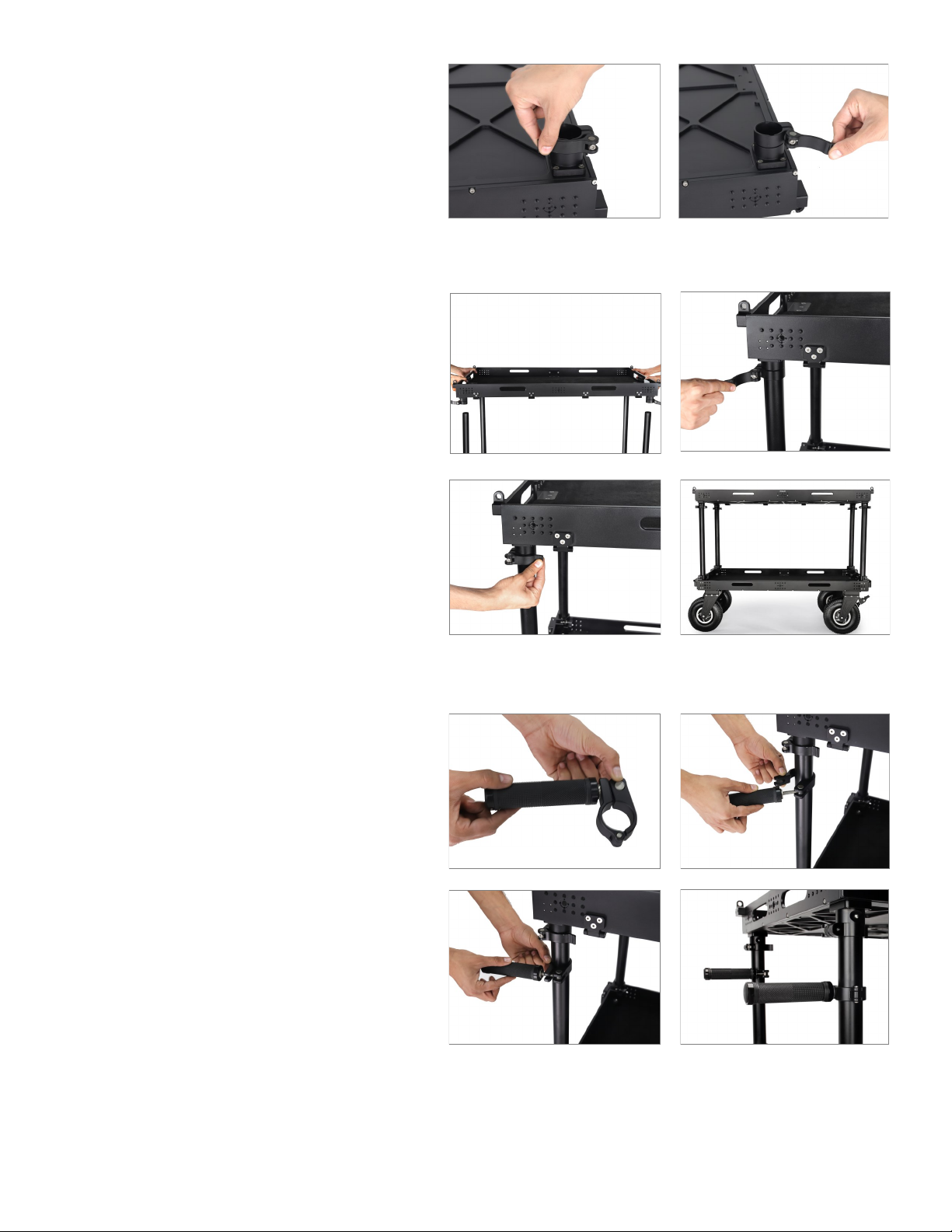

4
• Mount the top shelf on the rods and lock
the locking levers to secure it.
NOTE: You need two people to setup your top
shelf on the rods.
• Now, open the lever locks of all the rod
adapters.
Assembly of Upper shelf
NOTE: These shelves allow you to li the Cart
from both sides and load it into the truck or
other vehicles. You can also use these to raise
the Cart over obstacles or move it from one
place to another.
• Open the handle and aach it to the rod, as
shown in the image.
Handle Assembly
• Posion the Handle per your requirement.
• Repeat the same process to posion the
second Handle.
NOTE: The Handles assist the operator
in liing the Cart over obstacles, stairs or
other uneven surfaces.

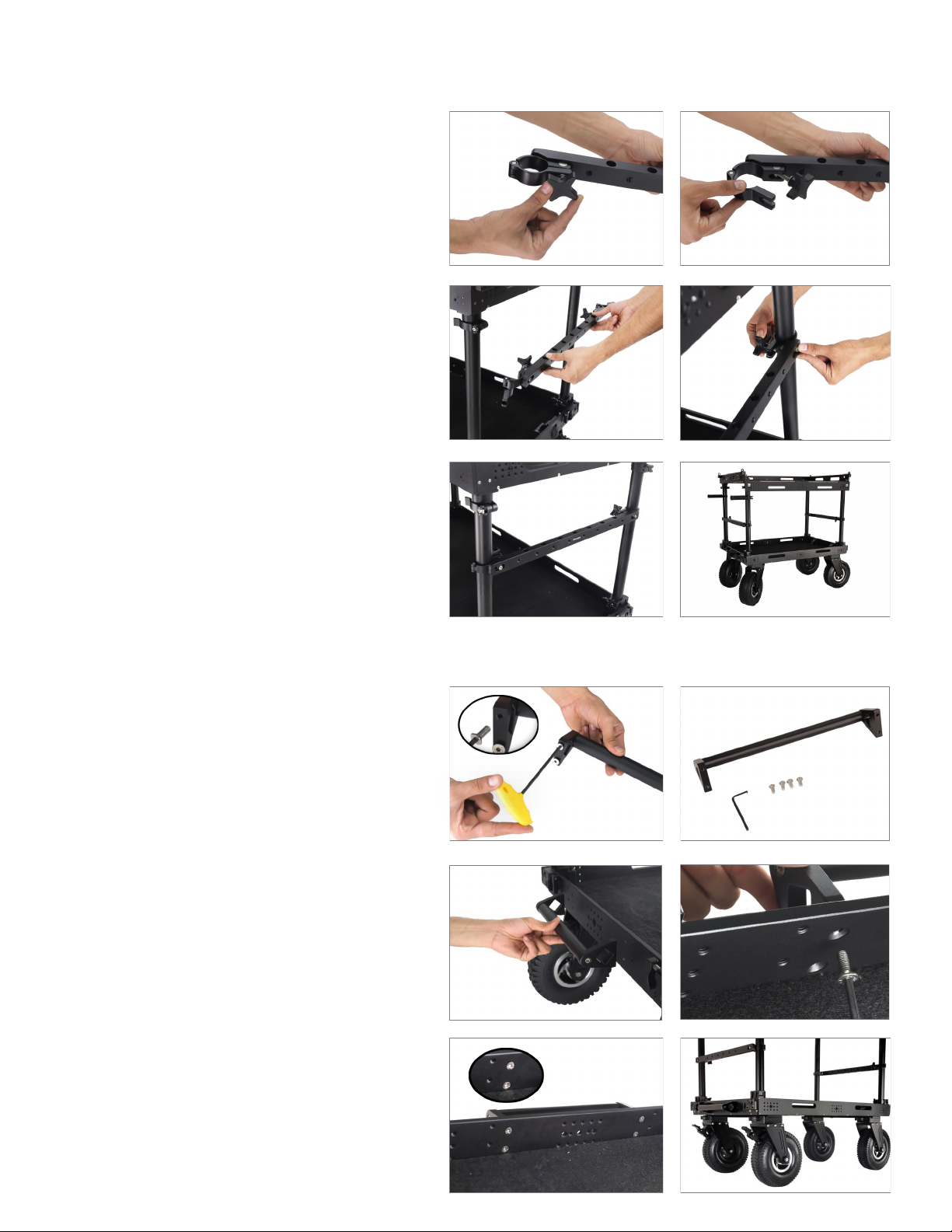

5
• To open the clamp, loosen its knob, as
shown in the image.
• Aach the second Crossbar using the same
process. The cart with Crossbars will look as
shown in the image.
• Aach the clamp of the Crossbar with the
rods and ghten the knobs to secure it.
Crossbar Assembly
• Place the Carrying Handle on the side of the
lower shelf. Now, match its screw and insert
it using the Allen key.
• Loosen the screws of carrying handle using
the Allen key (4mm).
Carrying Handle Assembly
• Repeat the same process to screw all the
remaining screws of the Handle.
6
• Your Cart is ready for use.
YOUR PROAIM ATLAS V2 VIDEO PRODUCTION CAMERA CART
ALL DRESSED UP AND READY TO GO!
(SHOWN WITH OPTIONAL ACCESSORIES)
Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,
we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it
cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon and
evaluaon by us.
Liability: We are not liable for damage caused by products that we do not supply or from mishandling in
transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.
Contact Us: In case of any kind of dissasfacon, please Contact us immediately and we promise our utmost
support and care unl you use our product.
