Progress Lighting AirPro P2542 Manuale utente

P2542

Limited Lifetime Warranty

Progress Lighting fan motors are warranted to the original purchaser to be free of

electrical and/or mechanical defects for so long as the original purchaser owns the fan.

Pull chain switches, reverse switches, capacitors and metal nishes are warranted for a

period of 1 year. Warping of wooden or plastic blades is not covered by this warranty.

With proof of purchase, the purchaser may return the defective fan to the place of

purchase during the rst 30 days for replacement. After 30 days, the purchaser MUST

contact Progress Lighting for repair or replacement which shall be determined in

Progress Lighting’s sole discretion and shall be purchaser’s sole and exclusive remedy.

Labor and Shipping Excluded. This warranty does not cover any costs or fees associated

with the labor (including, but not limited to, electrician’s fees) required to install,

remove, or replace a fan or any fan parts.

ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY FOR A CLAIM OF

ANY KIND WITH RESPECT TO THIS PRODUCT SHALL BE THE REMEDIES SET

FORTH HEREIN. PROGRESS LIGHTING IS NOT RESPONSIBLE FOR DAMAGES

(INCLUDING INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL),

DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF BREACH OF

WARRANTY, BREACH OF CONTRACT, OR OTHERWISE. THIS WARRANTY IS

GIVEN IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESSED OR

IMPLIED, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR

ANY PARTICULAR PURPOSE OR AGAINST INFRINGEMENT, AND IS VOIDED

IN CASES OF ABUSE, MISUSE OR IMPROPER HANDLING, NEGLIGENCE,

SHIPPING DAMAGE, UNAUTHORIZED REPAIRS (MADE OR ATTEMPTED) OR

UNUSUAL APPLICATION.

Some states do not allow limitations on how long an implied warranty lasts or the

exclusion or limitations of incidental or consequential damages, so the above limitations

and exclusions may not apply to you. This warranty gives you specic rights and you

may have other rights which vary from state to state.

Date Purchased

Store Purchased

UL Model No.

Serial No.

Vendor No.

UPC

111017

785247 211845

785247 211852

785247 211869

P2542

Safety Rules

Unpacking Your Fan

Installing Your Fan

Making the Electrical Connections

Operating Your Fan

Care of Your Fan

Troubleshooting

Specications

Table of Contents

1. To reduce the risk of electric shock, insure electricity

has been turned off at the circuit breaker or fuse box

before beginning.

2. All wiring must be in accordance with the National

Electrical Code ANSI/NFPA 70-1999 and local electrical codes.

Electrical installation should be performed by a

qualied licensed electrician.

3. CAUTION: To reduce the risk of personal injury, use only

the screws provided with the electrical box.

4. The outlet box and support structure must be securely

mounted and capable of reliably supporting 35 lbs. (15.9

kg). Use only UL Listed outlet boxes marked “Acceptable

for Fan Support of 35 lbs. (15.9 kg) or less.”

5. The fan must be mounted with a minimum of

7 feet clearance from the trailing edge of the blades to

6. Do not operate reversing switch while fan blades are in

motion. Fan must be turned off and blades stopped before

reversing blade direction.

7. Avoid placing objects in path of the blades.

8. To avoid personal injury or damage to the fan and other

items, be cautious when working around or

cleaning the fan.

9. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be

suitable for most cleaning.

10. After making electrical connections, spliced conductors

should be turned upward and pushed carefully up into

electrical box. The wires should be spread apart with the

grounded conductor and the equipment-grounding

conductor on one side of the electrical box and ungrounded

conductor on the other side of the electrical box.

11. Electrical diagrams are for reference only. Light kits that

are not packed with the fan must be UL Listed and marked

suitable for use with the model fan you are installing.

Switches must be UL General Use Switches. Refer to the

instructions packaged with the light kits and switches for

proper assembly.

12. All set screws must be checked and retightened where

necessary before installation.

13. WARNING: To reduce the risk of re or electric shock,

this fan should only be used with fan speed control part no.

UC7067RY, manufactured by Rhine Electronic Co., Ltd.

1. Safety Rules

READ AND SAVE THESE INSTRUCTIONS

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT TO OUTLET BOX MARKED “ACCEPTABLE FOR FAN

SUPPORT OF 35LBS. (15.9 KG) OR LESS”, AND USE SCREWS PRO-

VIDED WITH THE OUTLET BOX.

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE

BLADE BRACKETS (ALSO REFERRED TO AS (“FLANGES”) DURING

ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN

THE PATH OF THE BLADES. TO REDUCE THE RISK OF SHOCK, THIS FAN MUST BE INSTALLED

WITH AN ISOLATION CONTROL/SWITCH.

CAUTION:

the foor.

14. Suitable for use with solid-state speed controls.

a. Blade attachment hardware

(13 Screws)

b. Electrical hardware and Balancing kit

(3 plastic wire connectors, blade

balancing kit)

5. Fan Motor Assembly

6. Blades (4)

7. Light Kit Pan

8. Light Kit Fitter Assembly

9. Shatter-resistant Shade

10. Transmitter and Receiver

1. Mounting Bracket (inside canopy)

2. 6” Ball/Downrod Assembly (hanger pin

and locking pin pre-attached)

3. Canopy with Bottom Cover (attached)

4. Decorative Motor Collar Cover

2. Unpacking Your Fan

Unpack your fan and check the contents. You should have the following items:

c. Extra mounting screws #10-32 for outlet box

(1 Screws)

3. Installing Your Fan

Tools Required

Phillips screw driver or straight slotted screw

driver, adjustable wrench, step ladder, and

wire cutters.

Mounting Options

If there isn’t an existing electrical box, then

read the following instructions. Disconnect

the power by removing fuses or turning off

circuit breakers.

Secure the electrical box directly to the building

structure. Use appropriate fasteners and

building materials. The electrical box and

its support must be able to fully support the

moving weight of the fan (at least 35 lbs.).

Do not use plastic electrical boxes.

Figures 1, 2, and 3 are examples of different

ways to mount the electrical box.

Note: You may need a longer downrod to

maintain proper blade clearance when installing

on a steep, sloped ceiling. The maximum

angle allowable is 30˚. If the canopy touches

downrod, remove the decorative canopy

bottom cover and turn the canopy 180˚ before

attaching the canopy to the mounting plate.

To hang your fan where there is an existing

xture but no ceiling joist, you may need an

installation hanger bar as shown in Figure 4.

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT

TO OUTLET BOX MARKED “ACCEPTABLE

FOR FAN SUPPORT OF 35LBS. (15.9 KG) OR

LESS”, AND USE SCREWS PROVIDED WITH

THE OUTLET BOX. ELECTRICAL BOXES

COMMONLY USED FOR THE SUPPORT OF

LIGHTING FIXTURES MAY NOT BE ACCEPT-

ABLE FOR FAN SUPPORT AND MAY NEED TO

BE REPLACED. CONSULT A QUALIFIED ELEC-

TRICIAN IF IN DOUBT.

Figure 1

Figure 2

Figure 4

Figure 3

Hanging the Fan

REMEMBER to turn off the power. Follow

the steps below to hang your fan properly.

NOTE: This fan is recommended for

standard ceiling mount using the downrod

provided with this fan. When using standard

ceiling installation with the 6 inch downrod

provided, the distance from the ceiling

to the bottom of the fan blades will be

approximately 13 inches.

Standard Ceiling Mounting

1. Remove the canopy bottom cover from

the canopy by turning the canopy bottom

cover counter-clockwise until it unlocks.

(Figure 5)

2. Remove the non-slotted screw and loosen

but do not remove the slotted screw. This

will enable you to remove the mounting

bracket from the canopy. (Figure 6)

3. Remove the hanger pin and locking pin

from downrod assembly.

4. Route the wires exiting the top of the fan

motor through the decorative motor collar

cover then the center of the canopy bottom

cover. Make sure the slot opening are on

top. Route the wires through the canopy and

then through the ball/downrod assembly.

(Figure 7)

Loosen but

do not remove

Remove

Canopy bottom cover

Canopy

Turn Canopy bottom cover to Remove

Figure 5

Figure 6

5. Loosen, but do not remove, the set screws on

the collar on the top of the motor housing.

6. Align the holes at the bottom of the downrod

with the holes in the collar on top of the

motor housing. (Figure 7) Carefully insert

the hanger pin through the holes in the

collar and downrod. Be careful not to jam

the hanger pin against the wiring inside the

downrod. Insert the locking pin through the

hole near the end of the bolt until it snaps

into its locked position, as noted in the circle

inset of Figure 7.

7. Re-tighten the set screws on the collar on

top of the motor housing.

8. Make sure the grommet is properly installed

in the collar cover, then slide the collar cover

on the downrod until it rests on the motor

housing. Be sure that the canopy and the

collar cover are both oriented correctly.

9. Proceed to “Installing the Fan” section.

FAILURE TO PROPERLY INSTALL SET SCREWS

AS NOTED IN STEP 7 COULD RESULT IN FAN

LOOSENING AND POSSIBLY FALLING.

Figure 7

Pin in

position

locked

Motor wires

Ball/Downrod

assembly

Canopy

cover

Motor collar

Tighten scre

Hanger pin

Locking

Reverse

switch

Motor

collar

Canopy

bottom cover

Installing Fan to

the Electrical Box

WHEN MOUNTING THE FAN ON A SLOPED

CEILING, THE STANDARD BALL/DOWNROD

MOUNTING METHOD MUST BE USED. THE

MOUNTING PLATE MUST BE MOUNTED SO

THAT THE SLOT OPENINGS ARE ON THE

LOWER SIDE BY SLIDING THE MOUNTING

PLATE FROM THE TOP DOWN.

1. Pass the 120-volt supply wires through the

center hole in the ceiling mounting plate as

shown in Figure 8.

2. Install the ceiling mounting bracket on the

electrical box by using the mounting screws

provided with the electrical box. Note that

the at side of the mounting plate is toward

the electrical box. (Figure 8)

3. Tighten the two screws on the electrical box

securely.

4. Carefully lift the fan assembly up to the

ceiling mounting plate. Make sure the tab

on the mounting plate is properly seated in

the groove in the hanger ball. (Figure 9)

Figure 8

Washers

120V Wires

UL Listed

Electrical

Box

Ceiling

Mounting

Bracket

Hook

Mounting

screws

(supplied w

electrical box)

WHEN USING THE STANDARD BALL/DOWNROD

MOUNTING, THE TAB IN THE RING AT THE

BOTTOM OF THE MOUNTING BRACKET MUST

REST IN THE GROOVE OF THE HANGER BALL.

FAILURE TO PROPERLY SEAT THE TAB IN THE

GROOVE COULD CAUSE DAMAGE TO WIRING.

Figure 9

EACH WIRE NUT (WIRE CONNECTOR) SUPPLIED

WITH THIS FAN IS DESIGNED TO ACCEPT UP TO

ONE 12 GAUGE HOUSE WIRE AND TWO WIRES

FROM THIS FAN. IF YOU HAVE LARGER THAN

12 GAUGE HOUSE WIRING OR MORE THAN

ONE HOUSE WIRE TO CONNECT TO THE FAN

WIRING, CONSULT AN ELECTRICIAN FOR THE

PROPER SIZE WIRE NUTS TO USE.

USE THE PLASTIC WIRE CONNECTORS

SUPPLIED WITH YOUR FAN. SECURE THE

CONNECTORS WITH ELECTRICAL TAPE AND

ENSURE THERE ARE NO LOOSE STRANDS OR

CONNECTIONS.

BLUE

BLACK

WHITE

GREEN

BLUE

BLACK WHITE

WHITE

SUPPLY CIRCUIT

BLACK

WHITE

Grounding

Conductor

Green

Grounding

Lead

Remote

Receiver

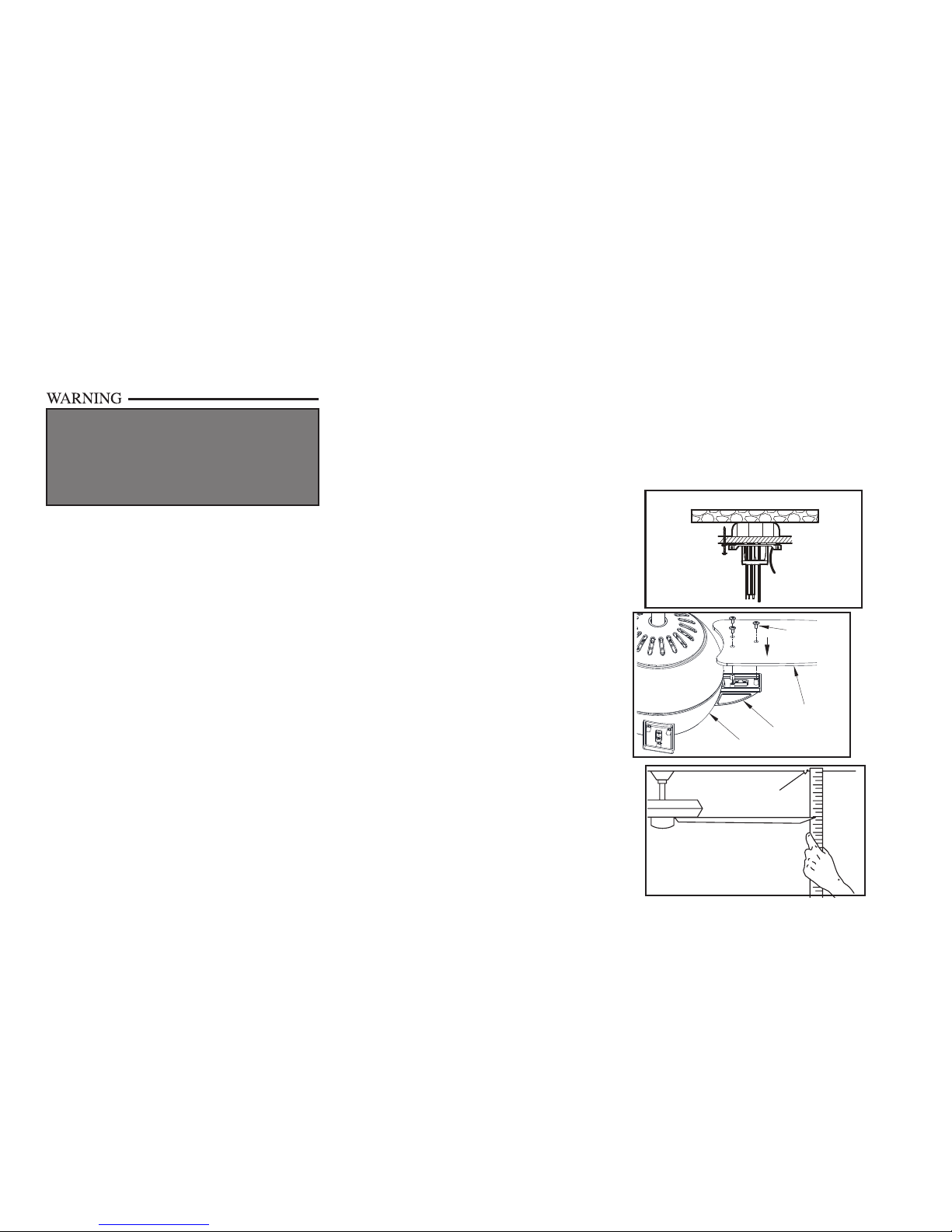

Figure 10

Making the Electrical

Connections

REMEMBER to disconnect the power. If

you feel you do not have enough electrical

wiring knowledge or experience, have your fan

installed by a licensed electrician.

Follow the steps below to connect the fan to

your household wiring. Use the wire

connecting nuts supplied with your fan and

supplied with remote control. Secure the

connectors with electrical tape. Make sure

there are no loose strands or

connections. (Figure 10)

1. Connect the ground conductor of the 120v

supply (this may be a bare wire or a wire

with green colored insulation) to the green

ground lead(s) of the fan (Figure 10).

2. Connect the fan motor white wire to the

receiver white wire using a wire nut (Figure

10).

3. Connect the fan motor black wire to the

receiver black wire using a wire nut (Figure

10).

4. Connect the fan motor blue wire to the

receiver blue wire using a wire nut (Figure

10).

5. Connect the receiver black wire to the

supply black (hot) wire using a wire nut

(Figure 10).

6. Connect the receiver white wire to the

supply white (neutral) wire using a wire nut

(Figure 10).

7. After connecting the wires, spread them

apart so that the green and white wires are

one side of the electrical box and the black

wire is on the other side.

8. Turn the wire connecting nuts upward and

carefully push the wiring into the electrical

box.

Attaching the Fan

Blades

1. Align the three screw holes in the blade

with the screw holes in the blade arm

and secure with the screws provided.

(Figure 12)

2. Repeat for the remaining blades.

Figure 13

Blade Balancing

All blades are grouped by weight. Because

natural woods vary in density, the fan may

wobble even though the blades are weight

matched.

The following procedure should correct most

fan wobble. Check after each step.

1. Check that all blade screws are secure.

2. Most fan wobble problems are caused

when blade levels are unequal. Check this

level by selecting a point on the ceiling

above the tip of one of the blades. Measure

from a point on the center of each blade

to the point on the ceiling. Measure this

distance as shown in Figure 13. Rotate

the fan until the next blade is positioned

for measurement. Repeat for each blade.

Measurements deviation should be within

1/8”. Run the fan for 10 minutes.

Touching

Ceiling

Finishing the Fan

Installation

STANDARD CEILING MOUNTING

1. Align the locking slots of the ceiling canopy

with the screw in the mounting bracket. Push

up to engage the slots and turn clockwise

to lock in place. Immediately tighten the

mounting screw rmly.

2. Install the remaining mounting screw into

the canopy and tighten rmly.

3. Install the canopy bottom cover by aligning

the slots in canopy bottom cover with the

screws in the canopy. Rotate the canopy

bottom cover clockwise to lock in place.

4. You may now proceed to attaching the

fan blades.

WHEN USING THE STANDARD BALL/DOWNROD

MOUNTING, THE TAB IN THE RING AT THE

BOTTOM OF THE MOUNTING PLATE MUST

REST IN THE GROOVE OF THE HANGER BALL.

FAILURE TO PROPERLY SEAT THE TAB IN THE

GROOVE COULD CAUSE DAMAGE TO WIRING.

3. Make sure that canopy is tightened securely

to ceiling mounting bracket and that the

ceiling mounting bracket is tightened

securely to the electrical box.

4. Interchanging two adjacent blades can

redistribute the weight and possibly result

in the smoother operation.

5. Use the enclosed Blade Balancing Kit if the

blade wobble is still noticeable.

Blade arm

Blade

Screws

Flywheel

Connecting the Safety

Cable

Turn the wood screw (not provided) into the

ceiling.

Figure 11

Figure 12

Place the looped end of the safety cable onto

the wood screw and then tighten the screw firmly,

or connect the safety cable directly to the outer joist.

Indice

Altri manuali Progress Lighting Fan

Progress Lighting

Progress Lighting AirPro P250006 Manuale utente

Progress Lighting

Progress Lighting AirPro P2574 Manuale utente

Progress Lighting

Progress Lighting AirPro P250038 Manuale utente

Progress Lighting

Progress Lighting AirPro P250089 Manuale utente

Progress Lighting

Progress Lighting AirPro Claret P250007 Manuale utente

Progress Lighting

Progress Lighting AirPro Midvale P250011 Manuale utente

Progress Lighting

Progress Lighting AirPro P2572 Manuale utente

Progress Lighting

Progress Lighting EF200D Manuale utente

Progress Lighting

Progress Lighting AirPro Trevina II P2555 Manuale utente

Progress Lighting

Progress Lighting AirPro P250058 Manuale utente

Progress Lighting

Progress Lighting AirPro P2592 Manuale utente

Progress Lighting

Progress Lighting AirPro P250094 Manuale utente

Progress Lighting

Progress Lighting AirPro P250062 Manuale utente

Progress Lighting

Progress Lighting P2667 Manuale di programmazione

Progress Lighting

Progress Lighting AirPro P250026 Manuale utente

Progress Lighting

Progress Lighting EF200D Manuale utente

Progress Lighting

Progress Lighting AirPro P2540-14330K Manuale utente

Progress Lighting

Progress Lighting AirPro P2552 Manuale utente

Progress Lighting

Progress Lighting AirPro Royer P250010 Manuale utente

Progress Lighting

Progress Lighting AirPro P250076 Manuale utente

Progress Lighting

Progress Lighting AirPro P250110 Manuale utente

Progress Lighting

Progress Lighting AirPro P250072 Manuale utente

Progress Lighting

Progress Lighting AirPro P250107 Manuale utente

Progress Lighting

Progress Lighting AirPro P2594 Manuale utente

Manuali Fan popolari di altre marche

ELTA FANS

ELTA FANS H03VV-F Manuale utente

Hunter

Hunter 20714 Manuale di istruzioni

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuale utente

Hunter

Hunter Caraway Manuale di istruzioni

Panasonic

Panasonic FV-15NLFS1 Manuale utente

Kompernass

Kompernass KH 1150 Manuale utente

VES

VES FALA100/12V/TR Manuale utente

Vertiv

Vertiv Liebert DCD Manuale utente

Westinghouse

Westinghouse GFP Series Manuale utente

Venmar

Venmar KUBIX HRV PLUS Series Manuale utente

Maico

Maico ECR 31 Manuale utente

Sonnenkonig

Sonnenkonig Dinky Manuale utente

S&P

S&P ECOWATT HXBR Manuale utente

Wider

Wider IMP03369BH Manuale utente

Panasonic

Panasonic F-60DHN Manuale utente

Hinkley

Hinkley HIGHLAND Manuale utente

Broan

Broan 766BN Manuale utente

Premium

Premium PFS16022 Istruzioni per il montaggio
