Projecta DT150 Manuale utente

TRUE RMS MULTIMETER

P/No. DT150

IMPORTANT SAFETY INFORMATION

Please read this manual thoroughly before use and store in a safe place for future reference

WARNING

• The meter’s safety features may not protect the user if not used in accordance with the

manufacturer’s instructions.

• Keepngersawayfromthemetalprobetipswhentakingmeasurements.

• Before changing functions using the selector switch, always disconnect the test leads

from the circuit under test.

• Comply with all applicable safety codes. Use approved personal protective equipment

 whenworkingnearliveelectricalcircuits.

• Usecautiononlivecircuits.Voltagesabove30VACrms,42VACpeak

 or60VDCposeashockhazard.

• Verifyoperationbeforeusingmeterbymeasuringaknownlivevoltage.

• Measurements in the 10A range should be limited to 30 seconds maximum every 15 minutes.

• Never test resistance, diodes, or continuity on a live circuit.

• Toavoidelectricshock,disconnectpowertotheunitundertestanddischargeallcapacitorsbefore

takinganycapacitancemeasurements.Removethebatteriesandunplugthelinecords.

• RiskofElectrocution.Beforeuse,alwaystesttheVoltageDetectoronaknownlivecircuittoverify

proper operation.

• Do not touch the temperature probe to live circuits.

• Do not use the meter if the meter or test leads appear damaged.

• Do not use the meter in wet or damp environments or during electrical storms.

• Do not use the meter or near explosive vapours, dust, or gasses.

• Do not use the meter if it operates incorrectly, protection may be compromised.

• Do not use the meter while Low Battery warning is on, replace batteries immediately.

• Do not apply voltage or current that exceeds the meter’s maximum rated input limits.

• Do not measure voltages if a motor or the circuit is being switched ON or OFF. Large voltages surges

may occur that can damage the meter.

FUNCTIONS

TRUE RMS

Provides a more accurate measure of AC signals that are imperfect waveforms

MULTI-TEST

Test everything from voltage and frequency, resistance, and continuity along with the ability to test diodes

and temperature

NON-CONTACT VOLTAGE DETECTION

Safely measure AC live voltage without even touching the circuit

LCD DISPLAY

An illuminated digital LCD display will ensure clear and precise data

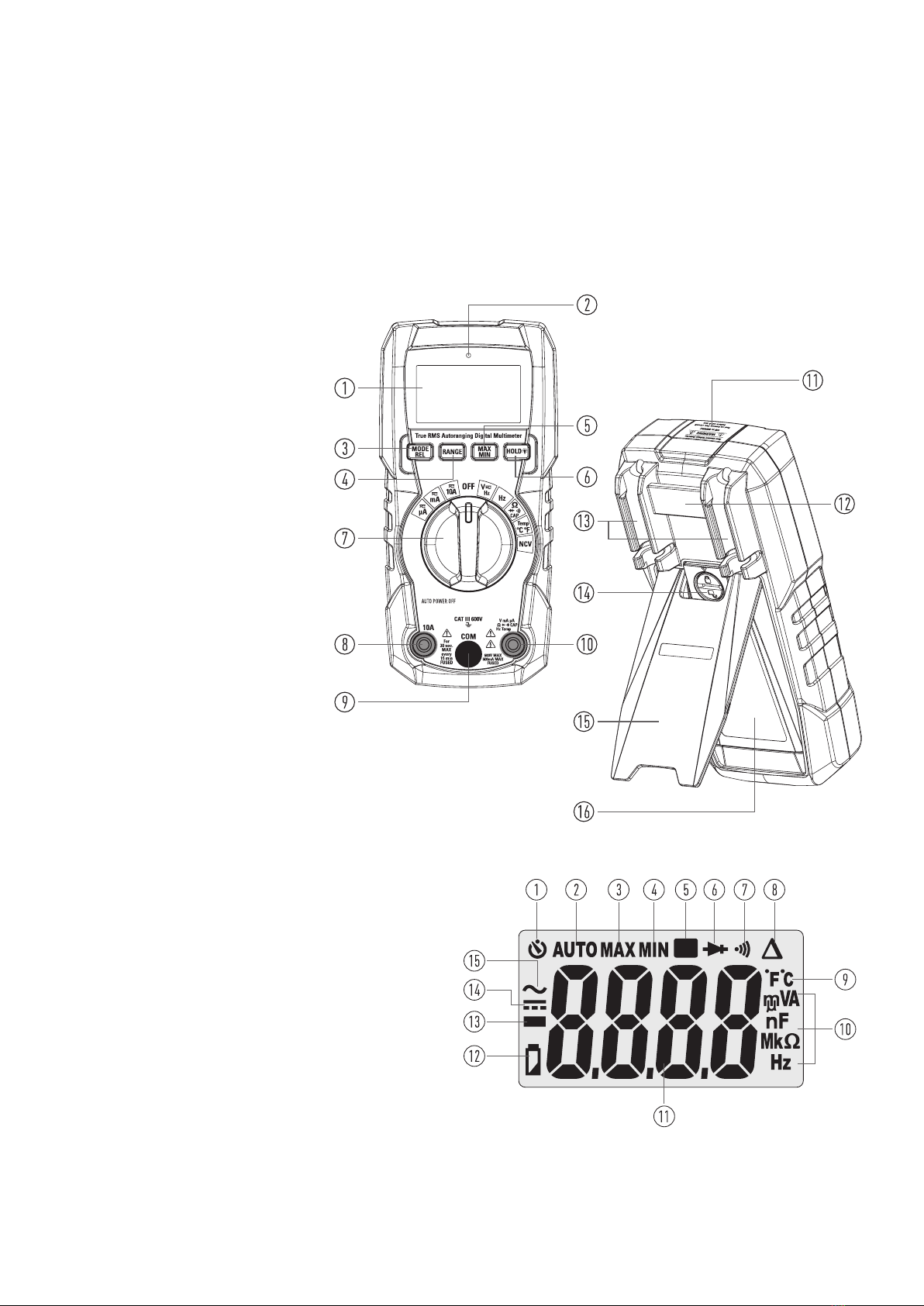

PRODUCT OVERVIEW

1. LCD Display

2. Non-Contact Voltage Indicator

3. MODE/RELATIVEButton

4. RANGEButton

5. MAX/MIN Button

6. HOLD/BacklightButton

7. Function Switch

8. 10AInputJack

9. COMInputJack

10.PositiveInputJack

11.Non-Contact Voltage Detector

12.Lanyard Hole

13.Test Lead Holders

14.BatteryCoverLock

15.Tilt Stand

16.Battery Cover

SYMBOLS USED ON LCD DISPLAY

1. Auto Power Off

2. AutoRanging

3. Maximum

4. Minimum

5. Display Hold

6. Diode Test

7. Continuity

8.RelativeMode

9. Degree Celsius/Degree Fahrenheit

10. Units of Measure List

11. MeasurementReading

12. Low Battey

13. Minus Sign

14. Direct Current

15. Alternating Current

BUTTON FUNCTIONS

MODE AND REL (RELATIVE) BUTTON

• PresstheMODEbuttontoselectAC/DCVoltage,AC/DCCurrent,Frequency,Ohms,DiodeTest,

Continuity or Capacitance, Temperature.

• PresstheRELbuttonfor>2secondstoturnonorofftheRelativefunction.

• TheRelativefunctionzerosoutthereadingdifferencebetweentheactualmeasurementandthestore

reference value.

NOTE:RELdoesnotworkonFrequency,DiodeTest,Continuity

RANGE BUTTON

• Whenthemeterisrstturnedon,itautomaticallygoesintoAutoRanging.

• This automatically selects the best range for the measurements being made and is generally the best

mode for most measurements.

• Formeasurementsituationsrequiringthatarangebemanuallyselected,performthefollowing:

1. PresstheRANGEbutton,the“AUTO”displayindicatorwillturnoff.

2. PresstheRANGEbuttontocyclethroughtherangesuntilyouselecttherangeyouwant.

3. PressandholdtheRANGEbuttonfor2secondstoexittheManualRangingmodeand

 returnAutoRanging.

MAX/MIN BUTTON

1. MomentarilypresstheMAX/MINbuttontoactivatetheMAX/MINmode,the“MAX”indicatorwill

appear on the LCD display, the meter will display and hold the maximum reading and will update

 whenahigher“max”occurs.

2. MomentarilypresstheMAX/MINbuttonagaintoviewthelowerreading,“MIN”indicatorwillappear

on the LCD display, the meter will display and hold the maximum reading and will update when a

 lower“min”occurs.

3. Press and hold the MAX/MIN button to end MAX/MIN and return to normal operation.

NOTE:ThemeterdoesnotautorangewhentheMAX/MINmodeisactive,thedisplaywillread‘OL’ifthe

rangeexceeded.Whenthisoccurs,exitMAX/MINandusetheRANGEbuttontoselectahighrange.MAX/

MINdoesnotworkonFrequency,DutyCycle,DiodeTest,ContinuityandCapacitance.

HOLD/BACKLIGHT BUTTON

• PresstheHOLD/BacklightbuttontoturnonorofftheHOLDfunction.

• PresstheHOLD/Backlightbuttonfor>2secondstoturnonorofftheBacklightfunction.

AUTO POWER OFF

• The auto off feature will turn the meter off after 15 minutes.

• Todisabletheautopowerofffeature,holddowntheMODEbuttonandturnthemeteron.

LOW BATTERY INDICATION

• The“ ”iconwillappearinthelowerleftcornerofthedisplaywhenthebatteryvoltage

becomes low.

• Replacethebatterywhenthisappears.

AC/DC VOLTAGE (FREQUENCY) MEASUREMENT

1. Set the rotary function switch to the V AC/DC position.

2. ToselectACorDCvoltage,presstheMODEbuttonuntiltheAC or DC symbol appears

on the LCD display.

3. InserttheblacktestleadbananaplugintothenegativeCOMInputJack;Inserttheredtestlead

 bananaplugintothePositiveInputJack.

4. Touchtheblacktestprobetiptothenegativesideofthecircuit;Touchtheredtestprobetip

to the positive side of the circuit.

5. ReadthevoltageontheLCDdisplay.

6. PresstheMODEButtontoindicateHz.

7. Readthefrequencyinthedisplay.

FREQUENCY (ELECTRONIC) MEASUREMENT

1. SettherotatoryfunctionswitchtotheHzposition.

2. InserttheblacktestleadbananaplugintothenegativeCOMInputJack;Inserttheredtestlead

 bananaplugintothePositiveInputJack.

3. Touch the test probe tips to the circuit under test.

4. Readthefrequencyinthedisplay.

AC/DC CURRENT MEASUREMENT

1. InserttheblacktestleadbananaplugintotheCOMInputJack.

2. For current measurements up to 10A AC/DC, set the rotary function switch to the 10A position and

 inserttheredtestleadintothe10AInputJack.

3. For current measurements up to 400mA AC/DC, set the rotary function switch to the mA position and

inserttheredtestleadintothePositiveInputJack.

4. For current measurements up to 4000µA AC/DC, set the rotary function switch to the µA position and

 inserttheredtestleadintothePositiveInputJack.

5. ToselectACorDCcurrent,presstheMODEbuttonuntiltheAC or DC symbol appears

on the LCD display.

6. Removepowerfromthecircuitundertest,thenopenupthecircuitatthepointwhereyouwishto

measure current.

7. Touchtheblacktestprobetiptotheneutralsideofthecircuit;Touchtheredtestprobetiptothe

 “hot”sideofthecircuit.

8. Apply power to the circuit.

9. Readthecurrentinthedisplay.

RESISTANCE MEASUREMENT

1. Set the rotary function switch to the CAP position.

2. PresstheMODEbuttonuntiltheΩsymbolappearsontheLCDdisplay.

3. InserttheblacktestleadbananaplugintothenegativeCOMInputJack;Inserttheredtestleadinto

 thePositiveInputJack.

4. Touch the test lead probes to the component under test, if the component is installed in a circuit, it is

best to disconnect one side before testing to eliminate interference with other devices.

5. Readtheresistanceinonthedisplay.

DIODE TEST

1. Set the rotary function switch to the CAP position.

2. PresstheMODEbuttonuntilthesymbolappearsontheLCDdisplay.

3. InserttheblacktestleadbananaplugintothenegativeCOMInputJack;Inserttheredtestleadinto

 thePositiveInputJack.

4. Touch the test lead probes to the diode under test.

5. Forwardvoltagewillindicate0.4to0.7VontheLCDdisplay;Reversevoltagewillindicate“OL”;

 Shorteddeviceswillindicatenear0andanopendevicewillindicate“OL”inbothpolarities.

CONTINUITY CHECK

1. Set the rotary function switch to the CAP position.

2. PresstheMODEbuttonuntilthe symbol appears on the LCD display.

3. InserttheblacktestleadbananaplugintothenegativeCOMInputJack;Inserttheredtestleadinto

 thePositiveInputJack.

4. Touch the test lead probes to the device or wire under test.

5. A beeper will sound if the resistance is approximately 50ohms or less and the resistance reading will

be shown on the display.

CAPACITANCE MEASUREMENT

1. Set the rotatory function switch to the CAP position.

2. PresstheMODEbuttonuntilthe“nF”symbolappearsontheLCDdisplay.

3. InserttheblacktestleadbananaplugintothenegativeCOMInputJack;Inserttheredtestleadinto

 thePositiveInputJack.

4. Touch the test leads to the capacitor to be tested, wait until the readings settle before ending the test.

5. Readthecapacitancevalueinthedisplay.

TEMPERATURE MEASUREMENT

1. Set the function switch to the Temp position.

2. PresstheMODEbuttonuntiltheoCoroF.

3. Connectthetemperatureprobetothebananaplugadapter,notethe–and+markingsontheadapter.

4. Connecttheadaptertothemeter,makingsurethe–sidegoesintotheCOMInputJackandthe+side

 goesintothePositiveInputJack.

5. Touch the tip of the temperature probe to the object being measured.

6. Readthetemperatureinthedisplay.

NON-CONTACT AC VOLTAGE DETECTION

1. Set the rotary function switch to the NCV position.

2. Hold the detector close to the AC voltage being tested.

3. Ifnosignalisdetected,theLCDwillshow“EF”,NCVindicatorlightwillnotashandthebuzzerwill

not sound.

4. Accordingtothedetectedsignalstrength,LCDdisplaysdifferenthorizontallines.

 •Whenthesignalisstrongest,fourhorizontallineswithappearontheLCDdisplay.

 •Whenthesignalisweakest,onlyonelinehorizontallinewillappear.

 •Meanwhile,NCVindicatorlightashesandthebuzzermakeadifferentsound.

NOTE:Thesensinglevelvarieswiththedistancebetweenthesensingpartandthe

measured AC power cord.

NOTE:Thedetectorisdesignedwithhighsensitivity.Staticelectricityorothersourcesofenergymay

randomly trip the sensor. This is normal operation.

REPLACING THE BATTERY

1. Makesuretodisconnectthetestleadsfromanysourceofvoltagebeforeremovingbatterycover.

2. Counterrotate180degreestoopenthebackcoverofbattery.

3. ReplaceoldbatterieswithtwoAAA1.5Vbatteries.

4. Reassemblethemeter.

REPLACING THE FUSES

1. Disconnect the test leads from the meter.

2. Counterrotate180degreestoopenthebackcoverofbatteryforthe500mA/600Vfastandremovethe

rear cover for the 10A/600V fast.

3. Gentlyremovetheoldfuseandinstallthenewfuseintotheholder.

4. Alwaysuseafuseofthepropersizeandvalue(500mA/600VfastblowfortheµA/mArangeor

10A/600V fast blow for the 10A range).

5. Replaceandsecuretherearcover.

GENERAL SPECIFICATIONS

Insulation Class 2, Double Insulation

Diode Test Test current approx.1 mA , open circuit voltage of 2V typical

Continuity Test Audiblesignaliftheresistanceis<50Ω

Low Battery Indication “”isdisplayed

Display 4000 count LCD

OverRangeIndication "OL'' is displayed

Polarity Minus symbol"-" is displayed for negative polarity

MeasurementRate 3 readings per second, nominal

Auto Power Off approx. 15 minutes

Input Impedance >10MΩACandDCVoltage

ACResponse TrueRMS

AC Voltage Bandwidth 50Hzto1kHz

AC Current Bandwidth 50Hzto400Hz

Batteries Two AAA 1.5V batteries

Fuse 10A/600VfastactingFuse;500mA/600VfastactingFuse

OperatingEnvironment 5 to 40°C [41 to 104° FJ

StorageEnvironment -10 to 50°C [14 to 122° Fl

Operating Humidity Max 80% up to 31 °C [87°F] decreasing linearly to 50% at 40°C

[104°F]

Storage Humidity <80%

Dimensions/Weight 154x7 4x43mm / Approx. 21 Og [No batteries]

Safety Complies with UL 61010-1 v.3 for measurement Category

III600V, Pollution Degree 2.

ELECTRICAL SPECIFICATIONS

FUNCTION RANGE RESOLUTION ACCURACY

ACTrueRMSVoltage

4.000V 0.001V ±(1.2%+3digits)

40.00V 0.01V

400.0V 0.1V ±(1.2%+5digits)

600V 1V

AllACvoltagerangesarespeciedfrom5%ofrangeto100%ofrange.

ACVoltageBandwidth:50Hzto60Hz(Allwave);50Hzto1kHz(Sinewave).

DC Voltage

400.00mV 0.1mV

±(0.5%+8digits)

4.000V 0.001V

40.00V 0.01V

400.0V 0.1V

600V 1V

AC True RMS Current

400.0µA 0.1µA

±(1.0%+5digits)4000µA 1µA

40.00mA 0.01mA

400.0mA 0.1mA ±(1.2%+8digits)

4.000A 0.001A ±(2.0%+3digits)

10.00A 0.01A ±(2.0%+5digits)

AllACcurrentrangesarespeciedfrom5%ofrangeto100%ofrange.

ACCurrentBandwidth:50Hzto60Hz(Allwave);50Hzto400Hz(Sinewave).

Indice

Altri manuali Projecta Multimetro

Projecta

Projecta DT200 Manuale utente

Projecta

Projecta DT830B Manuale utente

Projecta

Projecta DT1000 Manuale utente

Projecta

Projecta DT830B Manuale

Projecta

Projecta DT830B Manuale utente

Manuali Multimetro popolari di altre marche

Agilent Technologies

Agilent Technologies 34420A Manuale utente

Fluke

Fluke 83 Manuale utente

Hameg

Hameg HM 8012 Manuale utente

Mastech

Mastech MY70 Manuale utente

Steren

Steren MUL-300 Manuale utente

Somogyi Elektronic

Somogyi Elektronic home SMA 92 Manuale utente

Gossen MetraWatt

Gossen MetraWatt METRAmax 6 Manuale utente

PeakTech

PeakTech 4000 Manuale per l'uso e la cura

YOKOGAWA

YOKOGAWA 90050B Manuale utente

Gossen MetraWatt

Gossen MetraWatt METRALINE DMM16 Manuale utente

Fluke

Fluke 8846A Manuale operativo e di manutenzione

Tempo Communications

Tempo Communications MM200 Manuale utente

Elenco Electronics

Elenco Electronics CM-1555 Manuale utente

Mastech

Mastech MS8238C Manuale utente

SDAR

SDAR 830A, 830B, 830D, 830C Manuale utente

RS PRO

RS PRO RS-9519BT Manuale utente

BGS technic

BGS technic 8890 Manuale utente

Amprobe

Amprobe Hexagon 60 Manuale utente
