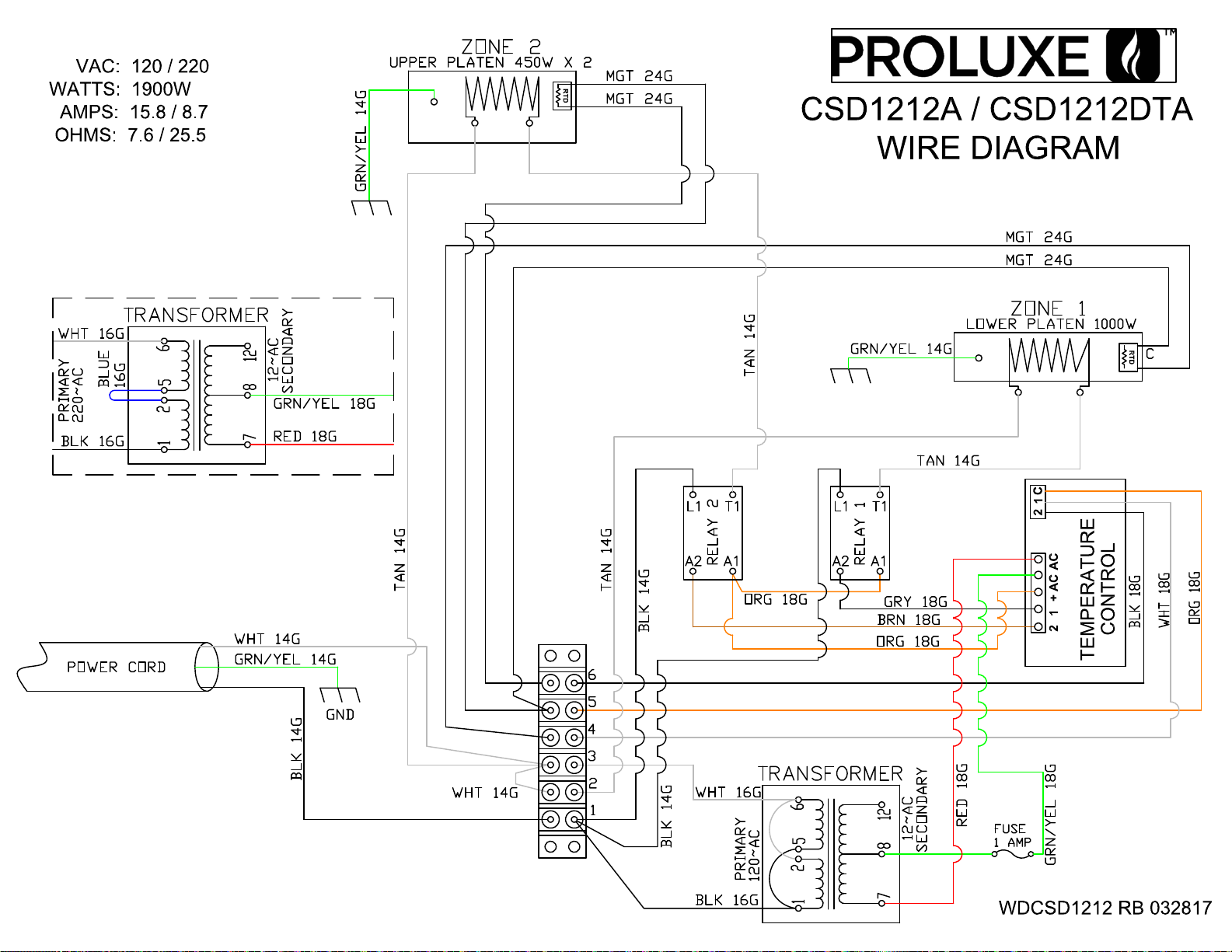

PARTSLISTFORMODELCSD1212
ITEM
NO. DESCRIPTION MODEL CSD1212A MODEL
CSD1212DT
QTY.
1BASE FRAME ASSEMBLY PG115100 PG115100 1
2 FEET, RUBBER 3/4 11016546469 11016546469 4
3 POWER CORD, 120 VOLTS 1101217174 1101217174 1
4 LOWER PLATEN, INSULATION 11018344019 11018344019 1
5 LOWER PLATEN INSULATION COVER 11018344018 11018344018 1
6 SCREW, SET 3/8-16X 1-1/2 SST3816112 SST3816112 4
7 WASHER SAE 3/8 WSAE38 WSAE38 12
8 WASHER SPLIT LOCK WL38 WL38 4
9 NUT HEX 3/8-16 NH3816 NH3816 4
10 SHIM, LOWER PLATEN 11018344030 11018344030 1
11 GREEN INSULATION WASHER C4401 C4401 2
12 LOCK WASH 1/4 WL14 WL14 2
13 WASHER SAE 1/4 WSAE14 WSAE14 2
14 NUT, HEX 1/4-20 NH1420 NH1420 2
15 BOLT, HEX 1/4 - 20 X 1 BH14201 BH14201 2
16 RTD, BOTTOM SENSOR 1108881102 1108881102 1
17 BUSHING TEFLON 3/4 LONG 110113441 110113441 2
18 WIRE HARNESS PG115050 PG115050 1
19 CSD1212 OVERLAY OCSD1212B OCSD1212DTB 1
20 BOTTOM COVER WITH PEM NUTS 11018344022 11018344022 1
21 STOP, HEX PIN 11018344037 11018344037 2
22 SINK, HEAT, ALUMINUM (SSR) 11057322 11057322 2
23 SOLID STATE RELAY, 25 AMPS PL2425 PL2425 2
24 INSULATOR, TRANSFORMER 1101159180 1101159180 1
25 TRANSFORMER 11096975 11096975 1
26 SCREW, PHILLIPS PAN HEAD 8-32 X 1/4 SP83214 SP83214 2
27 MARKER STRIP #6 MS6016 MS6016 1
28 TERMINAL BLOCK #6, DOUBLE 6016 6016 1
29 SCREW, PAN HEAD PHILLIPS 8-32 X 1/2 SP83212 SP83212 6
30 FUSE HOLDER 1 AMP MPPF708 MPPF708 1
31 FUSE BUSS 1 AMP MPPF701R MPPF701R 1
32 SCREW, PHILLIPS PAN 2-56 X 1/4 SP25614 SP25614 1
33 SCREW, PHILLIPS PAN HEAD 8-32 X 1.0 SP8321 SP8321 1
34 WASHER, INTERNAL TOOTH LOCK #8 WLIT8 WLIT8 3
35 NUT, HEX 8-32 NH832 NH832 3
36 WASHER SAE #8 WSAE8 WSAE8 4
37 BUSHING FLANGED, TEFLON .500" 110115563 110115563 4
38 HANDLE LEFT ASSEMBLY 11018344027 11018344027 1
39 HANDLE RIGHT ASSEMBLY 11018344026 11018344026 1
40 HANDLE GRIP 110901168 110901168 2
41 CLEVIS ASSEMBLY LEFT HAND 11018344013 11018344013 1
42 CLEVIS ASSEMBLY RIGHT HAND 11018344012 11018344012 1
43 5/16 WASHER CUT WC516 WC516 6
44 WASHER, 5/16" SPLIT LOCK WL516 WL516 10
45 SCREW, SOCKET HD 5/16-18 X 3/4" SSH5161834 SSH5161834 6
46 SHIM, COVER 11018344014 11018344014 2
47 SPACER, LINK 11018344024 11018344024 2
48 LEVELING BRACKET 11018344023 11018344023 2
49 WASHER LOCK INTERNAL TOOTH 5/16 WLIT516 WLIT516 4
50 BUSHING, TEFLON, 3/4 I.D. X .875 X 1" LONG 110115541 110115541 4
51 5/16 - 18 x 1 SS., BOLT HEX HEAD BH516181S BH516181S 4
52 E-CLIP, RETAINING RING LCC3478 LCC3478 4
53 COVER, REAR 11018344016 11018344016 1
54 GREASE TRAY ASSY 11018344005 11018344005 1
55 DIGITAL CONTROL 110171433052 110171433052 1
56 WASHER, STEEL .311 O.D. X .150 I.D. 311150019 311150019 4
57 NYLON SPACER 1/4 X .141 X 9/32 11090109 11090109 4
58 WASHER, INTERNAL TOOTH LOCK #6 WLIT6 WLIT6 4
59 NUT, HEX 6-32 NH632 NH632 4
60 STRAIN RELIEF 1106546468 1106546468 1
61 UPPER PLATEN, INSULATION 11018344074C1 11018344074C1 2
62 TOP SHROUD 11019344010 11019344010 1
63 SCREW, PAN HEAD PHILLIPS 8-32 X 3/8 SS SP83238S SP83238S 12
64 TOP LINK 11018344017 11018344017 2
65 PIN, PIVOT FRONT 11017088865 11017088865 2
PLCSD1212RF012819CUSTOMERMANUAL
