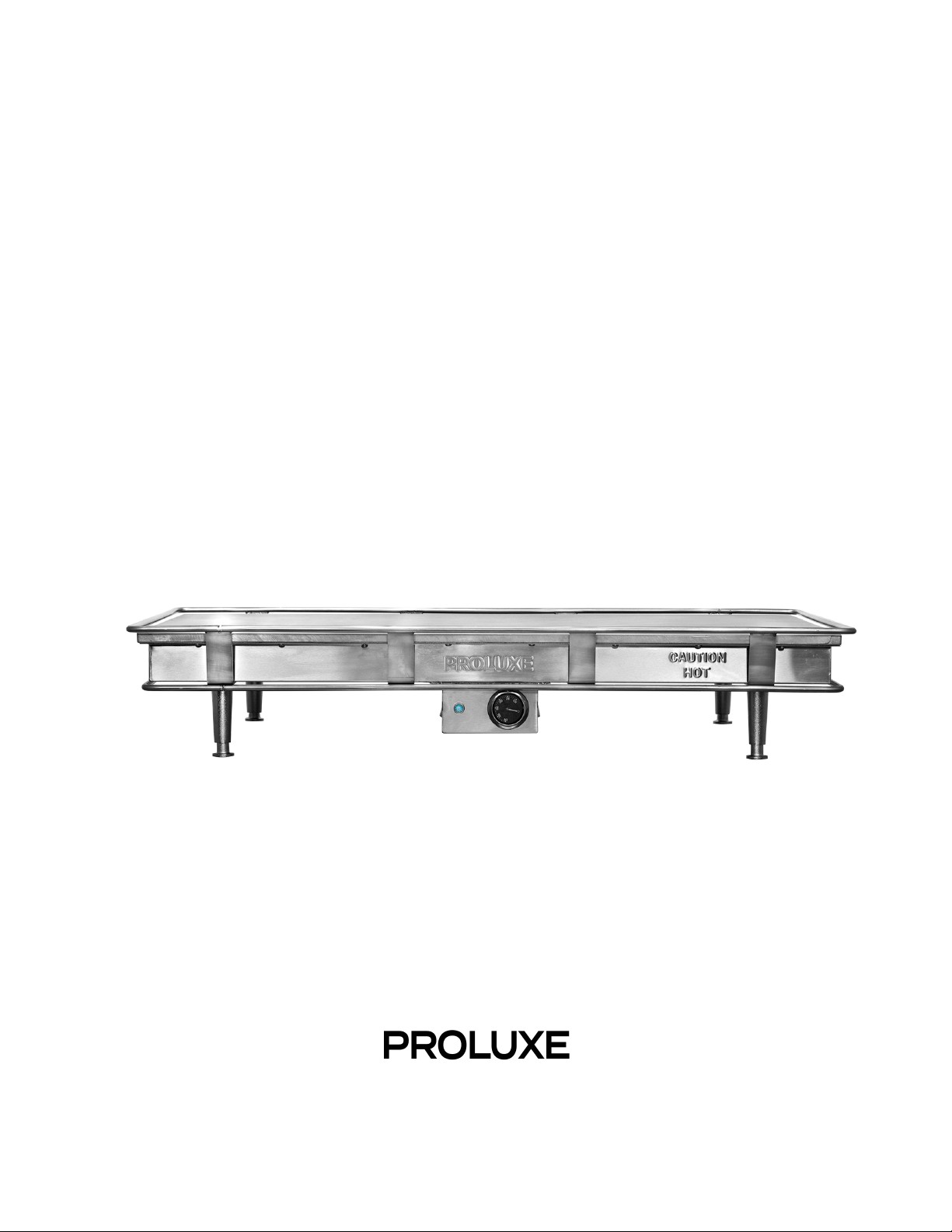

Edge Plus - 25”x40” Tortilla Warmer Grill
Model #: TW2540
WWW.PROLUXE.COM
Version: 122820
Congratulations on your selection of
the Edge Plus Tortilla Warmer Grill.
Proluxe is a leading manufacturer of
food preparation and cooking
equipment designed for the most
demanding commercial kitchens.
Proluxe equipment is a result of the
highest quality engineering and
time-tested design.
This manual includes installation,
operation, and maintenance
procedures for your new tortilla
warmer grill. Please read this
manual carefully and keep it with
your machine for proper operation
and lasting service.
Electrical:
220V/50-60Hz/3133W/14.2 Amps
1 phase
Also available; specify when ordering:
●Voltage: 220
●Amps: 14.2
●Watts: 3133
Includes: 72” cord and 6-30P NEMA
approved plug.
Shipping Weight:
88lbs. (39kg)
I N T E R N A T I O N A L S Y M B O L S
Symboles internationaux
Power Off
éteindre
Power On
allumer
Hot Surface
surface chaude
Risk of Electrical Shock
Risque de choc électrique
Protective Earth Terminal
Borne de terre de protection
Caution - Warning
chaud - avertissement
1
S A F E T Y S U M M A R Y
Warning
To reduce the risk of electrical shock, do not
remove or open cover. No user-serviceable
parts inside. Refer servicing to qualified
personnel.
Avertissement
Pour réduire le risque de choc électrique, ne pas
retirer ou couvercle ouvert Aucune pièce
réparable par l’utillsateur, reportez-vous à du
personnel qualifié.
Warning
In case of power cord damage, do not
attempt to repair or replace the power cord.
Please contact the manufacturer or the local
distributor.
Avertissement
Pour une protection continue contre l’incendie
et de choc électrique, remplacer avec le même
type et calibre du fusible. Mis fusible
supplémentaire nominale max 3A, 120 Vac.
Warning
For continued protection against fire and
electric shock, replace with the same type
and rating fuse. Listed Supplemental Fuse
rated max 3A, 120Vac.
Avertissement
Pour une protection continue contre l’incendie
et de choc électrique, remplacer avec le même
type et calibre du fusible. Mis fusible
supplémentaire nominale max 3A, 120 Vac.
Caution Hot
Avoid touching hot surfaces while operating
the machine.
Attention à chaud
Évitez de toucher les surfaces chaudes lorsque
vous utilisez la machine.
Caution
When servicing or cleaning the machine,
make sure that the power cord is removed
from the wall socket.
During normal operation, the base of the
machine must be installed or placed above
the wall socket.
Avertissement
Lors de l'entretien ou du nettoyage de la
machine, assurez-vous que le cordon
d'alimentation est débranché de la prise murale.
2
G E T T I N G S T A R T E D
Please read carefully before attempting to
use this appliance. DO NOT touch hot
surfaces.
1. Carefully unpack and clean platen
with mild soap and wipe clean with
water.
2. Place in location where it will be used
allowing for clearances per the
dimensions.
3. Plug into proper 208V wall outlet. If
other appliances are connected to
the same circuit make sure the total
load does not exceed maximum
ampacity of the circuit.
4. Press the power button, the green
light above will illuminate when
powered on. Preheat time will be
approximately 30-40 minutes.
F I R S T T I M E S E A S O N I N G T H E
G R I L L S U R F A C E
Guidelines for seasoning cooking surfaces or
perform the following:
1. Bring the grill to 300°F (148°C) and
leave it on while performing the next
three steps.
2. Brush the cooking surfaces with a
release agent. If using an aerosol
agent, first apply into a cup and then
brush onto cooking surface.
3. Let sit for 20 minutes.
4. Wipe the cooking surface clean, using
a warm damp cloth.
DO NOT submerge in water or allow water
to spill into the electrical housing. As this will
void warranty and damage the unit.
P R E V E N T A T I V E
M A I N T E N A N C E
Proluxe machines are relatively maintenance
free. For a long lifespan, the following
preventative maintenance should be
followed:
Daily Care
Use only cleaners that are safe for aluminum.
DO NOT use caustic cleaners,
ice or cold water to clean the grill. Turn grill
down during idle periods to prevent carbon
buildup.
1. Turn power off and unplug, allow grill
to cool before cleaning.
2. Remove particles by using a spatula
with rounded corners.
3. The platen should only be cleaned
with mild soap and warm water then
wiped off with a clean, soft cloth or
soft sponge.
4. Wipe exterior surfaces daily with
mild soap and warm water.
DO NOT use ice or cold water to cool the
unit down. This can cause the machine to
warp.
Carbon Cleaning:
3
When carbon buildup occurs, use a carbon
removal agent that is safe for aluminum,
follow the instructions provided with the
product. When this process is complete, you
must re-season your grill.
Service Problems
Contact our factory at (800) 624-6717 (U.S.
only) or approved service agency. When
contacting the factory for information, parts
or service instructions, please provide the
serial number of the machine be provided.
This number can be found on the serial plate
located on the rear of the machine.
4
5
6

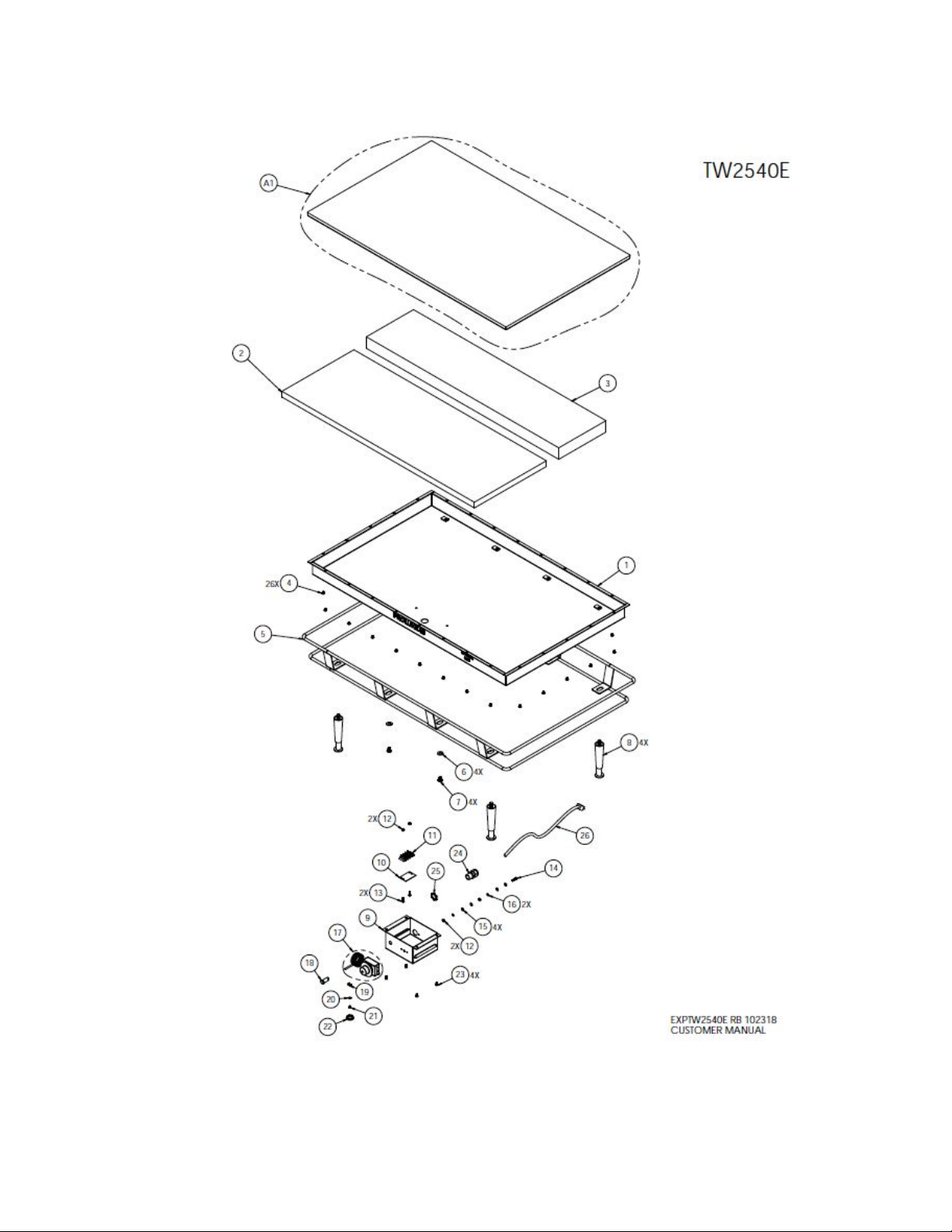

Edge Plus Part List - Model #: TW2540
Warranty & Return Policy
7
ITEM #
DESCRIPTION
PART NUMBER
QTY.
1
SHROUD, TW2540E
110108854
1
2
INSULATION, FIBERGLASS 15 X 40
110108815
1
3
INSULATION, FIBERGLASS 10 X 40
110108810
1
4
SCREW, PHILLIPS PAN HEAD 10-24 X 1/4 STAINLESS STEEL
SP102414S
26
5
BURN GUARD ASSEMBLY
110108640
1
6
WASHER SPLIT LOCK 3/8
WL38
4
7
SCREW, BUTTON HEAD 3/8-16 X 1/2 STAINLESS STEEL
SB381612S
4
8
LEG, APPLIANCE, 4"
AE601653
4
9
ELECTRICAL HOUSING
11082322
1
10
MARKER STRIP #3, DOUBLE
MS6013
1
11
TERMINAL BLOCK #3, DOUBLE
6013
1
12
NUT, HEX 8-32
NH832
4
13
SCREW, PAN HEAD 8-32 X 5/8 STAINLESS STEEL
SP83258S
2
14
SCREW, PHILLIPS PAN HEAD, 8-32 X 3/4 STAINLESS STEEL
SP83234S
1
15
WASHER, SAE # 8
WSAE8
4
16
WASHER, INTERNAL TOOTH LOCK #8
WLIT8
2
17
THERMOSTAT CONTROLLER
11051452
1
18
LIGHT PILOT 250~AC
110966018
1
19
HOLDER, SENSOR
110108881
1
20
WASHER, SAE #6
WSAE6
2
21
SCREW, PHILLIPS PAN HEAD 6-32 X 1/4
SP63214
2
22
BUTTON, PLUG 7/8
PB78
1
23
SCREW, PHILLIPS PAN HEAD 8-32 X 3/8 STAINLESS STEEL
SP83238S
4
24
STRAIN RELIEF
3231
1
25
NUT, CONDUIT 1/2"
NC12
1
26
POWER CORD
1101009176
1
27
MANUAL, TW2540
MTW2540
1
A1
PLATEN WIRING ONLY
110115131K
1
