Prorack K174 Manuale utente
K174
Fitting Kit
EN Fitting Instructions for Basic Carrier
x 4 x 4
Revision No: 5C 1
Fitting Kit K174
MAX kgs (lbs)
W/P WHD
Hyundai
Sonata, 4dr Sedan 05-10 ZA 60 kgs (132 lbs) 60 kgs (132 lbs)
Sonata, 4dr Sedan 05-10 ZA 60 kgs (132 lbs) 60 kgs (132 lbs)
Sonata, 4dr Sedan 05-10 EU 60 kgs (132 lbs) 60 kgs (132 lbs)
Sonata, 4dr Sedan 05-10 EU 60 kgs (132 lbs) 60 kgs (132 lbs)
Sonata, 4dr Sedan 05-10 CN 60 kgs (132 lbs) 60 kgs (132 lbs)
Sonata, 4dr Sedan 05-10 CN 60 kgs (132 lbs) 60 kgs (132 lbs)
Sonata, 4dr Sedan Jun 05-10 AU 60 kgs (132 lbs) 60 kgs (132 lbs)
Sonata, 4dr Sedan Jun 05-10 AU 60 kgs (132 lbs) 60 kgs (132 lbs)
Sonata, 4dr Sedan Jun 05-10 NZ 60 kgs (132 lbs) 60 kgs (132 lbs)
Sonata, 4dr Sedan Jun 05-10 NZ 60 kgs (132 lbs) 60 kgs (132 lbs)
Sonica, 4dr Sedan 05-10 EU 60 kgs (132 lbs) 60 kgs (132 lbs)
Sonica, 4dr Sedan 05-10 EU 60 kgs (132 lbs) 60 kgs (132 lbs)
2
Fitting Kit K174
X
A B C 1 2 3
Sonata, 4dr Sedan 05-10 (ZA) -260mm 390mm - - - -
-10 -1/4ths" 15 3/8ths" - - - -
Sonata, 4dr Sedan 05-10 (ZA) -260mm 390mm - 920mm 910mm -
-10 -1/4ths" 15 3/8ths" - 36 1/4ths" 35 13/16ths" -
Sonata, 4dr Sedan 05-10 (EU) -260mm 390mm - - - -
-10 -1/4ths" 15 3/8ths" - - - -
Sonata, 4dr Sedan 05-10 (EU) -260mm 390mm - 920mm 910mm -
-10 -1/4ths" 15 3/8ths" - 36 1/4ths" 35 13/16ths" -
Sonata, 4dr Sedan 05-10 (CN) -260mm 390mm - - - -
-10 -1/4ths" 15 3/8ths" - - - -
Sonata, 4dr Sedan 05-10 (CN) -260mm 390mm - 920mm 910mm -
-10 -1/4ths" 15 3/8ths" - 36 1/4ths" 35 13/16ths" -
Sonata, 4dr Sedan Jun 05-10 (AU) -260mm 390mm - - - -
-10 -1/4ths" 15 3/8ths" - - - -
Sonata, 4dr Sedan Jun 05-10 (AU) -260mm 390mm - 920mm 910mm -
-10 -1/4ths" 15 3/8ths" - 36 1/4ths" 35 13/16ths" -
Sonata, 4dr Sedan Jun 05-10 (NZ) -260mm 390mm - - - -
-10 -1/4ths" 15 3/8ths" - - - -
Sonata, 4dr Sedan Jun 05-10 (NZ) -260mm 390mm - 920mm 910mm -
-10 -1/4ths" 15 3/8ths" - 36 1/4ths" 35 13/16ths" -
Sonica, 4dr Sedan 05-10 (EU) -260mm 390mm - - - -
-10 -1/4ths" 15 3/8ths" - - - -
Sonica, 4dr Sedan 05-10 (EU) -260mm 390mm - 920mm 910mm -
-10 -1/4ths" 15 3/8ths" - 36 1/4ths" 35 13/16ths" -
3
Fitting Kit EN
K174
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
NOTE: Clamp images in these instructions may
not be representative of the clamps in this kit
4
Fitting Kit EN
K174
●Use keys to remove covers.
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
5
Fitting Kit EN
K174
●Remove locking screw.
●Apply protective strip as shown.
Trim if required.
●Attach clamp to each leg. NOTE; clamps
may have labels showing their positions on
the vehicle (For example; "Front Right").
6
Fitting Kit EN
K174

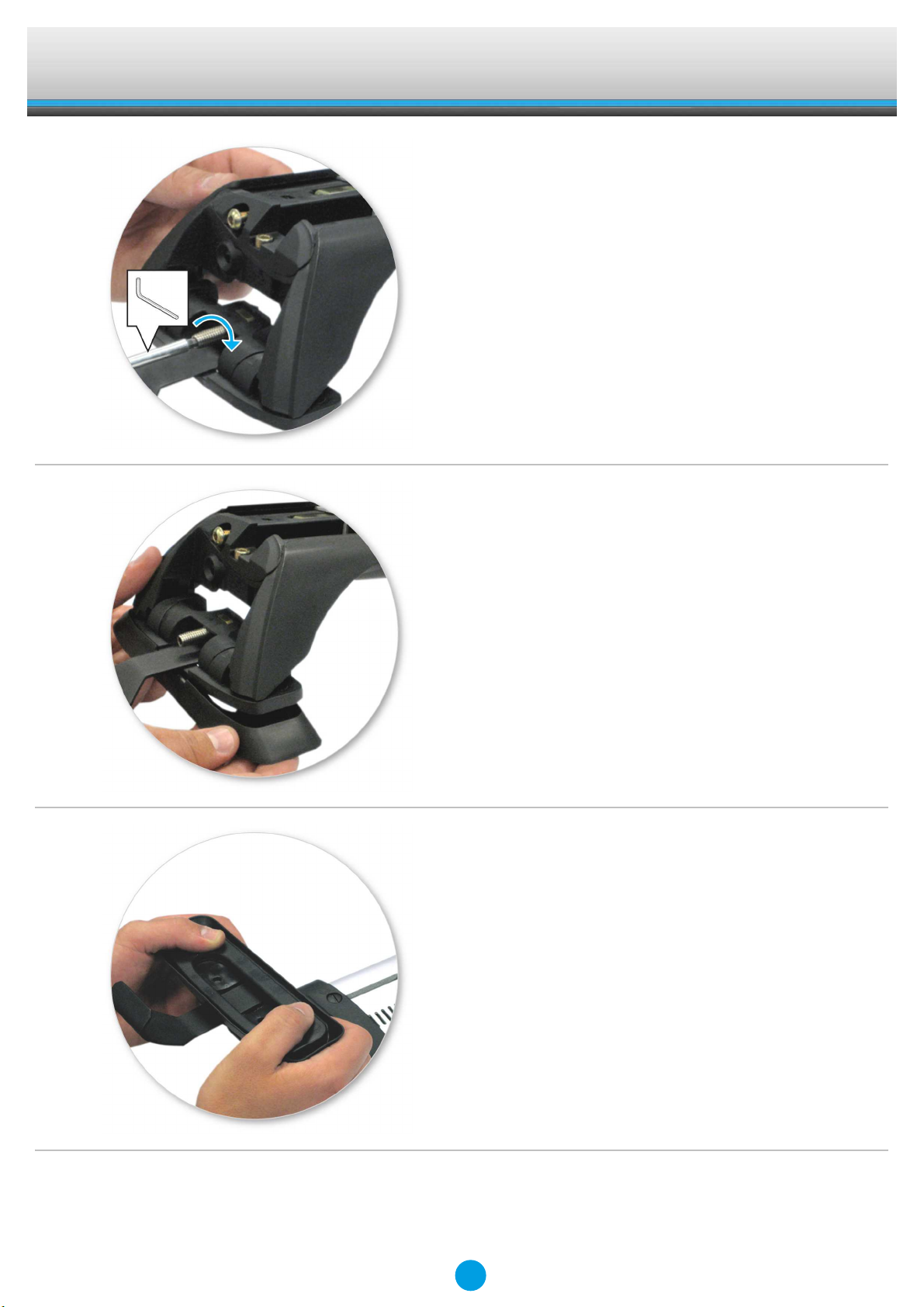

●Refit locking screw so that it goes through
the hole in the clamp. Do not begin to
tighten the locking screw.
●Fit rubber pad (supplied with crossbar) to
foot.
●Make sure the pad fits into the holes
underneath the foot.
7
Fitting Kit EN
K174
Fitment
●Place crossbar on vehicle. Minimum
recommended spacing between the bars is
700mm (27 1/2") (unless otherwise stated).
●Clamps directly to edge of roof under the
doors
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Adjust the legs on the crossbar so that they
are positioned equally from the ends of the
crossbar, and the clamps engage firmly on
the body work of the vehicle.
●Tighten adjusting screw to 5 Nm (3.7 ft lb)
hand tight.
8
Fitting Kit EN
K174
●Tighten locking screw on both legs evenly.
●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
9
Fitting Kit EN
K174
CAUTION: Recheck all fasteners immediately after
a load is applied to the crossbars.
Regularly check screws are tight.
10
