Prorack K178 Manuale utente

K178

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 4 x 4 x 4

Revision No: 3C 1

Fitting Kit K178

MAX kgs (lbs)

W/P WHD

Mitsubishi

380, 4dr Sedan Oct 05-08 AU 50 kgs (110 lbs) 50 kgs (110 lbs)

380, 4dr Sedan Oct 05-08 NZ 50 kgs (110 lbs) 50 kgs (110 lbs)

Galant, 4dr Sedan 04-12 US 50 kgs (110 lbs) 50 kgs (110 lbs)

Galant, 4dr Sedan 07-12 CN 50 kgs (110 lbs) 50 kgs (110 lbs)

Fitting Kit K178

A B C 1 2 3

380, 4dr Sedan Oct 05-08 (AU) -300mm 350mm - 931mm 919mm -

-11 -13/16ths" 13 3/4ths" - 36 5/8ths" 36 3/16ths" -

380, 4dr Sedan Oct 05-08 (NZ) -300mm 350mm - 931mm 919mm -

-11 -13/16ths" 13 3/4ths" - 36 5/8ths" 36 3/16ths" -

Galant, 4dr Sedan 04-12 (US) -300mm 350mm - 931mm 919mm -

-11 -13/16ths" 13 3/4ths" - 36 5/8ths" 36 3/16ths" -

Galant, 4dr Sedan 07-12 (CN) -300mm 350mm - 931mm 919mm -

-11 -13/16ths" 13 3/4ths" - 36 5/8ths" 36 3/16ths" -

Fitting Kit EN

K178

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

Fitting Kit EN

K178

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K178

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

Fitting Kit EN

K178

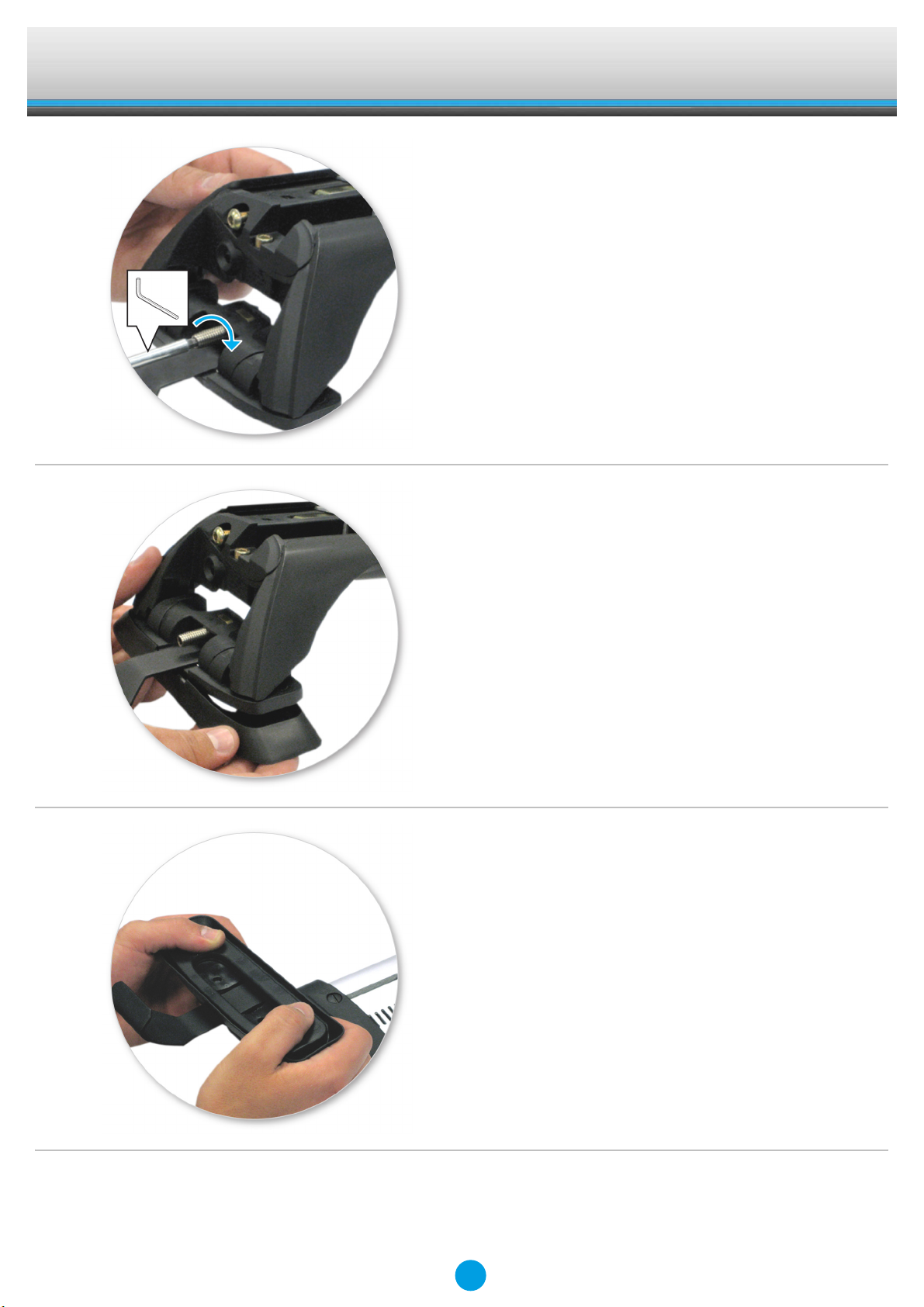

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Fit rubber pads (supplied with fitting kit) to

foot.

●Make sure the pad fits into the holes

underneath the foot.

Fitting Kit EN

K178

Fitment

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Clamps directly to edge of roof under the

doors

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Press adjusting screw to adjust the leg

positions on the crossbar.

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

Fitting Kit EN

K178

●Tighten locking screw on both legs evenly.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

Fitting Kit EN

K178

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
