Prorack K769 Manuale utente

K769

Fitting Kit

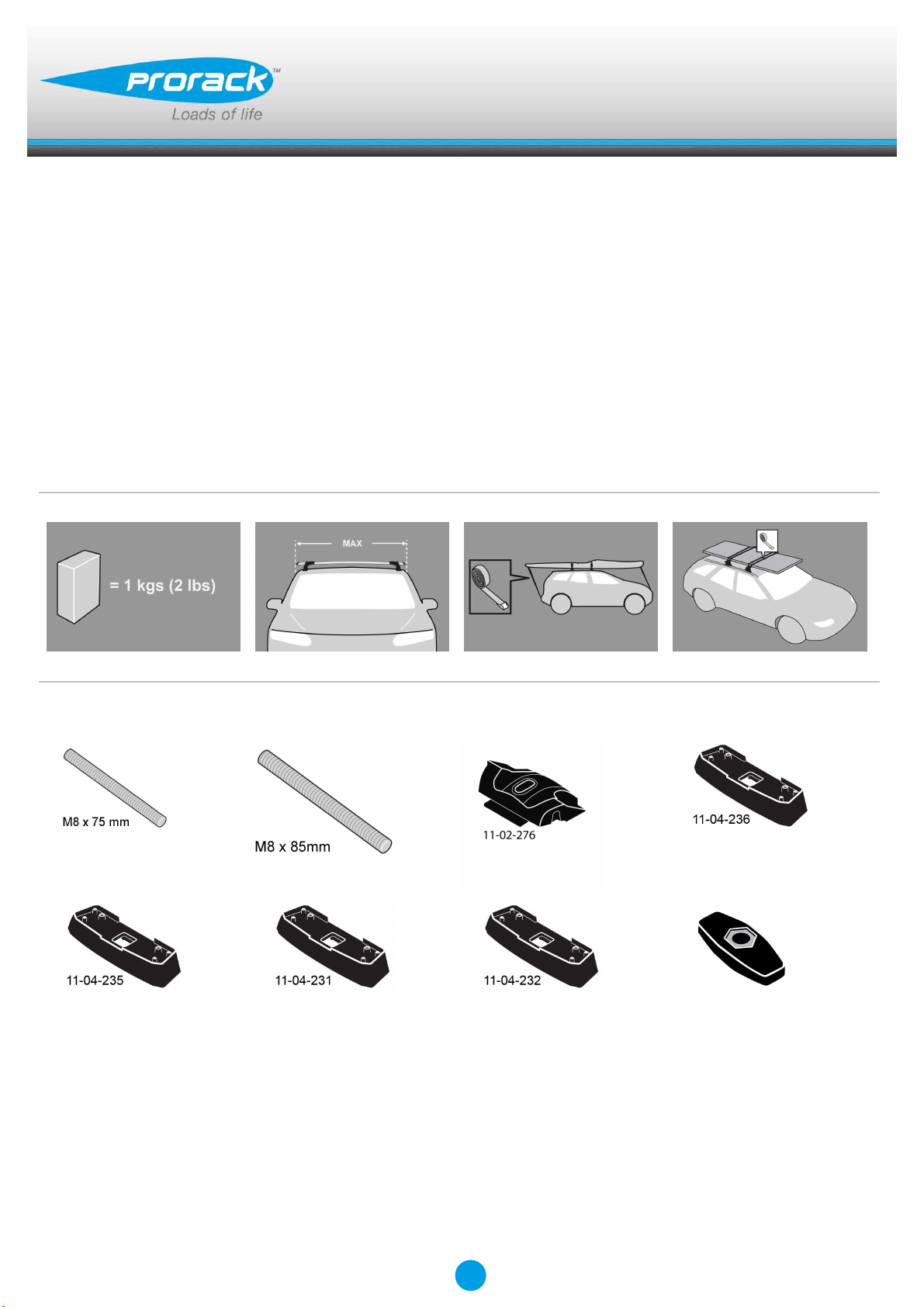

EN Fitting Instructions for Basic Carrier

x 2 x 2 x 4 x 1

x 1 x 1 x 1 x 4

Revision No: 4D 1

Fitting Kit K769

MAX kgs (lbs)

W/P WHD

Mercedes

E-Class W212 GR, 4dr Sedan 09-Aug 16 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

E-Class W212 GR, 4dr Sedan 09-May 16 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

E-Class W212 GR, 4dr Sedan 09-May 16 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit K769

A B C 1 2 3

E-Class W212 GR, 4dr Sedan 09-Aug 16 (ZA) -380mm 380mm - 930mm 880mm -

-14 -15/16ths" 14 15/16ths" - 36 5/8ths" 34 5/8ths" -

E-Class W212 GR, 4dr Sedan 09-May 16 (NZ) -380mm 380mm - 930mm 880mm -

-14 -15/16ths" 14 15/16ths" - 36 5/8ths" 34 5/8ths" -

E-Class W212 GR, 4dr Sedan 09-May 16 (AU) -380mm 380mm - 930mm 880mm -

-14 -15/16ths" 14 15/16ths" - 36 5/8ths" 34 5/8ths" -

Fitting Kit EN

K769

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

Fitting Kit EN

K769

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Adjust crossbar in or out to suit vehicle.

Refer to the crossbar instructions for

crossbar adjustment.

●Please check the front of this manual for

information relating specifically to your

vehicle.

Fitting Kit EN

K769

●Tighten adjusting screw to 3 Nm (2.2 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

Fitting Kit EN

K769

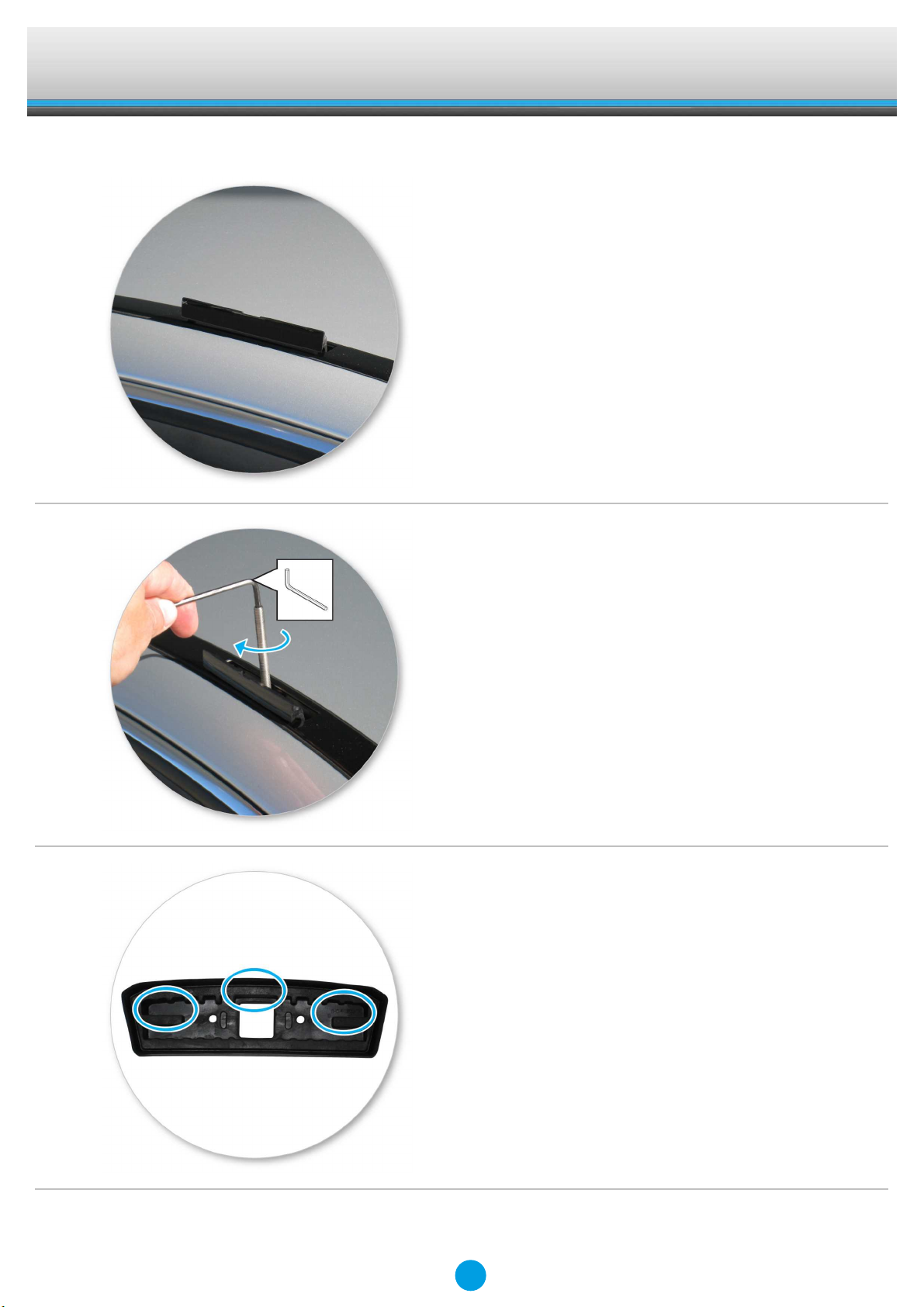

Fitment

●Open or remove fixed-point covers.

●Select grubscrews and screw into the

vehicle's fixed points.

●Do not over tighten.

●Note: Use longer [85mm (3 3/8")]

grubscrew at the front and shorter [75mm

(3")] at the rear fixed points.

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

Fitting Kit EN

K769

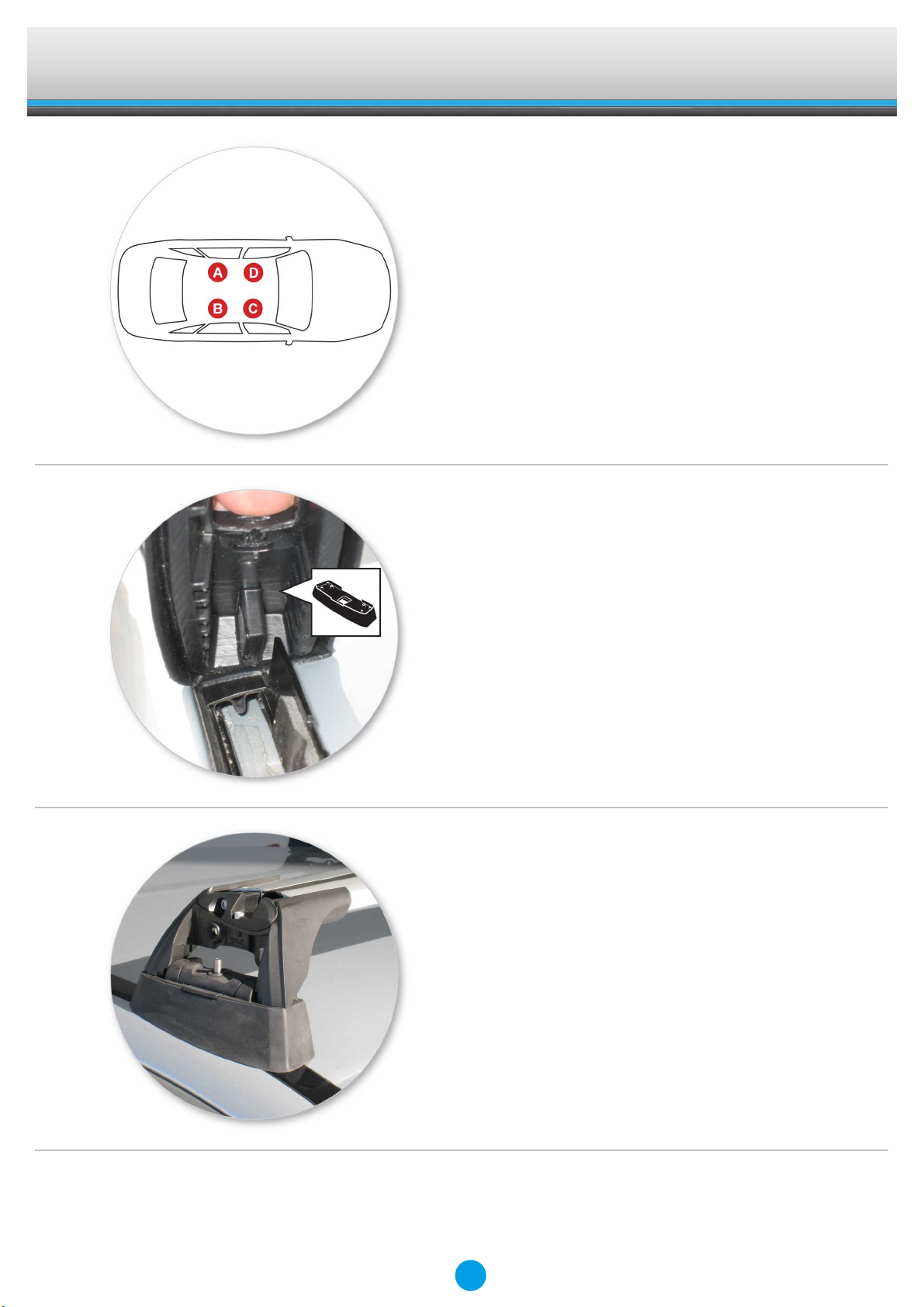

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 231A

B = 232A

C = 235A

D = 236A

●Ensure the fixed-point covers sit vertically

in the recess in the pads.

●Place crossbars on pads ensuring the pads

fit into the holes underneath the foot and

the grubscrew passes through the hole in

the foot.

Fitting Kit EN

K769

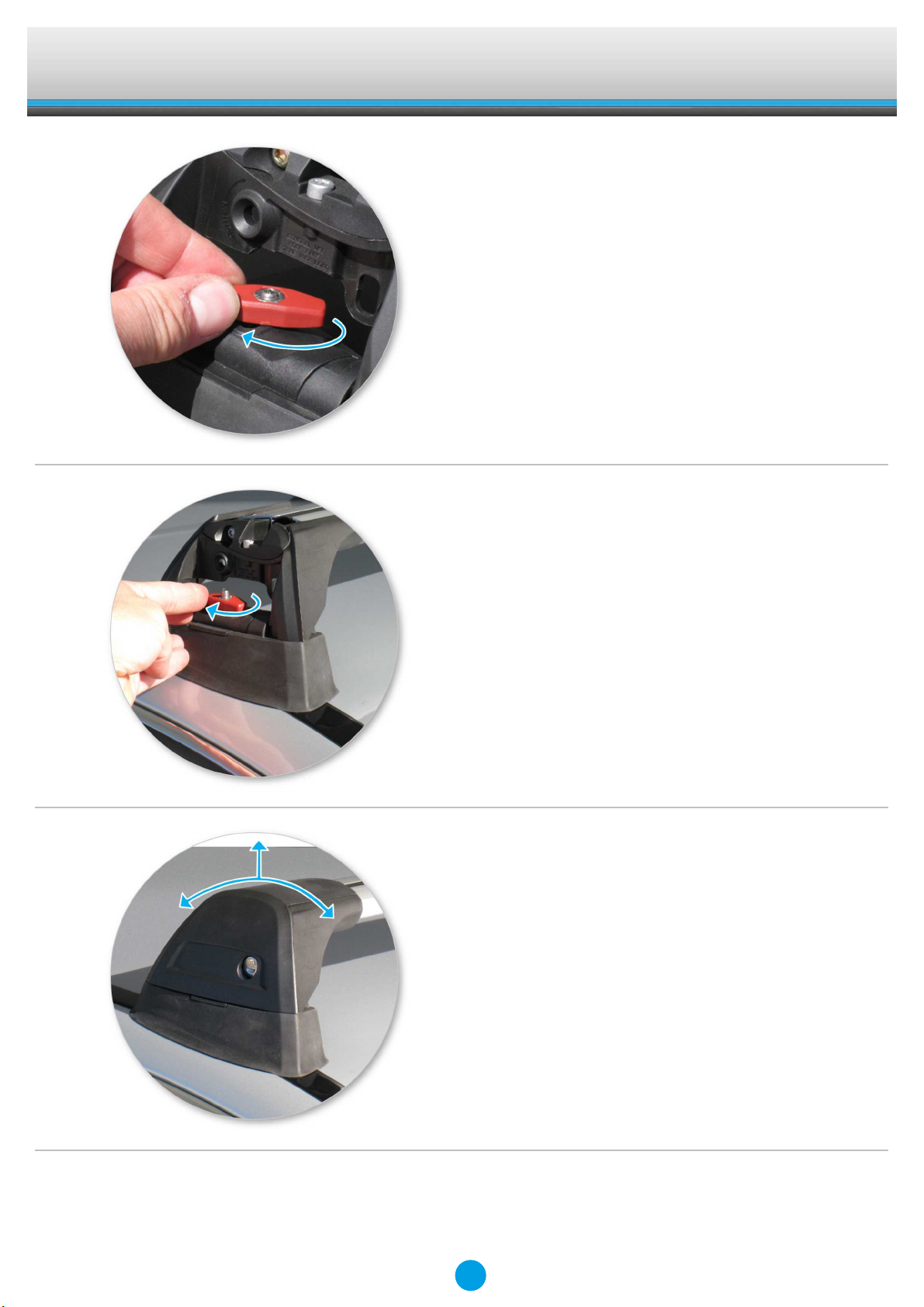

●Tighten the plastic knob. The side with the

nut showing should be facing up.

●In the fully tightened position, the knobs

should be parallel with the vehicle.

●Repeat for all four positions.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

Fitting Kit EN

K769

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
