Prorack K786 Manuale utente

1/1223-13-786-Rev5

Please Recycle

Toyota Corolla, 4dr Sedan 14-17 AU, CN, EU, NZ, ZA 50kg (110 lb) 50kg (110 lb)

Toyota Corolla, 4dr Sedan 17-Nov 19 AU, NZ 50kg (110 lb) 50kg (110 lb)

Toyota Corolla, 4dr Sedan 17-19 EU,ZA 50kg (110 lb) 50kg (110 lb)

F T P HD

++ =

kg (lb)

REQUIRED • ERFORDERLICH • REQUERIDOS • OBLIGATOIRE • NØDVENDIG • NECESSÁRIO • ОБЯЗАТЕЛЬНО • OBBLIGATORIO

POTRZEBY • NEVYHNUTELNÉ • NEVYHNUTNÉ • NODIG • NÖDVÄNDIG • PÅKRÆVET • ПОТРІБНА • EDELLYTETÄÄN

MAXIMUM kg (lb) • MAXIMUM kg • MÁXIMO kg • MAXIMUM kg • MAKSIMALT kg • MÁXIMO kg

МАКСИМУМ кг • MASSIMO kg • MAKSYMALNEJ kg • MAXIMÁLNÍ kg • MAXIMÁLNE kg

MAXIMUM kg • MAXIMAL kg • MAKSIMAL kg • МАКСИМАЛЬНА kg • ENIMMÄISMÄÄRÄ kg

K786 Fitting Kit

kg (lb)

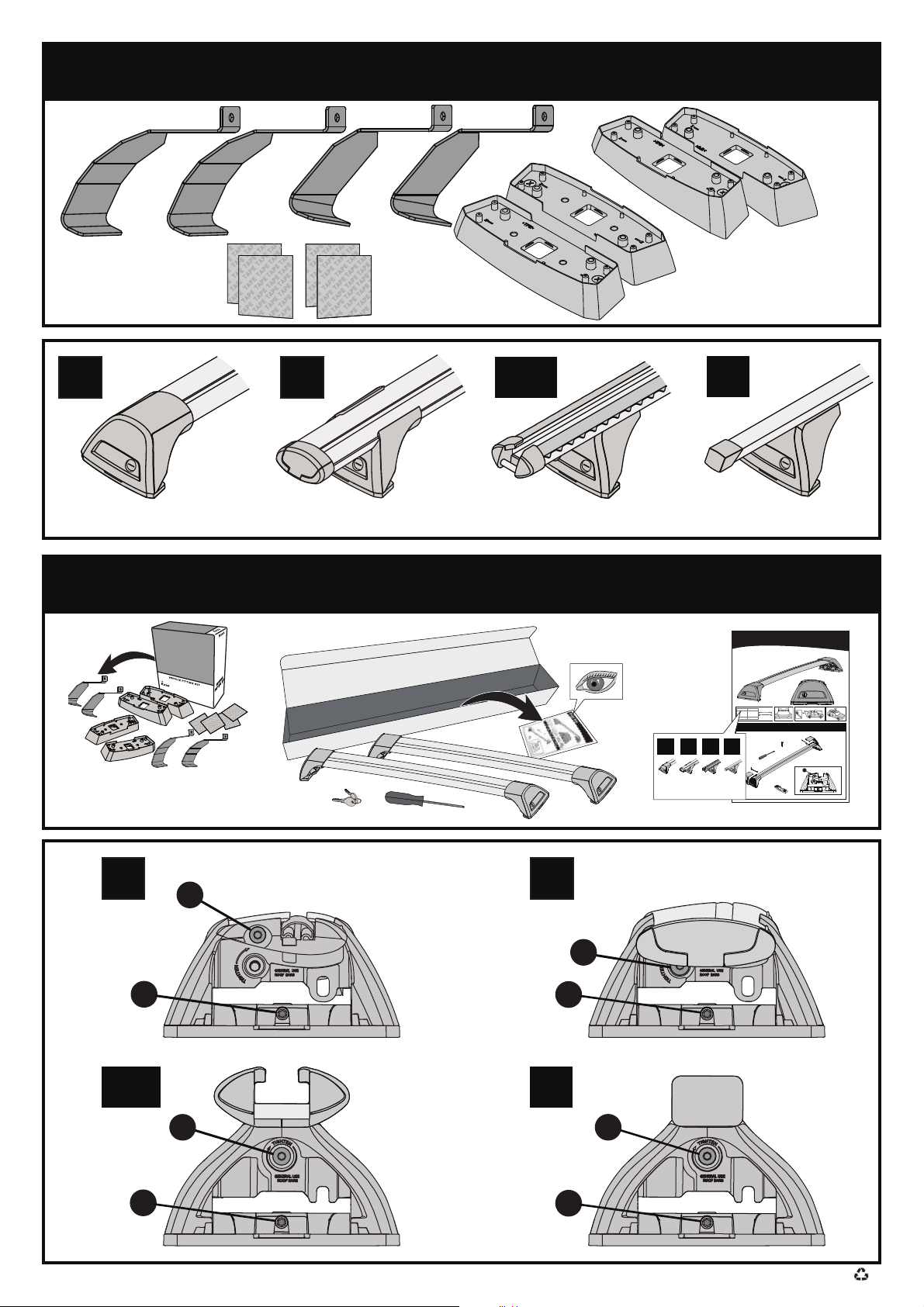

2/1223-13-786-Rev5

Please Recycle

FLUSH BAR (F) THROUGH BAR (T) HEAVY DUTY BAR (HD) P BAR (P)

FPHD

K786

= 1.0 kg (2.2 lb)

Flush Bar

x2 x1

x1 a

MAX

S4 - S10

S21 - S30

S33, S36, S37

S1 - S3 = 5kgs (11lbs)

= 6kgs (13 lbs)

S11 =7kgs (15 lbs)

CONTENTS • INHALT • CONTENIDO • CONTENU • INNHOLD • CONTEÚDO

ɋɈȾȿɊɀȺɇɂȿ • CONTENUTO • ZAWARTOĝû • OBSAH • OBSAH • INHOUD • INNEHÅLL

= kg (lb)

HD T

TF PHD

CONTENTS • INHALT • CONTENIDO • CONTENU • INNHOLD • CONTEÚDO • СОДЕРЖАНИЕ • CONTENUTO

ZAWARTOŚĆ • OBSAH • OBSAH • INHOUD • INNEHÅLL • INDHOLD • ЗМІСТ • SISÄLLYS

ATTENTION • ACHTUNG • ATENCIÓN • ATTENTION • OPPMERKSOMHET • ATENÇÃO • ВНИМАНИЕ • ATTENZIONE

UWAGA • UPOZORNĚNÍ • UPOZORNENIE • LET OP • UPPMÄRKSAMHET • OPMÆRKSOMHED • УВАГА • HUOMIO

11-04-244

11-04-266

11-04-265

A280 A281 A278 A279

3/1223-13-786-Rev5

Please Recycle

x10

2HD/P

F/T

ATTENTION • ACHTUNG • ATENCIÓN • ATTENTION • OPPMERKSOMHET • ATENÇÃO • ВНИМАНИЕ • ATTENZIONE

UWAGA • UPOZORNĚNÍ • UPOZORNENIE • LET OP • UPPMÄRKSAMHET • OPMÆRKSOMHED • УВАГА • HUOMIO

4/1223-13-786-Rev5

Please Recycle

11-04-xxx-x

GENERAL USE

ROPPOF BARS

FR = 11-04-265

= 11-04-266

= 11-04-244

FR RR

PLACEMENT • PLATZIERUNG • COLOCACIÓN • MONTAGE • PLASSERING • COLOCAÇÃO • РАЗМЕЩЕНИЕ • MONTAGGIO

UMIESZCZENIE • UMÍSTĚNÍ • UMIESTNENIE • PLAATSING • PLACERING • PLACERING • РОЗМІЩЕННЯ • SIJOITTAA

FR RR

FL RL

5/1223-13-786-Rev5

Please Recycle

AAA

A mm (X”) B mm (X”)

mm / inches

Toyota Corolla, 4dr Sedan 14-17 AU, CN, EU, NZ, ZA A = 300 mm (11 3/4”) B = 400 mm (15 3/4”)

Toyota Corolla, 4dr Sedan 17-Nov 19 AU, NZ A = 300 mm (11 3/4”) B = 400 mm (15 3/4”)

Toyota Corolla, 4dr Sedan 17-19 EU,ZA A = 300 mm (11 3/4”) B = 400 mm (15 3/4”)

6/1223-13-786-Rev5

Please Recycle

PLACEMENT • PLATZIERUNG • COLOCACIÓN • MONTAGE • PLASSERING • COLOCAÇÃO • РАЗМЕЩЕНИЕ • MONTAGGIO

UMIESZCZENIE • UMÍSTĚNÍ • UMIESTNENIE • PLAATSING • PLACERING • PLACERING • РОЗМІЩЕННЯ • SIJOITTAA

PLACEMENT • PLATZIERUNG • COLOCACIÓN • MONTAGE • PLASSERING • COLOCAÇÃO • РАЗМЕЩЕНИЕ • MONTAGGIO

UMIESZCZENIE • UMÍSTĚNÍ • UMIESTNENIE • PLAATSING • PLACERING • PLACERING • РОЗМІЩЕННЯ • SIJOITTAA

7/1223-13-786-Rev5

Please Recycle

11 12

x4x4

xxxx

RR FR = A278

= A279

= A280

= A281

8/1223-13-786-Rev5

Please Recycle

HD T

AAA

CLOSE • GESCHLOSSEN • CERRAR • FERMER • LUKKE • FECHAR • ЗАКРЫТЬ • CHIUDERE • BLISKO

ZAVŘÍT • ZAVRIEŤ• GESLOTEN • STÄNGA • LUK • ЗАКРИТИ • SULKEA

9/1223-13-786-Rev5

Please Recycle

HD T

ATTENTION • ACHTUNG • ATENCIÓN • ATTENTION • OPPMERKSOMHET • ATENÇÃO • ВНИМАНИЕ • ATTENZIONE

UWAGA • UPOZORNĚNÍ • UPOZORNENIE • LET OP • UPPMÄRKSAMHET • OPMÆRKSOMHED • УВАГА • HUOMIO

X mm (X”) X mm (X”) 2

mm / inches

Toyota Corolla, 4dr Sedan 14-17 AU, CN, EU, NZ, ZA X = 795 mm (31 1/4”) X = 755 mm (29 3/4”)

Toyota Corolla, 4dr Sedan 17-Nov 19 AU, NZ X = 795 mm (31 1/4”) X = 755 mm (29 3/4”)

Toyota Corolla, 4dr Sedan 17-19 EU,ZA X = 795 mm (31 1/4”) X = 755 mm (29 3/4”)

10/1223-13-786-Rev5

Please Recycle

2.5 Nm

(22 lb-in)

A mm (X”) B mm (X”)

19 20

2 Nm

(18 lb-in)

A mm (X”) B mm (X”)

mm / inches

Make Model, Variant, xdrs Vehicle Type xx-+ AU, NZ, CN, US, EU, ZA xxxx mm (xxx xx/xx”) xxxx mm (xxx xx/xx”)
