K797

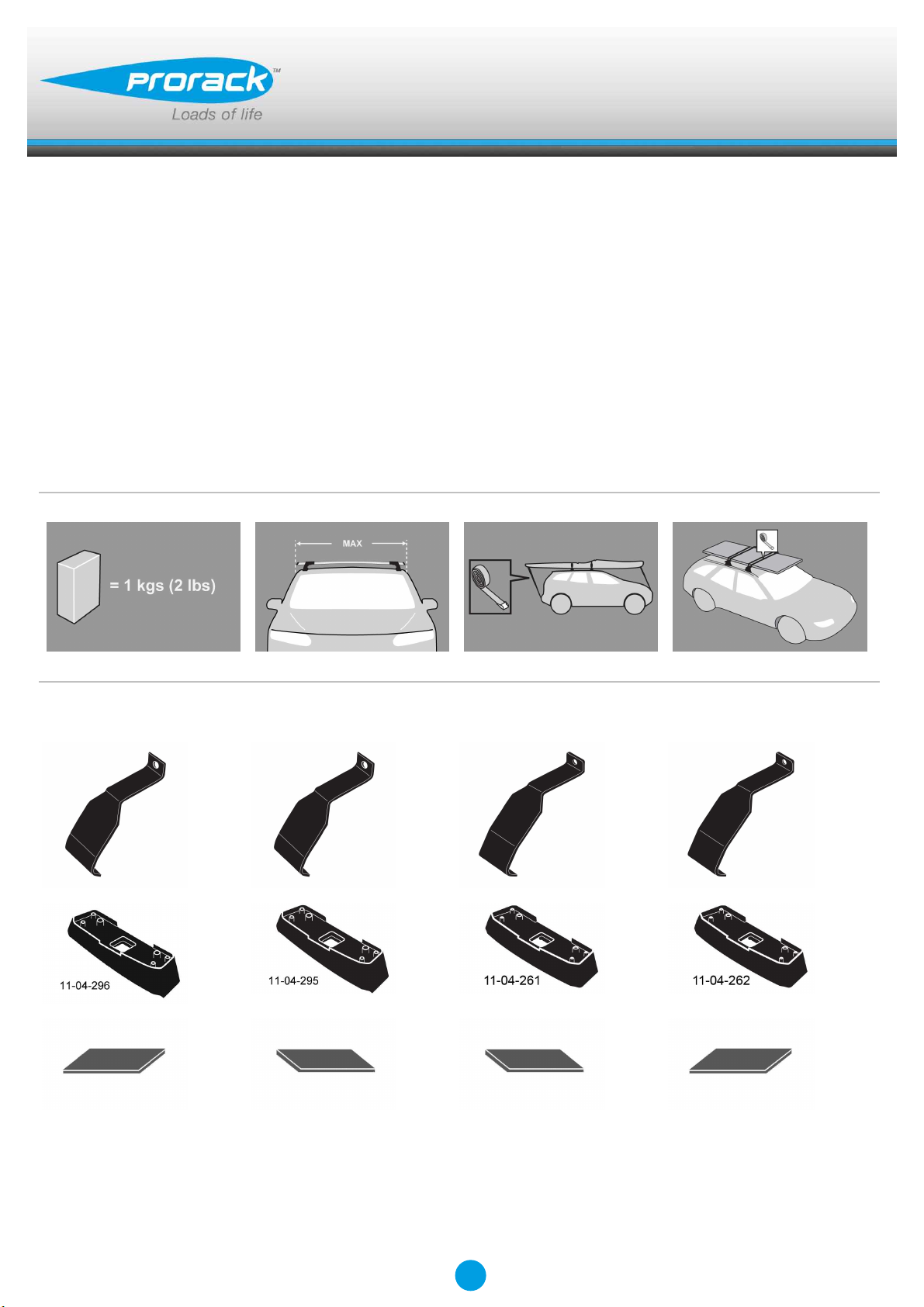

Fitting Kit
EN Fitting Instructions for Basic Carrier
x 1 x 1 x 1 x 1
x 1 x 1 x 1 x 1
x 1 x 1 x 1 x 1
Revision No: 2B 1
Fitting Kit K797
MAX kgs (lbs)
W/P WHD
Lexus
IS 200, 4dr Sedan 15-+ AU 60 kgs (132 lbs) 60 kgs (132 lbs)
IS 200, 4dr Sedan 15-+ NZ 60 kgs (132 lbs) 60 kgs (132 lbs)
IS 200, 4dr Sedan 15-+ EU 60 kgs (132 lbs) 60 kgs (132 lbs)
IS 200, 4dr Sedan 15-+ ZA 60 kgs (132 lbs) 60 kgs (132 lbs)
IS 250, 4dr Sedan 13-+ NZ 60 kgs (132 lbs)
IS 250, 4dr Sedan 13-+ AU 60 kgs (132 lbs)
IS 250, 4dr Sedan 13-+ EU 60 kgs (132 lbs)
IS 250, 4dr Sedan 13-+ CN 60 kgs (132 lbs)
IS 300H, 4dr Sedan 13-+ NZ 60 kgs (132 lbs)
IS 300H, 4dr Sedan 13-+ AU 60 kgs (132 lbs)
IS 300H, 4dr Sedan 13-+ EU 60 kgs (132 lbs)
IS 350, 4dr Sedan 13-+ NZ 60 kgs (132 lbs)
IS 350, 4dr Sedan 13-+ AU 60 kgs (132 lbs)
IS 350, 4dr Sedan 13-+ ZA 60 kgs (132 lbs)
IS, 4dr Sedan 14-+ US 60 kgs (132 lbs)
2
Fitting Kit K797
X
A B C 1 2 3
IS 200, 4dr Sedan 15-+ (AU) -350mm 420mm - 810mm 800mm -
-13 -3/4ths" 16 9/16ths" - 31 7/8ths" 31 1/2ths" -
IS 200, 4dr Sedan 15-+ (NZ) -350mm 420mm - 810mm 800mm -
-13 -3/4ths" 16 9/16ths" - 31 7/8ths" 31 1/2ths" -
IS 200, 4dr Sedan 15-+ (EU) -350mm 420mm - 810mm 800mm -
-13 -3/4ths" 16 9/16ths" - 31 7/8ths" 31 1/2ths" -
IS 200, 4dr Sedan 15-+ (ZA) -350mm 420mm - 810mm 800mm -
-13 -3/4ths" 16 9/16ths" - 31 7/8ths" 31 1/2ths" -
IS 250, 4dr Sedan 13-+ (NZ) -350mm 420mm - 810mm 800mm -
-13 -3/4ths" 16 9/16ths" - 31 7/8ths" 31 1/2ths" -
IS 250, 4dr Sedan 13-+ (AU) -350mm 420mm - 810mm 800mm -
-13 -3/4ths" 16 9/16ths" - 31 7/8ths" 31 1/2ths" -
IS 250, 4dr Sedan 13-+ (EU) -350mm 420mm - 810mm 800mm -
-13 -3/4ths" 16 9/16ths" - 31 7/8ths" 31 1/2ths" -
IS 250, 4dr Sedan 13-+ (CN) -350mm 420mm - 810mm 800mm -
-13 -3/4ths" 16 9/16ths" - 31 7/8ths" 31 1/2ths" -
IS 300H, 4dr Sedan 13-+ (NZ) -350mm 420mm - 810mm 800mm -
-13 -3/4ths" 16 9/16ths" - 31 7/8ths" 31 1/2ths" -
IS 300H, 4dr Sedan 13-+ (AU) -350mm 420mm - 810mm 800mm -
-13 -3/4ths" 16 9/16ths" - 31 7/8ths" 31 1/2ths" -
IS 300H, 4dr Sedan 13-+ (EU) -350mm 420mm - 810mm 800mm -
-13 -3/4ths" 16 9/16ths" - 31 7/8ths" 31 1/2ths" -
IS 350, 4dr Sedan 13-+ (NZ) -350mm 420mm - 810mm 800mm -
-13 -3/4ths" 16 9/16ths" - 31 7/8ths" 31 1/2ths" -
IS 350, 4dr Sedan 13-+ (AU) -350mm 420mm - 810mm 800mm -
-13 -3/4ths" 16 9/16ths" - 31 7/8ths" 31 1/2ths" -
IS 350, 4dr Sedan 13-+ (ZA) -350mm 420mm - 810mm 800mm -
-13 -3/4ths" 16 9/16ths" - 31 7/8ths" 31 1/2ths" -
IS, 4dr Sedan 14-+ (US) -350mm 420mm - 810mm 800mm -
-13 -3/4ths" 16 9/16ths" - 31 7/8ths" 31 1/2ths" -
3
Fitting Kit EN
K797
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
NOTE: Clamp images in these instructions may
not be representative of the clamps in this kit
4
Fitting Kit EN
K797
●Use keys to remove covers.
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
5
Fitting Kit EN
K797

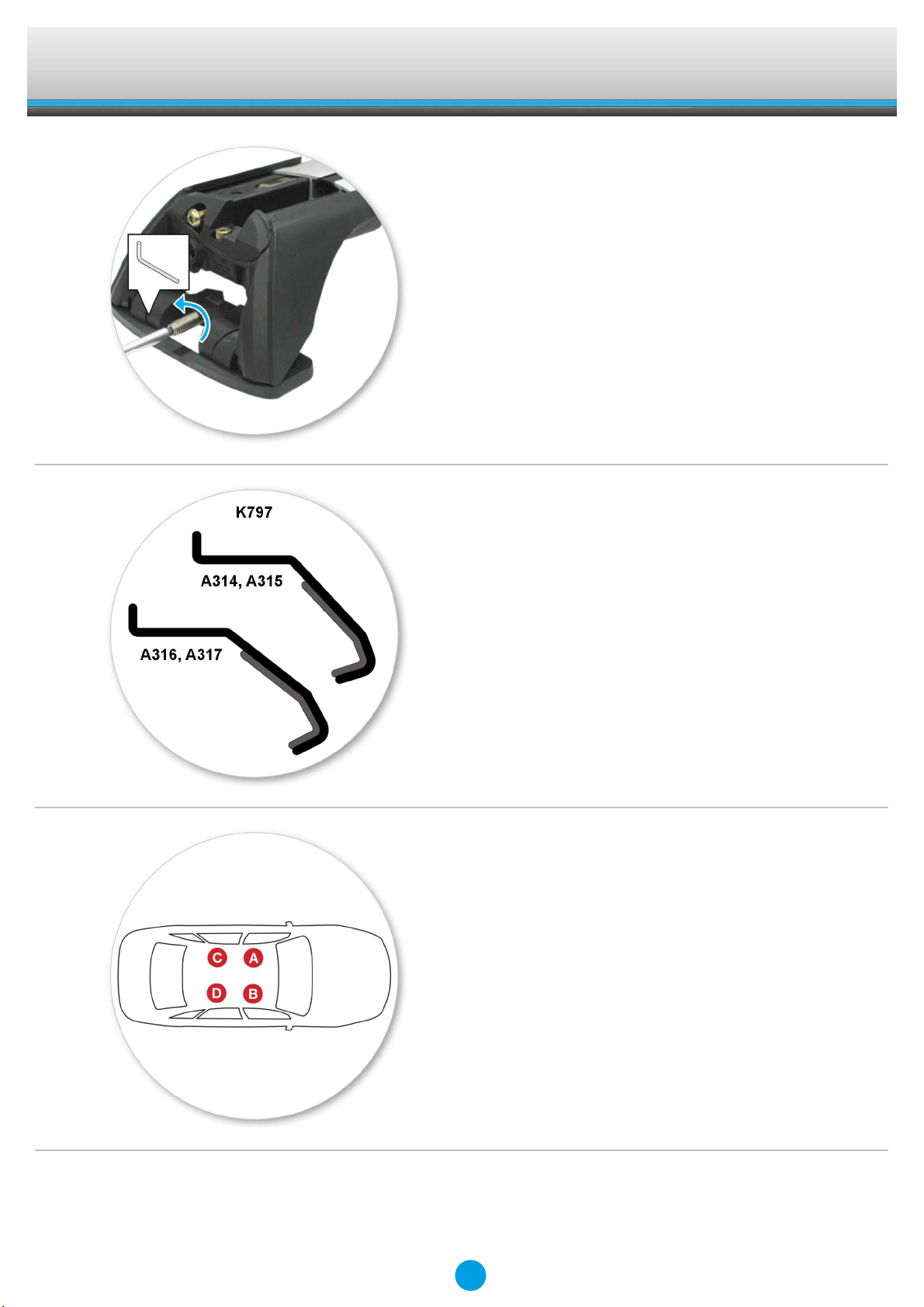

●Remove locking screw.
●Apply protective strip as shown.
Trim if required.
●It is important to put the clamps in the
correct position on the vehicle.
●Letters refer to the part numbers stamped
on clamps.
●Clamp Part Number:
A = A314
B = A315
C = A316
D = A317
6
Fitting Kit EN
K797
●Attach clamp to each leg. NOTE; clamps
may have labels showing their positions on
the vehicle (For example; "Front Right").
●Refit locking screw so that it goes through
the hole in the clamp. Do not begin to
tighten the locking screw.
●Refer to the underside of the pad for the
part number.
7
Fitting Kit EN
K797
●It is important to put the pads in the correct
position on the vehicle.
●Letters refer to the pad part numbers and
position.
●Pad Part Number:
A = 261A
B = 262A
C = 295A
D = 296A
●Place rubber pads (supplied with fitting kit)
on the vehicle roof. Pad may vary in shape
to that shown.
●Make sure the pad fits into the holes
underneath the foot.
8
Fitting Kit EN
K797
Fitment
●Clamps directly to edge of roof under the
doors
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Place crossbar on vehicle. Minimum
recommended spacing between the bars is
700mm (27 1/2") (unless otherwise stated).
●Adjust the legs on the crossbar so that they
are positioned equally from the ends of the
crossbar, and the clamps engage firmly on
the body work of the vehicle.
●Tighten adjusting screw to 2 Nm (1.5 ft lb)
hand tight.
9
Fitting Kit EN
K797
●Tighten locking screw on both legs evenly,
2.5 Nm (1.8 ft lb).
●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
10
