Prorack K947 Manuale utente

K947

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 4 x 4 x 4 x 1

x 4 x 8

Revision No: 3C 1

Fitting Kit K947

MAX kgs (lbs)

W/P WHD

Peugeot

Bipper, 5dr Van 08-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Fiat

Fiorino, 5dr Van 08-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Fiorino, 5dr Van 08-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

Citroen

Nemo, 5dr Van 08-13 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit K947

A B C 1 2 3

Bipper, 5dr Van 08-+ (EU) -250mm 510mm - 1010mm 957mm -

-9 -13/16ths" 20 1/16ths" - 39 3/4ths" 37 11/16ths" -

Fiorino, 5dr Van 08-+ (EU) -250mm 510mm - 1010mm 957mm -

-9 -13/16ths" 20 1/16ths" - 39 3/4ths" 37 11/16ths" -

Fiorino, 5dr Van 08-+ (ZA) -250mm 510mm - 1010mm 957mm -

-9 -13/16ths" 20 1/16ths" - 39 3/4ths" 37 11/16ths" -

Nemo, 5dr Van 08-13 (EU) -250mm 510mm - 1010mm 957mm -

-9 -13/16ths" 20 1/16ths" - 39 3/4ths" 37 11/16ths" -

Fitting Kit EN

K947

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

Fitting Kit EN

K947

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Set bars to length (revert to rear of these

instructions).

●Please check the front of this manual for

information relating specifically to your

vehicle.

Fitting Kit EN

K947

●Tighten adjusting screw to 2 Nm (1.5 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Remove both pins from each leg. Use

tapered end of spanner located inside left

hand cover to assist.

Fitting Kit EN

K947

●Detach foot from leg. Store loose parts in a

safe place.

●Repeat for all legs.

●Assemble foot from kit into leg.

●Insert pins through foot into leg.

Fitting Kit EN

K947

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

Fitment

●Open or remove fixed-point covers.

●Select grubscrews and screw into the

vehicle's fixed points.

●Repeat for all four positions.

Fitting Kit EN

K947

●Apply transparent tape next to fixed point.

●Place crossbar foot over grubscrews.

●Ensure the plastic knob is in the position

shown when fully tightened.

●Repeat for all four positions.

Fitting Kit EN

K947

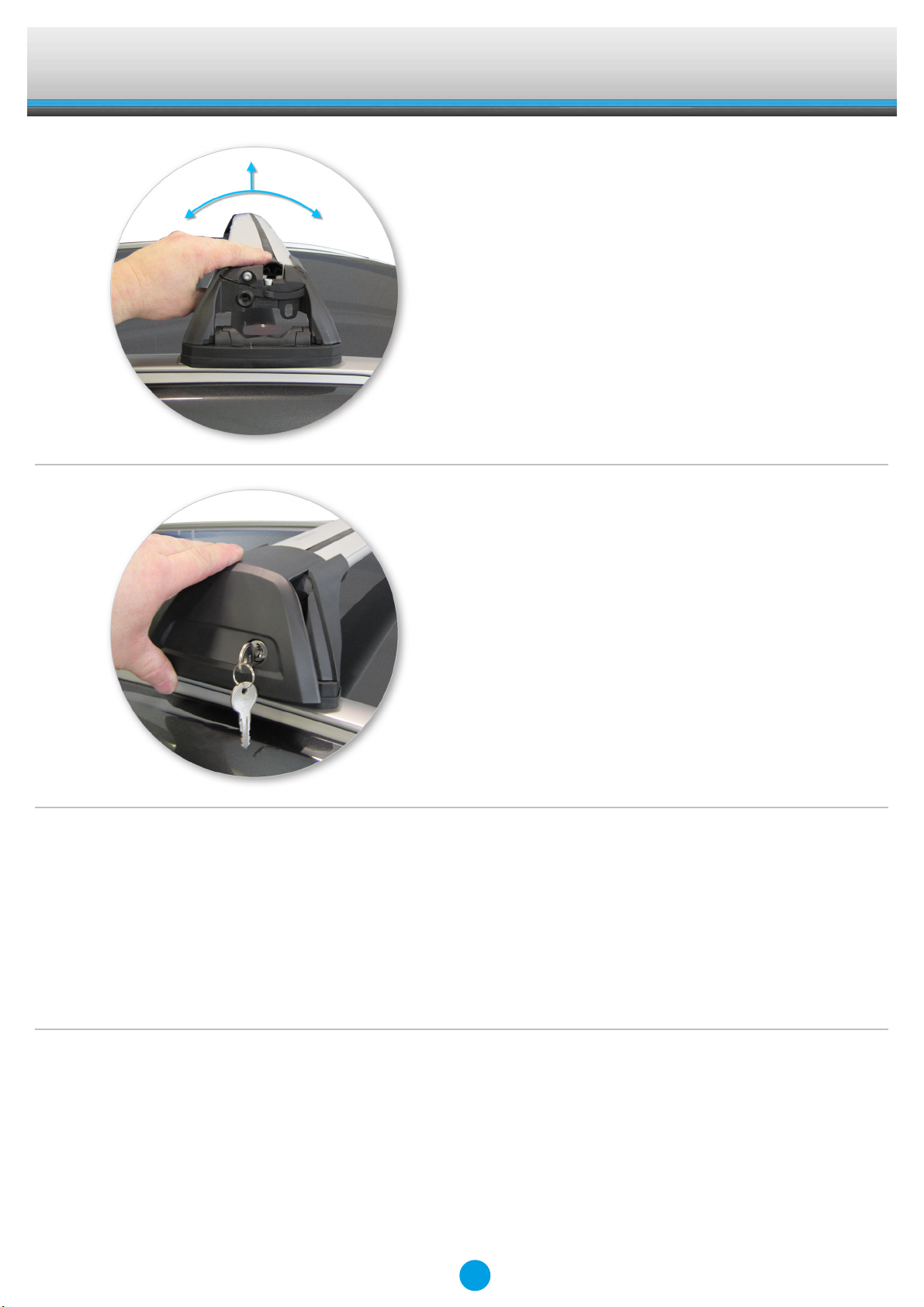

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
