Prorack K340 Manuale utente

,OADSOFADVENTURE

Page 1 of 4

K340 ASSEMBLY AND

FITTING INSTRUCTIONS

Kit contains:

1 x Instructions

4 x Stepped Rubber Pads

4 x Red Plastic Knobs

4 x Plastic Internal Blocks

4 x Grubscrews, M6 x 60mm

1 x Allen Key, 3mm

Rev. B

Remove parts from box & check

Contact your Prorack dealer if any parts are

missing or damaged

Items you will require that are not included:

Tape measure

Important Note:

Whispbar Flush Bar pictured in these instructions, also applicable for Whispbar Through Bar

1. Crossbar Preparation

Remove crossbar and this kit from the•

packaging

Follow step 1-3 of crossbar assembly•

instructions

Remove clamp block by pressing•

backwards

Fit stepped rubber pad (from ﬁtting kit)•

to foot

Press pad ﬁrmly onto foot by putting•

thumb pressure on area where pad

spigots engage

Press Here

1.1 1.2

Maximum

Whispbar

Load

Rating

When ﬁtted and loaded

correctly

Page 2 of 4

K340 ASSEMBLY AND FITTING INSTRUCTIONS

2.1 2.2

Remove ﬁxpoint covers• Select four M6 x 60mm grubscrews•

and screw them into the centre hole, do

not over tighten

Repeat steps 2.1 - 2.2 for all four•

positions

1.3 1.4

Select plastic internal block and insert•

into foot

Repeat on all four legs•

Push down

2. Positioning Crossbar on Vehicle

Page 3 of 4

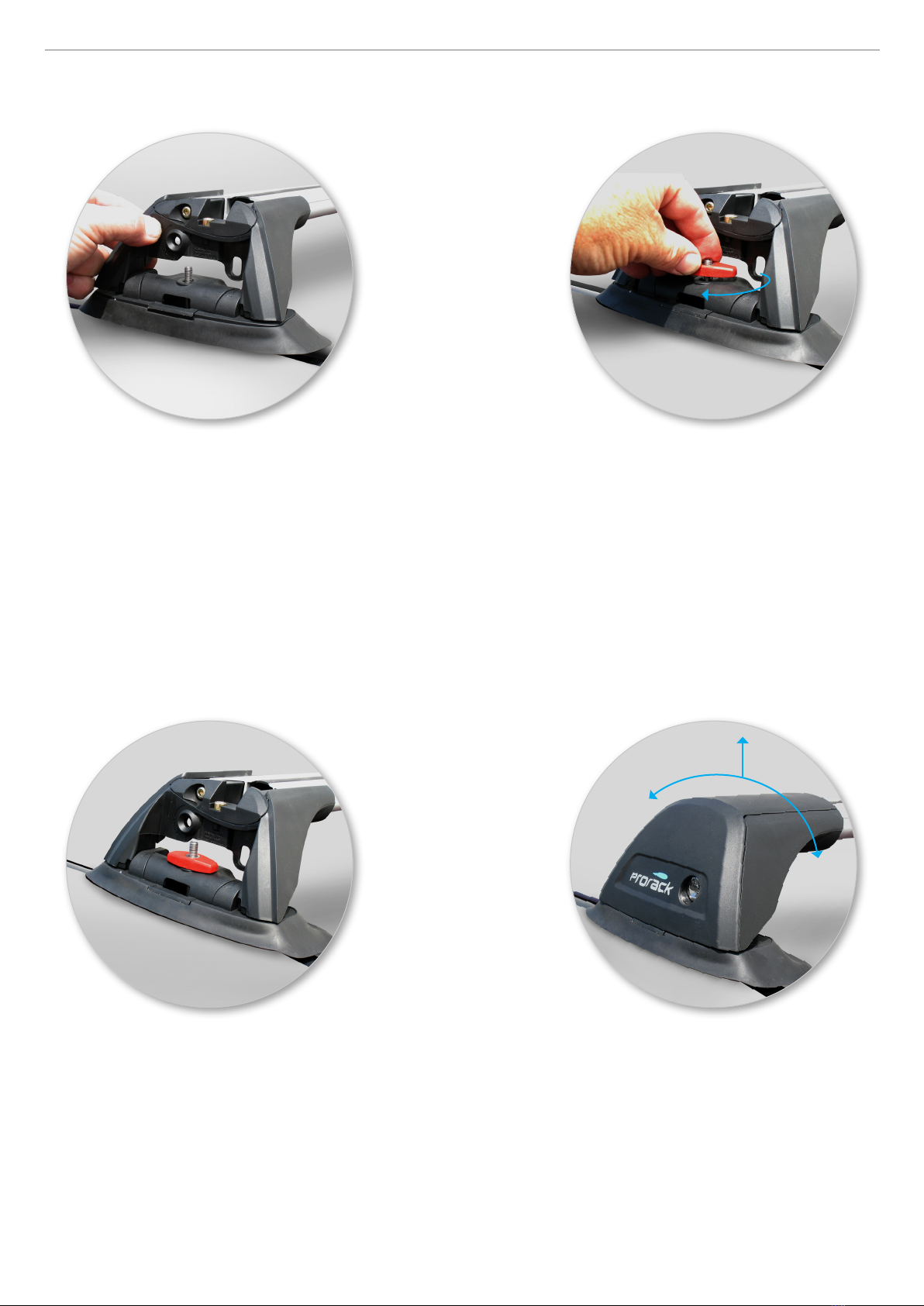

K340 ASSEMBLY AND FITTING INSTRUCTIONS

2.3

Adjust crossbar length by clicking legs•

in or out and using the hex screwdriver

provided lock top adjusting screw

Place crossbar foot over grubscrews•

2.4

Select red plastic knob and tighten•

crossbar to grubscrews

2.5

Ensure red plastic knob is in the same•

position as pictured above

Repeat for all four positions•

2.6

Check crossbar feels tight•

Reﬁt covers to leg•

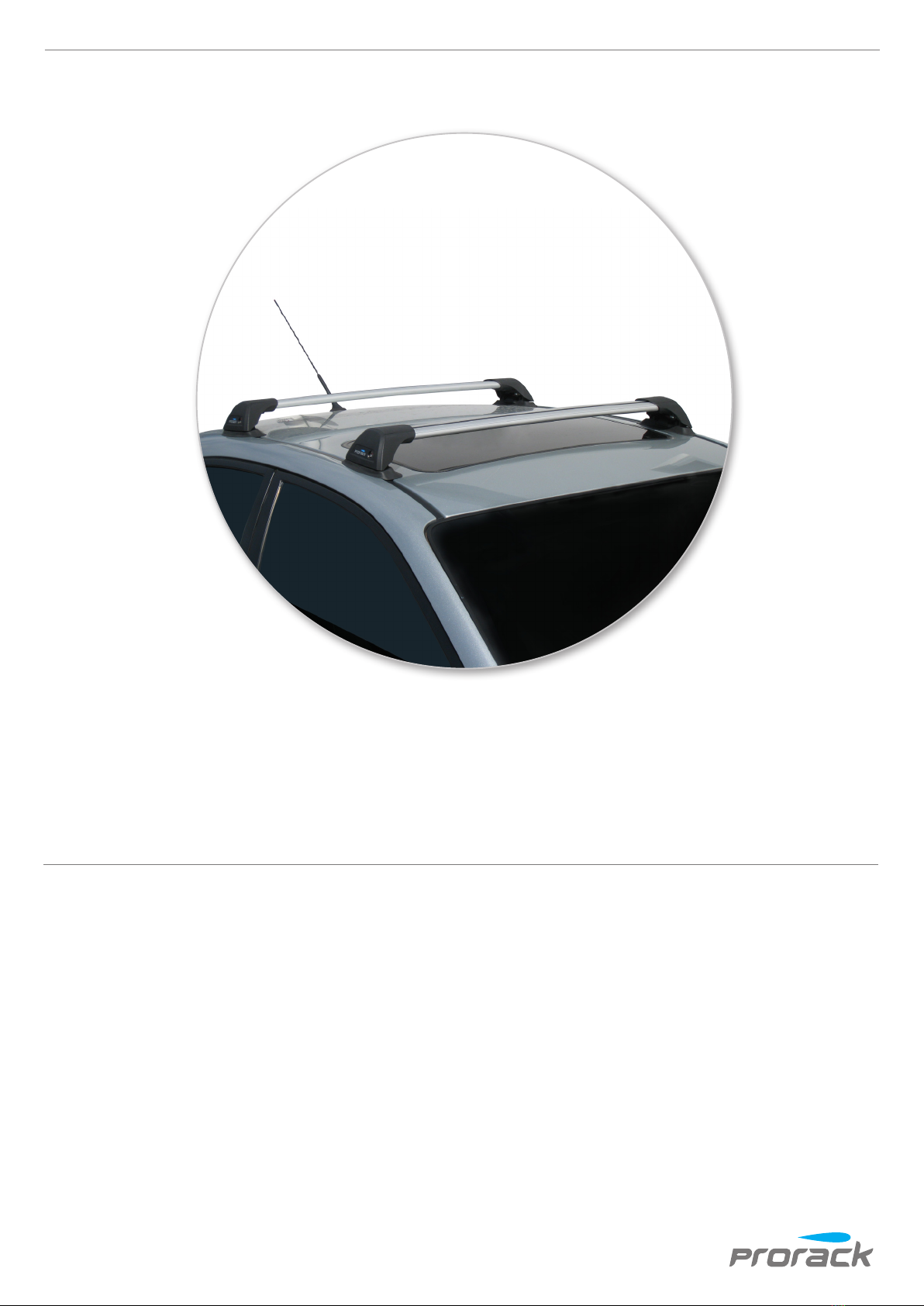

Page 4 of 4

,OADSOFADVENTURE

K340 ASSEMBLY AND FITTING INSTRUCTIONS

Warning Notes

Use these instruction in conjunction with crossbar instructions•

WARNING: Check the Tightness of Screws Regularly
