Provision ISR I5PT-390IPX4 Manuale utente
Precautions:
Please read this manual carefully before installing and operating the camera.
Please refer to the technical specs to confirm you are using a suitable power supply. Do
not use power supply with higher/lower rating than specified.
Do not attempt to disassemble the camera; in order to prevent electric shock, do not
remove any screws or covers.
There are no user-serviceable parts inside. Please contact the nearest service center if
there is any technical failure.
Avoid incorrect operation, shock vibration or heavy weight pressing which can damage
the camera.
Do not use corrosive detergent to clean the camera. If necessary, please use a soft dry
cloth to wipe dirt. For tough contamination, use neutral detergent. Any cleanser for high
grade furniture is applicable.
Avoid aiming the camera directly towards extremely bright objects such as the sun, as it
may permanently damage the image sensor.
Please follow the installation instructions.
Do not operate the camera in environments that exceeds the specified temperature,
humidity or power.
Keep away from any heat sources such as radiators, heat registers, stoves, etc.
Do not expose the product to the direct airflow of an air conditioner.
All pictures and examples used in the manual are for reference only.

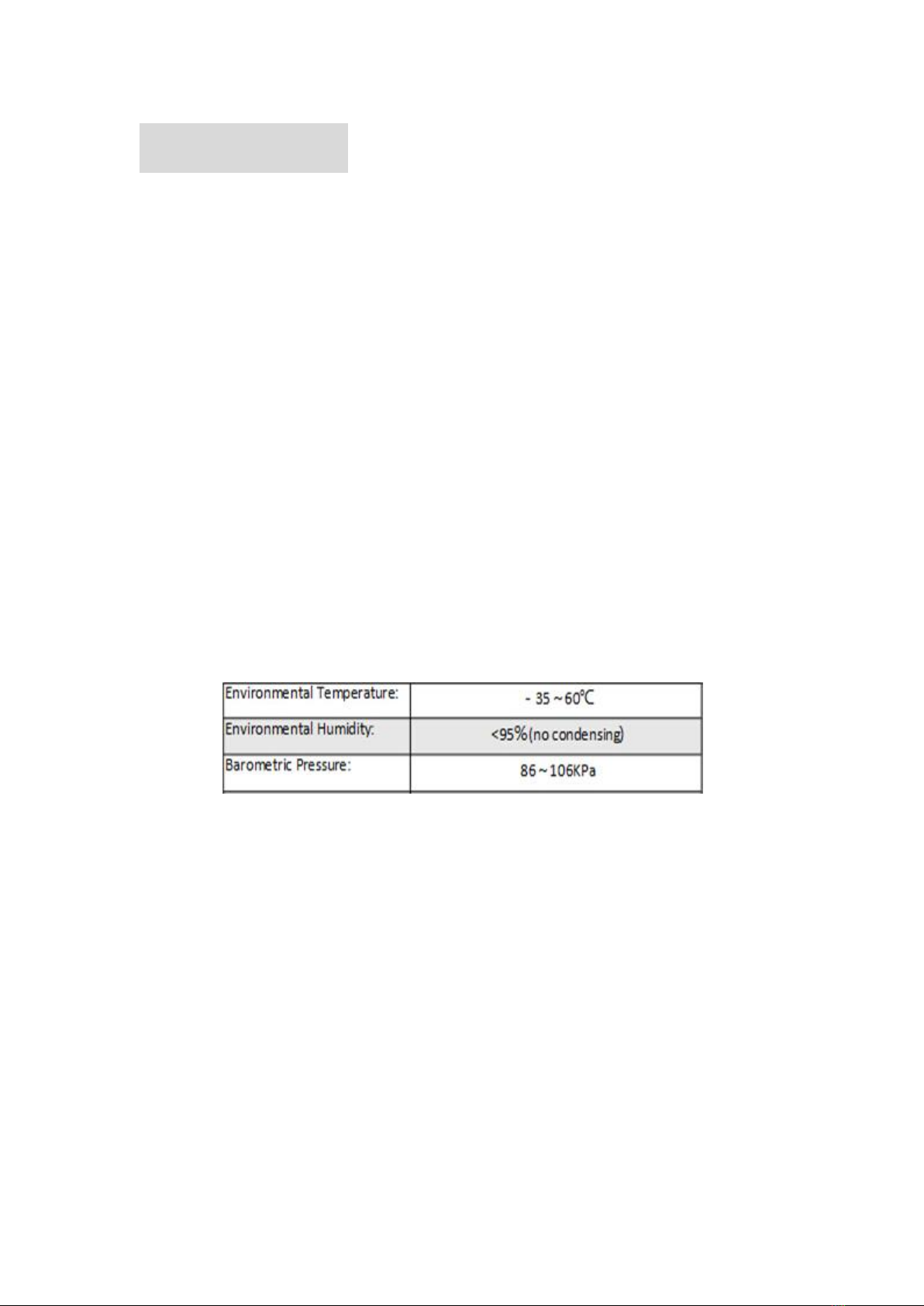

Please use our production under the following environmental standards:
1
1. Product Overview
1.1 Features
1.1.1 Special Features:
●PT Capabilities: The camera is equipped with Pan/Tilt motors that allow movement range of
250°pan and 80°tilt.
●Motorized Vari-Focal with auto-focus: The camera is equipped with x4/10 optical zoom
lens and features accurate auto focus algorithm.
●Double stream: The camera support dual stream video streaming for different
requirements and applications.
●Supported network protocols: Support TCP/IP, PPPoE, DDNS, FTP, UPNP & Onvif
●ROI function: ROI (Region of interest) means that the marked ROI areas will be less
compressed than other areas especially in low bitrate conditions.
●OSD function: On screen display of selected information.
●All-weather outdoor design:
IP66 Protection standard
TVS 3000V Protection standard
1.1.2 Function Introduction:
●Movement proportional to zoom: higher zoom values will automatically reduce the camera
speed while on manual control.
●Auto movement functions:
256 presets slots.
Auto scan with left/right boundaries
4 patterns
2
1.2 Technical Specs:
Specifications
I5PT-390IPx4/x10
Camera
Video
Effective Pixels
1080P(1920X1080)
Electronic Shutter
1/25s ~ 1/30000s
Day & Night
ICR
Min. Illumination
0lux (IR ON)
Enhancement
Image Settings
AWB, AGC Adjustable
Selectable Exposure Modes
Sharpness, Saturation, Brightness & Contrast Adjustable
WDR Range
Digital WDR
Noise Reduction
2D/3D-DNR
Image Orientation
Mirror/Flip
Motion Detection
Yes
Compression
Video Compression
H.264
Resolution
50HZ:25fps(1920x1080) 60HZ:30fps(1920x1080)
Bit rate
32kbps-8Mbps
Encode Mode
VBR/CBR
Image Quality
Six levels under VBR; Free adjustment under CBR
Housing
Iris
Auto Iris
Water-proof
IP66
Bracket
Wall Bracket
Dimensions
153mm×93mm×130mm（L×W×H）
Weight(gross)
920g
PTZ
Optical Zoom
10X
IR Distance
50M
Pan Rotation Range
0〫~250 〫
Tilt Rotation Range
0〫~60 〫
Pan Speed
0.5〫~12 〫/s
Tilt Speed
0.5〫~10 〫/s
Preset Position
255
Connectivity
Network
RJ45
Power
DC Socket
Network
Remote Monitoring
IE Browsing
User Access
Supports simultaneous monitoring for up to 4 users
Network Protocol
TCP/IP, UDP, DHCP, RTSP, PPPoE, DDNS
ONVIF
Yes
Ethernet
100Mbps
Others
Power Supply
DC12V
Work Environment
-30℃~60℃, 10%~90% Humidity
3
1.4 OSD Menu operation
● Call up OSD menu
Call Preset 95 to enter the main OSD menu; call Preset 96 to close the OSD menu or
Select “Exit”
● Confirm
The “Left "and “Right "button is controlled by PTZ can change the required item, and
the changed item is the confirmed one without further confirmation. You can directly click
“Up" and “Down" button to go on your further operation. When setting the left and right
boundary for scan and pattern, you can click the “Focus Far" for confirmation.
● Cancel
The “up” and “down” button controlled by PTZ carry out the request for Further action;
meanwhile, it carries out the “Cancel” order for last operation.
2 Web Browse Operation Guide
2.1 Common Operations
Factory settings：
IP camera is a kind of network equipment, you need configure network IP address, gateway
and other information reasonably, and camera with default IP address in factory, and user could
change it according to their requirement.
Default IP address：192.168.0.99
Subnet mask：255.255.255.0
Gateway：192.168.0.1
WEB port：8000
Network parameters
Take the example of Windows XP operating system. Make sure the IP address in network
4
parameters of the user computer is in accordance with the one of the camera, they are in same
segment, the IP address in the same LAN cannot be the same, otherwise, it will interfere with
each other, causing the equipment couldn't operate normally.
After setting IP address, you could test whether it has been connected between the
computer and the camera by using the PING order from clicking the “start”-”run" button in the
bottom left corner. The format of the command: ping 192.168.0.99
If the screen shows like this:
As the picture shown above, it indicates that it has been successfully connected between
the computer and the camera. However, if the screen shows like this:
It indicates equipment is failure to install, you could check from the following aspects:
●If hardware connection is correct
5
●If computer TCP/IP is in the same segment as the camera
●If network forbid ping order, please connect network administrator
6
2.2 Web Login
2.2.1 Login
Enter IP address (default: 192.168.0.99) to open the interface, dialog box as follows comes out:
◆user name：Admin
◆password：Admin
◆Port：Default 8000
Picture 2.2.1-1 login interface
7
2.2.2 Download playing component
After you logged in, if the WEB browser indicates it is the first time of visiting or plug-in
reminds you of the update of the new version. （See 2.2.2-1). Double-click this plug-in and it
will remind you of the downloading process. Or you can double-click the icon at the top-right
corner of the login interface. Double-click the downloaded WebPluginInstaller.exe and start
install the playing plug-in for WEB browser, then confirm its installation as well as clicking the
“Next "button until finished. You need to return to the WEB browser screen and refresh the
display if you want to run this plug-in after installment, then you can watch the video.
The IP address again to the login screen after you have installed the plug-in and then input user
name, code, and then click the “login "button to enter the “preview "screen. See 2.2.3-1
Picture 2.2.3-1 Preview screen
Picture 2.2.2-1 Plug-in installation
8

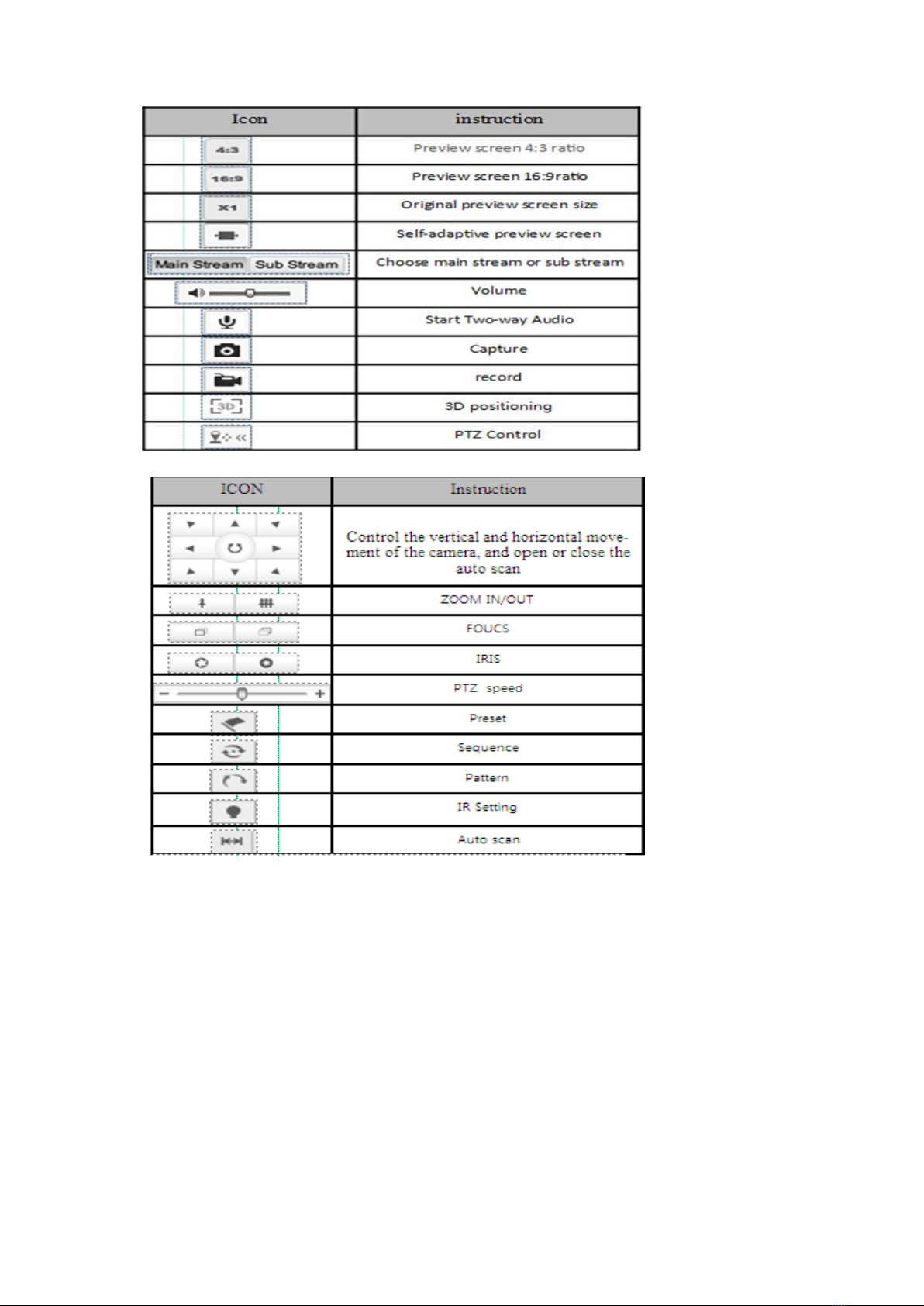

Sheet 2.2.3-3 PTZ control screen information
In the preview screen, you can control the preview, video recording, snapshot, intercom and
the on/off of the sound. The size of the image can be adjusted according to the needs of the
user to set its original size; we have “4:3””16:9”or “self-adaptation "mode. Preview code
stream can be set as “main stream” ”sub stream". See 2.2.3-2
Click “camera "can open the control screen of the camera. See 2.2.3-3
Sheet 2.2.3-2 Preview screen information
