DAIPT-390AX4 USER MANUAL

for DAIPT-390AX4

DAIPT-390AX4 USER MANUAL

1080P 4in1 Dome MINI PTZ CAMERA

QUICK INSTALLATION GUIDE

1. Important Safety Notes:

Please read this manual carefully before installing and operating the camera.

Please refer to the technical specs to confirm you are using a suitable power supply. Do

not use power supply with higher/lower rating than specified.

Do not attempt to disassemble the camera; in order to prevent electric shock, do not

remove any screws or covers.

There are no user-serviceable parts inside. Please contact the nearest service center if

there is any technical failure.

Avoid incorrect operation, shock vibration or heavy weight pressing which can damage

the camera.

Do not use corrosive detergent to clean the camera. If necessary, please use a soft dry

cloth to wipe dirt. For tough contamination, use neutral detergent. Any cleanser for high

grade furniture is applicable.

Avoid aiming the camera directly towards extremely bright objects such as the sun, as it

may permanently damage the image sensor.

Please follow the installation instructions.

Do not operate the camera in environments that exceeds the specified temperature,

humidity or power.

Keep away from any heat sources such as radiators, heat registers, stoves, etc.

Do not expose the product to the direct airflow of an air conditioner.

All pictures and examples used in the manual are for reference only.

Important Note: Clean the transparent cover to make sure the image clear.

Please use wiper provided in the package to clean the color, don’t touch the transparent

cover by finger directly as the acid sweat of the human finger may rust the surface of the

cover.

2. Box Contents:

ITEM

QUANTITY

DAIPT-390AX4 Camera

Ceiling Bracket

Installation sticker

Installation Screws

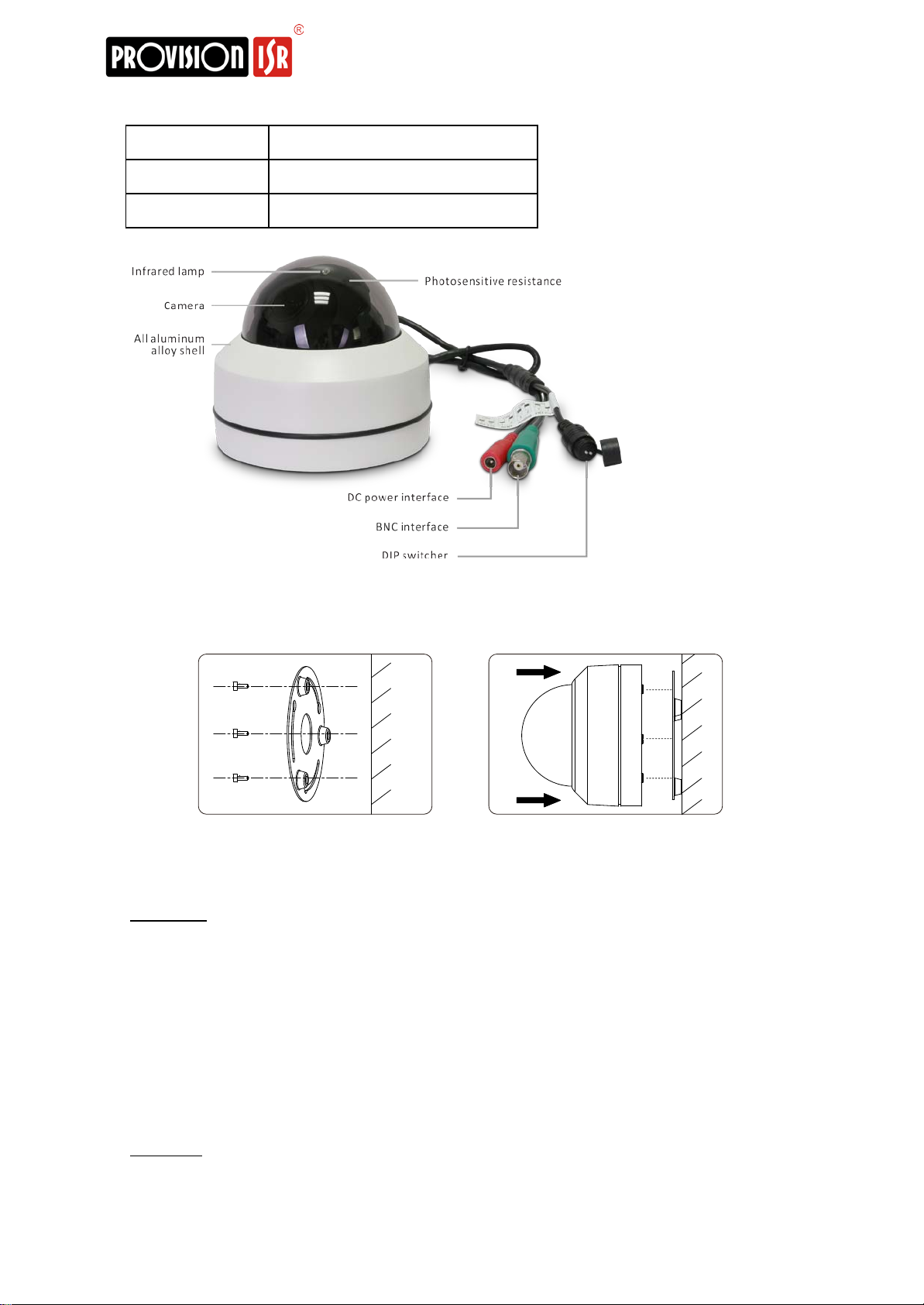

3. Camera Cable

Please find cable description below. You can also refer to Figure 2-1.

DAIPT-390AX4 USER MANUAL

Video Connector

4in1 1080P Video Output

Power Connector

12V DC Power Input (2A Recommended)

DIP switch

Signal output selection

Picture 2-1: Cable Reference

4. Device Installation:

The camera is for a ceiling installation ! (If wall installation is required, please purchase wall

bracket) Please refer to the installation instructions below.

Important: The installation surface should be able to hold at least triple the weight of the

assembled camera.

4.1 Take out installation sticker from package box, mark the holes' position base on wall mount

bracket bottom installation holes.

4.2 Use the screws to fix the mounting bracket to the ceiling according to the holes that have

just been put on the base.

4.3 Align the camera base with the three mounting holes in the mounting bracket, and turn it

clockwise for 30 °.

Warnings:

DAIPT-390AX4 USER MANUAL

1) Do not adjust the camera’s orientation manually. This might damage the device.

2) Pay attention to install the blind area of the camera toward to the corner or not

important area.

5. Camera Settings & Preset Commands:

In this camera, the CoC commands divides to 2. If you are using AHD/TVI/CVBS, Please use

the 1st table. If you are using CVI, use the 2nd table.

AHD/TVI/CVBS Command

Shortcut Key Function (Set Preset)

Set # 89preset

Delete all presets

Set #93preset Dome restart

Set #94 preset Restore Factory Setting

Set #96 preset Park OFF

Set #97 preset 60S Park time ON

Set #98preset 120S Park time ON

Shortcut key Function (Call preset)

Call #67preset Change system to PAL

Call #68preset Change system to NTSC

Call #69 preset Open Advanced Settings menu

CVI Command

Shortcut Key Function (Set Preset)

Set # 54preset Delete all presets

Set #55 preset Restore Factory Setting

Set #56 preset Park OFF

Set #57 preset 60S Park time ON

Set #58preset 120S Park time ON

Shortcut key Function (Call preset)

Call #53 preset Open Advanced Settings menu

Call #67preset Change system to PAL

Call #68preset Change system to NTSC

Important Note:

Power off action: Manually set#6 preset as power off memory position.

Parking position is default OFF. Manually set #1 preset as parking position, set #97&98 for

parking time

DAIPT-390AX4 USER MANUAL

6. Technical Specs:

Model DAIPT-390AX4

Image sensor

1/2.9” CMOS

Resolution

HD Analog

2MP(AHD/CVI/TVI-1920*1080)

Analog 700TVL

Optical Zoom X4 (2.8mm-12mm)

Digital Zoom No

Horizontal Angle of view 106°~51.8°

Sync System Internal

Min. Illumination 0.01lux(0lux with IR On)

Day & Night Auto/Day/Night

IR LED 2pcs LED(10m)

S/N Ratio 50dB

Focus Auto/Manual

Auto/Gain

Auto/Manual

Wide-D No

White Balance ATW/Manual/Outdoor/Indoor

BLC On/Off

Shutter Speed 1/50-1/100000

Sense Up No

Pan/title range

250° (Pan); 65(title)

Parking function Yes

Port

Video port BNC port

Power port DC12V/1A

Other

Power 10W(max)

Operation Temp. -20°C ~+60°C
