Quick Install Guide
Tsunami MP.11
Model 5012-SUR
Version 3.0.1
Part Number: 73226 (CD version)
73227 (Print version)
Page 2 Copyright © 2006 Proxim Wireless
NOTICES
Copyright
Copyright ©2006 Proxim Wireless Corporation, San Jose, CA. All rights
reserved. Covered by one or more of the following U.S. patents: 5,231,634;
5,875,179; 6,006,090; 5,809,060; 6,075,812; 5,077,753. This manual and
the software described herein are copyrighted with all rights reserved. No
part of this publication may be reproduced, transmitted, transcribed, stored in
a retrieval system, or translated into any language in any form by any means
without the written permission of Proxim Wireless Corporation.
Trademarks
Tsunami, Proxim, and the Proxim logo are trademarks of Proxim Wireless
Corporation. All other trademarks mentioned herein are the property of their
respective owners.
All rights reserved Page 3
CONTENTS
Introduction ................................................................... 4
Key Features ........................................................................................4
Package Contents .................................................................................5
Hardware and Software Installation............................... 6
Step 1: Choose a location ......................................................................7
Step 2: Attach cables ............................................................................8
Step 3: Mount Unit to Pole ................................................................... 10
Step 4: View LEDs/Adjust Mounting....................................................... 12
Step 5: Close Cable Compartment......................................................... 13
Step 6: Tighten Band Clamps ............................................................... 15
Step 7: Install Documentation and Software ........................................... 16
Initialization................................................................. 17
Setting the IP Address ......................................................................... 17
Accessing the Web Browser ................................................................. 19
Accessing the Command Line Interface ................................................. 20
Default Settings ........................................................... 21
Technical services and support..................................... 23
Support Options.................................................................................. 23
Page 4 Copyright © 2006 Proxim Wireless
INTRODUCTION
The Tsunami MP.11 Model 5012-SUR is a exible wireless outdoor client that let
you design solutions for point-to-point links and point-to-multipoint networks.
The 5012-SUR is part of the Tsunami MP.11 product family, which is comprised
of several additional products, including the 5054 Base Station and Subscriber
Units, and the 5012-SUI Subscriber Unit for indoor installation; and the 5054-
R, 5054-R-LR, and 2454-R Base Station and Subscriber Units for outdoor
installation. The 5012-SUR is fully compatible with Base Station models 5054,
5054-R, and 5054-R-LR.
Key Features
Some of the key features of the Tsunami MP.11 5012-SUR are:
The use of a highly optimized protocol for outdoor situations
Routing and bridging capability
Asymmetric bandwidth management
Management through a Web Interface, a Command Line Interface (CLI), or
Simple Network Management Protocol (SNMP)
Software and conguration upgrade through le transfer (TFTP)
Integrated antenna
VLAN support (congured on Base Station)
This document shows the basics of setting up the units. For detailed
information, see the Tsunami MP.11 Model 5012-SUR Installation and
Management Guide.
▪
▪
▪
▪
▪
▪
▪
All rights reserved Page 5
PACKAGE CONTENTS
Each Tsunami 5012-SUR shipment includes the items listed in the following
table. Verify that you have received all parts of the shipment.
Note:
Cables are not provided with the unit.
5012-SUR unit
Band clamps (2)
Installation CD
Page 6 Copyright © 2006 Proxim Wireless
HARDWARE AND SOFTWARE INSTALLATION
Notes:
Be sure to read the Release Notes le on the installation CD as it contains
software version and driver information that may not have been available
when this document was produced.
The Congure System window provides a selectable Country eld that
automatically provides the allowed bandwidth and frequencies for the
selected country as well as, where applicable, Dynamic Frequency Selection
(DFS) and Transmit Power Control (TPC).
Equipment is to be used with and powered by an 802.3af-compliant power
injector (purchased separately).
▪
▪
▪
IMPORTANT!
Before installing this product, see “Safety and Regulatory Information” on
the product CD for important safety and regulatory compliance informa-
tion.
IMPORTANT!
Before installing this product, see “Safety and Regulatory Information” on
the product CD for important safety and regulatory compliance informa-
tion.
All rights reserved Page 7
Step 1: Choose a location
To make optimal use of the unit, you must nd a suitable location for the
hardware. The range of the unit largely depends upon the position of the
integrated antenna. Proxim recommends you do a site survey, observing the
following requirements, before mounting the hardware.
The location must allow easy disconnection of the unit from the power
outlet if necessary.
The unit must not be covered and the air must be able to ow freely around
the unit.
The unit must be kept away from vibration, excessive heat, and humidity,
and kept free from dust buildup.
The installation must conform to local regulations at all times.
The units are designed to mount directly to a 1” - 1.5” pole (not included)
using the supplied band clamps. An optional universal pole mounting kit is also
available from Proxim (P/N 1087-UMK); this kit is designed to mount directly to
a at surface such as a roof, wall, or under an eave.
As the units are electrically isolated from the mounting pole, there is no need to
ground the unit.
Caution!
Local regulations may require the use of a lightning arrestor at the building
ingress point. Be sure to comply with this and all local regulations. You
can purchase the Proxim Lightning Protector MP.11/QB.11 (70251); see
the documentation that comes with the unit for more information and
installation instructions.
▪
▪
▪
▪
Page 8 Copyright © 2006 Proxim Wireless
Step 2: Attach cables
Note:
Depending on your application and location, you may nd it easier to mount
the unit before you attach cables to it. If this is the case, remove the cable
cover (as explained in step 1 below), and then complete Step 3: Mount Unit
to Pole. Return to this step for cabling instructions.
With the laying unit face down, depress both buttons on the back of the
5012-SUR unit, and pull the plastic cover downward to open. Remove
cover.
Connect one end of an Ethernet cable (5.5 mm/.217 in OD maximum; not
supplied) to the unit’s LAN port.
Route the Ethernet cable as shown below.
Connect the other end of the Ethernet cable to the Data and Power Out
port of the DC Injector.
Note:
You must use an 802.3af-compliant power injector, such as the Proxim 1-
Port Power Injector (P/N 4301-xx).
Connect one end of a second Ethernet cable (not supplied) to the Data In
port of the DC Injector and the other end to a switch, hub, patch panel, or
single computer:
Use a straight-through Ethernet cable if you are connecting the unit to
1.
2.
3.
4.
5.
▪
All rights reserved Page 9
a switch, hub, or patch panel.
Use a cross-over Ethernet cable or adapter if you are connecting the
unit to a single computer or most router ports.
▪
Page 10 Copyright © 2006 Proxim Wireless
Step 3: Mount Unit to Pole
Mount the 5012-SUR to a pole as follows:

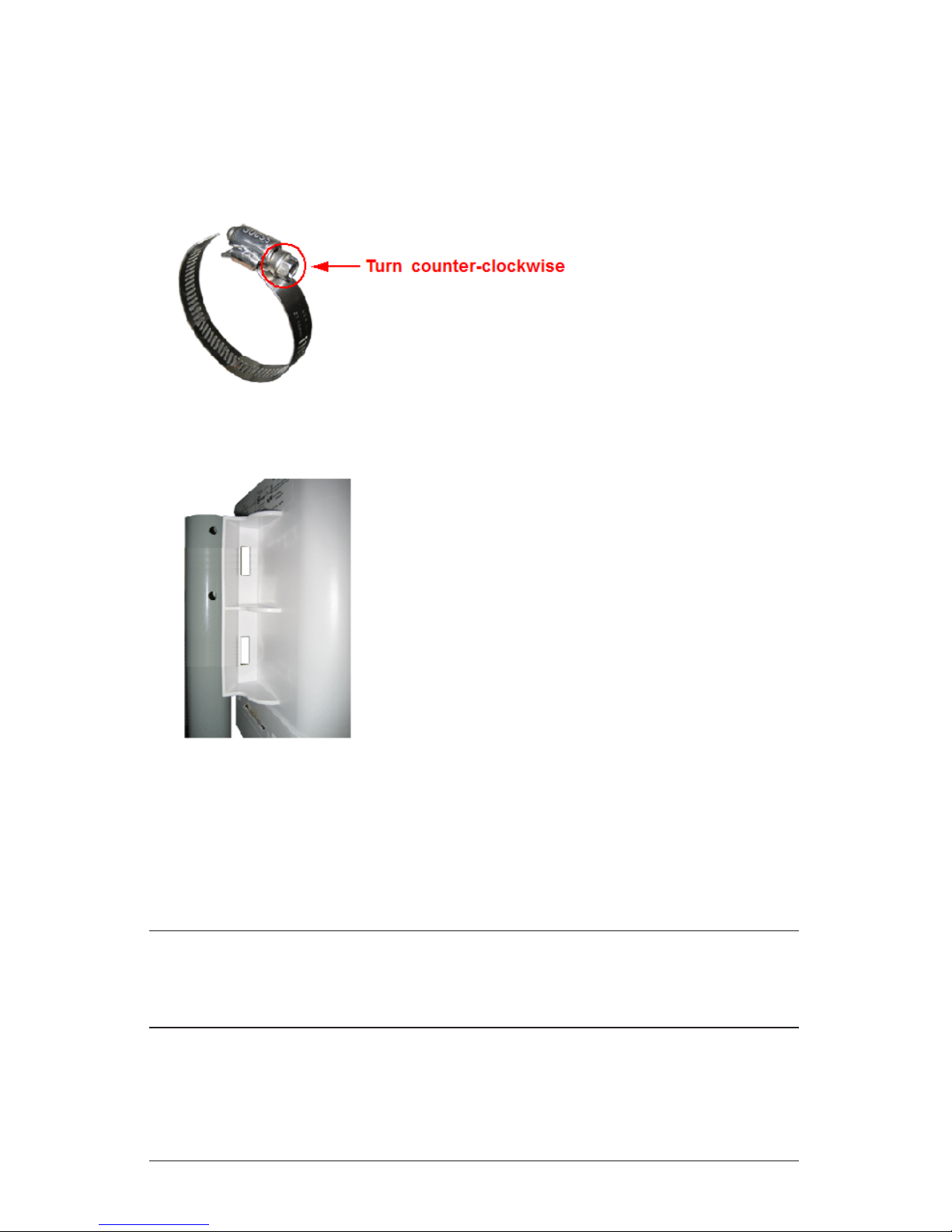

Using a screwdriver, turn the screw on the band clamp counter-clockwise
until the clamp opens.
Place the back of the 5012-SUR against the pole such that the pole ts into
the curved portion of the unit.
With the 5012-SUR aimed in the direction of the BSU, slide the at end of
the band clamp around the pole and through the top opening in the 5012-
SUR unit, threading the at end of the band clamp into the metal catch at
the other end.
Using a 5/16” nutdriver or a screwdriver, turn the screw on the band clamp
clockwise until it is tight enough to hold the unit in place
Note:
Do not fully tighten band clamps; you must rst ensure a functional link to
the BSU (see Step 4: View LEDs/Adjust Mounting).
1.
2.
3.
4.
