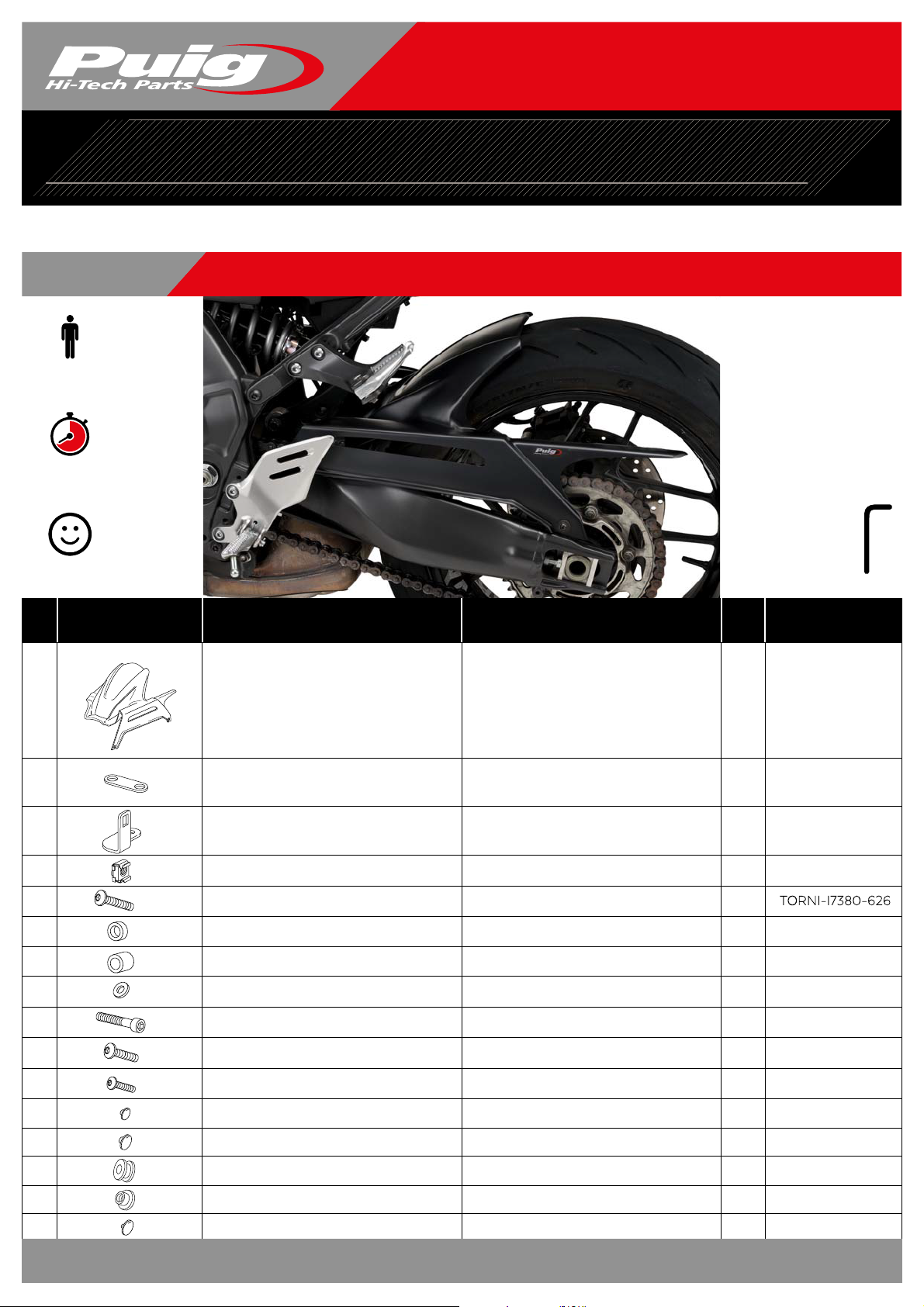

PUIG 21226 Manuale utente

ID QTY REFPIEZA/PART DESCRIPCIÓN DESCRIPTION

www.puig.tv

www.puigusa.com

info@puig.tv

info@puigusa.com

Pg. 1/6

40 min

ALLEN

Nº 3

Nº 4

Nº 5

Nº 6

YAMAHA MT09 /SP ‘21-

1 Person

SILENBGONE--064

CASQUI-1A---324

TUERCAJFM6--319

TORNI-912--474

TORNI-I7380-404

CASQUI------659

CASQUI------641

TAPON--------85

TORNI-I7380-493

ARAND-D9021-752

TAPON--------86

SOPOR2P4-C21226

SOPOR2P4-R21226

21226J/CM3

Silentblock Ø18x Ø9 xØ11 x8

Casquillo con valona Ø15 xØ9 x7,5

Tuerca enjaulada de aluminio M6

Tornillo Allen M6x65 DIN912

Tornillo Allen M6x20 Ø11 ISO7380

Casquillo Ø8,5 xØ14 x20

Casquillo Ø8,5 xØ14 x12

Tapón tornillo M5 ISO 7380

Tornillo Allen M6x30 Ø11 ISO 7380

Tornillo Allen M5x16 Ø11 ISO7380

Arandela metálica M8 DIN9021

Tapón tornillo M6 ISO 7380

Soporte central

Soporte derecho

Guardabarros

Ø18x Ø9 xØ11 x8 silentblock

Ø15 xØ9 x7,5 bush with flange

M6 lock nut

M6x65 DIN912 ISO7380 Allen screw

M6x20 Ø11 ISO7380 Allen screw

Ø8,5 xØ14 x20 arrowhead

Ø8,5 xØ14 x12 arrowhead

M5 ISO 7380 screw cap

M6x30 Ø11 ISO 7380 Allen screw

M5x16 Ø11 ISO7380 Allen screw

M8 DIN9021 metal washer

M6 ISO 7380 screw cap

Central support

Right support

Rear mudguard

EASY

MOUNTING INSTR U CTI O N S

GUARDABARROS TRASERO / REAR MUDGUAR D

REF 21226

Illustrations and layout by: www.ciandisseny.com

*Algunos componentes se suministran montados.

Some components are supplied assembled.

V0.05/22

16 1TAPON--------88

Tapón tornillo M6 DIN 912 M6 DIN 912 screw cap

www.puig.tv

www.puigusa.com

info@puig.tv

info@puigusa.com

INSTRUCCIONES DE M ON TAJE - MOUNTING INSTRUCTIONS - MONTAGEANLEITUN G

Pg. 2/6

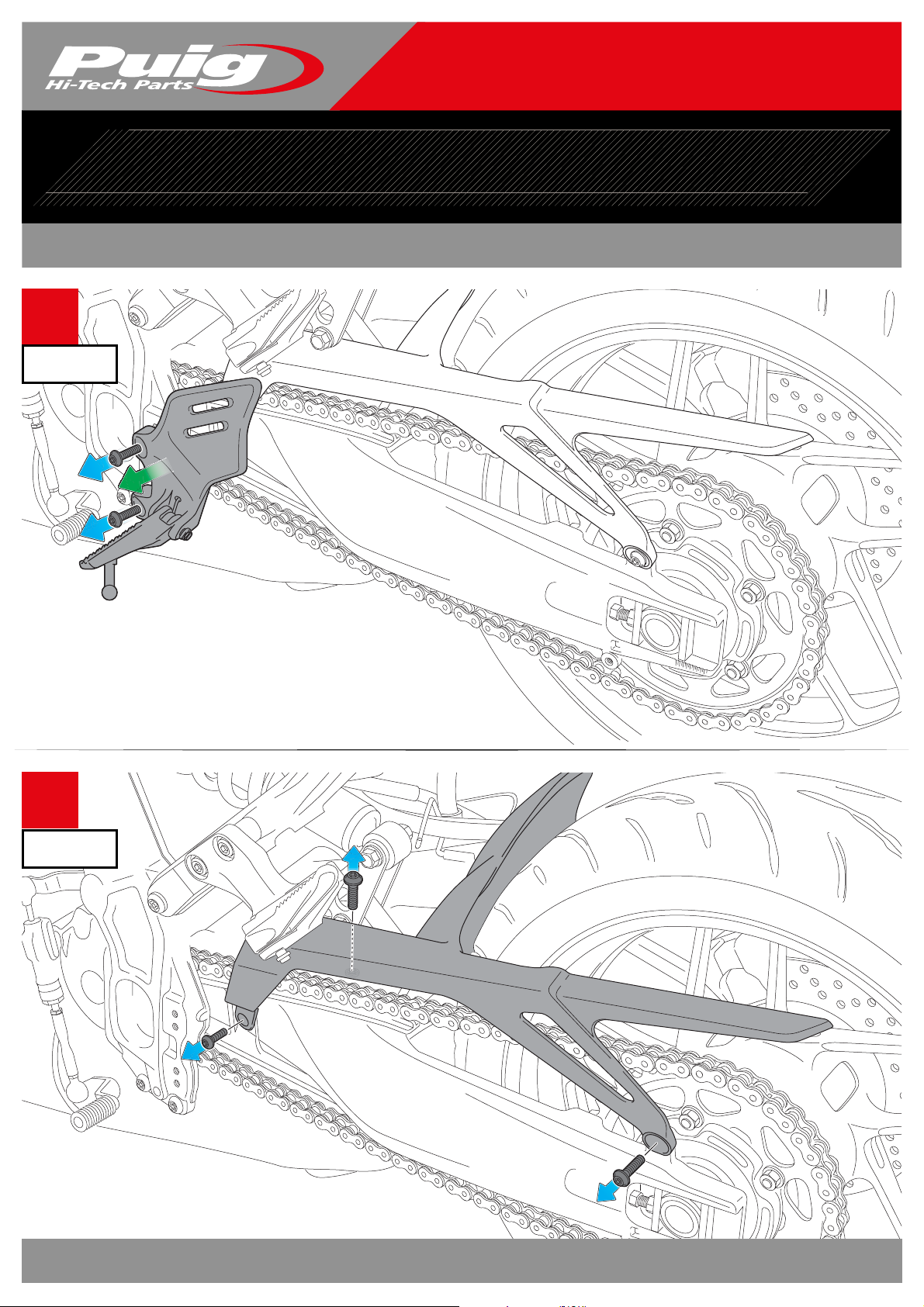

DISASSEMBLY

DESMONTAJE

DISASSEMBLY

DESMONTAJE

Illustrations and layout by: www.ciandisseny.com

V0.05/22

YAMAHA MT09 /SP ‘21-

www.puig.tv

www.puigusa.com

info@puig.tv

info@puigusa.com

INSTRUCCIONES DE M ON TAJE - MOUNTING INSTRUCTIONS - MONTAGEANLEITUN G

Pg. 3/6

DISASSEMBLY

DESMONTAJE

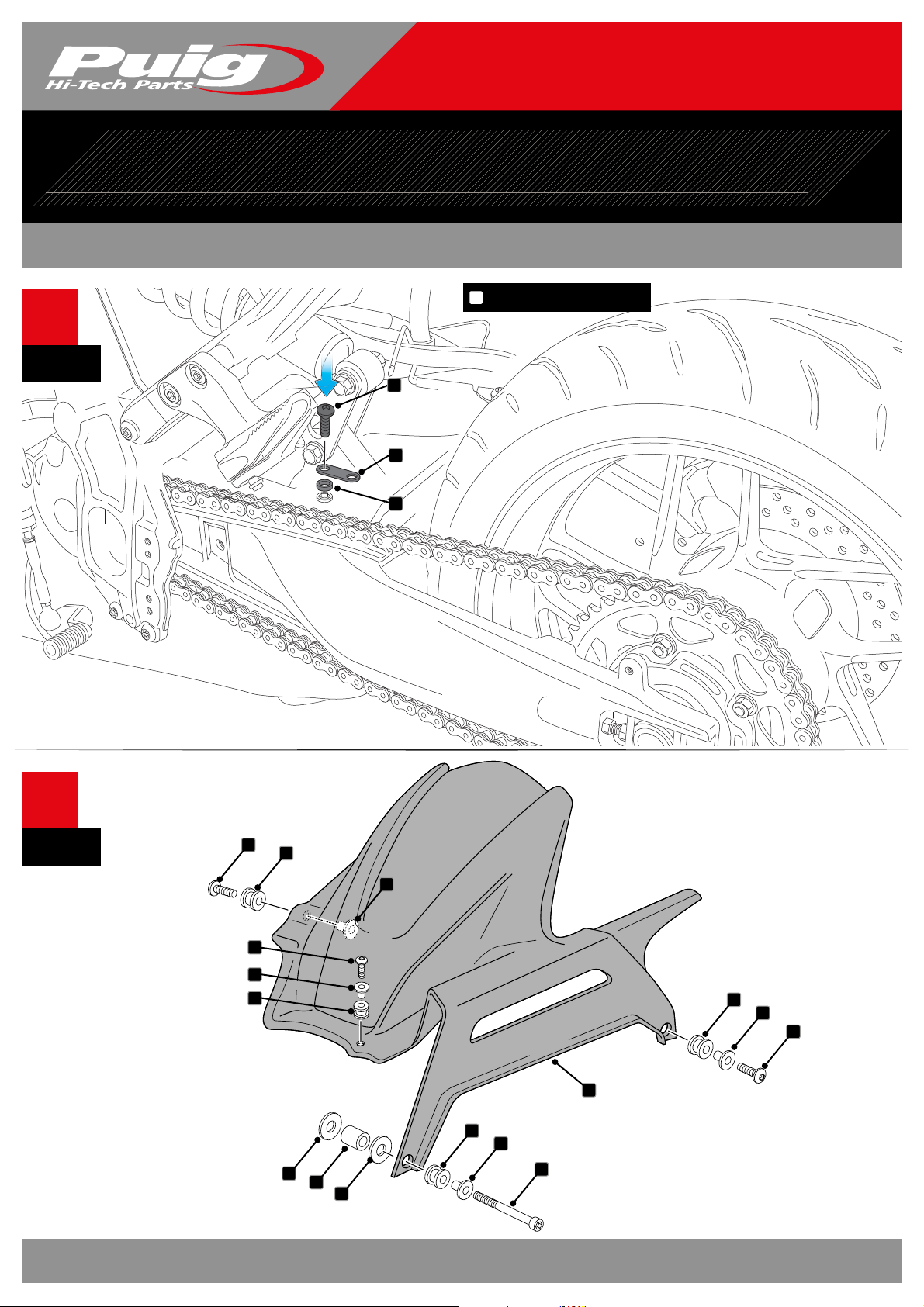

ASSEMBLY

MONTAJE

Illustrations and layout by: www.ciandisseny.com

V0.05/22

PIEZA ORIGINAL

ORIGINAL PART

YAMAHA MT09 /SP ‘21-

www.puig.tv

www.puigusa.com

info@puig.tv

info@puigusa.com

INSTRUCCIONES DE MON TAJE - MOU NT ING INSTRUCTIONS - M ON TAGEANLEITUNG

Pg. 4/6

ASSEMBLY

MONTAJE

ASSEMBLY

MONTAJE

Illustrations and layout by: www.ciandisseny.com

V0.05/22

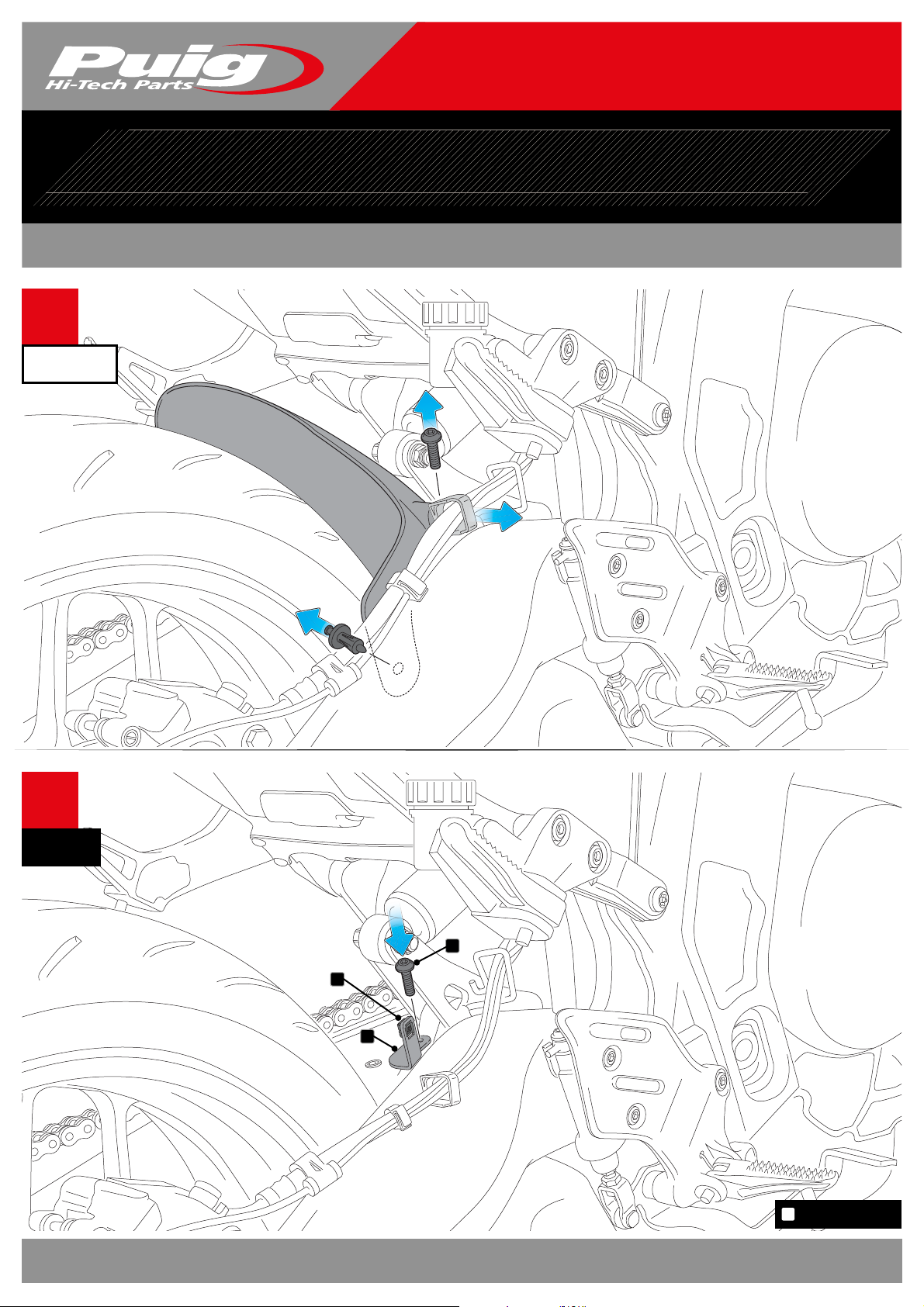

NO APRETAR EL TORNILLO

DON’T TIGHTEN SCREW

YAMAHA MT09 /SP ‘21-

www.puig.tv

www.puigusa.com

info@puig.tv

info@puigusa.com

INSTRUCCIONES DE MON TAJE - MOU NT ING INSTRUCTIONS - M ON TAGEANLEITUNG

Pg. 5/6

ASSEMBLY

MONTAJE

ASSEMBLY

MONTAJE

Illustrations and layout by: www.ciandisseny.com

V0.05/22

PIEZA ORIGINAL

ORIGINAL PART

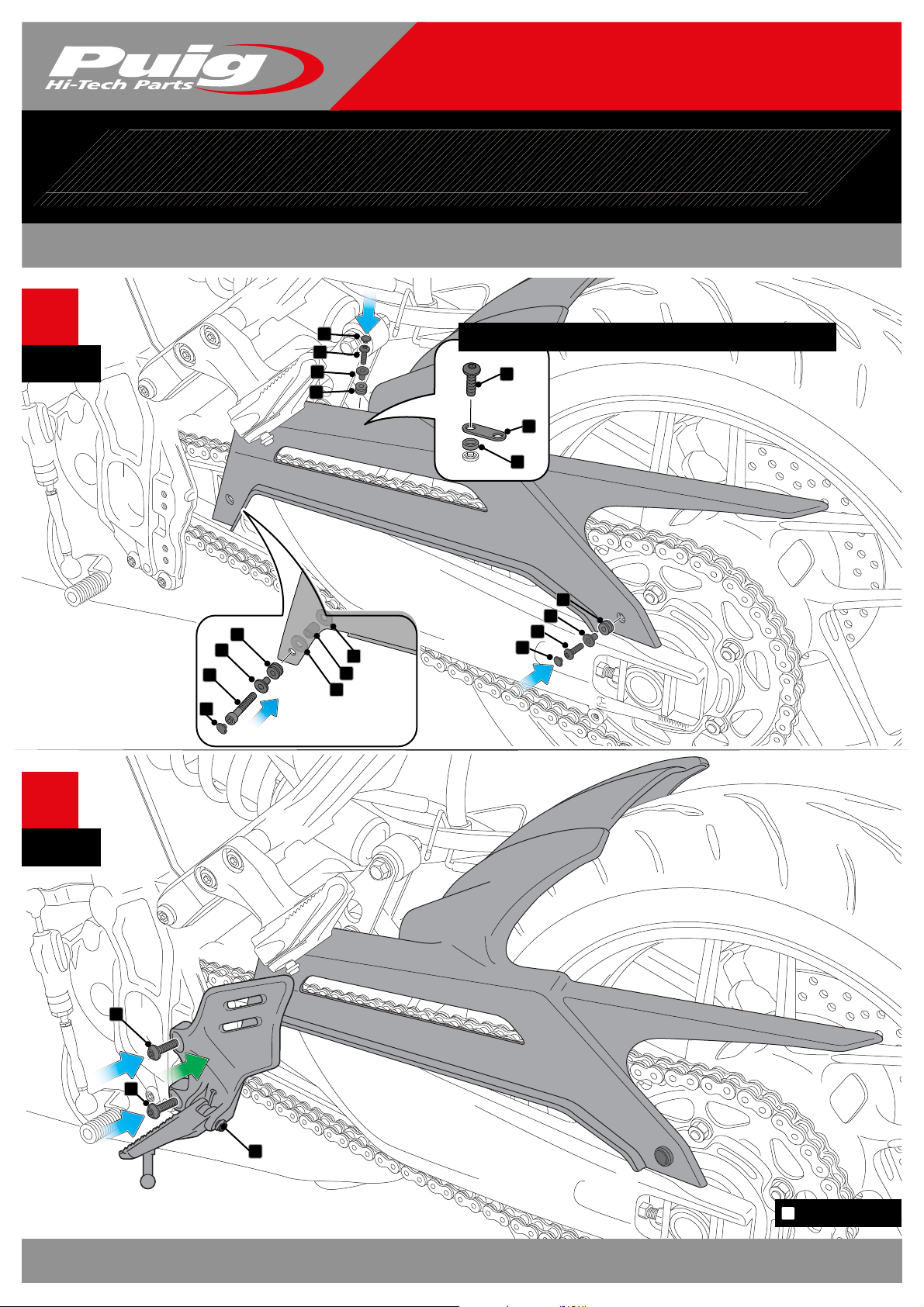

POSICIONAR EL SOPORTE ID-2 Y APRETAR EL TORNILLO ID-5

POSITION ID-2 SUPPORT AND TIGTHEN SCREW ID-5

YAMAHA MT09 /SP ‘21-

www.puig.tv

www.puigusa.com

info@puig.tv

info@puigusa.com

INSTRUCCIONES DE M ON TAJE - MOUNTING INSTRUCTIONS - MONTAGEANLEITUN G

Pg. 6/6

ASSEMBLY

MONTAJE

ASSEMBLY

MONTAJE

Illustrations and layout by: www.ciandisseny.com

V0.05/22

PIEZA ORIGINAL

ORIGINAL PART

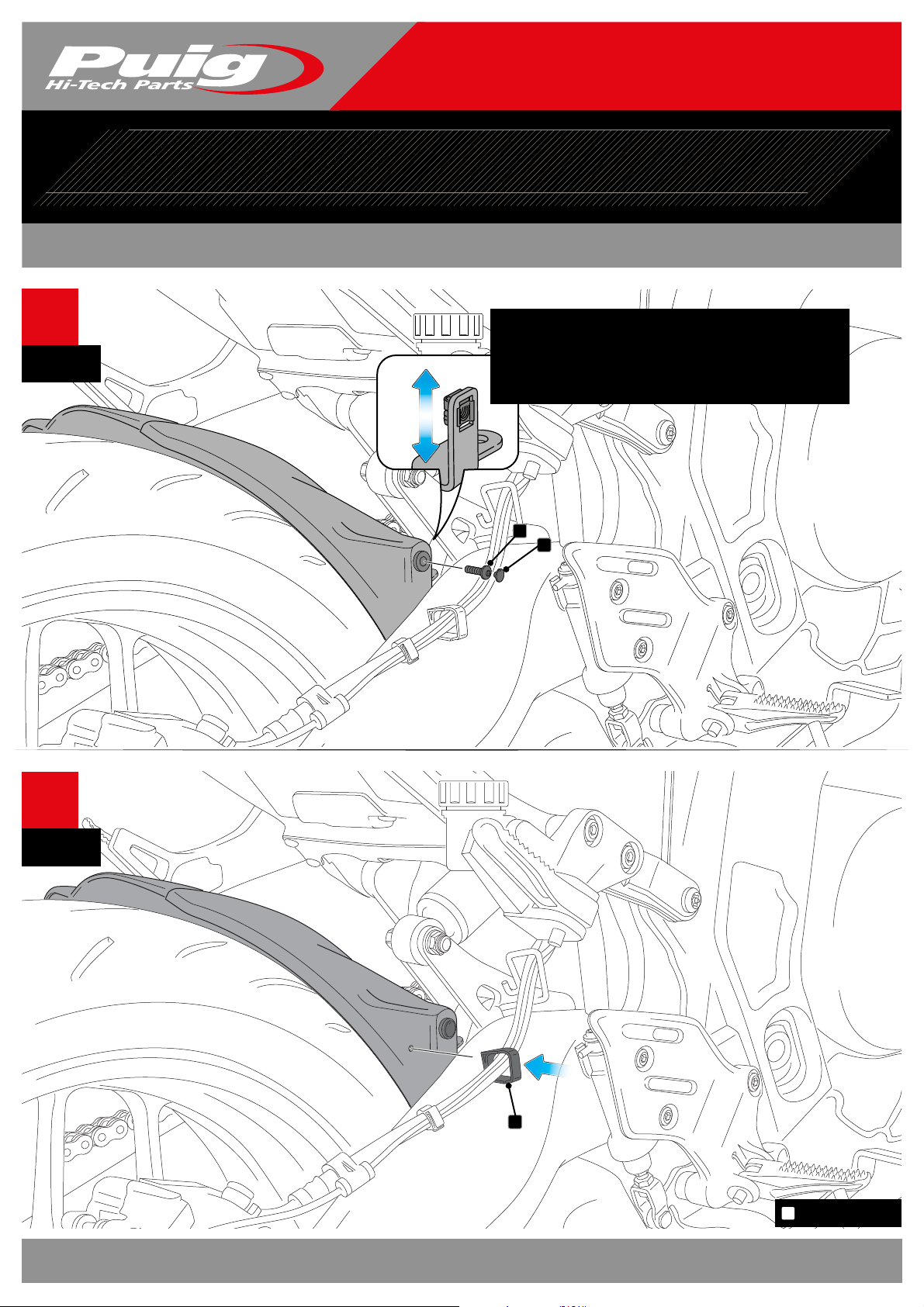

PARA REGULAR LA POSICIÓN DEL GUARDABARROS SOBRE

LA RUEDA, AFLOJAR EL TORNILLO ID-10 Y SUBIR/BAJAR LA

POSICIÓN DE LA TUERCA ID-4.

TO ADJUST THE POSITION OF THE MUDGUARD ON THE

WHEEL, LOOSEN THE ID-10 SCREW AND RAISE/LOWER THE

POSITION OF THE ID-4 NUT.

YAMAHA MT09 /SP ‘21-
