Pulsar ZRS2761GD Manuale utente

INSTALLATION GUIDE

ENGLISH

code: ZRS2761GD

Name: RACK cabinet, floor standing, fully assembled 27U/600x1000

IM ZRS2761GD

Edition: 2 from 18.10.2013

Supersedes: 1 from 20.11.2012

EN*

1. Intended use:

The RACK 19” cabinet enables integrating CCTV, AC, I&HAS, RTV, LAN, or other systems in medium and big companies. It

is intended for devices manufactured in enclosures of the 19'’ standard. Due to the RACK cabinets, the devices are aesthetically

mounted and protected against mechanical damage.

2. Specifications:

SPECIFICATIONS

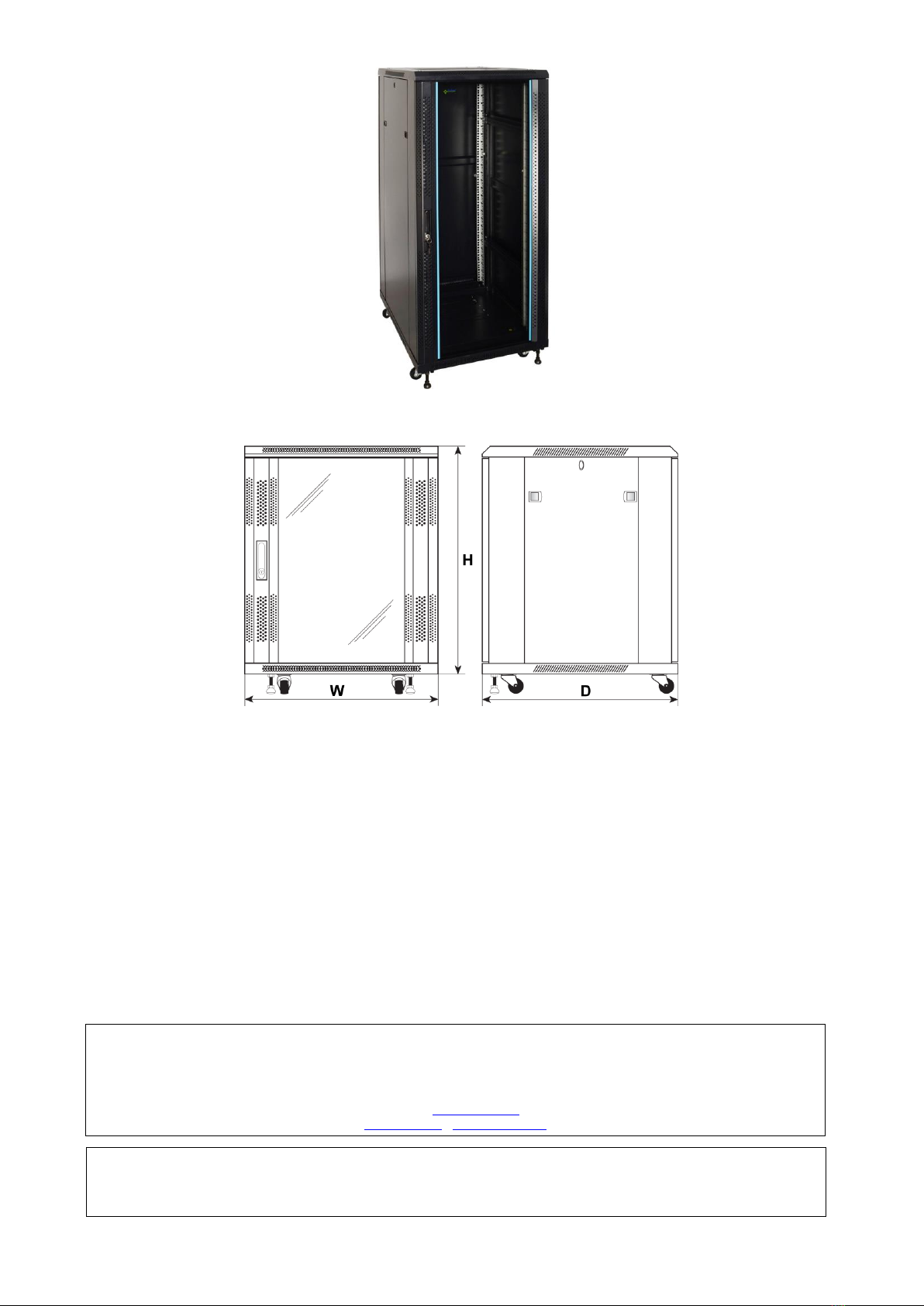

Mounting dimensions:

W=19", H=27U

External dimensions:

W=600, H=1388, D=1000 [mm, +/-2]

Net/gross weight:

88 / 94,2 [kg]

Materials:

- RACK mounting rails: cold-rolled steel SPCC 2mm RAL 9004 –bolted

- horizontal mounting rails: cold-rolled steel SPCC 1,5mm RAL 9004 - bolted

- frame: cold-rolled steel SPCC 1,2mm RAL 9004 - welded

- front door: 5mm toughened glass / SPCC 1,2mm RAL 9004 - hinged

- side panels: cold-rolled steel SPCC 1,2mm RAL 9004 - removable

- rear door: cold-rolled steel SPCC 1,2mm RAL 9004 - hinged

Static load:

800 kg (with leveling feet)

Use:

inside, IP20

Notes:

- adjustable distance between front and rear RACK rails

- ventilation holes in the front door, top and bottom panel

- possible mounting of a 4-fan tray in the top panel –RAWP1000

- cable ducts in the top and bottom panel

- 4 casters without brakes and 4 leveling feet included

- possible assembly of a 100mm high plinth - RAC1610

- lockable front door (2 keys included)

- lockable rear door (2 keys included)

- side panels - lock assembly possible - RAZB16

- the possibility of installing a set of RAPU-S grounding wires in the rack

- fully assembled

Certificates, declarations:

RoHS

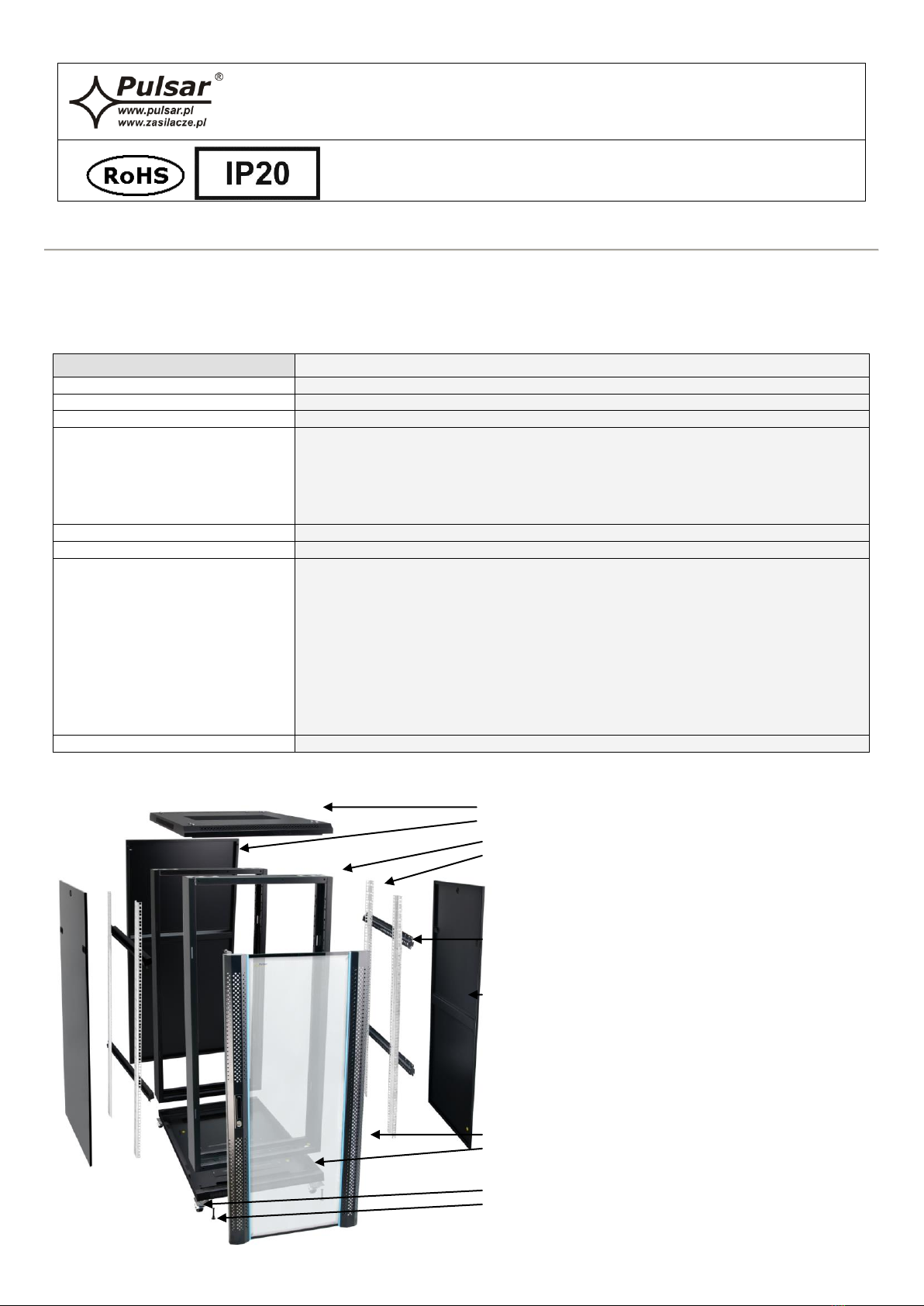

3. Structure of the cabinet.

top panel

rear door

frame

RACK rail

horizontal rail

side panel

front door

bottom panel

2” caster without brake

leveling foot

MANUFACTURER

Pulsar K.Bogusz Sp.j.

Siedlec 150,

32-744 Łapczyca

Tel. 14-610-19-40, Fax. 14-610-19-50

e-mail: biur[email protected]

www.pulsar.pl , www.zasilacze.pl

WARRANTY

12 months from the date of purchase.

THE WARRANTY IS VALID only upon presentation of the item’s proof of purchase.
