PureLink HCE II Manuale utente

HCE II Owner’s Manual

HDMI, and IR Extender

over HDBaseT with 3D, 4K Support

PureLinkTM

535 East Crescent Ave

Ramsey, NJ 07446

Tel: 201.488.3232

Fax: 201.621.6118

Website : www.purelinkav.com

E-mail : [email protected]

For Technical Support, contact us at

: [email protected]

PureLink by Dtrovision

Package Contents

Please make sure all of the following items are included in the package:

1 x HCE II Transmitter Module

1 x HCE II Receiver Module

2 x Power adapter

1 x User Manual

Description

The PureLink HCE II is a transmitter and receiver set for long distance extension of HDMI video

and embedded audio with bi-directional control signal (IR) over single CAT 5/6/7- type cable. It is

designed on HDBaseT technology which allows full 3D support with up to 230ft (70m) at

1080P@60Hz, and 130ft (40m) at 4K2K (UHD) resolution. A compact and low profile enclosure

makes the HCE II ideal for extending HDMI video, embedded multi-channel audio, and bi-

directional control signal to limited space environment such as behind a flat-panel display.

PureLink HCE II is HDCP compliant and it enables the reliable, long distance extension of

HDMI signals, supporting Deep Color and full 3D and embedded HD lossless audio

formats. In addition, EDID and HDCP communication is being maintained between a

source and display.

Features

Zero loss & Zero noise delivery of digital high definition video and audio signal

using UTP connection, HCE II delivers HD signals over CAT5/6/7-type cables

without loss or digital interference maintaining the clarity and colors. Noise

cancellation and error correction logic enhances HDMI video and audio signals

over long distance.

Compact and Robust enclosure design allows for discreet installation behind a

flat-panel display.

Designed based on HDBaseT Technology, supporting support Deep Color and

full 3D support plus DTS-HD and Dolby TrueHD over a single low cost CATx

interface with up to 230ft (70m) at 1080P@60Hz or 1920x1200@60Hz and 130ft

(40m) at 4K2K (UHD) resolution.

PureLink by Dtrovision

Bi-directional IR control signal transmission.

Max. Data Rate- 10.2 Gbps.

HDCP (High-bandwidth Digital Content Protection) Support.

HDMI version 1.4 Support.

Audio transmission support LPCM 7.1@192KHz, Dolby TrueHD, DTS-HD MA.

Model HCE II

Input Signal HDMI

Output Signal HDMI

Supporting Display

Resolutions VGA ~ WUXGA (up to 1920 x 1200 @ 60Hz),

480i ~ 1080p, 4K2K @ 30Hz

Max. Distance 1920x1200 @ 60Hz or 1080P@60Hz : 230ft (70m)

4K2K@30Hz : 130ft (40m)

Connector Type

DC Power Jack

HDMI 19 Pin Female (Type A)

RJ-45

Conformations HDMI version 1.4 With HDCP

Power Rating DC 5V , 2A

Dimension 4.01x3.34x1.02 inches / 102.1 x 85.0 x26.0 mm

Weight 0.61lbs (0.28Kg) each

*Please use CAT6a/CAT7 cable for maximum distance transmission.

* Travel Range Specification

Cable Type Range Pixel clock rate Video Data Rate Supported Video

CAT5e/CAT6 60 m <= 225 MHz <= 5.3 Gbps

(HD Video)

Up to 1080p, 60Hz, 36bpp (Data

rates lower than 5.3 Gbps or

below 225 MHz TMDS clock)

35 m > 225 MHz > 5.3 Gbps

(Ultra HD Video)

1080p 60Hz 48bpp, 1080p60Hz

3D, and 4K2K, 30Hz video

formats

CAT6a/CAT7 70 m <= 225 MHz <= 5.3 Gbps

(HD Video)

Up to 1080p, 60Hz, 36bpp (Data

rates lower than 5.3 Gbps or

below 225 MHz TMDS clock)

40 m > 225 MHz > 5.3 Gbps

(Ultra HD Video)

1080p 60Hz 48bpp, 1080p60Hz

3D, and 4K2K, 30Hz video

formats

PureLink by Dtrovision

Operation and Reliability Specification

1. Operating Environment

Temperature : 32F ~ 131F (0℃~ 55℃)

Humidity : 10% ~ 80%

Altitude : 3,000m Max.

2. Transit Environment

Temperature : -13F ~ 140F (-25℃~ 60℃)

Humidity : 5% ~ 95%

Altitude : 15,000m Max.

3. Storage Environment

Temperature : -4F ~ 185F (-20℃~ 85℃)

Humidity : 5% ~ 95%

Altitude : 3,000m Max.

4. Reliability

MTBF: 90% at over 50,000 hours aging test

In compliance with LCD Monitor reliability test standard

Installation and Connection Instructions

1. Turn off both the video source and the display before connecting any cables.

2. Connect CATx cable between the HCE II transmitter and the HCE II receiver.

3. Connect HDMI cable between the source and the HCE II transmitter AND the HCE

II receiver and the display.

4. Connect the power supply unit to both HCE II transmitter and receiver module.

5. Turn on Display.

6. Turn on Video Source.

PureLink by Dtrovision

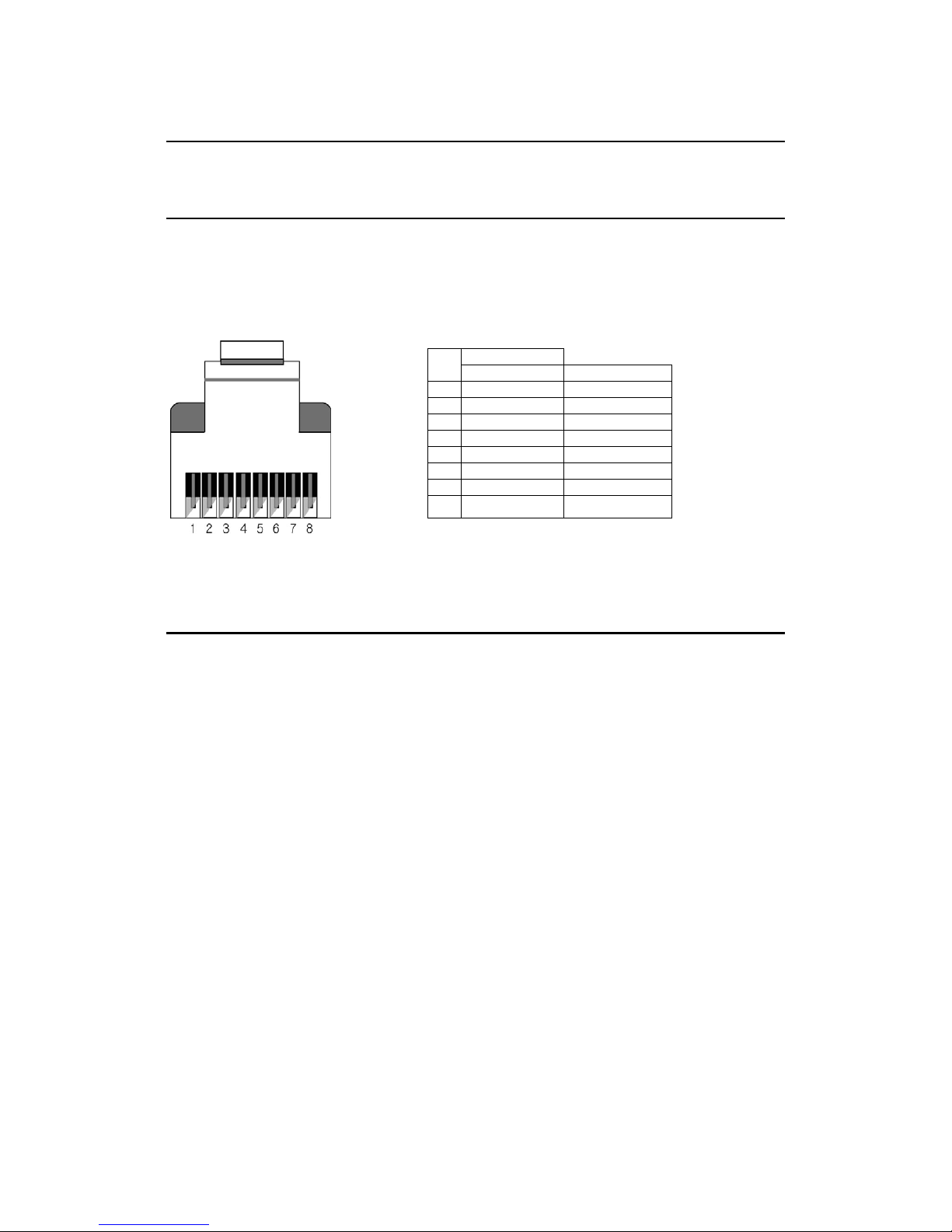

How to terminate CATx cable

HCE II was designed to conform to TIA/EIA-568-B standard. Please ensure that each PIN

layout of HCE II transmitter and HCE II receiver are corresponding with the picture

below before connecting the cable. Please note that CAT5e or above level cable enables

to deliver better video quality and longer distance.

CATx cable

Link cable recommend use high quality CAT5, CAT5e, CAT6, CAT6a, CAT7 UTP / STP or

FTP cable.

TIA/EIA-568B

Wire color Digital RGB

1 Orange/ White DATA0 +

2 Orange DATA0 -

3 Green/ White DATA1

4 Blue DATA2 +

5 Blue/ White DATA2

6 Green DATA1 -

7 Brown/ White DATA3

8 Brown DATA3 -

PureLink by Dtrovision

Transmission Distance

The maximum transmission distance up to 230ft (70m), use lower resolution won’t

extend longer distance

If connection through the wall socket, the cable length must less 5 meters between

HDMI extender and wall jack, as below drawing:

PureLink by Dtrovision

HCE II Transmitter Specification

Module Dimensions: 1.93x3.6x0.98 ( inches) | 48.6 x 92.3 x24.8 (mm)

Connection Ports:

HDMI IN: HDMI Input

RJ-45(CAT) receptacle

5V DC Power Supply Unit Input

Green LED: Power On/Off Indication

Blue LED: Link On/Off

RJ-45 Green LED: Link

PureLink by Dtrovision

HCE II Receiver Specification

Module Dimensions: 1.93x3.6x0.98 ( inches) | 48.6 x 92.3 x24.8 (mm)

Connection Ports:

HDMI OUT: HDMI Output

RJ-45 (CAT) receptacle

5V DC Power Supply Unit Input

Green LED: Power On/Off Indication

Blue LED: Link On/Off

RJ-45 Green LED: Link

PureLink by Dtrovision

Technical Specification

Frequency Range: 25 ~ 165 MHz

Supporting Resolutions: Up to 4K2K / 30Hz / 48 bit

I/O Signal Standard: HDMI 1.4

Max Distance: Max 230ft (70m) at 1080P@60Hz /

Max 230ft (70m) at 1920x1200@60Hz /

Max 130ft (40m) at 4K2K@30Hz

IR Carrier: 30K~60Khz / ±10° / 5M / 2 Way

UTP Cable specification: CAT5/5e/6/6a/7

Input Ports: HDMI Female 19P (Type A) / RJ-45

Output Ports: HDMI Female 19P (Type A) / RJ-45

Power Consumption: Transmitter: 380mA (Max) /

Receiver: 820mA (Max)

Power Rating: 5V DC / 2A

PureLink by Dtrovision

Warranty

One (1) Year Warranty

PureLink warrants this HDMI, and IR Extender over HDBaseT with 3D, and 4K Support to

be free from defects in workmanship and materials, under normal use and service, for a

period of one (1) year from the date of purchase from PureLink or its authorized

resellers.

If a product does not work as warranted during the applicable warranty period, PureLink

shall, at its option and expense, repair the defective product or part, deliver to customer

an equivalent product or part to replace the defective item, or refund to customer the

purchase price paid for the defective product.

All products that are replaced will become the property of PureLink.

Replacement products may be new or reconditioned.

PureLink shall not be responsible for any software, firmware, information, or memory

data of customer contained in, stored on, or integrated with any products returned to

PureLink for repair under warranty or not.

Warranty Limitation and Exclusion

PureLink shall have no further obligation under the foregoing limited warranty if the

product has been damaged due to abuse, misuse, neglect, accident, unusual physical or

electrical stress, unauthorized modifications, tampering, alterations, or service other

than by PureLink or its authorized agents, causes other than from ordinary use or failure

to properly use the Product in the application for which said Product is intended.

Caution

1. The wiring must away from any equipment with electromagnetic wave, i.e.: mobile phone,

microwave, radio equipment, fluorescent lamp, high voltage power lines.

2. This device is not network equipment, do not connect with Network to avoid damage.

3. IR transmitter do not put near from receiver to avoid mutual interference.
