PureLink PM Series Manuale utente

PM Series CAT5 Extenders

Owner’s Manual

PM Series CAT5 Standalone and Wall-plate type Extender

PureLinkTM

535 East Crescent Ave

Ramsey, NJ 07446

Tel: 201.488.3232

Fax: 201.621.6118

Website : www.purelinkav.com

E-mail : info@purelinkav.com

For Technical Support, contact us at

: support@purelinkav.com

PureLink by Dtrovision

TABLE OF CONTENTS

Chapter 1. Introduction

1.1 Safety Precautions --------------------------------------------------------------------------- 3

1.2 Product Introduction -------------------------------------------------------------------------- 4

1.3 Package Contents ----------------------------------------------------------------------------- 4

Chapter 2. Features and Specifications

2.1 Features ----------------------------------------------------------------------------------------- 5

2.2 Transmitter Specifications ------------------------------------------------------------------ 6

PM-CT101 --------------------------------------------------------------------------------------- 6

PM-CT102 --------------------------------------------------------------------------------------- 8

PM-CT103 --------------------------------------------------------------------------------------- 9

Transmitters Compatibility Chart -----------------------------------------------------------12

2.3 Receiver Specifications ---------------------------------------------------------------------- 13

PM-CR101 -------------------------------------------------------------------------------------- 13

PM-CR102 -------------------------------------------------------------------------------------- 14

PM-CR103 -------------------------------------------------------------------------------------- 16

Receivers Compatibility Chart ------------------------------------------------------------- 19

2.4 Operation and Reliability Specification ---------------------------------------------------20

Chapter 3. Installation and Operating Instruction

3.1Installation --------------------------------------------------------------------------------------- 21

3.2Operating Instruction --------------------------------------------------------------------------21

3.3Cable Termination ----------------------------------------------------------------------------- 22

3.4Connector Pin Assignment ------------------------------------------------------------------ 24

Chapter 4. Additional Information

4.1 Warranty ------------------------------------------------------------------------------------------27

4.2 FCC/CE Statement ---------------------------------------------------------------------------28

PureLink by Dtrovision

Chapter 1. Introduction

1.1 Safety Precautions

When using and installing Dtrovision PureLink product, adhere to the following basic safety

precautions.

Read and understand all instructions before using and installing this product.

The safety and operating instructions should be retained for future reference.

Always use the correct external power supply (indicated on the product label) when

operating this unit.

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners

or aerosol cleaners. Use a damp cloth for cleaning.

Mishandling of this product may lead to a fire or explosion hazard.

Do not place any heavy objects or equipment on top of the product.

Keep away from wet, magnetic, and flammable surfaces or substances.

Air vents should be kept clean and unobstructed at all times.

Any external impact may cause damage to the operation of this unit.

Be sure this product is properly grounded (earthed) in order to prevent the risk of

electrical shock.

Turn off and unplug power before adding or removing Input/Output Boards.

Input/Output Boards may be damaged when they are replaced with power turned on.

Use surge protectors and/or AC line conditioners when powering this product.

Only use a fuse(s) with the correct fuse rating in your enclosure.

Make sure the product is on or attached to a stable surface.

If you experience any malfunctioning of product or have any question as to operation

of the product, please contact our customer service center.

Dtrovision LLC

Tel: 201.488.3232

Email: support@dtrovision.com

PureLink by Dtrovision

1.2Product Introduction

Single CAT5 (HDBaseT) cable for video, audio, and control signal with POE

PM series CATx (HDBaseT) extension system is designed to transmit video (DVI, HDMI

or VGA), audio (Embedded or analog stereo audio), control (RS232/422 and IR), and

power over a single CATx cable for long distance up to 330ft. This CATx connection

enables to minimize electrical noise and EMI free that is ideal for long distance extension

of high definition HDMI/DVI or VGAvideo signal, HDMI embedded audio or 3.5mm

stereo analog audio, and control signal with POE.

1.3Package Contents

Please make sure all of the following items are included in the package:

1) One of PM-CT101, CT102, CT103 Transmitter Module or

2) One of PM-CR101, CR102, CR103 Receiver Module

3) 5pin Phoenix Connector for RS-232/422

4) 4pin Phoenix Connector for IR

5) DC 12V Power Supply Unit with a Power Cord

PureLink by Dtrovision

Chapter 2. Features and Specifications

2.1Features

Transmitters directly compatible with PM CATx (HDBaseT) Input Board

PM CATx (HDBaseT) Transmitters can send signal directly to PM series Matrix

Router's CATx (HDBaseT) Input Board, eliminating the need of matching Receiver.

Receivers directly compatible with PM CATx (HDBaseT) Output Board

PM CATx (HDBaseT) Receivers can receive signal directly from PM series Matrix

Router's CATx (HDBaseT) Output Board, eliminating the need of matching Transmitter.

HDMI v1.4, 3D Support

Adopting latest HDMI version 1.4 enables to support 3D, 48-Bit Deep Color, 4K x 2K

resolution and 7.1 Channel Dolby TruHD & DTS MasterHD

Auto-EDID (EDID Library, Emulation)

PureLink's EDID library and emulation features failsafe EDID capture & storage to

provide constant and continuous EDID for source devices.

HDCP Compliant

Various Transmitter and Receiver Choices

There are three different type of transmitters and three different type of receivers to

make today's sophisticated digital AV environment simple and felxible.

RF6 1RU Rack Mountable Version Available

PM-CT101, PM-CT102, PM-CR101, and PM-CR102 are also available in PureLink's

popular RF6 Rack Mountable Extension Center Modules.

Analog Support (VGA and Component)

On PM-CT102 and PM-CT103 series, there are two video inputs; DVI/HDMI and VGA,

which are selectable via front panel button or serial command when it is connected PM

series Matrix Router. VGA port is designed to take component (YPbPr) signal with

appropriate adapters or cables.

USB Firmware Update

Long Distance Transmission up to 330ft (100 m)

PureLink by Dtrovision

Plug-N-Play

Resolutions up to WUXGA 1920x1200, HD 1080p @ 60Hz, and 4K2K

Integrated Noise-cancellation and Error-correct Logic for both Input and Output

Ports to prevent any damage caused by Electrical Noise.

POE

Only one power supply is necessary to power both devices.

When PM CATx (HDBaseT) extenders are used with PM series Matrix Router CATx

Input and Output board, they can receive power from the Matrix Router.

2.2Specifications

Transmitters :

PM-CT101 : Standalone type (Loop Through)

Input: HDMI + 3.5mm stereo audio (x1) + RS-232/422 + IR

Output: CATx (HDBaseT) and HDMI Loop-Through

POE, 330ft, Compatible with PM-CIS4 input board

Front Connection Ports:

Power S/W: Power On/Off switch

Power LED: Power status indicator

Status LED: Video signal presence indicator

HDMI LED: HDMI signal indicator

EDID save S/W: EDID save button

EDID select S/W: EDID library function selection rotary switch

PureLink by Dtrovision

Firmware: USB firmware update port

Back Connection Ports:

HDMI/DVI In: HDMI/DVI input port

HDMI/DVI Out: HDMI/DVI Loop-thru output port

Audio In: Stereo audio input port

CAT5: HDBaseT output port

RS-232/422: RS-232/422 communication port

IR: IR communication port

IR voltage: IR voltage selection switch (12V or 5V)

DC In: DC 12V Power port

Model Name

PM-CT101 (HDMI version), PM-CT101-D (DVI version)

Input Signal

DVI / HDMI (TMDS)

3.5mm stereo audio

Output Signal

HDBaseT 0,1,2,3+/-

DVI / HDMI (Loop-thru)

Data Transmission

Speed

3.4 Gbps/ch, Total 10.2 Gbps Max

Supporting Display

Resolutions

PC: VGA ~ WUXGA

(up to 1920 x 1200 @60Hz)

HDTV: 480i ~ 1080p, 2K4K

Max. Distance

1920 x 1200 @ 60Hz or at 1080p : 330 ft (100m)

Connector Type

DVI 29P/HDMI 19P Female (x 2)

3.5mm Stereo Jack

RJ-45 Jack

2P /3.5MM Terminal Block (for Power)

4P /3.5MM Terminal Block (for RS-232/422)

5P /3.5MM Terminal Block (for IR)

Mini USB (for firmware update)

Conformations

DVI 1.0 , HDMI 1.4, HDBaseT

HDCP Compliance

Yes

PureLink by Dtrovision

Power Rating

DC +12V, 10Watts Max

Dimension

6.3' x 4.4' x 1.7' (160 x 112 x 42 mm)

Weight

1.43 lbs (0.65 Kg)

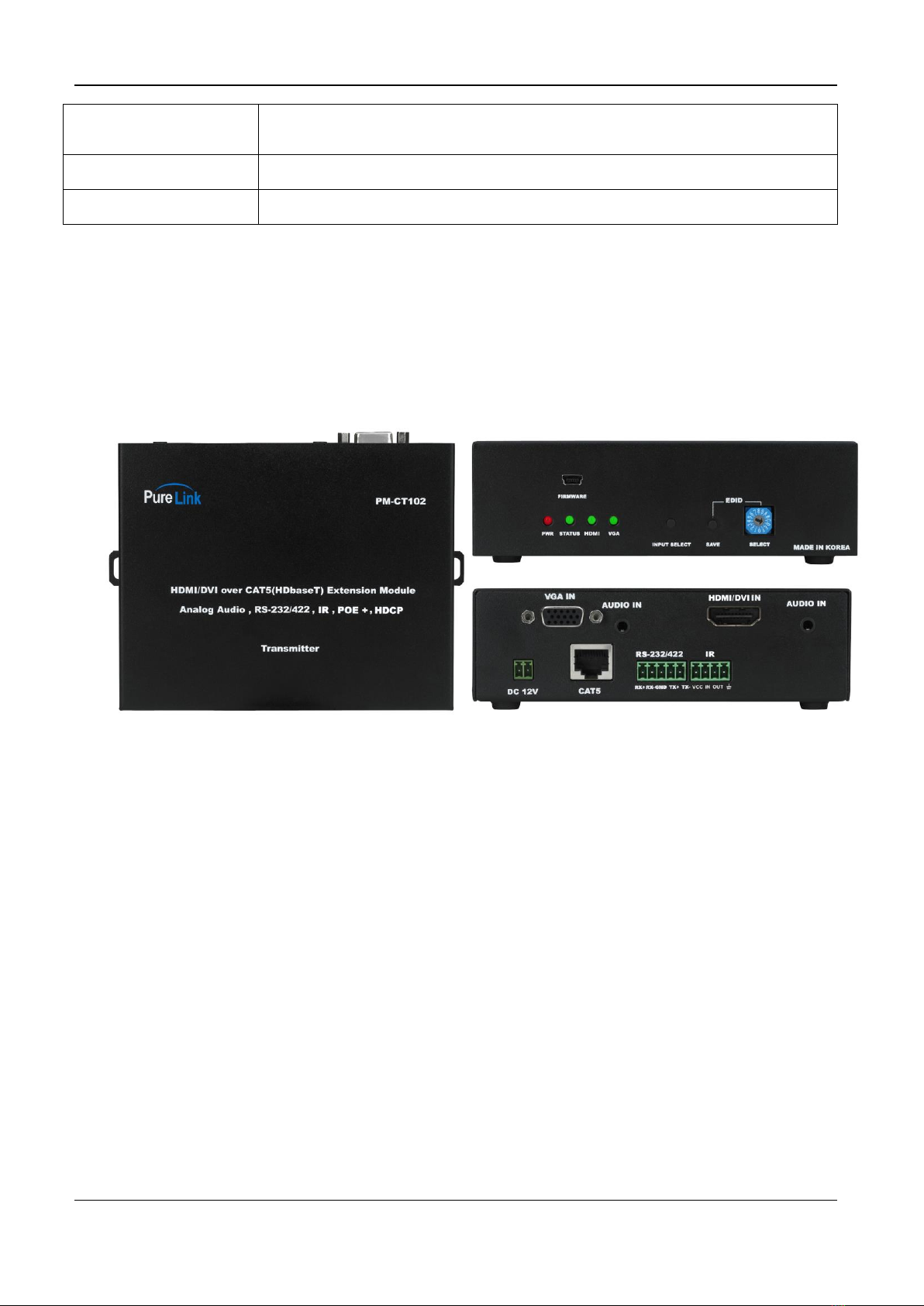

PM-CT102 : Standalone type (2x1 switch)

Input: Selectable HDMI/DVI or VGA + 3.5mm stereo audio (x2) +

RS-232/422 + IR

Output: CATx (HDBaseT)

POE, 330ft, Compatible with PM-CIS4 input board

Front Connection Ports:

Power S/W: Power On/Off switch

Power LED: Power status indicator

Status LED: Video signal presence indicator

HDMI LED: HDMI signal indicator

VGA LED: VGA (or component) signal indicator

EDID save S/W: EDID save button

EDID select S/W: EDID library function selection rotary switch

Firmware: USB firmware update port

Back Connection Ports:

HDMI/DVI In: HDMI/DVI input port

VGA In: VGA (or component) input port

Audio In: Stereo audio input port

PureLink by Dtrovision

CAT5: HDBaseT output port

RS-232/422: RS-232/422 communication port

IR: IR communication port

IR voltage: IR voltage selection switch (12V or 5V)

DC In: DC 12V Power port

Model Name

PM-CT102 (HDMI version), PM-CT102-D (DVI version)

Input Signal

DVI / HDMI (TMDS), VGA (supports YPbPr component)

3.5mm stereo audio

Output Signal

HDBaseT0,1,2,3+/-

Data Transmission

Speed

3.4 Gbps/ch, Total 10.2 Gbps Max

Supporting Display

Resolutions

PC: VGA ~ WUXGA

(up to 1920 x 1200 @60Hz)

HDTV: 480i ~ 1080p, 2K4K

Max. Distance

1920 x 1200 @ 60Hz or at 1080p : 330 ft (100m)

Connector Type

DVI 29P/HDMI 19P Female

VGA Female

3.5mm Stereo Jack (x 2)

RJ-45 Jack

2P /3.5MM Terminal Block (for Power)

4P /3.5MM Terminal Block (for RS-232/422)

5P /3.5MM Terminal Block (for IR)

Mini USB (for firmware update)

Conformations

DVI 1.0 , HDMI 1.4, HDBaseT

HDCP Compliance

Yes

Power Rating

DC +12V, 10Watts Max

Dimension

6.3' x 4.4' x 1.7' (160 x 112 x 42 mm)

Weight

1.43 lbs (0.65 Kg)

PM-CT103 : Wall plate type (2x1 switch), 2 Gang Decora style, white finish.

Input: Selectable HDMI or VGA + 3.5mm stereo audio (x1) + RS-232

Output: CATx (HDBaseT)

PureLink by Dtrovision

POE, 330ft, Compatible with PM-CIS4 input board

Front Connection Ports:

Power LED: Power status indicator

Status LED: Video signal presence indicator

HDMI LED: HDMI signal indicator

VGA LED: VGA (or component) signal indicator

EDID save S/W: EDID save button

EDID select S/W: EDID library function selection rotary switch

HDMI/DVI In: HDMI/DVI input port

VGA In: VGA (or component) input port

Audio In: Stereo audio input port

RS-232: RS-232 communication port

Back Connection Ports:

CAT5: HDBaseT output port

DC In: DC 12V Power port

Model Name

PM-CT103

Input Signal

DVI / HDMI (TMDS), VGA (supports YPbPr component)

3.5mm stereo audio

Altri manuali per PM Series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali PureLink Estensione

PureLink

PureLink HCE II Manuale utente

PureLink

PureLink PureTools PT-HDBT-200 Manuale utente

PureLink

PureLink PM Series Manuale utente

PureLink

PureLink Pure Stream VIP-200 Manuale utente

PureLink

PureLink HTS50R Manuale utente

PureLink

PureLink DVI Pure Fiber Optic Extender Dual LinkODC Manuale utente

PureLink

PureLink PT-E-HD10 Manuale utente

PureLink

PureLink HDX II Manuale utente

PureLink

PureLink PT-E-HD60 Manuale utente

PureLink

PureLink VIP-100 II Manuale utente

PureLink

PureLink HW-100 Manuale utente

PureLink

PureLink HTE Tx Manuale utente

PureLink

PureLink FIBERX FX-P350 Manuale utente

PureLink

PureLink PT-E-HD50 Manuale utente

PureLink

PureLink PT-E-DV30 Manuale utente

PureLink

PureLink PT-E-HD50 Manuale utente

PureLink

PureLink WHD030-V2 Manuale utente

PureLink

PureLink DTS-1000RV Manuale utente

PureLink

PureLink RF6 Manuale utente

PureLink

PureLink PM Series Manuale utente

PureLink

PureLink DOF4 Manuale utente

PureLink

PureLink WHD100-V2 Manuale utente

PureLink

PureLink HEXA PRO Manuale utente

PureLink

PureLink Media Axis MAX-FT101 Manuale utente

Manuali Estensione popolari di altre marche

SY HDBT-60T Manuale utente

Appsys ProAudio

Appsys ProAudio ADX-16 Manuale utente

Atlona

Atlona RS232 Manuale utente

IDK

IDK OPF-TH1000-A Manuale utente

Enable-IT

Enable-IT 824WP Manuale utente

Worx

Worx Landroid RadioLink WA0864 Scheda tecnica

TP-Link

TP-Link TL-WA730RE Manuale utente

Camplex

Camplex CMX-HDMI-SFPL Manuale utente

SC&T

SC&T HE03-4K Manuale utente

Marmitek

Marmitek MegaView70 Manuale utente

Samsung

Samsung SCS-26UC4 Manuale utente

Foxun

Foxun SX-GES24 Manuale utente

MuxLab

MuxLab 500771 Manuale utente

foxunhd

foxunhd SX-AEX01 Manuale utente

TERK Technologies

TERK Technologies LFIRX2 Manuale utente

Devolo

Devolo Audio Extender Manuale

Edimax

Edimax EW-7438RPn V2 Manuale utente

Shinybow USA

Shinybow USA SB-6335T5 Manuale utente
