PureTools PT-C-HDAEDE Manuale utente

User Manual

PT-C-HDAEDE

User Manual

HDMI Audio Embedder and De-Embedder 4K (60Hz 4:4:4)

Model PT-C-HDAEDE

Designed in Germany

User Manual

PT-C-HDAEDE

Preface

Read this user manual carefully before using this product. Pictures shown in this

manual are for reference only. Different model layouts and specifications are subject

to the physical product.

This manual is for operation instructions only, not for any maintenance usage.

In the constant effort to improve our product, we reserve the right to make changes in

functions or parameters without prior notice or obligation.

Trademarks

Product model and logo are trademarks. Any other trademarks mentioned in this

manual are acknowledged as the properties of the trademark owner. No part of this

publication may be copied or reproduced without the prior written consent.

FCC Statement

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful

interference to radio communications. It has been tested and found to comply with

the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful interference in

a commercial installation.

Operation of this equipment in a residential area is likely to cause interference, in

which case the user at their own expense will be required to take whatever measures

may be necessary to correct the interference.

Any changes or modifications not expressly approved by the manufacture would void

the user’s authority to operate the equipment.

User Manual

PT-C-HDAEDE

REACH | 2020/171/EU

ROHS | 2011/65/EU

PureLink hereby declares that this product PureTools PT-C-HDAEDE complies with

Directives 2020/171/EU und 2011/65/EU.

EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive)

PureLink GmbH hereby declares that this product PureTools PT-C-HDADE complies

with Directives 2014/30/EU and 2014/35/EU. The full text of the EU Declaration

of Conformity is available at the following Internet address:

http://www.purelink.de/ce/4251364727263_CE.pdf

User Manual

PT-C-HDAEDE

SAFETY PRECAUTIONS

To ensure the best from the product, please read all instructions carefully before

using the device. Save this manual for further reference.

⚫Unpack the equipment carefully and save the original box and packing

material for possible future shipment.

⚫Follow basic safety precautions to reduce the risk of fire, electrical shock and

injury to persons.

⚫Do not dismantle the housing or modify the module. It may result in electrical

shock or burn.

⚫Using supplies or parts not meeting the products’ specifications may cause

damage, deterioration or malfunction.

⚫Refer all servicing to qualified service personnel.

⚫To prevent fire or shock hazard, do not expose the unit to rain, moisture or

install this product near water.

⚫Do not put any heavy items on the extension cable in case of extrusion.

⚫Do not remove the housing of the device as opening or removing housing may

expose you to dangerous voltage or other hazards.

⚫Install the device in a place with fine ventilation to avoid damage caused by

overheat.

⚫Keep the module away from liquids.

⚫Spillage into the housing may result in fire, electrical shock, or equipment

damage. If an object or liquid falls or spills on to the housing, unplug the

module immediately.

⚫Do not twist or pull by force ends of the optical cable. It can cause

malfunction.

⚫Do not use liquid or aerosol cleaners to clean this unit. Always unplug the

power to the device before cleaning.

⚫Unplug the power cord when left unused for a long period of time.

⚫Information on disposal for scrapped devices: do not burn or mix with general

household waste, please treat them as normal electrical wastes.

User Manual

PT-C-HDAEDE

Introduction to PT-C-HDAEDE

The PT-C-HDAEDE is an Audio Embedder / De Embedder supporting 4K@60Hz (4:4:4)

HDMI. It enables the complex manipulation of Audio signals including Mic/Line In

mixing, and/or replacement of an HDMI audio signal. As well as headless audio output

of HDMI audio and balanced / digital de-embedding of all audio signals.

Features

•Supports one way HDMI 2.0 input and output up to 4K60Hz (4:4:4) Video

Bandwidth 18Gbps, HDR, Deep color 12bit

•Supports 48V MIC, MIC, audio line in, Audio bypass mode

•Supports HDMI Audio De-Embed to 2 CH audio balance and S/PDIF 5.1 audio

output

•Supports LPCM up to 7.1/24 - bit / 96 kHz, Dolby Atmos and DTS-X panoramic

sound passthrough

•HDCP2.2/1.4 Compliant

•Support HDMI video Down-Scaler 4k to 1080P

•Support CEC, ARC Pass through

•Firmware updating and USB port

Package Contents

Please take an inventory of the package contents to ensure you have all the items

listed below. If anything is missing or damaged, please contact your distributor for a

replacement.

▪1 x PT-C-HDAEDE

▪1 x Power Adaptor (5V 1A)

▪1 x 5-pin Phoenix Connector

▪1 x 3-pin Phoenix Connector

▪2 x fixings

▪1 x User Manual

User Manual

PT-C-HDAEDE

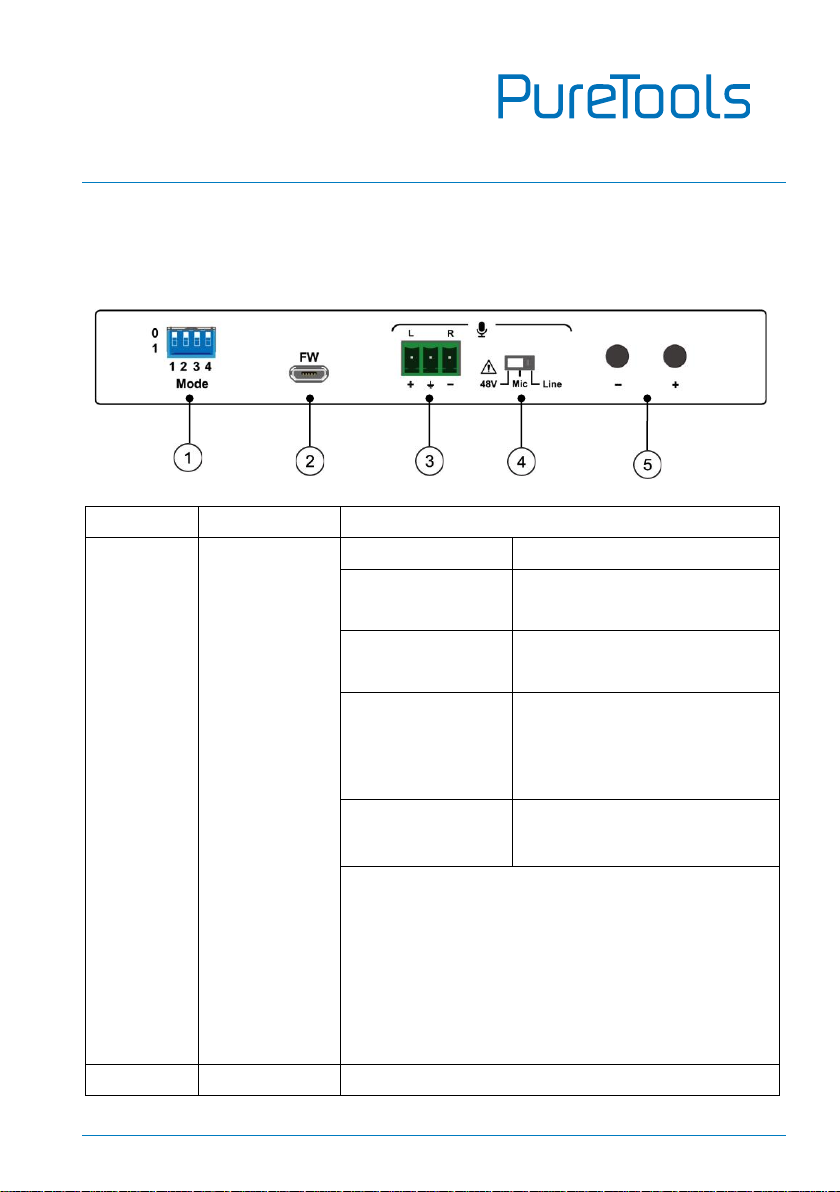

Panel Description

Front Panel

Number

Description

Function

DIP Switch

index

description

Bit1: Audio

embed control

0: Mute 3 pin phoenix input

1: Activate 3 pin phoenix input

Bit2: HDMI Input

audio control

0: Mute HDMI input audio

1: Activate HDMI input audio

Bit3: HDMI audio

output control

0: Play HDMI input directly to

the output

1: Play result of Bits 1 and 2 to

HDMI output

Bit4: SPDIF

Output control

0: Copy Audio EDID from TV

1: Force to 5.1 audio output

Note:

(1) When Bit4 set to 1. Then audio will be 5.1

(2) When Bit4 set to 1, according to Bit2 setting.

(Bit2 determines whether HDMI separated audio

needs to be mixed)

If Bit2 set to 1 (Bit4 set to 1) >> Audio will be 2.0;

If Bit2 set to 0 (Bit4 set to 1) >> Audio will be 5.1.

FW port

Micro-USB port for updating

User Manual

PT-C-HDAEDE

Audio input

port

48V MIC, MIC, Audio Line in

Audio input

Switch

Switching the mode of the audio souce

Volume

Button

“-”: Reduce the microphone volume by 1dB

each time until it drops to -18dB

“+”: Increase the microphone volume by 1dB

each time until it rises to +24dB

“N.B. When outputting audio to the TV speakers the audio will exhibit additional delay, which is

unavoidable and dependent on the brand of TV that is used.”

Back Panel

Number

Description

Function

HDMI Input port

Support HDMI 2.0 Input

HDMI Output port

Support HDMI 2.0 Output

SPDIF Audio Output port

Audio sample rate: 96KHz, Max

transmission rate: 16Mbps

Analog Audio Output port

2.0 Analog Audio port

DC/5V Port

Power port

Power indicator

Number

Description

Function

HDMI Input port

Support HDMI 2.0 Input

HDMI Output port

Support HDMI 2.0 Output

SPDIF Audio Output port

Audio sample rate: 96KHz, Max

transmission rate: 16Mbps

Analog Audio Output port

2.0 Analog Audio port

DC/5V Port

Power port

Power indicator

Number

Description

Function

User Manual

PT-C-HDAEDE

Specification

Video

Input

Input Connector

HDMI

DC lockable barrel 5V

Micro USB for Firmware

3 pin Phoenix port for audio

Output

Output Connector

HDMI

S/PDIF for digital audio

5 pin Phoenix port for balanced audio

Audio Format

LPCM up to 7.1/24 - bit / 96 kHz, Dolby Atmos and DTS-X

panoramic sound

Max data rate

Video Bandwidth 18Gbps, HDR, Deep color 12bit

Max Resolution

HDMI 2.0 b input and output upto 4K60Hz (4:4:4)

Temperature

-5 to +40℃(+23 to +104℉)

Reference Humidity

5 to 90%RH (No Condensation)

Power Consumption

5W (Maximum)

Power Supply

DC 5V1A

Dimension (W*H*D)

151x93.5x21mm

Net Weight

360g

HDMI Input port

Support HDMI 2.0 Input

HDMI Output port

Support HDMI 2.0 Output

SPDIF Audio Output port

Audio sample rate: 96KHz, Max

transmission rate: 16Mbps

Analog Audio Output port

2.0 Analog Audio port

DC/5V Port

Power port

Power indicator

Number

Description

Function

HDMI Input port

Support HDMI 2.0 Input

HDMI Output port

Support HDMI 2.0 Output

SPDIF Audio Output port

Audio sample rate: 96KHz, Max

transmission rate: 16Mbps

Analog Audio Output port

2.0 Analog Audio port

DC/5V Port

Power port

Power indicator

User Manual

PT-C-HDAEDE

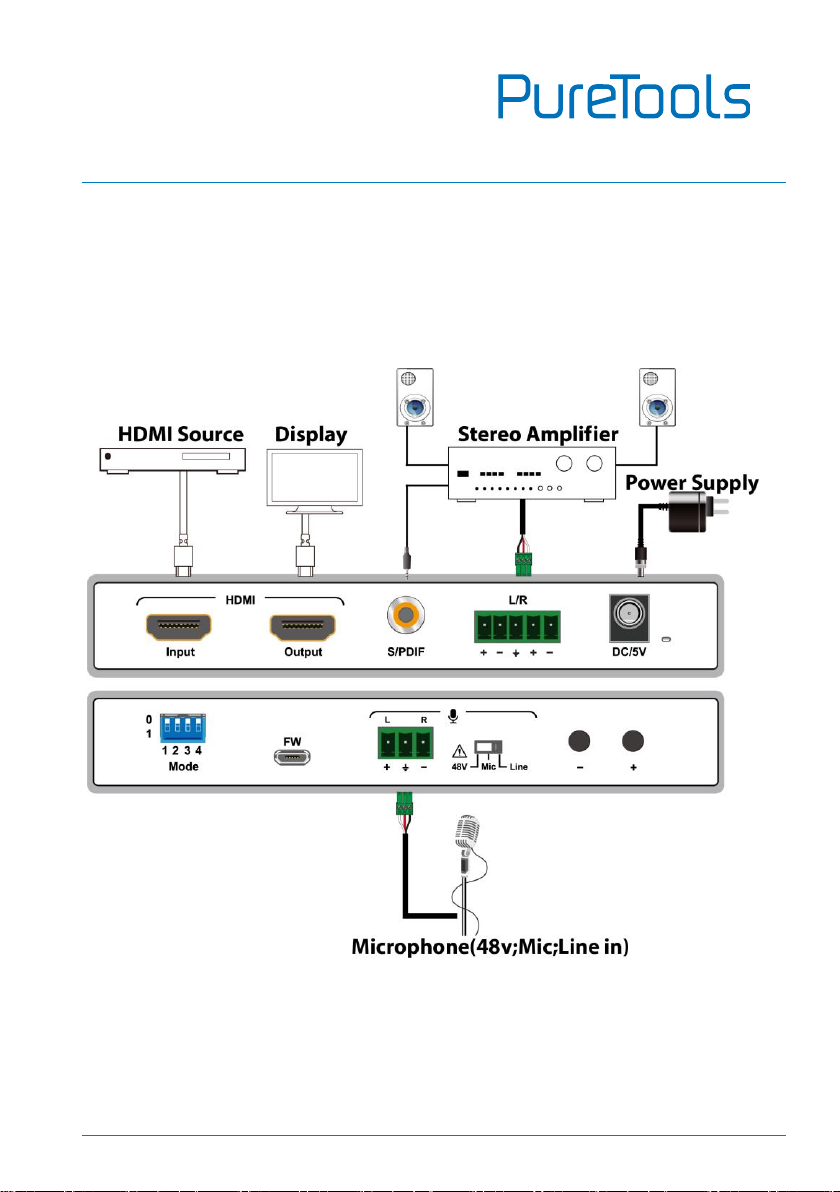

Application Diagrams

Equipment connection layout:

User Manual

PT-C-HDAEDE

Application Diagram 1：Headless 5.1 HDMI Audio extraction (Bit:0011) - HDMI in but

no HDMI out, with S/PDIF extraction
