PUTCO LUMINIX Manuale utente
LIMITED 2 YEAR WARRANTY
Putco guarantees it’s Stainless Steel and Aluminum products against defects in workmanship and material for as long as you own
your vehicle. All painted products have a 90 day warranty on the painted surface. Any defects resulting from faulty material or
workmanship will be warranted by Putco and repaired or replaced at our discretion. Putco assumes no extra labor costs. amages
caused by freight carriers, improper installation, misuse, collision, or neglect will not be warranted by Putco.
07/08/2015 JLS 4RINST-F150
Fog Lamp Instructions
2004-2014 Ford F150 with round Fog Lamps
Congratulations on your purchase of a high quality UTCO product. Should you need any
application or technical assistance feel free to call us at: 1-800-247-3974
Monday-Friday 8:00 a.m. - 5:00 p.m. (Central Standard Time)
Contact your UTCO dealer for other quality accessories.
Please read all instructions before installation and to check to see that all parts are included.
Table 1.0
Tools Needed:
- Flat bladed screwdriver
- 3" #2 Phillips screwdriver
Before Installation Verify that all contents listed in Table 1.0 are included in your kit.
KIT CONTENTS:
Description Qty.
4.5" Round Puck with Wiring Harness 2
Stainless Steel Mounting bracket with caps 2
10-32 X 3/8" Machine Screw 4
#10 Lock Washers 4
3/8" Stainless Steel Spacer Washer 2
LIMITED 2 YEAR WARRANTY
Putco guarantees it’s Stainless Steel and Aluminum products against defects in workmanship and material for as long as you own
your vehicle. All painted products have a 90 day warranty on the painted surface. Any defects resulting from faulty material or
workmanship will be warranted by Putco and repaired or replaced at our discretion. Putco assumes no extra labor costs. amages
caused by freight carriers, improper installation, misuse, collision, or neglect will not be warranted by Putco.
07/08/2015 JLS 4RINST-F150

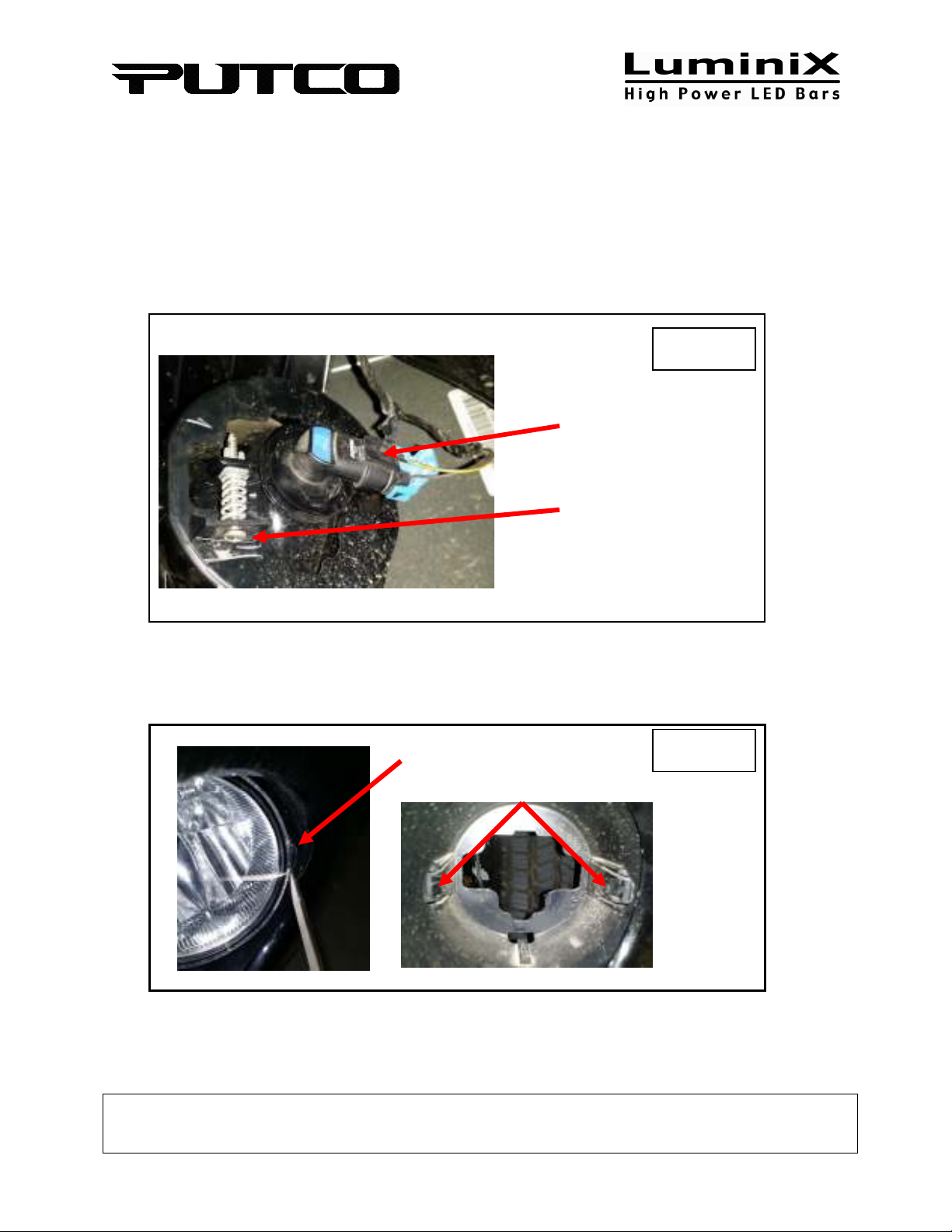

Fog Lamp Removal
1.
From the backside of the bumper disconnect the factory wiring harness from the fog lamps. Refer to
Figure 1.
2.
Remove adjusting screw and spring. Set aside as they will be required later. Refer to Figure 1.
3.
Use a flat bladed screwdriver to press out the tension clips on the fog lamp mounting bracket. Pull
Fog Lamp out of housing from the front side of the bumper. Refer to Figure 2.
Figure 1
Lift tab and pull ba k
T15 Torx
Requires a short Phillips
s rewdriver to remove
Press in here Figure 2
Two Pla es
LIMITED 2 YEAR WARRANTY
Putco guarantees it’s Stainless Steel and Aluminum products against defects in workmanship and material for as long as you own
your vehicle. All painted products have a 90 day warranty on the painted surface. Any defects resulting from faulty material or
workmanship will be warranted by Putco and repaired or replaced at our discretion. Putco assumes no extra labor costs. amages
caused by freight carriers, improper installation, misuse, collision, or neglect will not be warranted by Putco.
07/08/2015 JLS 4RINST-F150

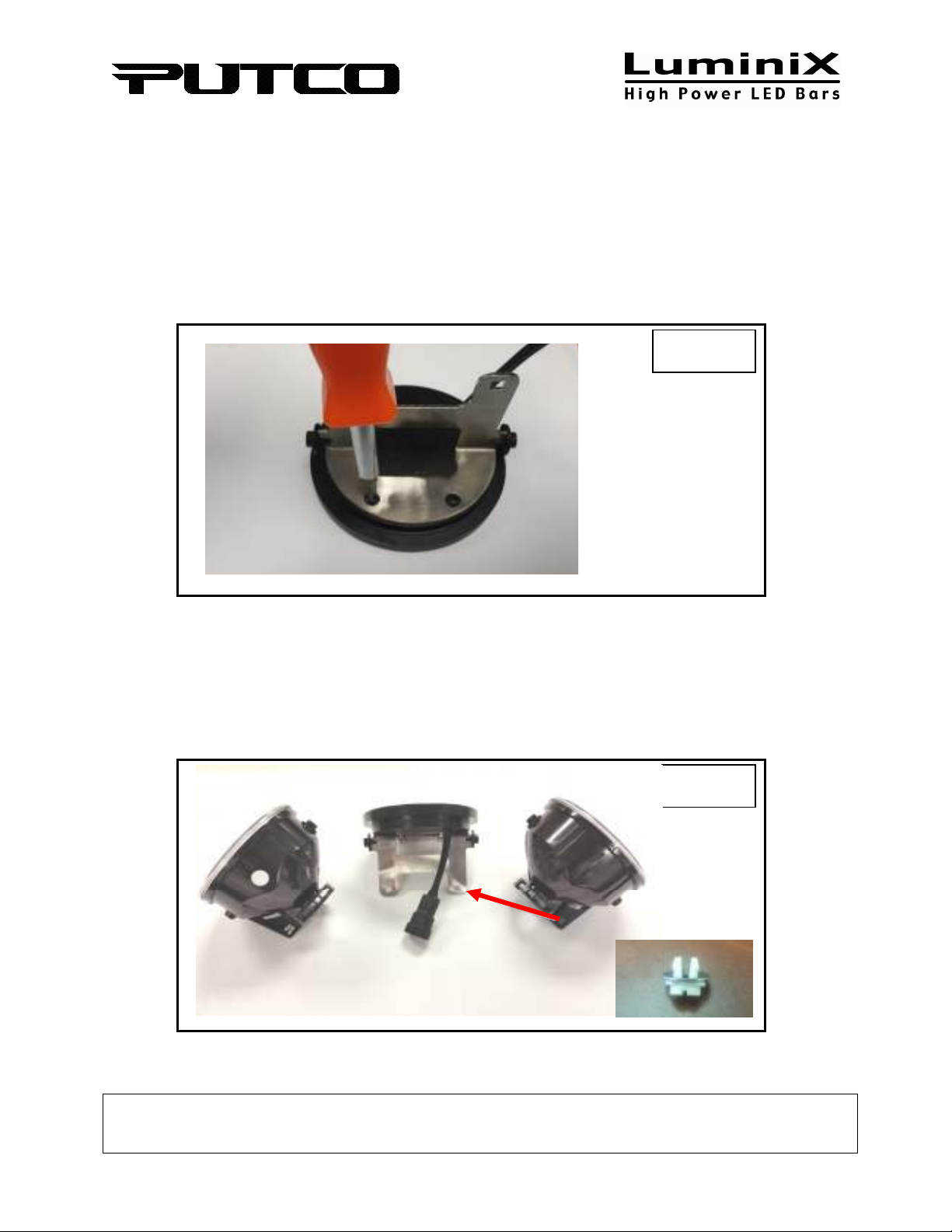

Fog Lamp Assembly
1.
Remove Putco fog lamps from packaging. Check to see if all parts from Table 1.0 are included.
2.
Install Stainless Steel bracket on both fog lamps using the 4 - 10-32 X 3/8" screws and Lock washers
provided (2 per lamp). Refer to Figure 3 for placement.
3.
Transfer Plastic insert from original Fog Lamps onto new Putco fog lamps. Ensure that the Flat side of the
insert is facing towards the wiring harness side of the bracket. In some cases, factory fog lights will have a
left and right side. Make sure to install spacer washer and the plastic insert into the correct tab on the Putco
fog lamp as shown in Figure 4.
Figure 3
Figure 4
LIMITED 2 YEAR WARRANTY
Putco guarantees it’s Stainless Steel and Aluminum products against defects in workmanship and material for as long as you own
your vehicle. All painted products have a 90 day warranty on the painted surface. Any defects resulting from faulty material or
workmanship will be warranted by Putco and repaired or replaced at our discretion. Putco assumes no extra labor costs. amages
caused by freight carriers, improper installation, misuse, collision, or neglect will not be warranted by Putco.
07/08/2015 JLS 4RINST-F150
Fog Lamp Installation
1. From the front side of the bumper connect the factory wiring harness to the Putco fog lamps. Ensure that
connector is fully engaged and can not be pulled back apart.
2. Turn on the fog lamps to ensure everything is working properly.
3. From the front side of the bumper line up the Putco fog lamp plastic endcaps with the corresponding tension
clips on the vehicles fog lamp housing.
4. Push the fog lamps into the housing until the plastic caps snap into the fog lamp housing on both sides. Fog
lamp should be able to swivel up and down if installed correctly.
5. From the backside of the bumper install the spring and adjusting screw. Refer to Figure 1 for reference.
6. With the fog lamps on, adjust the screw on both lamps until the light is at the same height and are at the
correct angle.
