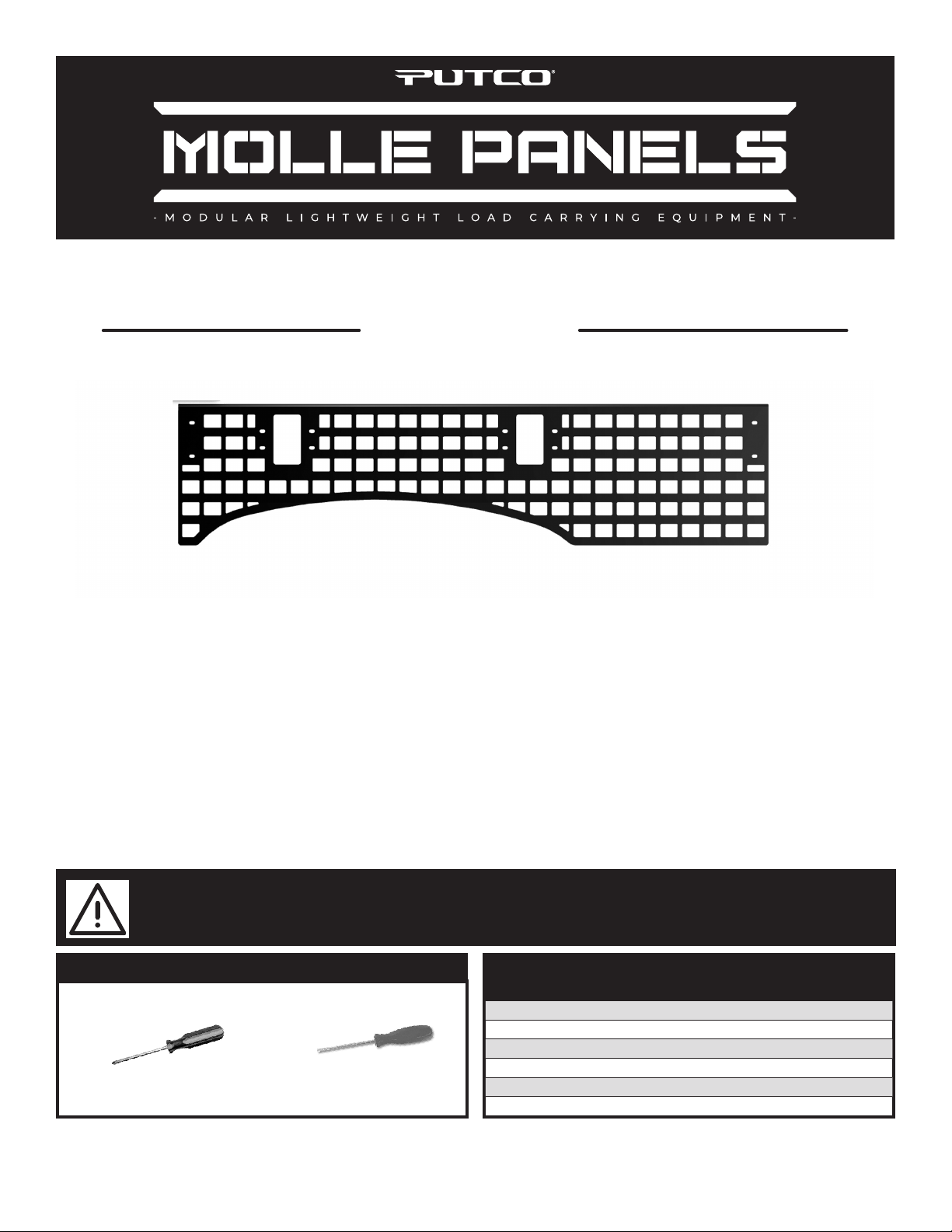

PUTCO RAM 1500 Manuale
`DESCRIPTION QTY
Molle Side Plate 1
Single-Flange Side Mounting Brackets 2
Double-Flange Side Mounting Brackets 2
M6 Torx-Head Bolt 12
5/16” Well Nut 8
8-32 X 3/4” Philip’s Head Screw 8
Congratulations on your purchase of a high quality PUTCO®product. Should
you need any application or technical assistance, feel free to call us at:
Monday-Friday 8:00am - 5:00pm (Central Standard Time)
Contact your PUTCO®dealer for other quality accessories.
1952XXI-SP
1-800-247-3974
PLEASE READ ALL INSTRUCTIONS BEFORE INSTALLATION
AND CHECK TO SEE THAT ALL PARTS ARE INCLUDED
CONTENT LIST
REQUIRED TOOLS
INSTRUCTION GUIDE
RAM 1500
PHILLIPS SCREWDRIVER T30 TORX DRIVER
SIDE PANEL
MOLLE Panels Instruction Guide
1
2
Begin by gathering all four of the Single-Flange Side Mounting Brackets and all four of the
Double-Flange Side Mounting Brackets.

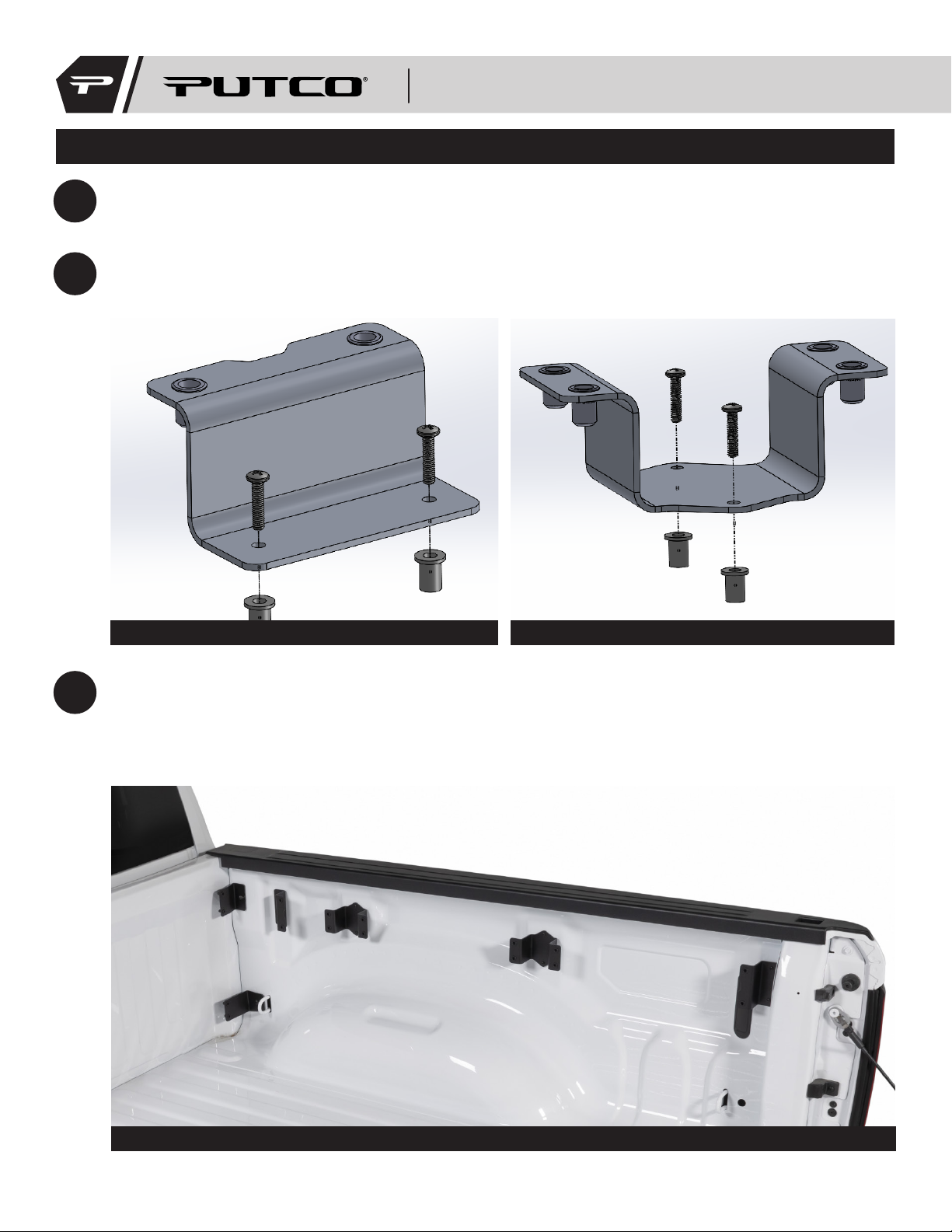

Loosely assemble two 5/16” Well Nuts and two Philip’s Head Screws onto each of these brackets
as shown.
INSTALLATION INSTRUCTIONS
1952XXI-SP
3Your Light-Duty Ram has hex-shaped holes in the bedsides that will be used to mount the Molle
Side Plates. The Double-Flange Brackets mount to the middle sets of holes, and the Single-
Flange Brackets mount to the outer sets of holes, as shown. Fasten the brackets to the bed by
inserting the Well Nuts into the hex-shaped holes, then tighten the Philip’s Head Screws until the
Well Nuts are snug in the hex-shaped holes, but do not overtighten.
Single-Flange Bracket Double-Flange Bracket
Light Duty Ram with All Brackets Installed
MOLLE Panels Instruction Guide
5Now that everything is installed, ensure that all fasteners have been tightened until snug, but do
not overtighten.
1952XXI-SP
4Fasten the side plate to its brackets using the provided M6 Torx-head screws and a T30 Torx
driver.
Your new MOLLE Panel is now
successfully installed on your
vehicle!

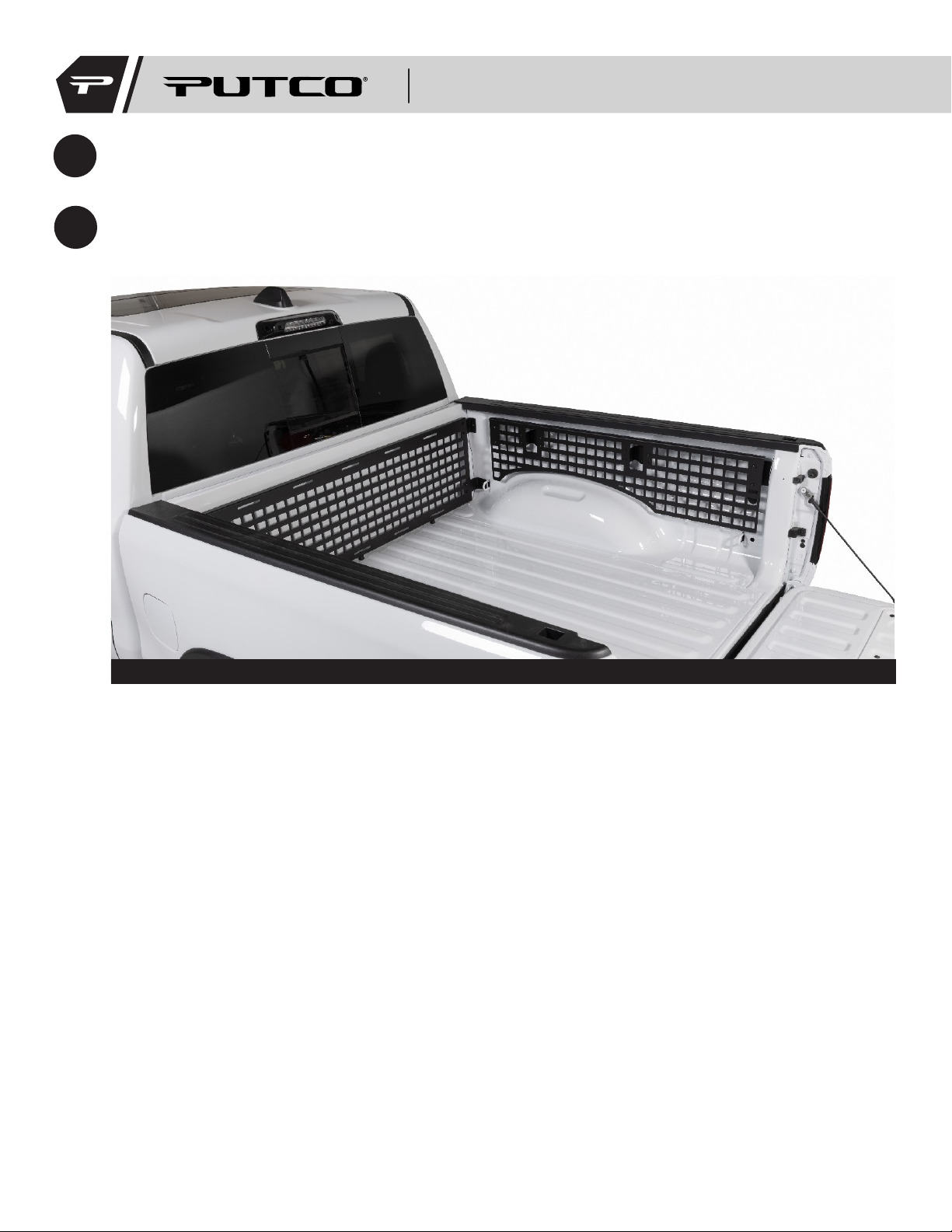

Completed Molle Panel kit for Light Duty Ram
