Pyle PLCAPE500 Manuale utente
1
Model: PLCAPE500
50F Hybrid Super Cap (carbon and eletroniccapacitor)
With Blue Digital Voltage Display
Capacitance .................................……...... 50,000,000 micro farad (50
Farad)
Working Voltage ...............................…….….. 16DC
Surge Voltage .......................................……… 18DC
E.S.R. (Equivalent Series Resistance)------ 0.0015 ohm @120hz/ 25°C
Capacitance Tolerance------------------------ ± 10%
a) 3 digits hi-end blue light display DC voltage meter that can measure
0.1 DCV range.
b) Reverse pole connecting PCB buzz warning function. If the capacitor is
connected incorrectly by reversing the positive and negative wires
during the installation process the PCB will issue a 45 second noise to
warn you.
c) Hi-end platinum plated 100% brass solid parts and chrome plated metal
cover
d) Over voltage limit and low battery voltage limit warning. When the
system voltage peeks over 17.5 DCV or LESS than 10 DCV. The
buzzer on the PCB will issue an audible noise warning.
e) Multiple small capacitance capacitors linked to provide the lowest
inner E.S.R. and largest moment discharge power.
DETAILED FEATURES:
2

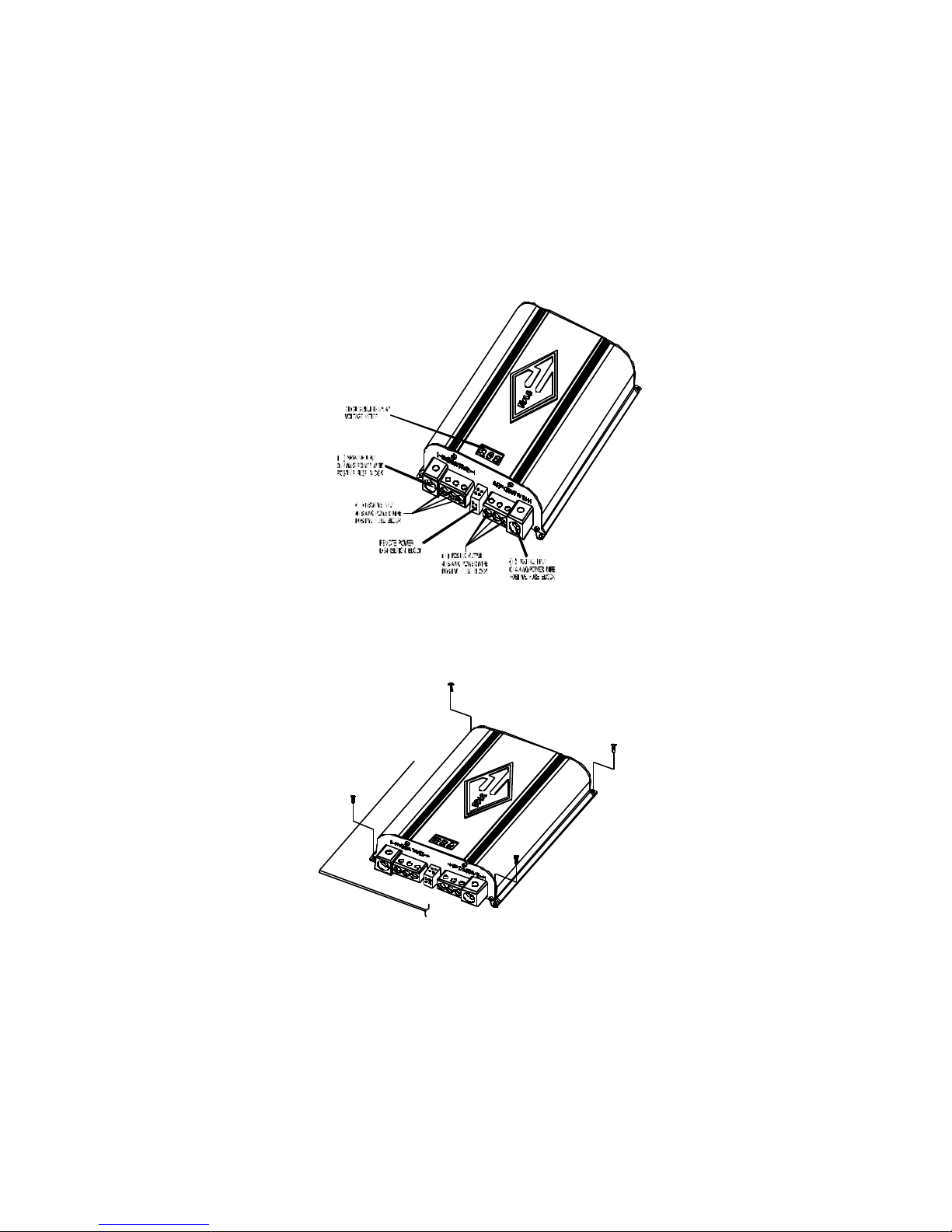

You must first attach the mounting tabs to the capacitor before mounting
it. Use the supplied hardware shown in the picture to the right. Notice the
small mounting screw hole in the capacitor chassis.
3
CHARGING THE CAPACITOR AND WIRING:
The capacitor must be charged before connecting the Power and Ground
cables to the capacitor. Failure to charge the capacitor will result in a
large spark generated from the rapid inflow ofcurrent.
To Charge the capacitor:
1. Make Capacitor positive terminal connections with amplifier and
tighten the bolt. Do not over-tighten the bolts!
Caution: Stripped terminals are not covered under the capacitor’s
warranty.

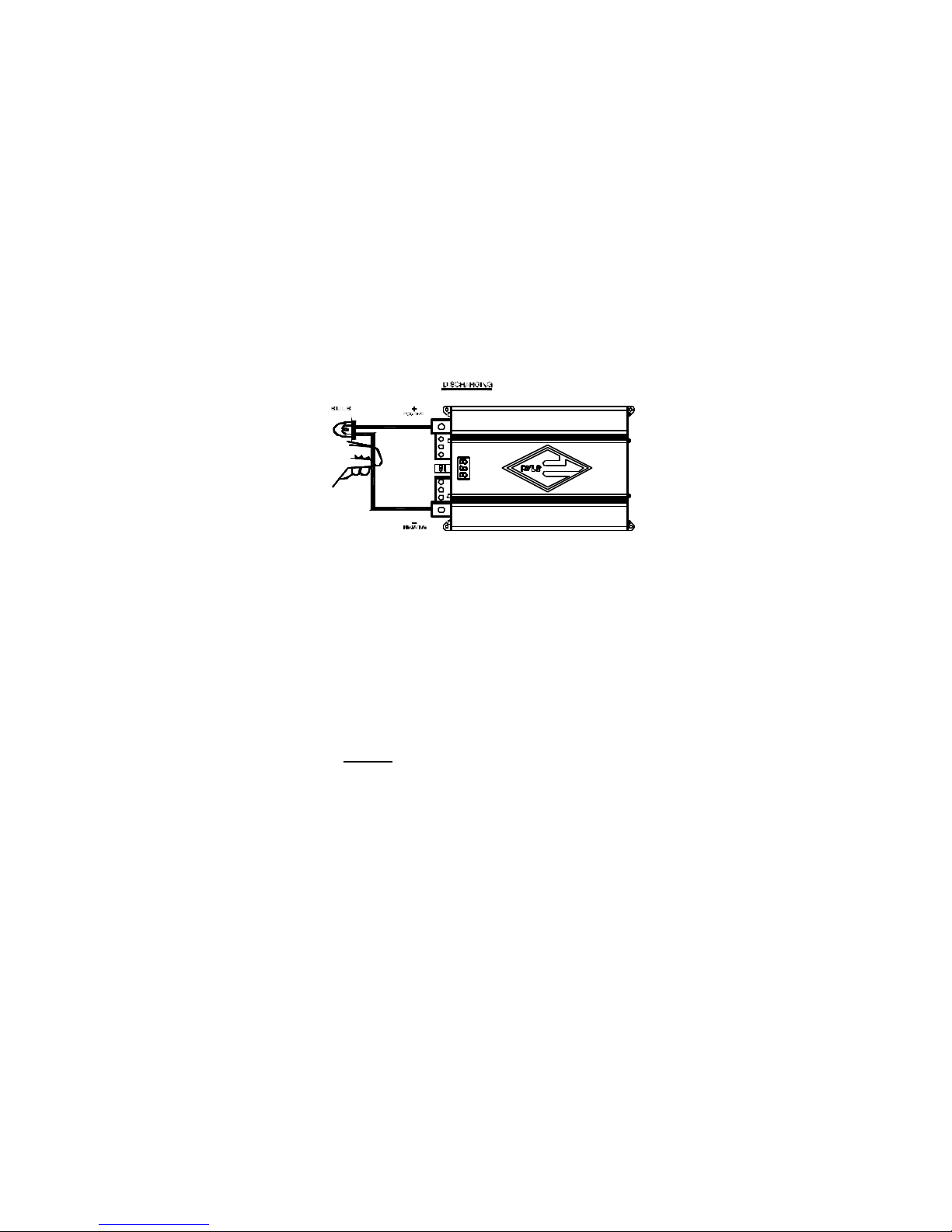

2. Connect the ground cable with battery, amplifier, then refer to the
attached drawing.

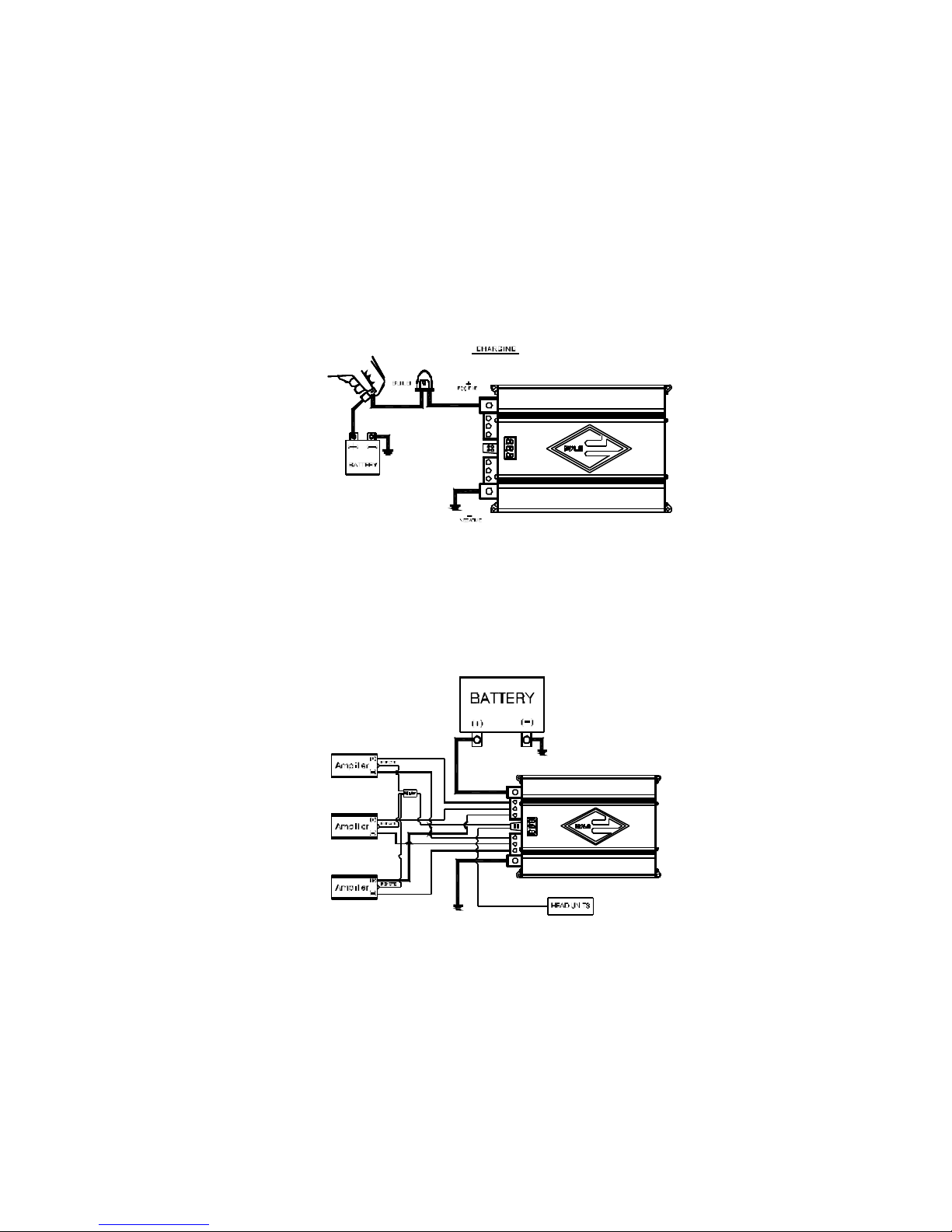

3. Place the supplied charging bulb or resistor between the positive
terminal of the capacitor and the battery’s positive terminal. Do this
for 30 seconds or until the charging bulb goes out.
Caution: The charging bulb will get hot!
4. Immediately after the charging process, take out the charging bulb
from the connecting wire. And connect the positive cable of the
battery directly to the positive terminal on the capacitor.
WHEN YOU WANT TO MOVE THE CAPACITOR FROM
ORIGINAL INSTALLED CAR AUDIO SYSTEM, YOU MUST FIRST
FOLLOW DISCHARGING PROCESS AFTER TAKING OUT THE
CAPACITOR FROM THE CAR AUDIO SYSTEM.
4
To Discharge the capacitor: With battery power disconnected, place the
light bulb or resistor across the capacitor’s positive and negative terminals
until light goes out or for three minutes if using a resistor.
!
! !
!
5
"
" "
"
One Year Warranty from the date of purchase.
##
####
##
