Pyle PLD128 Manuale utente
OWNER'S MANUAL
Car Audio Hifi System
DVD/VCD/CD/MP3 PLAYER
PLD128
Contents
Safety Precautions.......................................2
1
General Features..........................................5
Power
Volume
Eject
Release
Mode
N/P
Clock
Volume setting
Bass setting
Treble setting
Balance setting
Fader setting
Play Operation.........................................8
Play/Pause
Random
Repeat
Stop
PBC
Remote Control......................................10
Loading and Replacing the battery
Basic operation
Electric Connection....................................3
Receiption collection
Speaker collection
Installation....................................................4
Install the unit
Remove the unit
Specifications........................................18
Trouble Shooting...................................19
Radio Operation.......................................9
Band
Band tuner
Speaker setting..............................................7
2

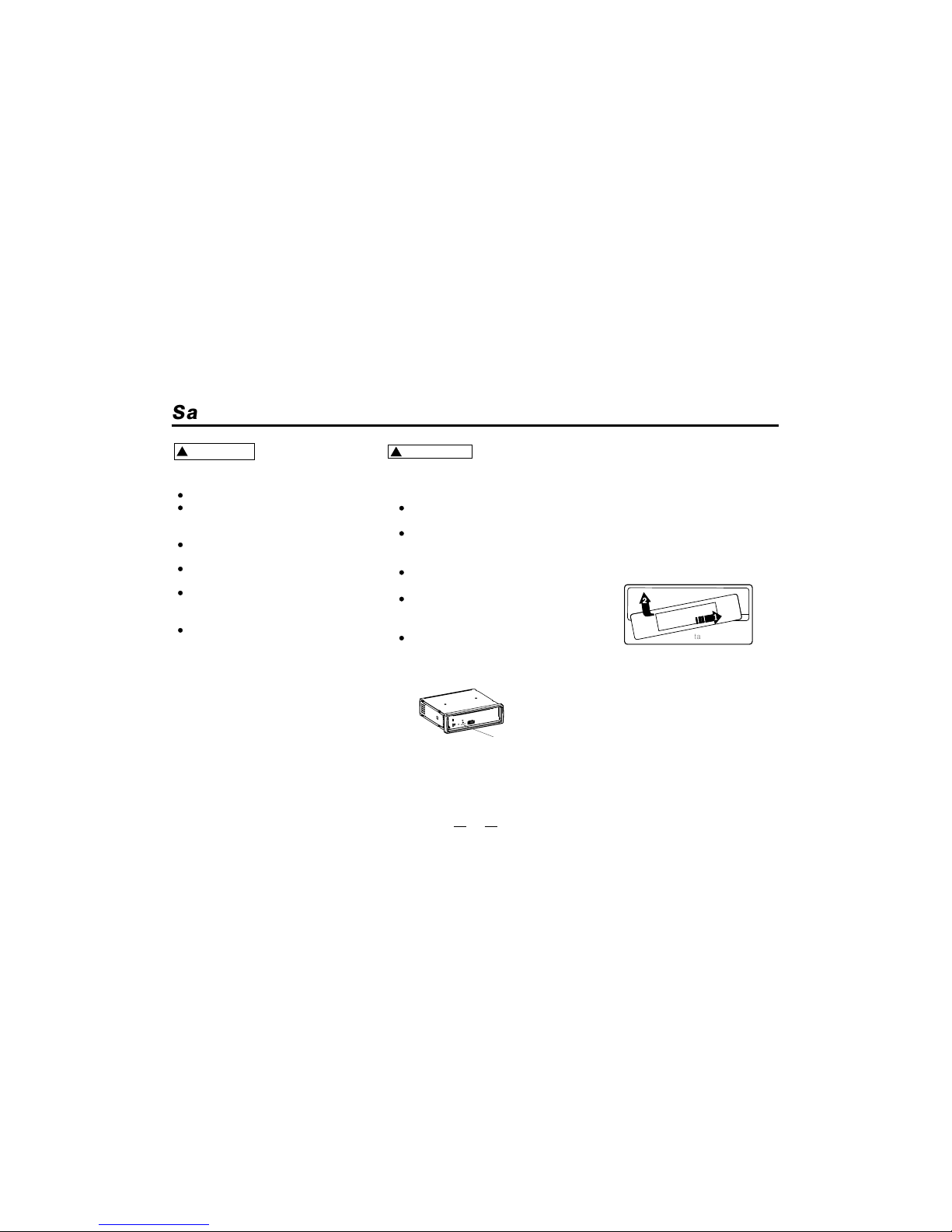

CAUTION
Safety precautions
Be sure the unit is connected to a 12V
DC power with a Negative Ground.
Do not install the unit in places where
it is exposed to direct sunlight,high heat
or humidity,water splash or dust.
To change fuse,please use the same
one in specification and capacity.
When changing fuse,please do it
after pulling down power wires to avoid
short circuit.
If the unit seems not work in proper
situation, please press the reset button to
resume the function.
Do not operate when driving.
To prevent electric,etc,Please do not
let
If you smell or see smoke,turn off the
power immediately and consult our dealer.
Be careful not to drop or shock the unit
strongly.
Do not touch the liquid crystal to avoid the
life hurt.If the clothes is stained with it,Please
clean it immediately by soap.
For your driving safety,please link your
brake detecting wire with low power
level,and keep it controlled by manual brake
switch.when driving a car,the brake wire shall
be high power level and now,unit can not
play DVD or VCD disc.
the metal goods(silver,coin,tools..)fall into
the installation.
To prevent damage to the machine,
take the following precautions:
WARNING
To prevent injury or fire,Please
take the precautions:following
Attach the front panel by fixing the left
Side of it into this unit as 1 showing.
Then push the right side of panel
towards into connecting plug as 2
showing.
Attaching panel:
Attaching panel
RESET
[RESET]

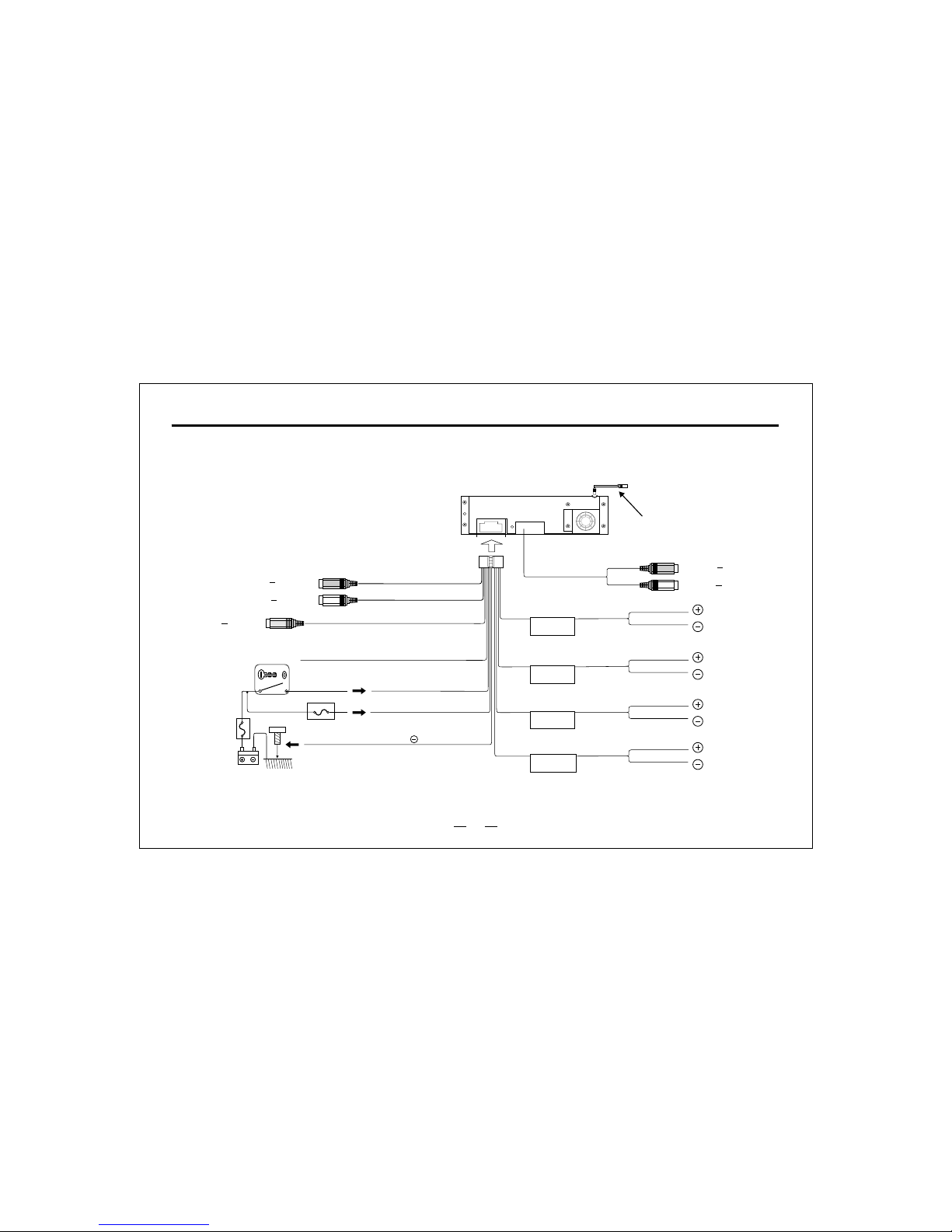

Electric Connection
3
Electric Connection
FRONT.LFRONT.L
FRONT.RFRONT.R
REAR.LREAR.L
REAR.RREAR.R
Green/WhiteGreen/White
GrayGray
To front left
speaker
To front left
speaker
To front right
speaker
To front right
speaker
To rear left
speaker
To rear left
speaker
To rear right
speaker
To rear right
speaker
BrownBrown
Lgnition wire(Red)Lgnition wire(Red)
Battery wire(Yellow)Battery wire(Yellow)
Ground wire(Black) (To car chassis)Ground wire(Black) (To car chassis)
Car fuse
box
Car fuse
box
BatteryBattery
Car fuse box
(Main fuse)
Car fuse box
(Main fuse)
Lgnition key
sw tchi
Lgnition key
switch
Connect to control for antenna
or remote control for amplifier.
Connect to control for antenna
or remote control for amplifier. (Orange)(Orange)
RED RCH outRED RCH out
WHITE LCH outWHITE LCH out
YELLOW VIDEOYELLOW VIDEO
CAR ANTENNACAR ANTENNA
GreenGreen
Gray/WhiteGray/White
Brown/WhiteBrown/White
BlueBlue
Blue/WhiteBlue/White
AUX IN REDAUX IN RED
AUX IN WHITEAUX IN WHITE
4

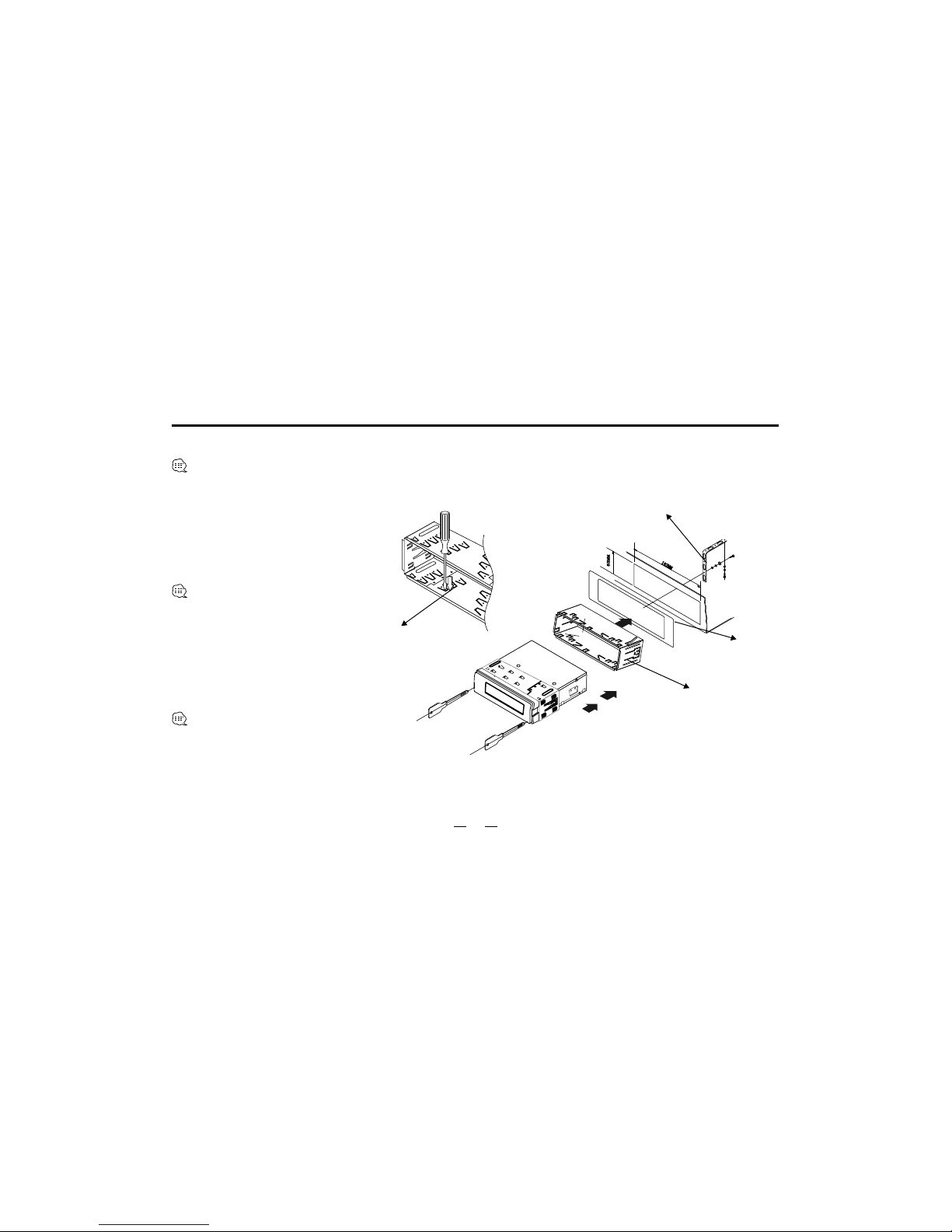

Before installing the receiver permanently, fit it in the approximate place in your car ,and connect the
equipment according to the speakers and electrical connections. When
your system is operated properly,(preferably with the
car engine running), follow the instructions
for permanent installation
of your system.
1) Adapter
(not supplied)
2)Bend over tabs
of half sleeve
(supplied)
3)Support strap
(supplied)
Half sleeve
(supplied)
4) Two wrenches for releasing
the unit (supplied)
INSTALL THE UNIT
1)Install half sleeve, can be with or
without adapter. It will fit better
with adapter.
2)Bend over some tabs to secure the
half sleeve inside of dash.
3) Support strap to be strutted under
dash, secure this strip to avoid skipping of disc.
Insert removal wrench into the small
gap on the right side of the unit and pull
the unit slightly out on the same side,
then release the wrench. Repeat the
same action for the left side. By now,
you can remove the unit and unplug
the wires connector.
REMOVE THE UNIT
Installation
1234 56
APS
PWR
S
EL
SEEK
VOL
RPT RDM BAND CLOCK MODE
PBC STOP
5
Power
Press the [PWR]button to turn on/off the unit.
Volume
Increasing volume
Decreasing
Eject
Rotate the SEL/VOL button in
clockwise direction.
Rotate the SEL/VOL button in
anticlockwise direction.
Out
Press the [ ]button to eject the disc out of the unit .
Release
press the " " button to release faceplate.
General Features
CLOCK
EJECT
SEL
RELEASE MODE
N/P
VOL+
VOL-
EJECT
VOLPWR
ON/OFF
6
Clock
Short press CLK can display time even power off .
Long Press CLK for 3 seconds will enter set mode.
General Features
N/P
In PLAY mode, press the [BAND] button to exchange between
the PAL and NSTC.
Hour
Minute
Quit clock set mode
there is no operation in 5 seconds, it will quit clock
set mode.
Press the [CLOCK] button until the hour number blinking
then rotate the VOL button to set the hour.
Press the [CLOCK] button until the hour number blinking
then press the [CLOCK]again until the minute number
blinking and rotate the VOL button to set the minute.
MODE
Selecting radio and play
Press the [MODE]key.
(If mode with AUX IN and TV,the function is below:
press MD(MODE)to select:
2 If without AUX IN and TV,press MD that is:
RADIO DISC TV AUX IN RADIO
RADIO DISC RADIO
1234 56
APS
PWR
SEL
SEEK
VOL
RPT RDM BAND CLOCK MODE
PBC STOP
7
BAS -6
VOL 10
TRE 5
BAL 4
FAD -3
Volume set mode
Bass set mode
Treble set mode
Balance set mode
Fader set mode
Speaker setting
Speaker mode
VOLUME BASS
BALANCE
TREBLE
FADER
Press SEL button once,display will show VOL on,
then rotate the button in clockwise direction to
increase volume level;rotate the button in
anticlockwise direction to
decrease volume level.
Press SEL button twice,display will show BAS on,
then rotate the button to adjust bass level up/down
in different direction.
Press SEL button third,
display will show TRE on,
then rotate the button to adjust treble level up/down
in different direction.
Press SEL button fourth,display
will show BAL on,then
rotate the button to adjust
left and right speakers level up
/down in different direction.
Press SEL button fifth, display will show FAD on,
then rotate the button to adjust front and rear speakers
level up/down in different direction.
PLAY/PAUSE STOP RANDOM
REPEAT
VOL+
VOL-
SEL VOL
8
Play control
Play/pause
Repeat
Press the button to repeat the same track continuously, RPT
will appear on the LCD display.Press the button again to come
back normal playing.
Press [RPT]button
Stop
Press [STOP]button
Press STOP button to stop music,and press button
to start playing from track one.
Random
Press this button to play all the track in random order. Press it again
to stop random playing. This button is invalid if the unit is in PBC
On mode.
Press [RDM]button
Play
If with DISC in unit,Press the [ ]to pause music.
Pause
Press the [ ]button again , come back DISC playing.
If a disc is loaded,a sector sign will show on the display.
PBC
Press [PBC]button
If the disc is VCD 2.0 version or above, press this button to toggle
the PBC function.
1234 56
A
PS
PWR
SEL
SEEK
VOL
RPT RDM BAND CLOCK MODE
PBC STOP

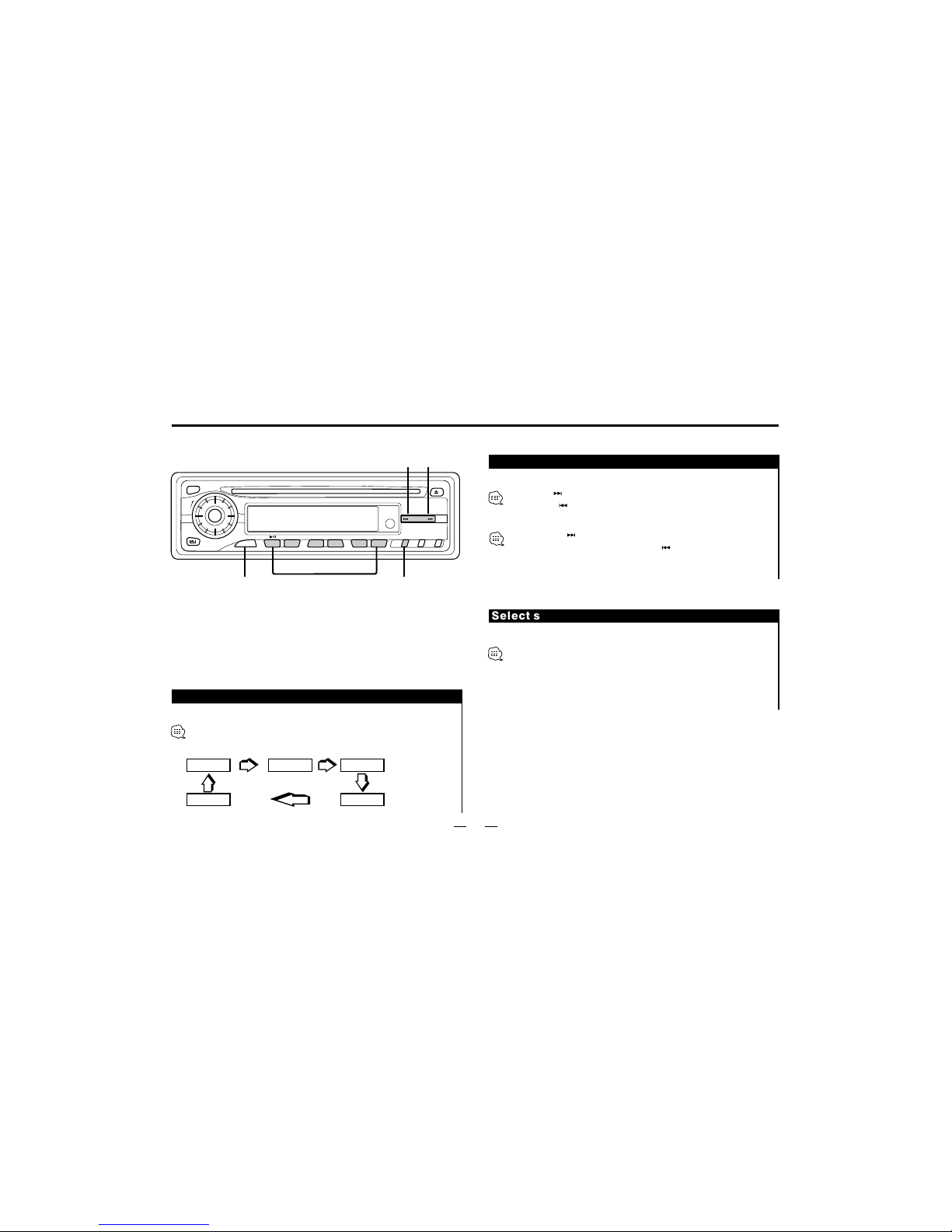

9
FM1 FM2 FM3
AM2
Band
Press BAND button to select among three FM or two AM bands.
(FM1-FM2-FM3-AM1-AM2)
Selecting band
Radio Operation
AM1
SEEK+SEEK-
BANDPRESET MEMORY 1-6
Tuner
the long press button it can automatically select higher
frequency station. And the long press it can automatically
select lower frequency station.
manual tuning:
short press button it can select higher frequency station.
Short press can select lower frequency station.
Auto loading tuning:
Press [APS]button
Seek Tune:
In FM (FM1 FM2 FM3) or AM(AM1 AM2 playing mode, long
press "APS" button, it can seek and store strong frequecy
station automatically in to1-6 memory buttons.
Select station
FM can be memorized 18 stations. AM can be memorized 12 stations.
AS/PS
