OWNER'S MANUAL

Car Audio Hifi System

DVD/VCD/CD/MP3 PLAYER

PLD182

Contents

Safety Precautions.......................................2

General Features..........................................5

Power

Volume

Eject

Release

Mode

N/P

Mute

Clock

EQ3

Volume setting

Bass setting

Treble setting

Balance setting

Fader setting

Play Operation.........................................8

Play/Pause

Stop

Repeat

Random

Remote Control......................................10

Loading and Replacing the battery

Basic operation

Electric Connection....................................3

Receiption collection

Speaker collection

Installation....................................................4

Install the unit

Remove the unit

Radio Operation.......................................9

Band

Band tuner

Speaker setting..............................................7

Specifications........................................18

Trouble Shooting...................................19

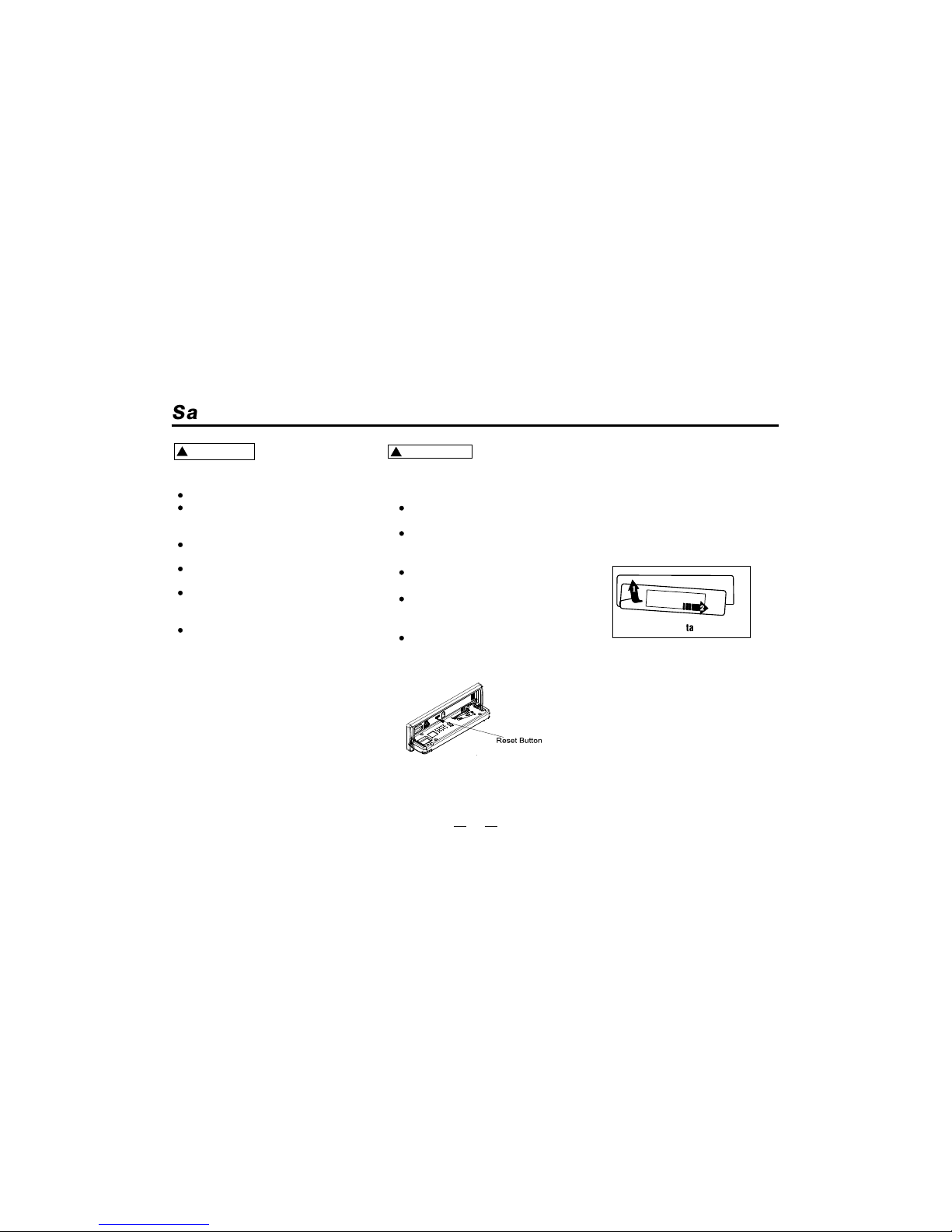

CAUTION



Safety precautions

Be sure the unit is connected to a 12V

DC power with a Negative Ground.

Do not install the unit in places where

it is exposed to direct sunlight,high heat

or humidity,water splash or dust.

To change fuse,please use the same

one in specification and capacity.

When changing fuse,please do it

after pulling down power wires to avoid

short circuit.

If the unit seems not work in proper

situation,please press the reset button to

resume the function.

Do not operate when driving.

To prevent electric,etc,Please do not

let

If you smell or see smoke,turn off the

power immediately and consult our dealer.

Be careful not to drop or shock the unit

strongly.

Do not touch the liquid crystal to avoid the

life hurt.If the clothes is stained with it,Please

clean it immediately by soap.

For your driving safety,please link your

brake detecting wire with low power

level,and keep it controlled by manual brake

switch.when driving a car,the brake wire shall

be high power level and now,unit can not

play DVD or VCD disc.

the metal goods(silver,coin,tools..)fall into

the installation.

To prevent damage to the machine,

take the following precautions:

WARNING

To prevent injury or fire,Please

take the precautions:following

Attach the front panel by fixing the left

Side of it into this unit as 1 showing.

Then push the right side of panel

towards into connecting plug as 2

showing.

Attaching panel:



Attaching panel

Electric Connection

FRONT.LFRONT.L

FRONT.RFRONT.R

REAR.LREAR.L

REAR.RREAR.R

White/BlackWhite/Black

GrayGray

To front left

speaker

To front left

speaker

To front right

speaker

To front right

speaker

To rear left

speaker

To rear left

speaker

To rear right

speaker

To rear right

speaker

GreenGreen

Lgnition wire(Red)Lgnition wire(Red)

Battery wire(Yellow)Battery wire(Yellow)

Ground wire(Black) (To car chassis)Ground wire(Black) (To car chassis)

Car fuse

box

Car fuse

box

BatteryBattery

Car fuse box

(Main fuse)

Car fuse box

(Main fuse)

Lgnition key

sw tchi

Lgnition key

switch

Connect to control for antenna

or remote control for amplifier.

Connect to control for antenna

or remote control for amplifier. (Blue)(Blue)

RED RCH outRED RCH out

WHITE LCH outWHITE LCH out

YELLOW VIDEOYELLOW VIDEO

CAR ANTENNACAR ANTENNA

WhiteWhite

Gray/BlackGray/Black

Green/BlackGreen/Black

PurplePurple

Purple/BlackPurple/Black

Before installing the receiver permanently, fit it in the approximate place in your car ,and connect the

equipment according to the speakers and electrical connections. When

your system is operated properly,(preferably with the

car engine running), follow the instructions

for permanent installation

of your system.

1) Adapter

(not supplied)

2)Bend over tabs

of half sleeve

(supplied)

3)Support strap

(supplied)

Half sleeve

(supplied)

4) Two wrenches for releasing

the unit (supplied)

INSTALL THE UNIT

1)Install half sleeve, can be with or

without adapter. It will fit better

with adapter.

2)Bend over some tabs to secure the

half sleeve inside of dash.

3) Support strap to be strutted under

dash, secure this strip to avoid skipp

ing of disc.

Insert removal wrench into the small

gap on the right side of the unit and pull

the unit slightly out on the same side,

then release the wrench. Repeat the

same action for the left side. By now,

you can remove the unit and unplug

the wires connector.

REMOVE THE UNIT

Installation

PWR EQ3 1

2 STOP

3 RPT 4 RDM

6R.SCN ST LOC

VOL+

VOL- MODE

BAND

SEEK

APS

SEL

Power

Press the [PWR]button to turn on/off the unit.

Volume

Increasing volume

Decreasing

Eject

Press the VOL+ button in

clockwise direction.

Press the VOL- button in

anticlockwise direction.

Out

Press the [ ]button to eject the disc out of the unit .

Release

press the " " button to release faceplate.

General Features

CLOCK

SELECT

RELEASE MODE

EQ3

VOL+

VOL-

[ ] EJECT

P/N

VOL+

POWER

VOL-

VOL+VOL+

VOL-VOL-

MUT

MUTE

MODE

Selecting radio and play

Each time you press the key,it will switch between radio

position and disc position.

Clock

Short press CLK can display time even power off .

Long Press CLK for 3 seconds will enter set mode.

Hour

Minute

Quit clock set mode

there is no operation in 5 seconds, it will quit clock

set mode.

Press the VOL+/- button to set the hour.

EQ3

Press EQ3 button once to effect [ROCK[ volume, LCD shows

ROCK on.

Press EQ3 button twice to effect [POPS] volume, LCD

shows CLASSICE on.

Press EQ3 button third to effect [CLASSIC] volume, LCD

shows POP on.

Press EQ3 button fourth to effect [FLAT] volume, LCD shows

FLAT on.

Press EQ3 button again to resume the normal listening.

General Features

Press the VOL+/- button to set the minute.

P/N

In video mode, press the [BAND] button to exchange between

the PAL and NSTC.

Press [BAND]button

Mute

Short press this button to mute the sound, short press

MUTE buttonagain or press any other button to

resume the normallistening.

 

PWR EQ3 1

2 STOP

3 RPT 4 RDM

6R.SCN ST LOC

VOL+

VOL- MODE

BAND

SEEK

APS

SEL

MUT

VOL+

Speaker setting

Speaker mode

VOLUME BASS

BALANCE

TREBLE

FADER

PLAY/PAUSE STOP

RANDOM

REPEAT

SELECT

VOL-

VOL+VOL+

VOL-VOL-

SELSEL

BAS -6

VOL 10

TRE 5

BAL 4

FAD -3

Press SEL button once,display shows VOL ,

then press the volume + button

to adjust volume level up.press

the volume - buttonto

adjust volume

level down.

   

 

Volume set mode

Bass set mode

Press SEL button twice,display shows BAS ,

then press the volume + button to adjust bass

level up. Press the volume - button to adjust

bass level down.

   

 

Treble set mode

Press SEL button third,

display shows TRE ,then

press the volume + button to adjust treble

level up. Press the volume - buttonto adjust

treble level down.

 

Press SEL button fourth

display shows BAL ,then

press the volume + button

to adjust left speaks level .

Press the volume - button

to adjust right speaks level .

 

Balance set mode

Fader set mode

Press SEL button fifth,display shows FAD ,then

press the volume + button to adjust front speaks

level. Press the volume - buttonto adjust back

speaks level.

   

 

Play control

Play/pause

Repeat

Press the button to repeat the same track continuously,

RPT will appear on the LCD display.

Press the button again to come back normal playing.

 

Press [RPT]button

Random

Press this button to play all the track in random order. Press it again

to stop random playing. This button is invalid if the unit is in

PBC On mode.

 

Press [RDM]button

Play

If with DISC in unit,Press the [ ]to pause music.

Pause

Press the [ ]button again , come back DISC playing.

If a disc is loaded,a sector sign will show on the display.

Stop

Press [STOP]button

Press STOP button to stop music,and press button

to start playing from track one.

   

PWR EQ3 1

2 STOP

3 RPT 4 RDM

6R.SCN ST LOC

VOL+

VOL- MODE

BAND

SEEK

APS

SEL

MUT

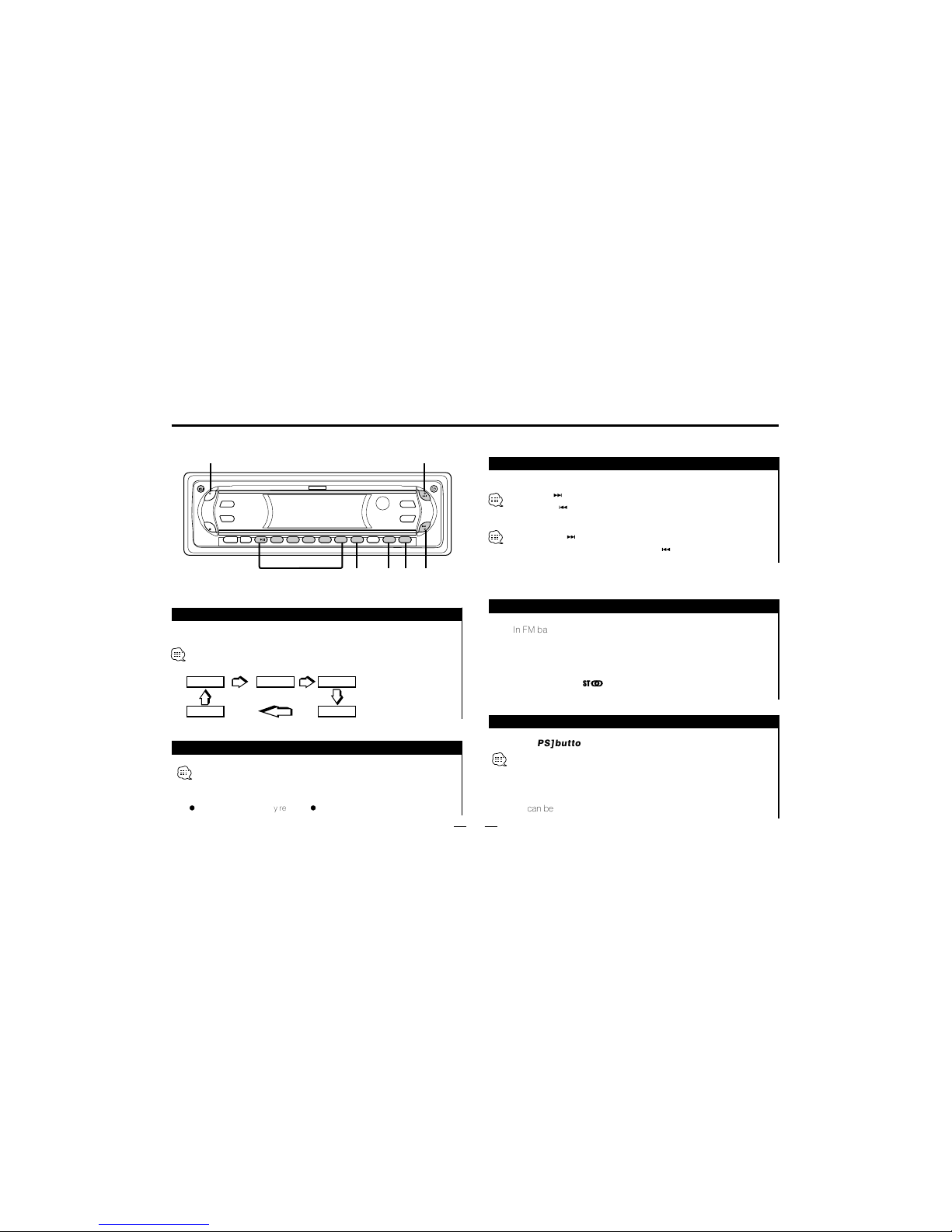

Radio Operation

R.SCN

PRESET MEMORY 1-6 SEEK-LOC

SEEK+

APS

FM1 FM2 FM3

AM2

Band

Press BAND button to select among three FM or two AM bands.

(FM1-FM2-FM3-AM1-AM2)

Selecting band

AM1

Tuner

the long press button it can automatically select higher

frequency station. And the long press it can automatically

select lower frequency station.

manual tuning:

short press button it can select higher frequency station.

Short press can select lower frequency station.

Auto loading tuning:

if the unit has received stereo signal in FM band in stereo position.

The LCD indicate .If the signal is MONO ,It indicate

ST only.

 

In FM band mode,press the ST key.

Each time you press the key,you switch between MONO

position andstereo position

 

Press [APS]button

Seek Tune:

In FM (FM1 FM2 FM3) or AM(AM1 AM2 playing mode, long

press "APS" button, it can seek and store strong frequecy

station automatically in to1-6 memory buttons.

   

Select station

FM can be memorized 18 stations. AM can be memorized 12 stations.

In radio mode,press this button to toggle between LOC/DX

functions and LOC shown on the display indicates that

LOC function is on.

 

Loc

LOC is local frequency receipt DX is distance frequency receipt

Indice
