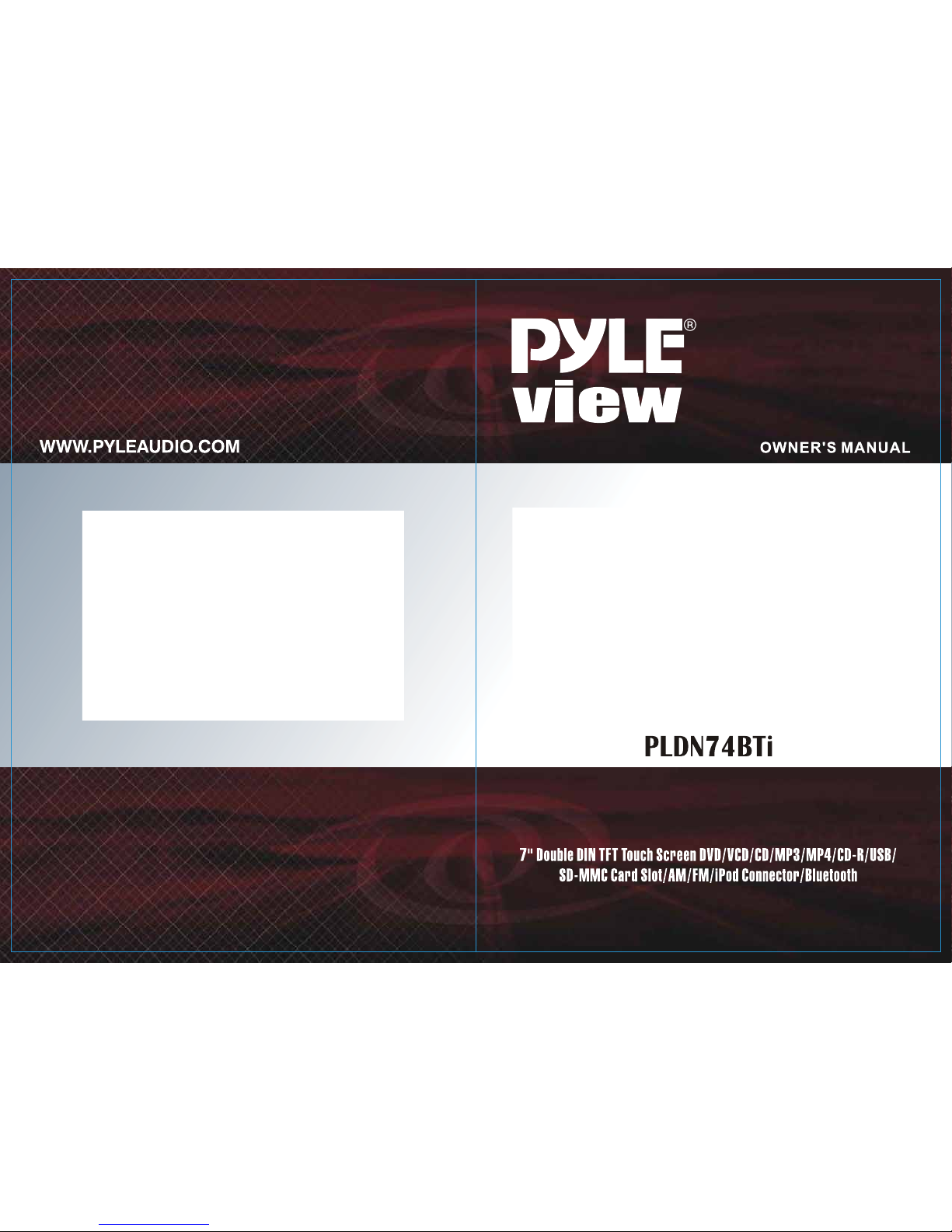

Pyle PLDN74BTI Manuale utente
PLDN74BTi
MIC IR POWER MODE VOL+ DN UP
USB
PLD74BTNi
PBC (playback control)
It is a kind of signal(menu) recorded in the disc with SVCD or VCD2.0
format used for the playback control. For the discs contained PBC, It can
playback interactive software with the menu displayed on monitor screen.
If the disc contain still images, it can playback high definition of still image.
Title
Generally, the title is the important part of DVD disc. for example, the
theme part of movie is title 1, the part described how to make movie is title
2, the cast is title 3, etc. Every title contain a serial number that is easy to
look up.
Chapter
A title can be divided into several blocks, so that every block can be
operated as a unit, the unit is called chapter. The chapter contain a unit
at least.
Track
It is the biggest component of VCD. Generally, every song of karaoke disc
is a track.
Push
Pull
1
2
Table of Contents
3
PLDN74BTi
MIC IR POWER MODE VOL+ DN UP
USB
Basic Operation
4
MIC IR POWER MODE VOL+ DN UP
USB
1 2 3 4 5 6 7 8 9 1110
1. Microphone window
2. Infrared window for remote control
3. Power on/off
4. Mode key
5. Ejecting disc
6. Volume decrease
7. Volume increase
8. Screen angle modulation
a. Press the key for a short time and the display will slide downward
b. Press the key for a long time and the display will slide downward to bottom.
9. Screen angle adjustment
a. Press the key to slide up the display
b. Press and hold the key and the display will slide upward to top
10. Reset key
11. USB port
12. SD card slot
13. GPS map card slot (If equipped)
13
12
5
Basic Operation
Basic Operation
6
1.2.3.4.5.6.7.8.9.0
7
Function Operation
