Pyle PRJLE64 Manuale utente
PRJLE64
Portable Home Theater
Projector
www.PyleUSA.comwww.PyleUSA.com
PRJLE64
Portable Home Theater Projector
This Guide includes all the feature operations and
troubleshooting necessary to install and operate your new
PRJLE64 Portable Home Theater Projector.
Please read, understand, and follow all safety information
contained in these instructions prior to the use of this
projector. Retain these instructions for future reference.
IMPORTANT
• Do not try to open • Do not place
near water
• Clean with a
soft, dry cloth
• Don't cover the
lens or vents
• Place it in
horizontal position
• Place it in
ventilated places
• Don't clean
with chemical
• Disconnect
when not in use
• Don't look directly
to the light
2 3
Figures and illustrations in this User Manual are
provided for reference only and may differ from
actual product appearance. Product design and
specications may be changed without notice.
www.PyleUSA.comwww.PyleUSA.com
HIGHLIGHTS
1. With this PRJLE64 Portable Home theater Projector, you
can enjoy Movies, Sport, Videos, Pictures and more, like if
you were watching a 120 inches dynamic image.
2. Plug your DVD or Blu-ray in one of the two available
HDMI Digital inputs or send video from your computer
via VGA port. You can use the AV input to plug another
video player.
3. You can connect your USB Memory to the projector for
your Multimedia Files.
4. The Portable home theater projector delivers clear
images in low light conditions; the audio can be played
through the built in speaker, but if you need more audio
power output, you can connect an external speaker or
audio system using the 3.5mm connector. It is very light
weight and small size with respect to the home theater
projector market, it is different from other brands.
Remote control included.
Note: Video playback should not be in bright light
environments. We do not recommend the projector for
Word or spreadsheet. This is not a professional education
projector, video playback is the main function.
CONTENT
PARTS
FRONT PANEL
REAR PANEL
4 5
Projector RCA Cable Power
Cable
Remote
Control
User
Manual
Lens Cover
Focus
Lens
RJ45-LAN
www.PyleUSA.comwww.PyleUSA.com
HIGH PANEL
INSTRUCTIONS
CONNECTIONS
Before making any connections, turn off all the input
sources ( Blu-Ray, PC, video, game console ) and the
projector.
A. RCA ( AV ) Connection
Use the 3.5mm cable to RCA ( included )
B. HD IN Connection
● The HDMI cable must not exceed the 10m length
C. VGA ( PC ) Connection
D. USB Connection
6 7
Source
Left Volume -
Menu
Enter / OK
Down
Return
Right Volume +
ON / OFF
UP
www.PyleUSA.comwww.PyleUSA.com

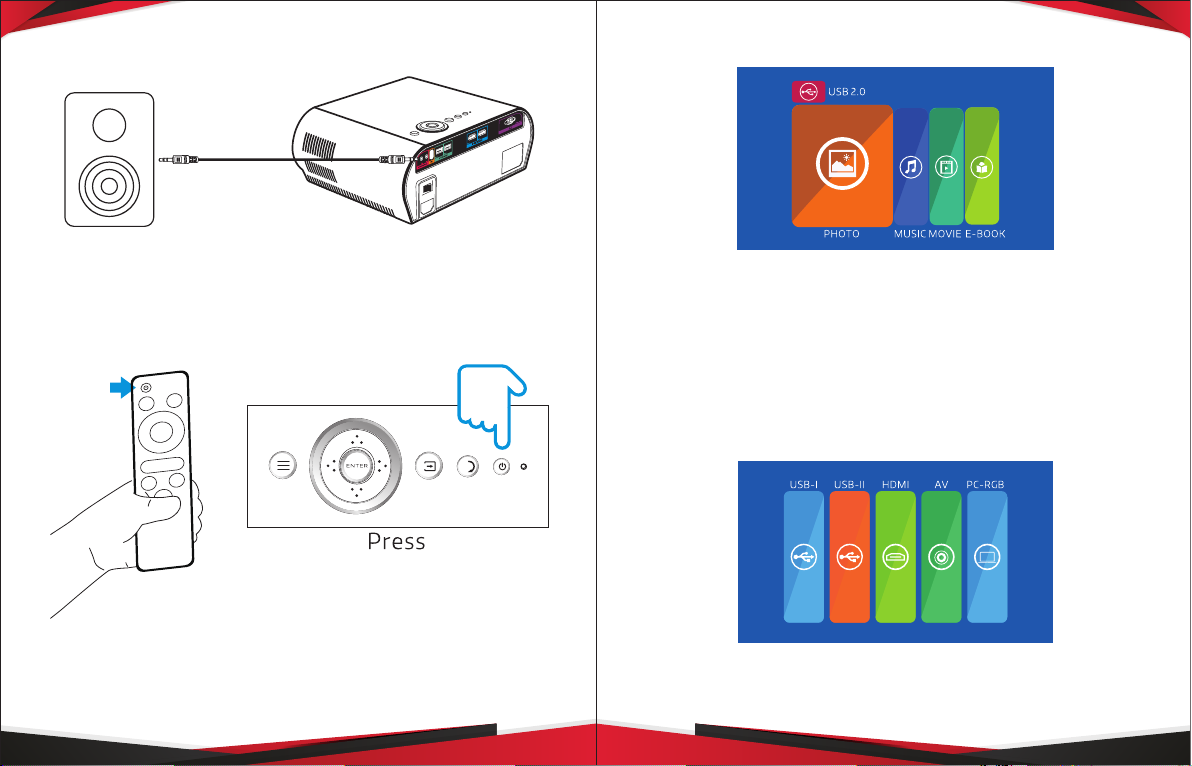

E. Audio Connection
HOW TO USE
1. How to turn on the device
Start Menu display when turned ON
● This menu is only available for USB connection.
Refer to the user manual to know the mode of use
2. Selecting the Input source
Press the SOURCE button or press INPUT in the remote
control and select with the navigation keys the desired
input source.
When turned on, the start menu will be shown
● Signicant differences based on different versions.
Different UI have different "Input Source"
6 7
www.PyleUSA.comwww.PyleUSA.com
3. Place the device into a stable surface and focus the
image.
Turn the lens until the image is clear.
4. Adjusting the volume using the portable projector.
Some of the core product parameters will appear as icons
as follows. For different models, different parameters are
expressed.
8 9
Using the remote control.
High Brightness Native 1280x800
Physical Resolution Short Distance
Projection 120 inch
Dynamic Image
Fully Enclosed
Smart Optical Engine 1080P/Full HD
Video Decode Perfect PPT
Wireless Viewer
Based on the
Android OS 4Ω,3W
Stereo Speaker Portable Small
Sizefor Home Theater
More than
30,000 Hours Life
Keystone
Correct Support
