Pyramid 1902EQ Manuale utente

INSTRUCTION MANUAL

ANTI - THEFT PULL OUT CAR AUTO-REVERSE CASSETTE PLAYER

WITH 2 - BAND AM/FM TUNING RADIO

SPECIFICATION

GENERAL

Power Supply Requirements............................................................DC 12V.

Chassis Dimensions.................................................181[W]X147[D]X53[H].

FM SECTION

Frequency Range............................................................88MHz - 108MHz.

AM SECTION

Frequency Range..........................................................530KHz - 1700KHz.

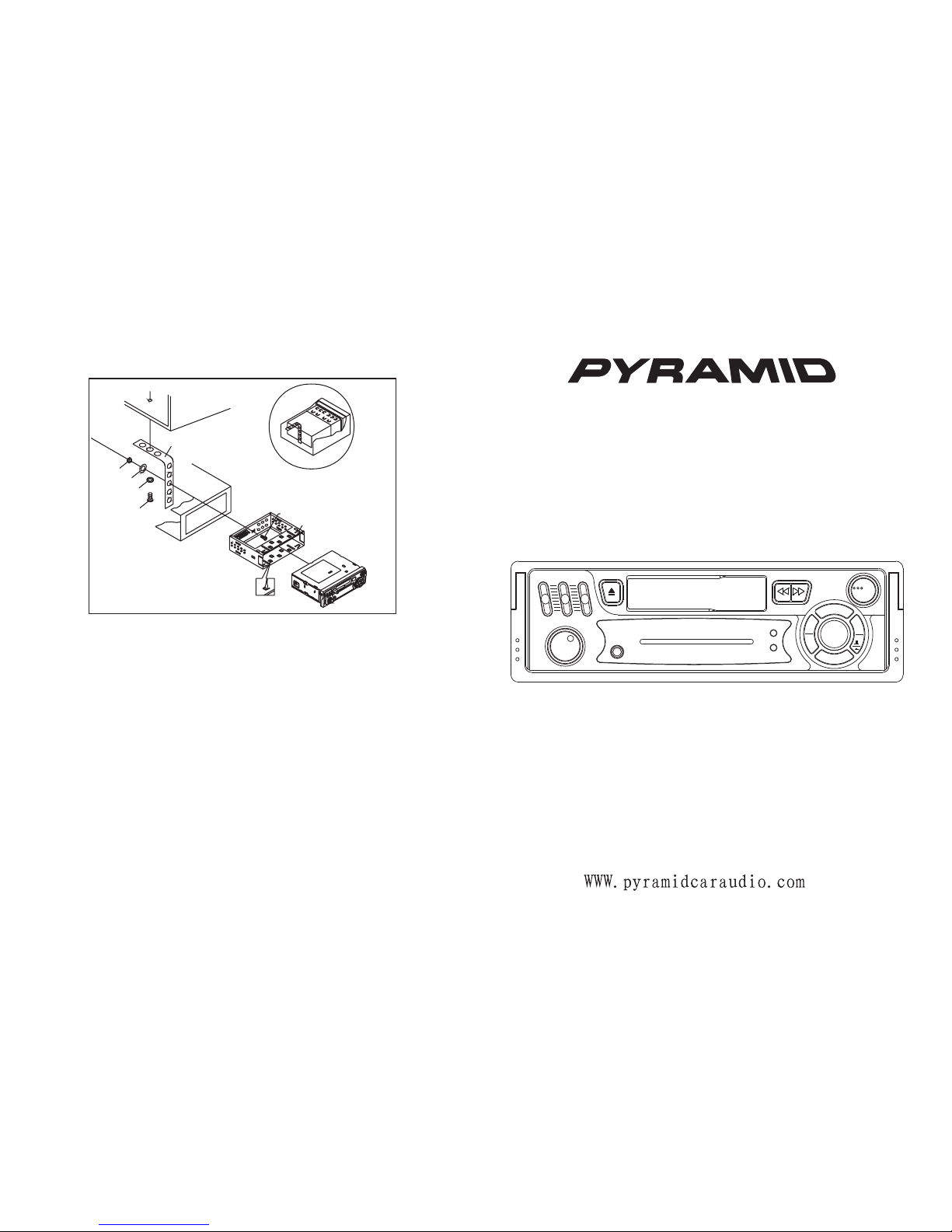

HEX BOLT

HEX NUT

PLAIN WASHER

TAPPING SCREW

SPRING WASHER

CONSOLE

METAL MOUNTING STRAP

DASH BOARD

SLIDE BRACKET HOUSING

INSTALLATION

MODEL: 1902EQ

TUNE

CAR LO

POWER

MUTE

MUT

SYSTEM

108106 MHz10410296

+10

10K

100

+10

-10

CD IN

-10

VOL

54 60 70 80 100 140 160 X 10 KHZ

Power output........................................................................90W +90W

180WATTS

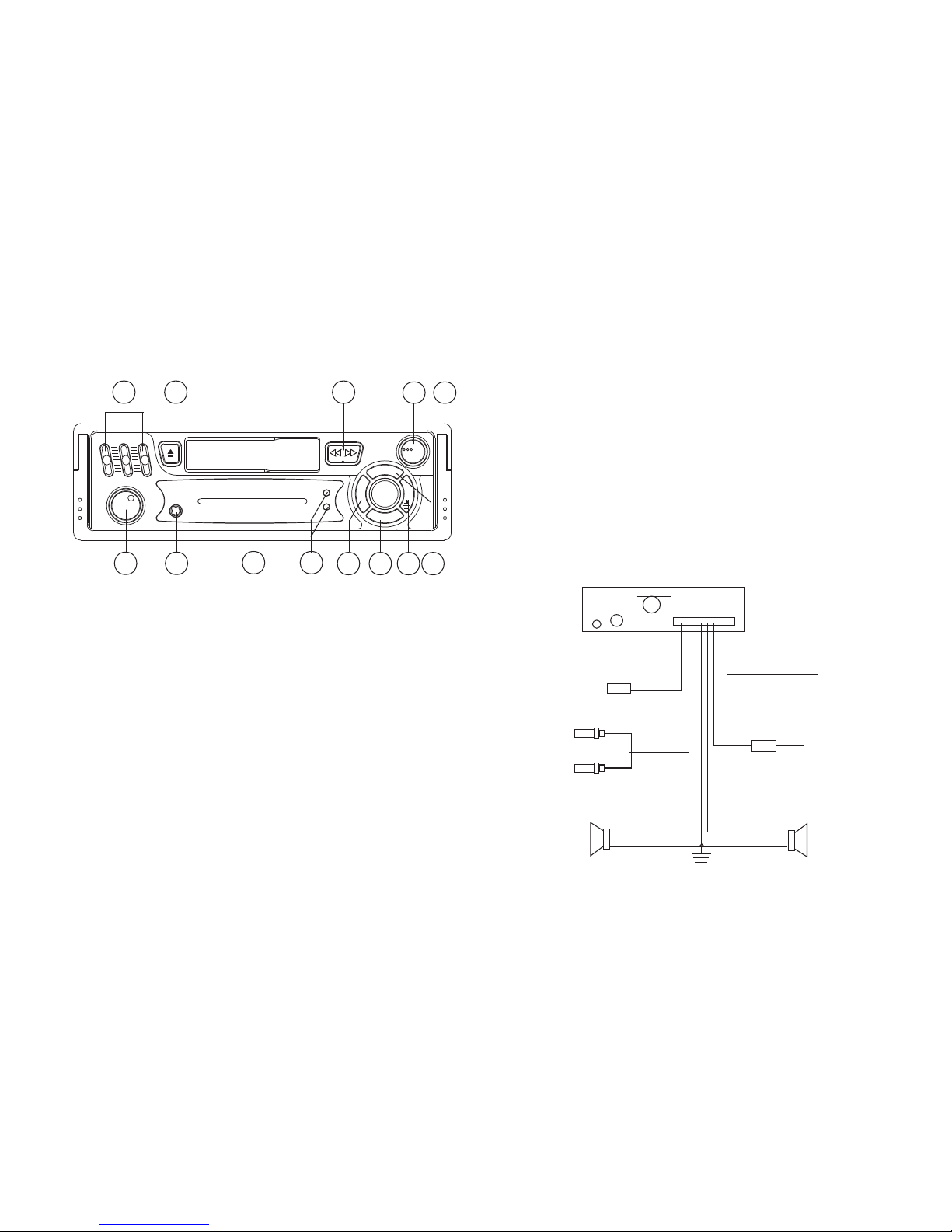

LOCATION AND FUNCTION OF CONTROL

4. PULL OUT HANDLE

7. MUTE BUTTON

Press this button to reduce the volume level immediately.

8. AM/FM BUTTON

Press the button for AM or FM reception.

10. FREQUENCY DISPLAY SCALE

11. CD INPUT JACK

12. VOLUME KNOB

Rotate it to increase or decrease the volume level.

13. FAST FORWARD/REWIND PROGRAM BUTTONS

3. TUNING KNOB

Rotate this knob to get your desired radio station.

2. EJECT BUTTON

Push the button to eject the tape.

5. POWER BUTTON

Press it to turn on or off the unit.

6. LOCAL/DISTANCE

Press this button for distance reception when you are located at weak signal

location. Depress this button for stronger signal.

1. EQ CONTROLS

Slide them up or down to get the sound quality.

9. LED INDICATORS

87 6 5

3 4

1112

WIRING CONNECTION

TUNE

CAR LO

POWER

MUTE

MUT

SYSTEM

108106 MHz10410296

+10

10K

100

+10

-10

CD IN

-10

VOL

54 60 70 80 100 140 160 X 10 KHZ

REAR CABINET

ANTENNA JACK

FUSE 3A

B+POWER

RED

+ +WHITE GREY

BLACK

- -

GROUND

LEFT

SPEAKER RIGHT

SPEAKER

RCA LINE OUT

RED

WHITE

BLUE AUTO ANTENNA
