Pyramid 1402P Manuale utente

INSTRUCTION MANUAL

MODEL: 1402P

ANTI-THEFT PULL OUT CAR CASSETTE PLAYER

WITH AM/FM 2 BAND TUNING RADIO

SPECIFICATION

GENERAL

AM SECTION

FM SECTION

Power Supply Requirements..................DC 12Volts. Negative Ground

Chassis Dimensions..................................181(W) X 147(D) X 53(H)

Power output..............................................................50W + 50W

Frequency Range..................................................88MHz - 108MHz

Frequency Range................................................530KHz - 1700KHz

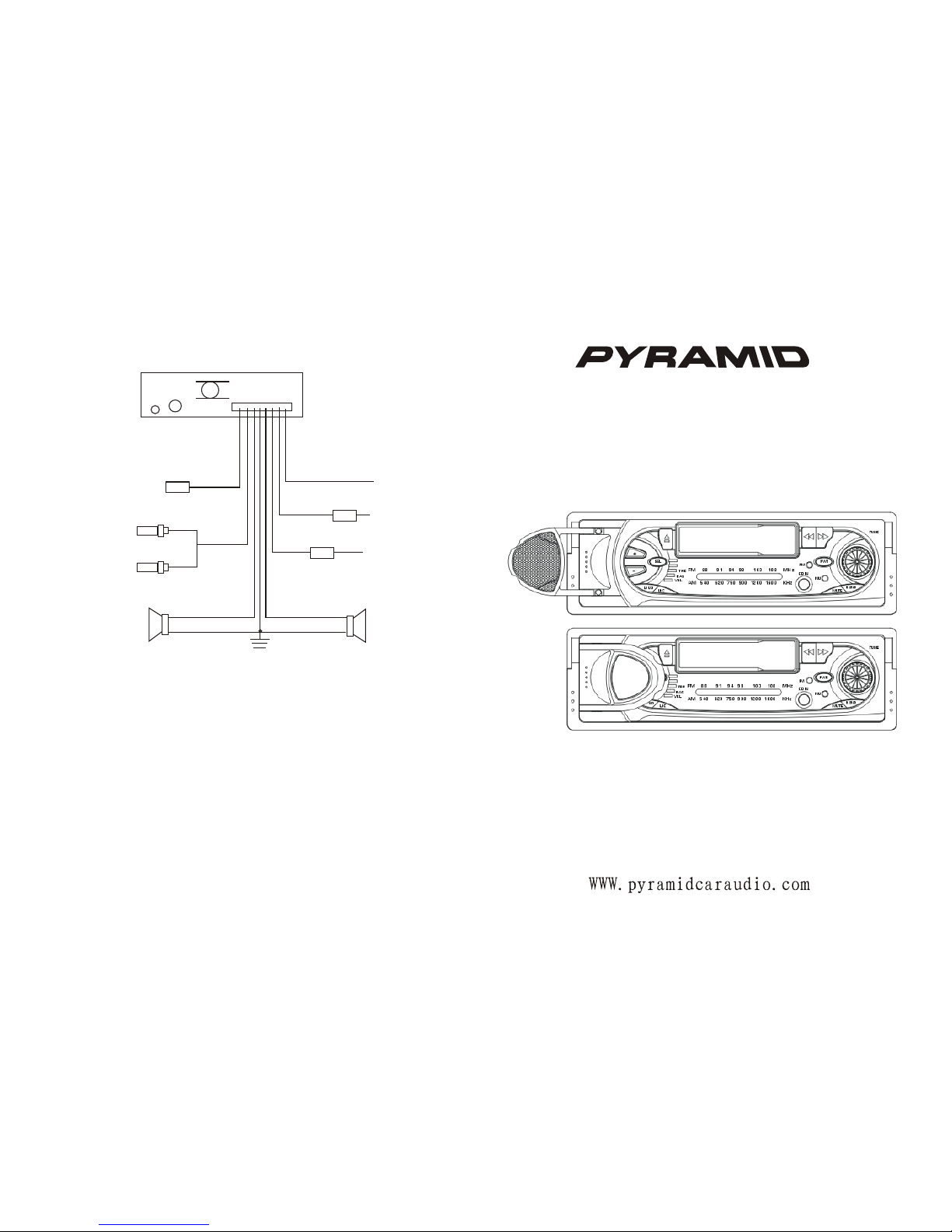

WIRING CONNECTION

REAR CABINET

ANTENNA JACK

RCA LINE OUT

RED

FUSE 3A

FUSE 0.5A

AUTO ANT+ YELLOW

TO +12V BATTERY

B+ MEMORY

RED

PINK

+ +GREEN GREY

BLACK

- -

WHITE

GROUND

LEFT

SPEAKER RIGHT

SPEAKER

LOCATION AND FUNCTION OF CONTROL

1.16. FOLDABLE TWEETER( No sound produced if the speaker is

closed. See number 16.)

2. PULL OUT HANDLE

3. SEL, +/- BUTTON

Press it to select VOL/TRE/BAS, and with +/-button to adjust the volume,

treble, and bass. The function which is selected will be indicated.

4. EJECT BUTTON

Press it to eject the tape.

5. 6.13 LED INDICATOR

7. POWER BUTTON

Press it to turn on or off the unit.

8. TUNING KNOB

Rotate it to adjust your desired radio station.

9. LOUDNESS BUTTON

Press it to get the best loudness during it is for bass.

10. LO/DX BUTTON

Press it for distance reception when you are located at weak signal location,

Depress it for stronger signal.

11. FREQUENCY DISPLAY SCALE

12. CD IN JACK

14. MUTE BUTTON

Press it to reduce the volume level immediately.

15. BAND BUTTON

Press it to select your desired radio band.

17. FAST FORWARD/REWIND PROGRAM BUTTONS

INSTALLATION
