Pyramid 2706D Manuale utente

INSTRUCTION MANUAL

WIRING CONNECTION

SPECIFICATION

GENERAL

AM SECTION

FM SECTION

Power Supply Requirements...............................DC 12Volts. Negative Ground

Power Output..................................................................40W + 40W MAX

Chassis Dimensions...............................................181(W) X 147(D) X 53(H)

Frequency Range............................................................88MHz - 108MHz

Frequency Range............................................................530KHz - 1700KHz

MODEL: 2706D

REAR CABINET

ANTENNA JACK

FUSE 3A

FUSE 0.5A

TO +12V BATTERY

B+ MEMORY

RED

PINK

AUTO ANT+ YELLOW

GREEN

- -

GREY

BLACK

GROUND

LEFT

SPEAKER RIGHT

SPEAKER

RCA LINE OUT

RED

WHITE

ANTI-THEFT FULL DETACHABLE CAR CASSETTE PLAYER

WITH AM/FM TUNING RADIO

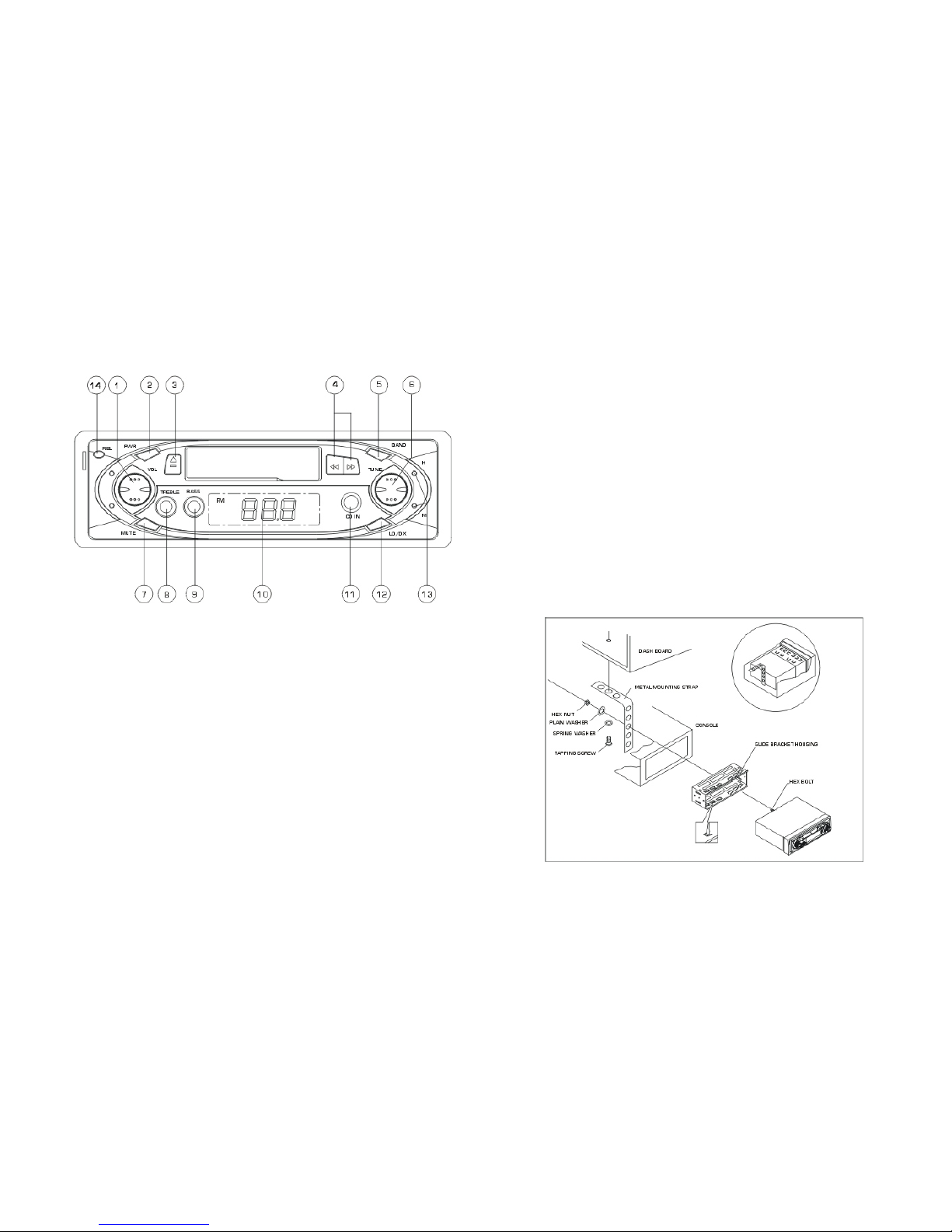

LOCATION AND FUNCTION OF CONTROL

1.VOL BUTTON

Rotate it to adjust the volume level.

2.POWER BUTTON

Press it to turn on or off the unit.

3.EJECT BUTTON

Press it to eject the tape.

4.FAST FORWARD/REWIND PROGRAM BUTTON

5.BAND BUTTON

Press it to get your desired radio band.

6.TUNE BUTTON

Rotate it to get your desired broadcasting station.

7.MUTE BUTTON

Press it to reduce the volume level immediately.

8.TREBLE BUTTON

Rotate it to adjust the treble effect.

9.BASS BUTTON

Rotate it to adjust the bass effect.

10.LCD (LIQUID CRYSTAL DISPLAY)

11.CD IN JACK

12.LO/DX BUTTON

Press it for distance reception when you are located at weak signal location.

Depress it for stronger signal.

13.H,M BUTTON

When time on display, press H or M button to adjust hour or minute.

14.REL BUTTON

Press it to release the front panel from the unit.

INSTALLATION
