Q-See QT428-811 Manuale utente

Quick Installation Guide

8 Channel H.264 Compression DVR with

(CIF) Real-Time Recording and

8 Color CMOS Camera Kits

-8

Get other manuals https://www.bkmanuals.com

Q-SEE QUICK INSTALLATION GUIDE

-8

2 | Page

Color C

MOS

Cameras

with Stands

QSM1424W (3.6mm)

Remote

Control

USB 2.0

Mouse

Ethernet

Cable

BNC (M)

RCA (F)

Adapter

Camera Cables

(8Included)

Power Supply &

8 -Way Splitter

ForCameras

Pre

Installed

Hard Drive

Software

User’s

Manual

Power Supply

For DVR

QT428 DVR

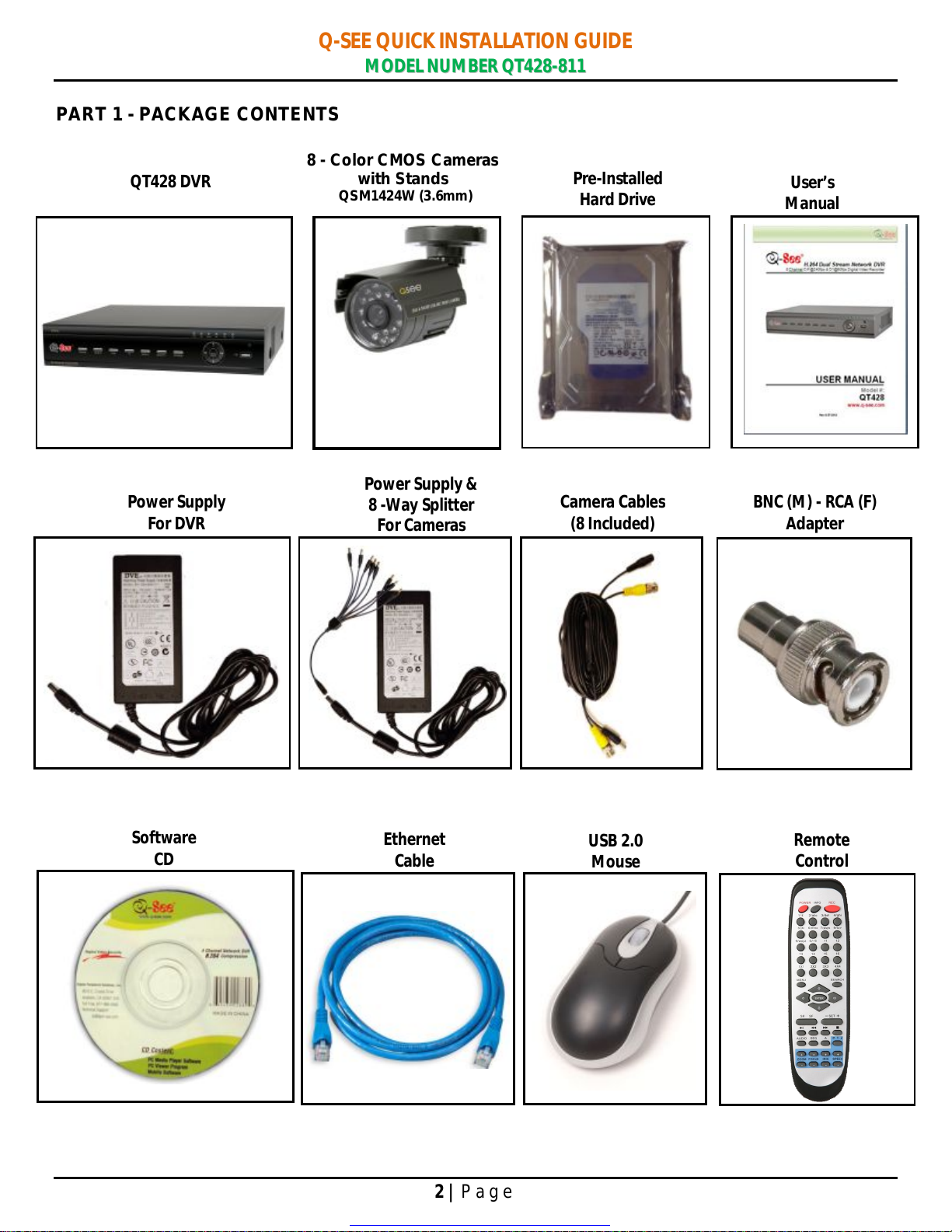

PART 1 - PACKAGE CONTENTS

Get other manuals https://www.bkmanuals.com

Q-SEE QUICK INSTALLATION GUIDE

-8

3 | Page

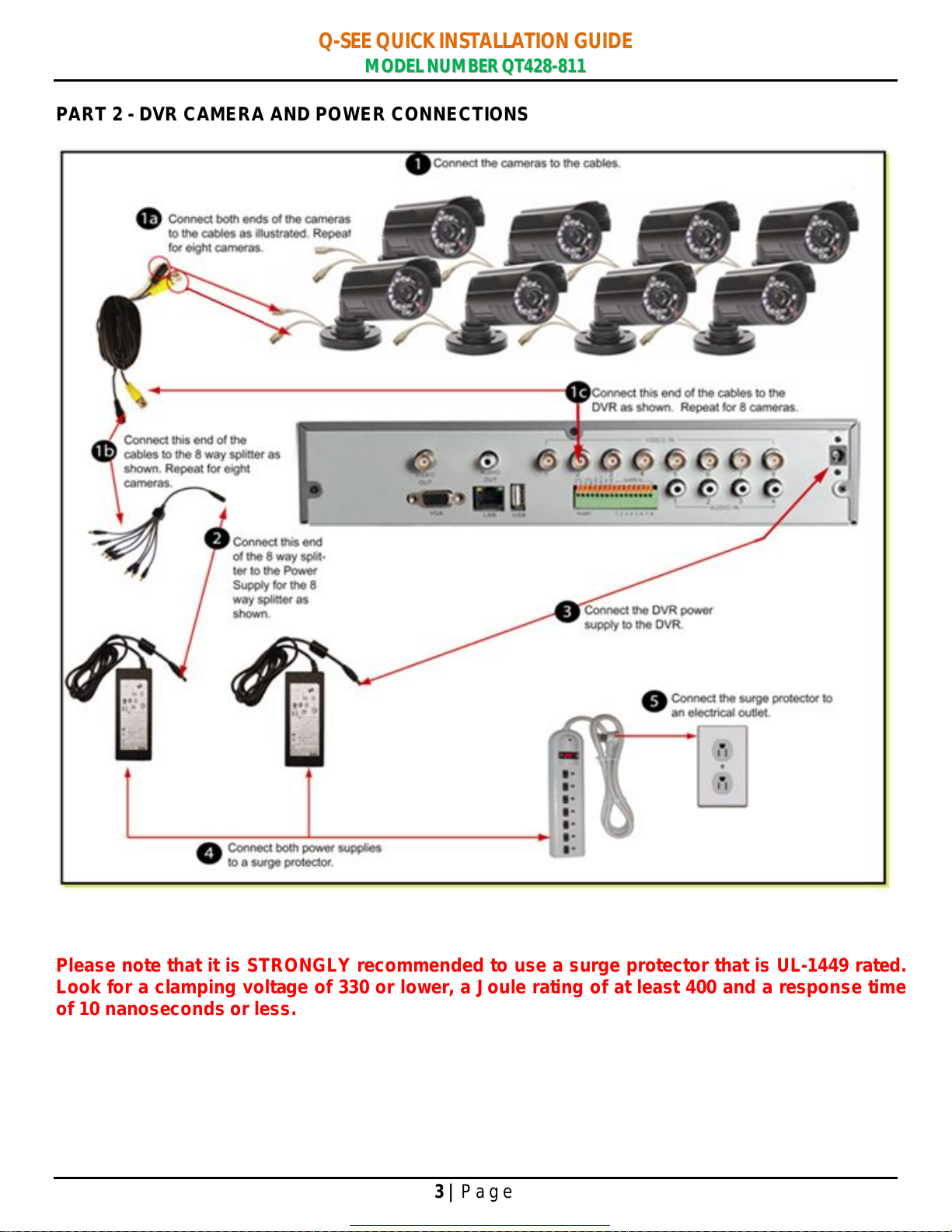

PART 2 - DVR CAMERA AND POWER CONNECTIONS

Please note that it is STRONGLY recommended to use a surge protector that is UL-1449 rated.

Look for a clamping voltage of 330 or lower, a Joule rating of at least 400 and a response time

of 10 nanoseconds or less.

Get other manuals https://www.bkmanuals.com

Q-SEE QUICK INSTALLATION GUIDE

-8

4 | Page

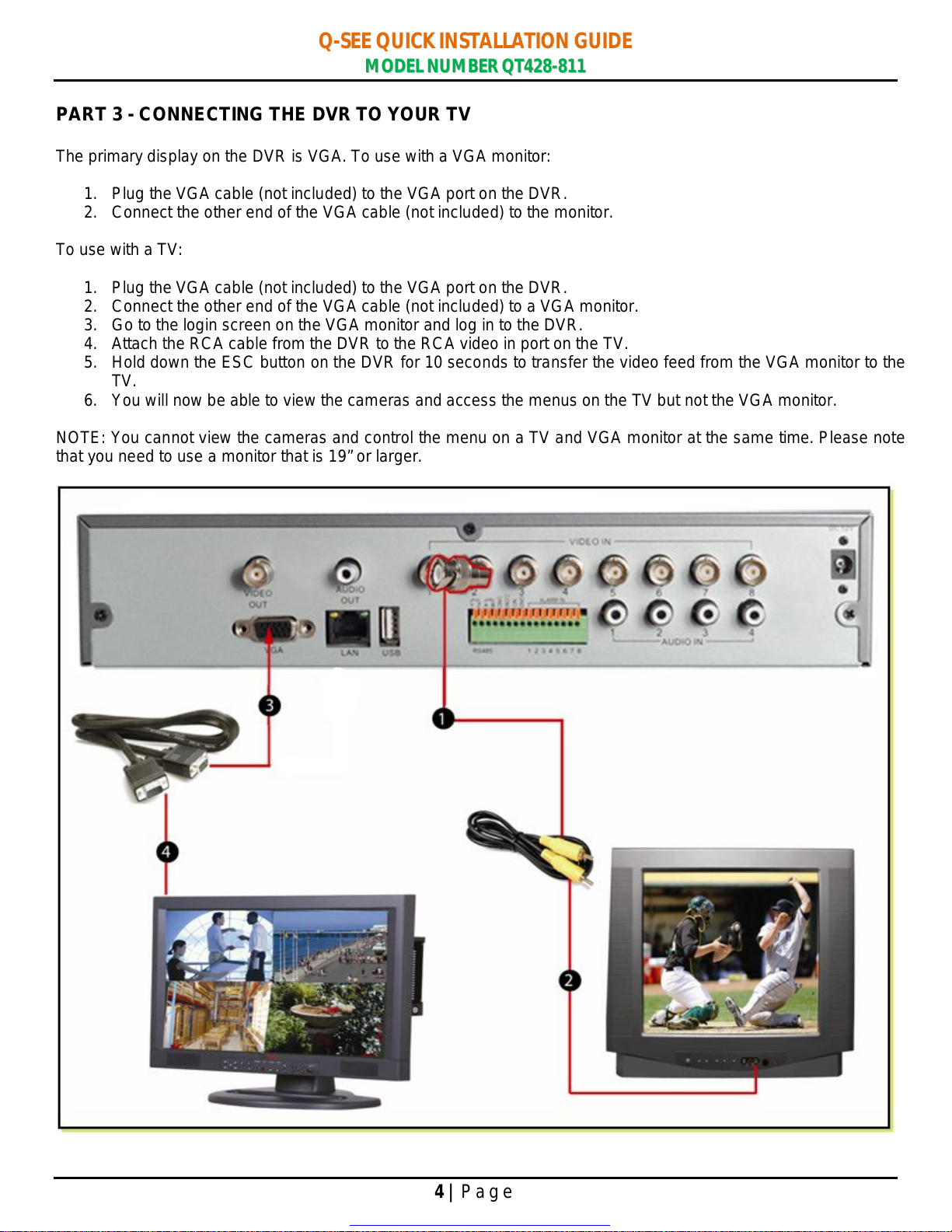

PART 3 - CONNECTING THE DVR TO YOUR TV

The primary display on the DVR is VGA. To use with a VGA monitor:

1. Plug the VGA cable (not included) to the VGA port on the DVR.

2. Connect the other end of the VGA cable (not included) to the monitor.

To use with a TV:

1. Plug the VGA cable (not included) to the VGA port on the DVR.

2. Connect the other end of the VGA cable (not included) to a VGA monitor.

3. Go to the login screen on the VGA monitor and log in to the DVR.

4. Attach the RCA cable from the DVR to the RCA video in port on the TV.

5. Hold down the ESC button on the DVR for 10 seconds to transfer the video feed from the VGA monitor to the

TV.

6. You will now be able to view the cameras and access the menus on the TV but not the VGA monitor.

NOTE: You cannot view the cameras and control the menu on a TV and VGA monitor at the same time. Please note

that you need to use a monitor that is 19” or larger.

Get other manuals https://www.bkmanuals.com

Q-SEE QUICK INSTALLATION GUIDE

-8

5 | Page

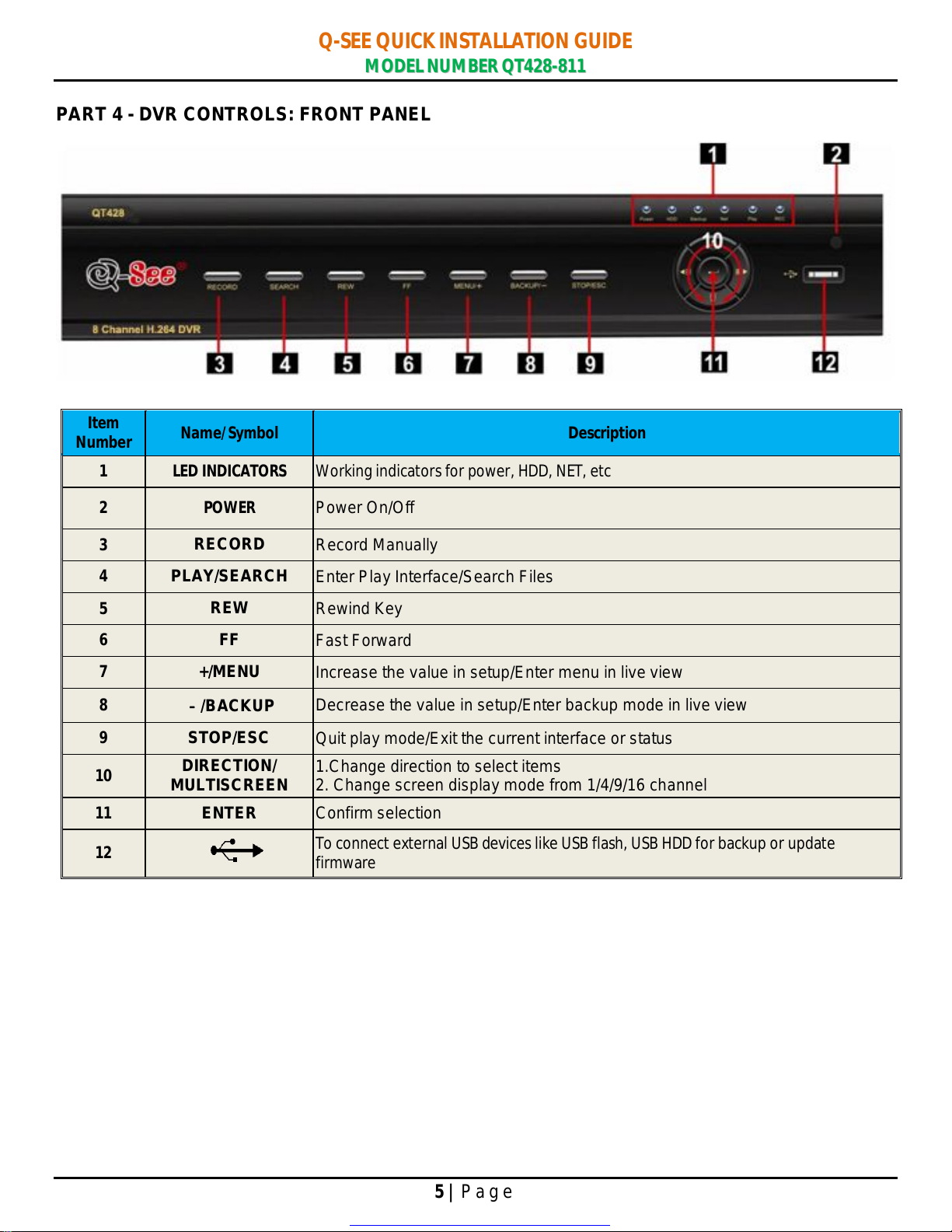

PART 4 - DVR CONTROLS: FRONT PANEL

Item

Number Name/Symbol Description

1 LED INDICATORS Working indicators for power, HDD, NET, etc

2 POWER Power On/Off

3 RECORD Record Manually

4 PLAY/SEARCH Enter Play Interface/Search Files

5 REW Rewind Key

6 FF Fast Forward

7 +/MENU Increase the value in setup/Enter menu in live view

8 －/BACKUP Decrease the value in setup/Enter backup mode in live view

9 STOP/ESC Quit play mode/Exit the current interface or status

DIRECTION/

MULTISCREEN 1.Change direction to select items

2. Change screen display mode from 1/4/9/16 channel

11 ENTER Confirm selection

To connect external USB devices like USB flash, USB HDD forbackup or update

firmware

Get other manuals https://www.bkmanuals.com

Q-SEE QUICK INSTALLATION GUIDE

-8

6 | Page

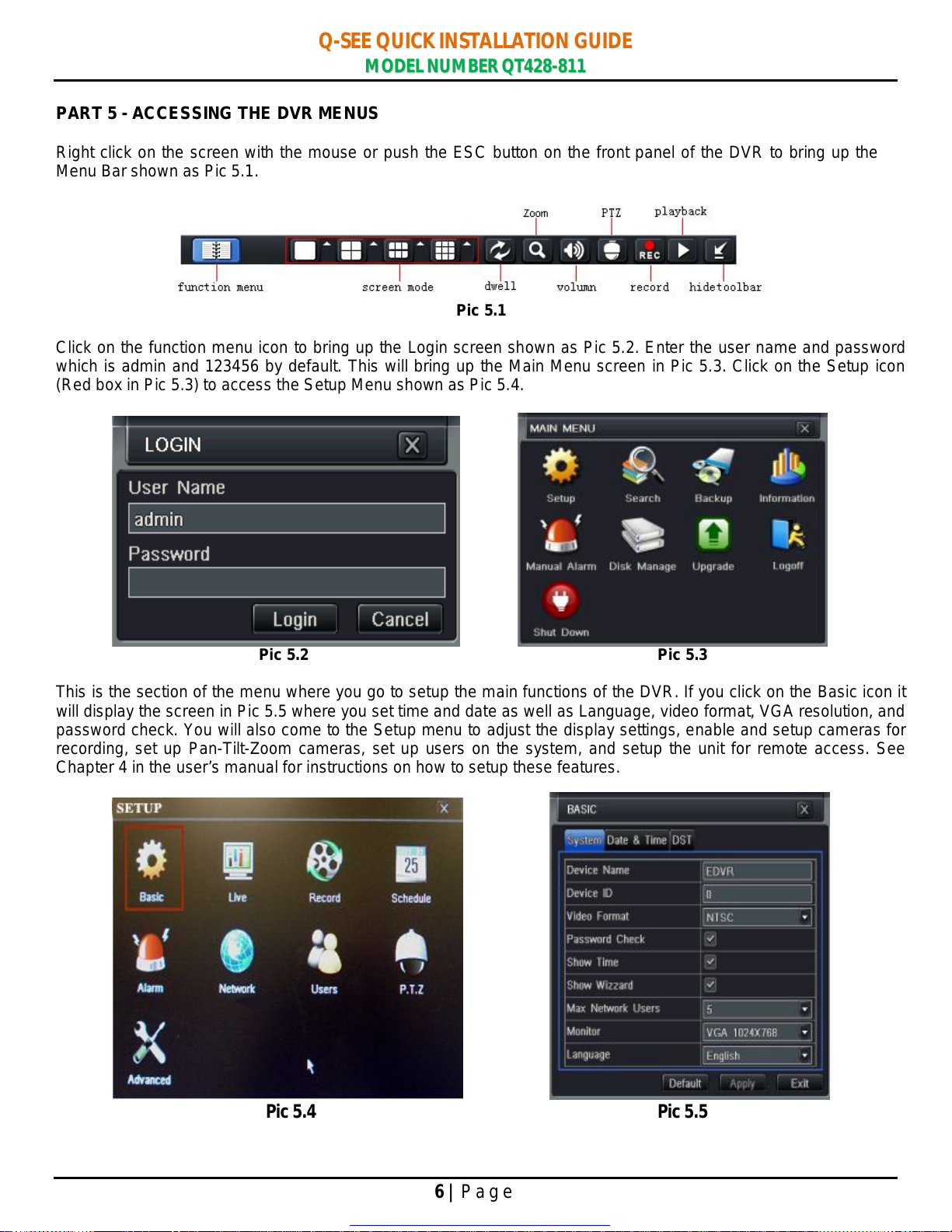

PART 5 - ACCESSING THE DVR MENUS

Right click on the screen with the mouse or push the ESC button on the front panel of the DVR to bring up the

Menu Bar shown as Pic 5.1.

Pic 5.1

Click on the function menu icon to bring up the Login screen shown as Pic 5.2. Enter the user name and password

which is admin and 123456 by default. This will bring up the Main Menu screen in Pic 5.3. Click on the Setup icon

(Red box in Pic 5.3) to access the Setup Menu shown as Pic 5.4.

Pic 5.2 Pic 5.3

This is the section of the menu where you go to setup the main functions of the DVR. If you click on the Basic icon it

will display the screen in Pic 5.5 where you set time and date as well as Language, video format, VGA resolution, and

password check. You will also come to the Setup menu to adjust the display settings, enable and setup cameras for

recording, set up Pan-Tilt-Zoom cameras, set up users on the system, and setup the unit for remote access. See

Chapter 4 in the user’s manual for instructions on how to setup these features.

Pic 5.4 Pic 5.5

Get other manuals https://www.bkmanuals.com

Q-SEE QUICK INSTALLATION GUIDE

-8

7 | Page

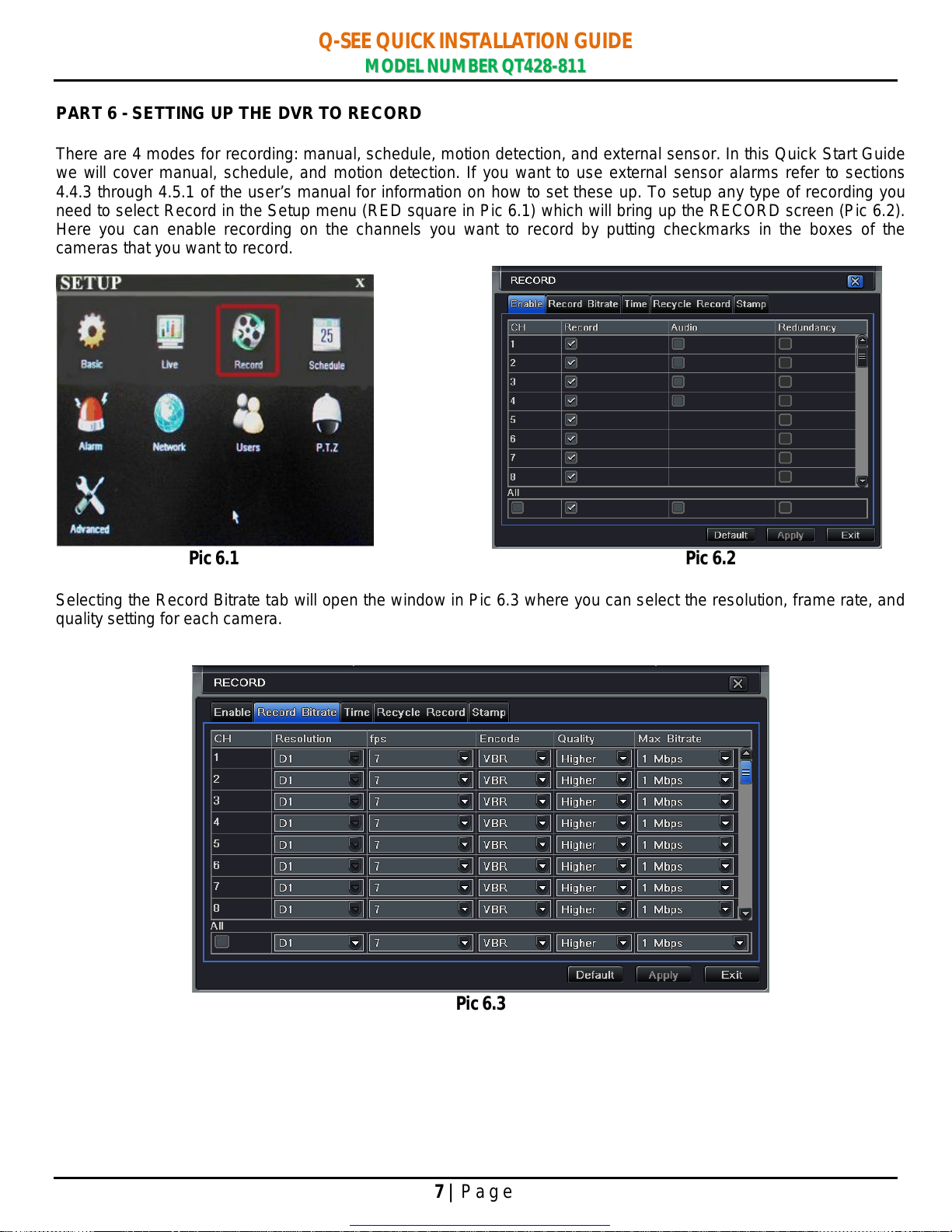

PART 6 - SETTING UP THE DVR TO RECORD

There are 4 modes for recording: manual, schedule, motion detection, and external sensor. In this Quick Start Guide

we will cover manual, schedule, and motion detection. If you want to use external sensor alarms refer to sections

4.4.3 through 4.5.1 of the user’s manual for information on how to set these up. To setup any type of recording you

need to select Record in the Setup menu (RED square in Pic 6.1) which will bring up the RECORD screen (Pic 6.2).

Here you can enable recording on the channels you want to record by putting checkmarks in the boxes of the

cameras that you want to record.

Pic 6.1 Pic 6.2

Selecting the Record Bitrate tab will open the window in Pic 6.3 where you can select the resolution, frame rate, and

quality setting for each camera.

Pic 6.3

Get other manuals https://www.bkmanuals.com

Q-SEE QUICK INSTALLATION GUIDE

-8

8 | Page

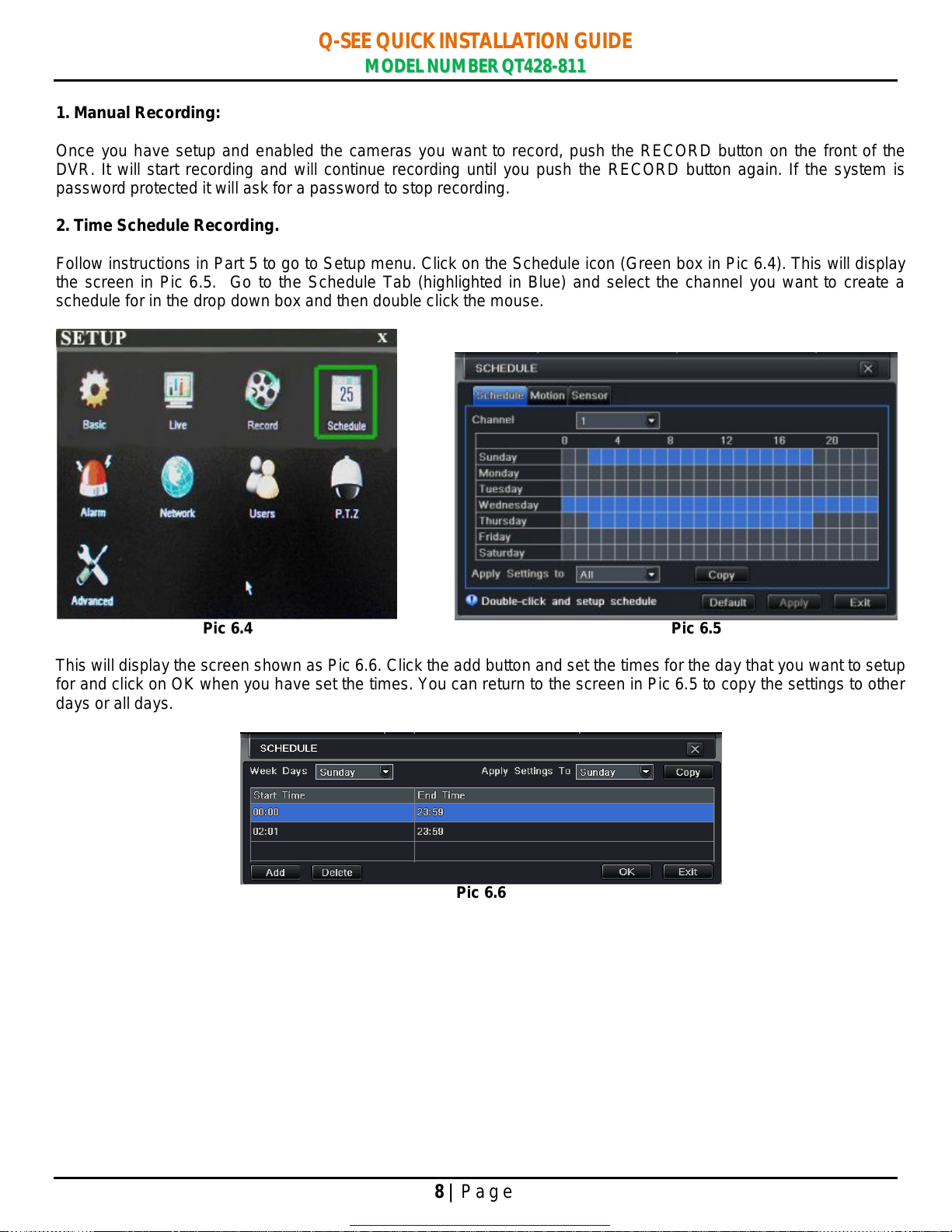

1. Manual Recording:

Once you have setup and enabled the cameras you want to record, push the RECORD button on the front of the

DVR. It will start recording and will continue recording until you push the RECORD button again. If the system is

password protected it will ask for a password to stop recording.

2. Time Schedule Recording.

Follow instructions in Part 5 to go to Setup menu. Click on the Schedule icon (Green box in Pic 6.4). This will display

the screen in Pic 6.5. Go to the Schedule Tab (highlighted in Blue) and select the channel you want to create a

schedule for in the drop down box and then double click the mouse.

Pic 6.4 Pic 6.5

This will display the screen shown as Pic 6.6. Click the add button and set the times for the day that you want to setup

for and click on OK when you have set the times. You can return to the screen in Pic 6.5 to copy the settings to other

days or all days.

Pic 6.6

Get other manuals https://www.bkmanuals.com

Q-SEE QUICK INSTALLATION GUIDE

-8

9 | Page

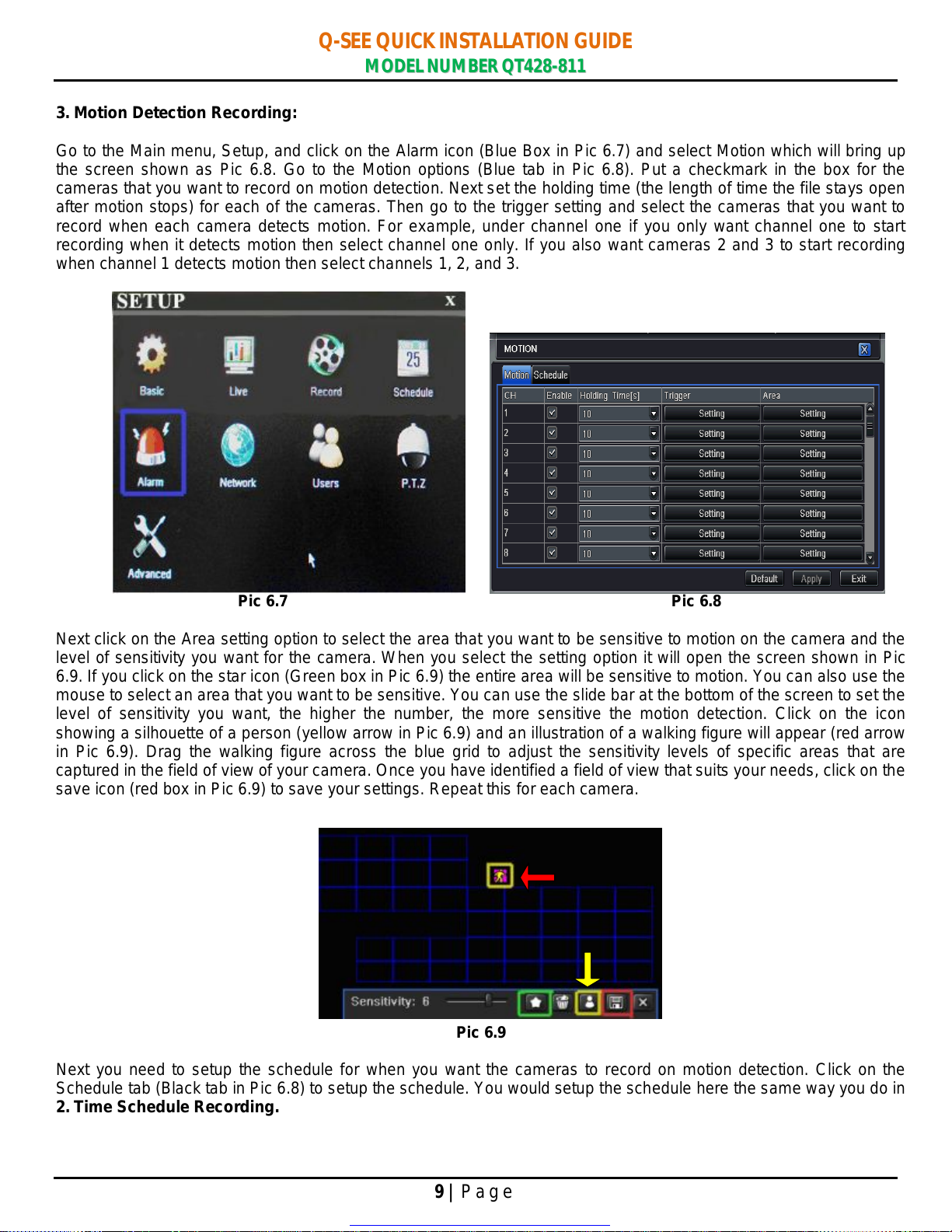

3. Motion Detection Recording:

Go to the Main menu, Setup, and click on the Alarm icon (Blue Box in Pic 6.7) and select Motion which will bring up

the screen shown as Pic 6.8. Go to the Motion options (Blue tab in Pic 6.8). Put a checkmark in the box for the

cameras that you want to record on motion detection. Next set the holding time (the length of time the file stays open

after motion stops) for each of the cameras. Then go to the trigger setting and select the cameras that you want to

record when each camera detects motion. For example, under channel one if you only want channel one to start

recording when it detects motion then select channel one only. If you also want cameras 2 and 3 to start recording

when channel 1 detects motion then select channels 1, 2, and 3.

Pic 6.7 Pic 6.8

Next click on the Area setting option to select the area that you want to be sensitive to motion on the camera and the

level of sensitivity you want for the camera. When you select the setting option it will open the screen shown in Pic

6.9. If you click on the star icon (Green box in Pic 6.9) the entire area will be sensitive to motion. You can also use the

mouse to select an area that you want to be sensitive. You can use the slide bar at the bottom of the screen to set the

level of sensitivity you want, the higher the number, the more sensitive the motion detection. Click on the icon

showing a silhouette of a person (yellow arrow in Pic 6.9) and an illustration of a walking figure will appear (red arrow

in Pic 6.9). Drag the walking figure across the blue grid to adjust the sensitivity levels of specific areas that are

captured in the field of view of your camera. Once you have identified a field of view that suits your needs, click on the

save icon (red box in Pic 6.9) to save your settings. Repeat this for each camera.

Pic 6.9

Next you need to setup the schedule for when you want the cameras to record on motion detection. Click on the

Schedule tab (Black tab in Pic 6.8) to setup the schedule. You would setup the schedule here the same way you do in

2. Time Schedule Recording.

Get other manuals https://www.bkmanuals.com

Q-SEE QUICK INSTALLATION GUIDE

-8

10 | Page

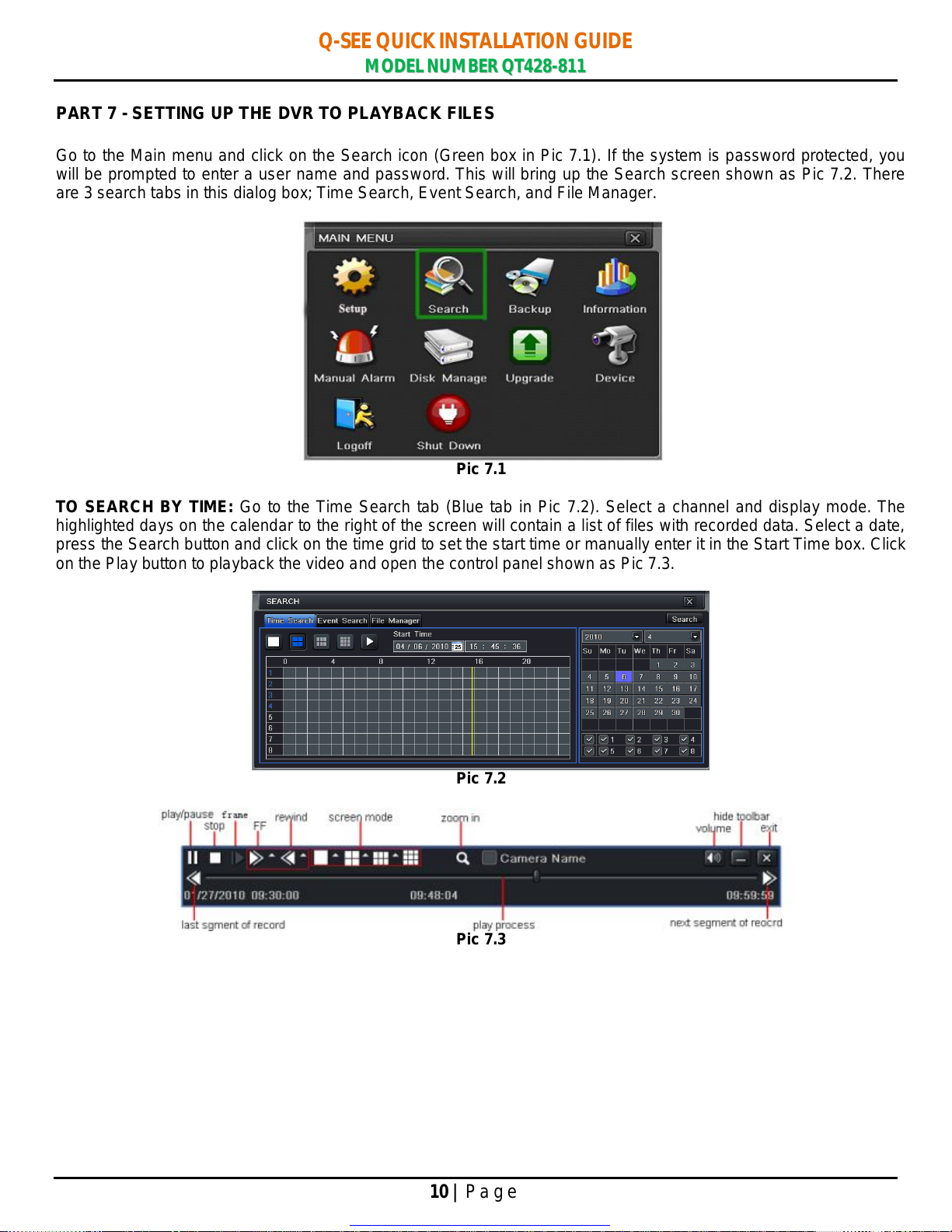

PART 7 - SETTING UP THE DVR TO PLAYBACK FILES

Go to the Main menu and click on the Search icon (Green box in Pic 7.1). If the system is password protected, you

will be prompted to enter a user name and password. This will bring up the Search screen shown as Pic 7.2. There

are 3 search tabs in this dialog box; Time Search, Event Search, and File Manager.

Pic 7.1

TO SEARCH BY TIME: Go to the Time Search tab (Blue tab in Pic 7.2). Select a channel and display mode. The

highlighted days on the calendar to the right of the screen will contain a list of files with recorded data. Select a date,

press the Search button and click on the time grid to set the start time or manually enter it in the Start Time box. Click

on the Play button to playback the video and open the control panel shown as Pic 7.3.

Pic 7.2

Pic 7.3

Get other manuals https://www.bkmanuals.com
