ASSEMBLY PREPARING TO MOW

Lift the flap and

hook the grass bag

over the plastic

hooks on the rear

of the mower.

Adjust the cutting

height via the lever

located by the rear

right hand wheel.

Fill the petrol tank with 0.8l of normal 95 Octane petrol

(standard unleaded) using a funnel and measuring jug.

When starting a cold

engine, press down the

primer fully 3~5 times.

When starting a warm

engine, the primer

does not need to be

used.

To start the engine slowly

pull the start cord out

until resistance is felt

(approx 10-15cm) then

start the engine with a

sharp vigorous pull.

In cold weather it may be necessary to repeat the cold engine starting

process.

To stop the mower release the stop/start

bar.

IMPORTANT INFORMATION!

Always read the instruction manual thoroughly

before starting the lawnmower.

Never allow the starter cord to snap back.

Check the oil level before every use. Always use high quality detergent oil classified

SAE30 oil (or equivalent eg 5W 30, often termed as 4 Stroke lawn mower oil).

Unpack the lawn mower ensuring all parts are present

(see parts list overleaf) before discarding the packaging.

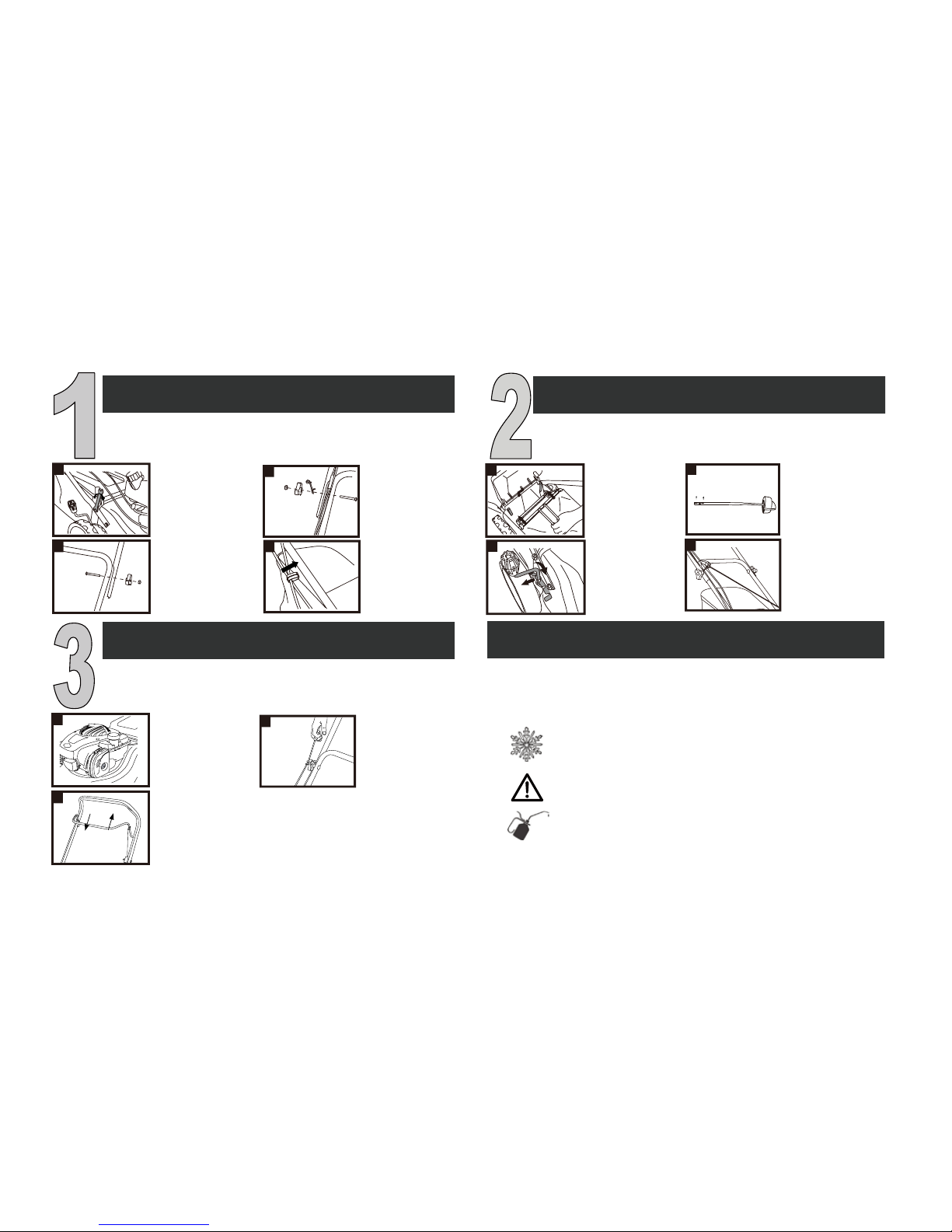

Align the lower handle

with the holes in the

deck. Fix the lower

handle using the 4 handle

fixing bolts onto the deck

firmly with supplied

wrench.

3Locate the rope guide

over the right hand

bolt so the 90° bend

sits on top of the

handle bar and secure

using the plastic knob.

Locate upper handle

bar on lower with the

bolts. Secure the left

bolt using plastic

tightening knob

ensuring cables are

not twisted.

Follow these steps to ensure quick and easy set up

every time.

5The engine does not

come with oil. Add

0.5 litres of oil.

CHECK THE OIL LEVEL

BEFORE EVERY USE.

6Slowly pull out starter

cord & hook it through

the eye of rope guide.

You should ALWAYS

start your mower

from this position.

Hold the stop/start bar

firmly to the handle to

disengage the motor

brake and automatic

cut out.If you have any difficulties please contact the

helpline on 01904 727500

email [email protected]

or visit www.gardenservicecentre.co.uk

MOWING THE LAWN

Using the cable

clamp provided,

secure the cables to

the handle without

trapping them.

Engine stop

Engine start

Add Full

1. Main mower deck (with upper handle attached)

2. Lower handle

3. Grass collection bag 1pc

4. Handle fixing bolts 4pcs

5. Handle tensioning knob with nut m8 2pcs

6. Cable clip 1pc

7. Rope guide 1pc

8. Wrench 1pc

9. Spanner & philips screwdriver 1pc

1 2 3

8 9

ALWAYS READ THE

INSTRUCTION MANUAL AND

SAFETY WARNINGS THOROUGHLY

BEFORE USE.

For technical advice, spare parts and service

support 7 days a week please call:

Mon-Fri: 9am-5pm

Sat-Sun: 11am-4pm

Email: [email protected]

Website: www.gardenservicecentre.co.uk

01904 727500

41cm Petrol Hand Push Lawn Mower
