Quantum Scalar 50 Manuale utente

Document 81-81771-01 A01, June 2007 1

Quantum Scalar 50

Magazine Upgrade or Exchange

Instructions

Introduction 3

Preparing the Library 3

Required Upgrade Kit ..................................................................................3

Magazine Upgrade Procedure 4

Ejecting the Original Magazine...................................................................4

Installing the New Magazines.....................................................................5

Quantum Scalar 50 Magazine Upgrade or Exchange Instructions

Document 81-81771-01 A01

June 2007

Made in the USA.

Quantum Corporation provides this publication “as is” without warranty of any kind, either express or implied, including but not

limited to the implied warranties of merchantability or fitness for a particular purpose. Quantum Corporation may revise this publication

from time to time without notice.

Your right to copy this document is limited by copyright law. Making copies or adaptations without prior written authorization of

Quantum Corporation is prohibited by law and constitutes a punishable violation of the law.

TRADEMARK STATEMENT

Capacity on Demand (CoD), Crosslink Mechanism, DLT, DLTSage, DLTtape, Super DLTtape, Performance on Demand, (PoD), PRISM,

PRISM Storage Architecture logo, SiteCare, StackLink, StorageCare, SuperLoader, and ValueLoader are all trademarks of Quantum

Corporation. Quantum, the Quantum logo, and the DLTtape logo are all registered trademarks of Quantum Corporation.

Other trademarks may be mentioned herein which belong to other companies.

Quantum Scalar 50 Magazine Upgrade or Exchange Instructions

Document 81-81771-01 A01

June 2007

Introduction 3

Introduction 0

This document explains how to upgrade or exchange your Scalar 50 library

with either SDLT or LTO magazines.

•Preparing the Library

•Magazine Upgrade Procedure

Preparing the Library 0

Before beginning the installation procedure, make sure that you have the

required upgrade kit(s).

Required Upgrade Kit 0The magazine upgrade kit differs depending on the tape cartridge type

supported (SDLT or LTO) (see table 1 and table 2 for the appropriate upgrade

kit).

Table 1 SDLT Magazine

Upgrade Kit PN

PR-UU9NZ-YF

Note: All part numbers are subject to change without notice.

Qty Illustration Description

1SDLT Magazine (15 bins)

1Handle

4Flat head Phillips screws (must use with new handles)

1Quantum Scalar 50 Magazine Upgrade Instructions (PN 81-81771)

Quantum Scalar 50 Magazine Upgrade or Exchange Instructions

Document 81-81771-01 A01

June 2007

4 Magazine Upgrade Procedure

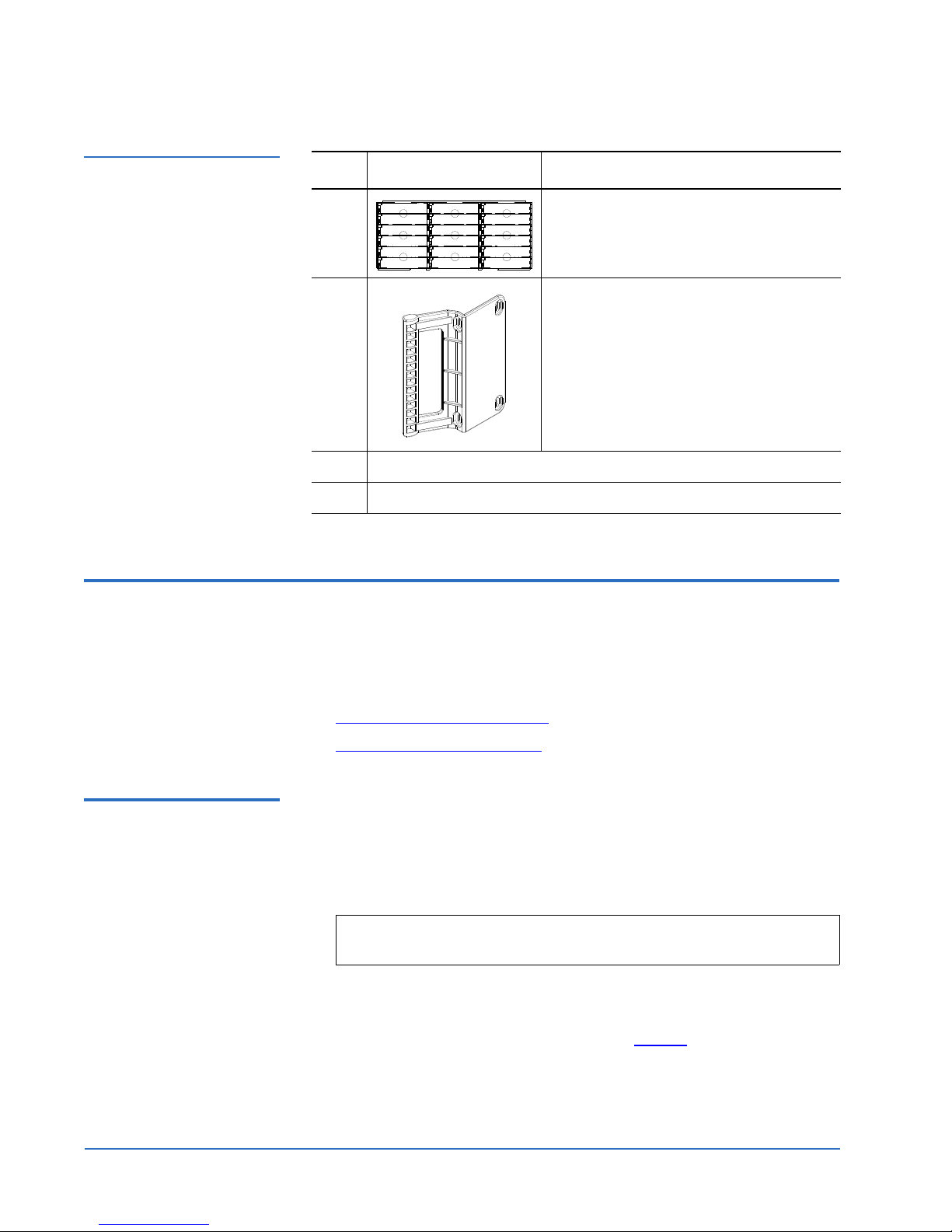

Table 2 LTO Magazine

Upgrade Kit PN

PR-UU9MZ-YF

Magazine Upgrade Procedure 0

The upgrade procedure is identical regardless of the tape cartridge type

supported except where noted. The upgrade procedure consists of the

following major steps:

•Ejecting the Original Magazine

•Installing the New Magazines

Ejecting the Original

Magazine 0

Prior to upgrading the magazines, you must eject the original magazine(s)

from the library. To eject the magazine (s):

1On the front OCP, press the Ops button from the Home screen.

The OCP displays the Operations screen.

2From the Ops screen, use the up and down arrows to highlight Library

Operations and press Enter.

The Library Operations screen displays (see figure 1):

Qty Illustration Description

1LTO Magazine (18 bins)

1Handle

4Flat head Phillips screws (must use with new handles)

1Quantum Scalar 50 Magazine Upgrade Instructions (PN 81-81771)

Note: The library must be off-line to select any option from the

Operations screen.

Quantum Scalar 50 Magazine Upgrade or Exchange Instructions

Document 81-81771-01 A01

June 2007

Magazine Upgrade Procedure 5

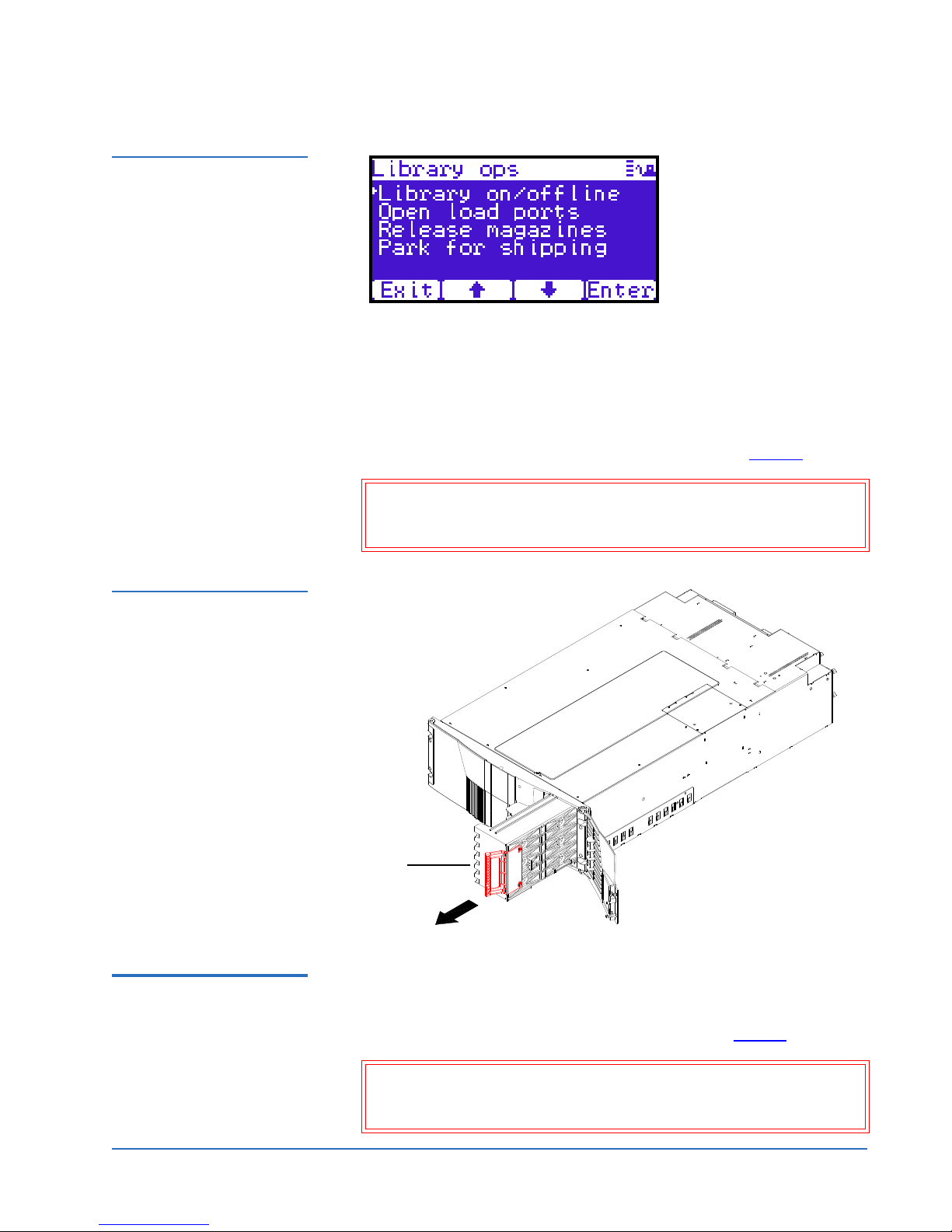

Figure 1 Library

Operations Screen

3Use the up and down arrows to highlight the Release magazines option

and press Enter.

4Use the up and down arrows to highlight the magazine to be removed

(right, left, or all) and press Enter.

The magazine doors open and the magazines are released.

5Pull each magazine being replaced from the library (see figure 2).

Figure 2 Removing the

Original Magazines

Installing the New

Magazines 0

To install the new magazine(s):

1Install the magazine handle on the magazine and secure with four flat

head Phillips screws provided in the upgrade kit (see figure 3).

Warning: Use care when removing a magazine with tape cartridges

installed. The magazine is heavy and will drop when free

of the library.

Caution: You MUST use the flat head Phillips screws provided in

the upgrade kit. If you use the original screws to secure

the new handles, the magazines will be damaged.

Magazine

Rightmagazine

Quantum Scalar 50 Magazine Upgrade or Exchange Instructions

Document 81-81771-01 A01

June 2007

6 Magazine Upgrade Procedure

Figure 3 Installing the

Magazine Handles

2Replace the tape cartridges into the new magazine.

3Insert the new magazine into the library (see figure 4).

Figure 4 Inserting the New

Magazines

4Close the library front doors.

The magazine upgrade procedure is complete.

Note: Insert tape cartridge prior to inserting the magazines entirely

into the library.

Rightmagazine

Leftmagazine

Grooves on top

Handles

Magazine

*81-81771-01 A01*

81-81771-01 A01
