Scalar i40 and Scalar i80:

Power Supply Replacement

The Scalar®i40 contains one power supply. The Scalar i80 can have up to two

power supplies for redundancy purposes.

An unused power supply slot must be covered by a filler plate.

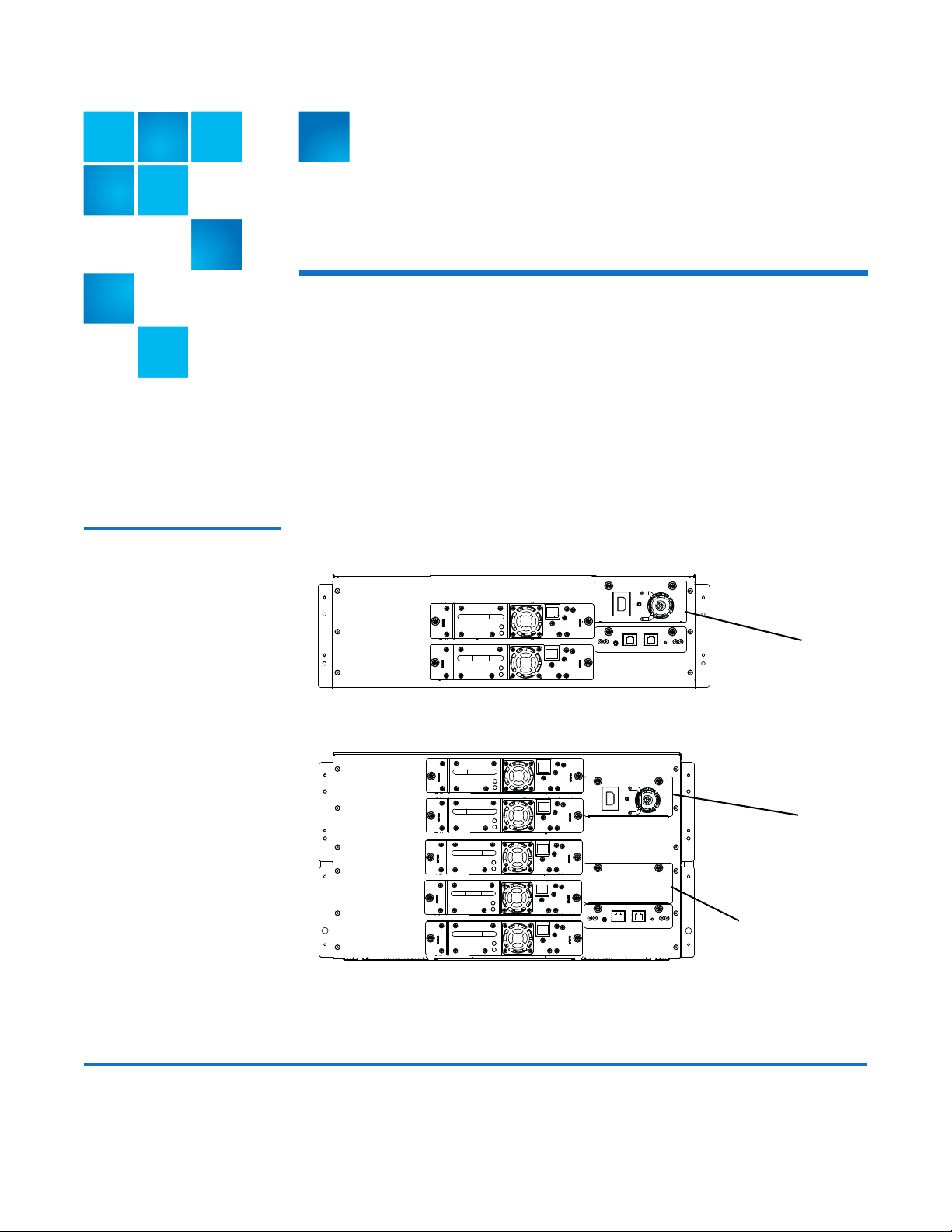

Figure 1 Single Power Supply

System

Scalar i40, single power

supply

Scalar i80, single power

supply installed in top slot

Filler plate covers empty

power supply slot

Quantum Scalar i40 and Scalar i80:Power Supply Replacement

6-66559-02 Rev C

February 2014

2Removing a Power Supply

Figure 2 Redundant Power

Supply System

To replace the power supply, refer to the following sections:

•Removing a Power Supply on page 2

•Replacing a Power Supply on page 3

•Replacing a Power Supply with a Filler Plate on page 4

Removing a Power Supply

These instruction explain how to remove a power supply.

Note: If the library has only one power supply, you must power off the library;

proceed to Step 1.

If the library has a redundant power supply, you can replace the power

supply without powering off the library; proceed to Step 2 on page 3.

1If the library has only one power supply, complete the following steps to

power off the library:

aFrom the Operator panel, select Actions > Shutdown.

bSelect Shutdown Library and confirm.

The shutdown process is displayed on the screen.

cWhen prompted, turn OFF library power by pressing the power button

on the front panel; wait for the Operator panel to turn off.

Scalar i80, dual power

supplies for redundancy

Quantum Scalar i40 and Scalar i80:Power Supply Replacement

6-66559-02 Rev C

February 2014

Replacing a Power Supply 3

2Disconnect the power cord from the power supply.

Caution: If you have two power supplies, determine which one to

remove. Make sure you remove the power supply whose LED is

red or off. Do not remove the power supply whose LED is

green.

Caution: Make sure you disconnect live power from the power supply

before you remove or install it. Otherwise, damage to the

power supply could occur.

3Unscrew the two captive thumbscrews on the power supply.

4Using the handle, slowly pull the power supply straight out of the library.

Replacing a Power Supply

Note: If you have a single power supply in a Scalar i80, Quantum

recommends that you install it in the upper slot, to provide better

temperature control (see Figure 1 on page 1).

1Install the new power supply by pushing it straight into the slot.

You may need to press firmly on the power supply sheet metal at the very

end to plug in the power supply to the connector on the library. You will feel

it snap into place.

The power supply only goes in one way, and should slide in easily. If you

cannot slide it in, you may be trying to install it upside down.

2Tighten the two thumbscrews finger tight.

3Connect the power cord to the power supply.

4Make sure the power cord is plugged in to a grounded AC outlet.

5Check the status of the power supply’s LED:

• If the library has a redundant power supply and has not been powered

off, the LED should turn green immediately to indicate the library is

turned on.

• If the library has one power supply and has been powered off, the

power supply LED should turn amber to indicate it is plugged in but the

library is not turned on.

Note: If the power supply LED is red, the power supply is not working.

Contact Quantum Support.

6If the library has one power supply and you turned the power off using the

power button on the front panel, press the power button ON and check the

Quantum Scalar i40 and Scalar i80:Power Supply Replacement

6-66559-02 Rev C

February 2014

4Replacing a Power Supply with a Filler Plate

status of the power supply’s LED: the power supply LED should turn green

immediately to indicate the library is turned on.

Replacing a Power Supply with a Filler Plate

These instructions explain how to replace a power supply with a filler plate.

Note: On the Scalar i80, if you are using only one power supply, you should

install the power supply in the upper slot, and cover the lower slot with

a filler plate (see Figure 1 on page 1).

1Hold the filler plate with the thumbscrews at the top.

2Insert the bottom edge of the filler plate into the slot, engaging the bottom

edge of the filler plate into the bottom of the slot.

3Pivot the filler plate up to fit securely in the hole.

4Tighten the thumbscrews.
